AC Axial Fan — series representative image for LWAA6D910S-5MEB-03

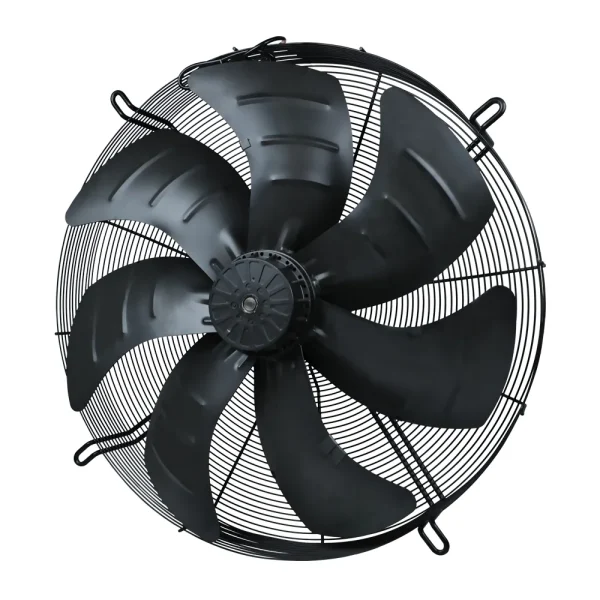

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ910 mm35.8 in
Max airflow26,780 m³/h15,762 CFM
Voltage380 V
Speed920 rpm
Input power2,450 W3.28 hp

LWAA6D910S-5MEB-03 AC Axial Fan Ø910 mm

Ø910 mm | AC | Max airflow 26,780 m³/h

SKU: LWAA6D910S-5MEB-03 Categories: AC Axial Fans, Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWAA6D910S-5MEB-036 files · direct download

PNGDimensional drawing PNGPerformance curve PNGWiring diagram PDFDrawing DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Heat exchangers & condensers Refrigeration Condensing units Refrigeration condensers All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAA6D910S-5MEB-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAA6D910S-5MEB-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAA6D910S-5MEB-03

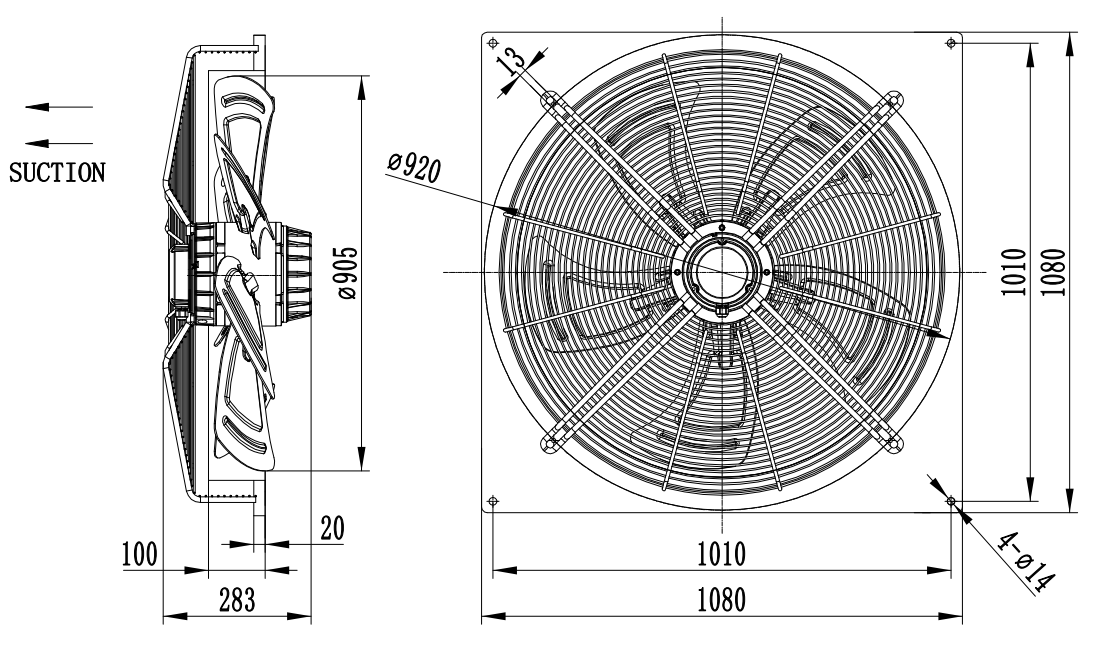

LWAA6D910S-5MEB-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

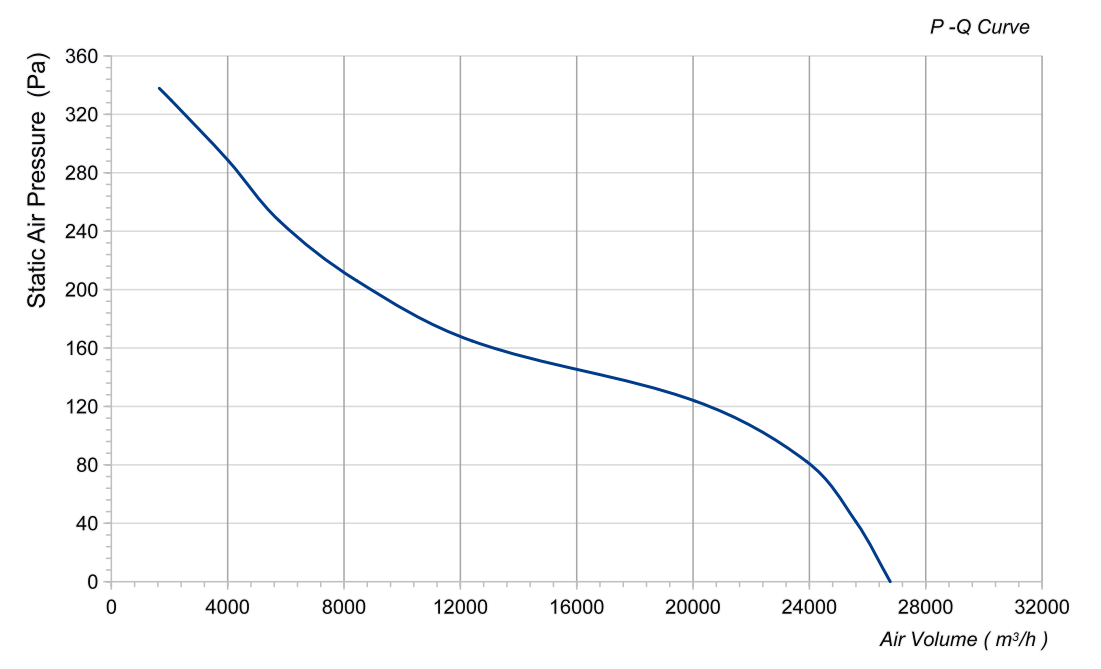

LWAA6D910S-5MEB-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

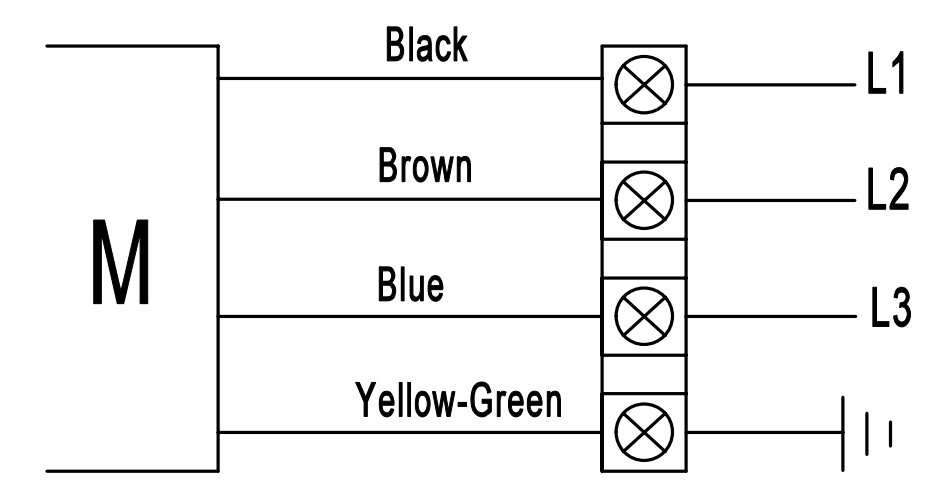

LWAA6D910S-5MEB-03 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAA6D910S-5MEB-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAA6D910S-5MEB-03

LWAA6D910S-5MEB-03 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø910 mm, rated 380 V AC, maximum airflow 26,780 m³/h, input power 2,450 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA6D910S-5MEB-03
Series	LWAA6D910
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	4.7 A
Input power	2,450 W
Speed	920 rpm
Max. airflow	26,780 m³/h
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø910 mm
Impeller material	Cold rolled steel
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA6D910: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
