Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ125 mm
- Max airflow293 m³/h
- Max static pressure137 Pa
- Voltage115 V
- Speed1,950 rpm
- Input power29 W
- Noise30 dB(A)
LWDA-125(5″)U-PWN-09 AC Plastic Inline Duct Fan Ø125 mm
Ø125 mm | AC | Max airflow 293 m³/h | Max static pressure 137 Pa | 30 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.

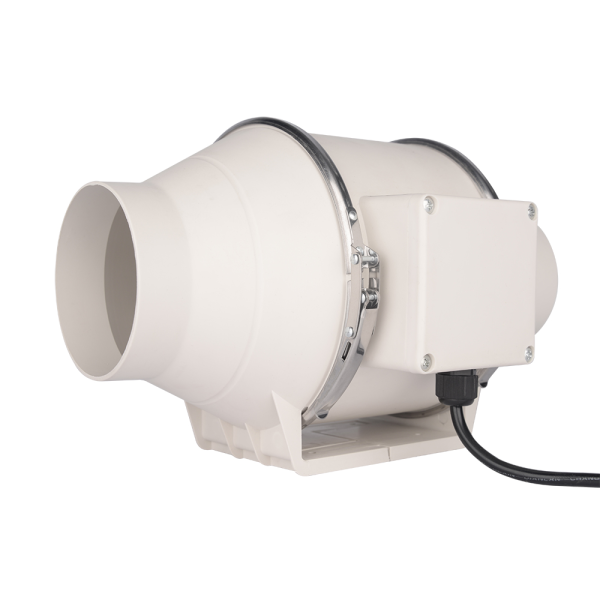

LWDA-125(5")U-PWN-09 is a LONGWELL AC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø125 mm, rated 115 V AC, maximum airflow 293 m³/h, maximum static pressure 137 Pa, noise 30 dB(A), input power 29 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWDA-125(5")U-PWN-09 |
|---|---|
| Series | LWDA125 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 115 V |
| Frequency | 60 Hz |
| Current | 0.24 A |
| Input power | 29 W |
| Speed | 1,950 rpm |
| Max. airflow | 293 m³/h |
| Max. static pressure | 137 Pa |
| Noise | 30 dB(A) |
| Impeller diameter | Ø125 mm |
| Inlet diameter | 125mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDA125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø125 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

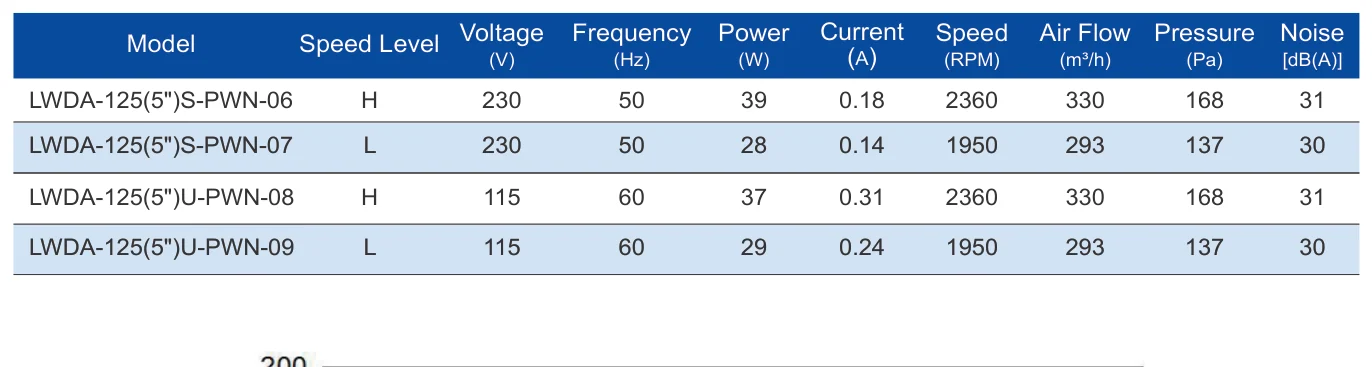

| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDA-125(5")U-PWN-09 this model | 293 m³/h | 137 Pa | 1,950 rpm | 29 W | 30 dB(A) | 115 V | |
| LWDA-125(5")S-PWN-07 | 293 m³/h | 137 Pa | 1,950 rpm | 28 W | 30 dB(A) | 230 V | View |
| LWDA-125S-MBN-10 | 294 m³/h | 326 Pa | 2,350 rpm | 52 W | 60 dB(A) | 230 V | View |
| LWDA-125S-PWN-11 | 319 m³/h | 185 Pa | 2,550 rpm | 40 W | 25 dB(A) | 230 V | View |
| LWDA-125(5")U-PWN-08 | 330 m³/h | 168 Pa | 2,360 rpm | 37 W | 31 dB(A) | 115 V | View |
| LWDA-125(5")S-PWN-06 | 330 m³/h | 168 Pa | 2,360 rpm | 39 W | 31 dB(A) | 230 V | View |
| LWDA-125 (5")U-PWN-01 | 410 m³/h | see curve | 3,350 rpm | 41 W | 52 dB(A) | 110-120 V | View |
| LWDA-125 (5")U-MWN-03 | 410 m³/h | see curve | 3,350 rpm | 41 W | 51 dB(A) | 110-120 V | View |
| LWDA-125 (5")S-PWN-02 | 605 m³/h | 168 Pa | 2,900 rpm | 41 W | 51 dB(A) | 220-240 V | View |
| LWDA-125 (5")S-MWN-04 | 605 m³/h | see curve | 2,900 rpm | 41 W | 49 dB(A) | 220-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
