Downloads for LWAA2E200S-7MKW-08
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ200 mm
- Max airflow1,009 m³/h
- Voltage230 V
- Speed2,800 rpm
- Input power75 W
- Noise60 dB(A)

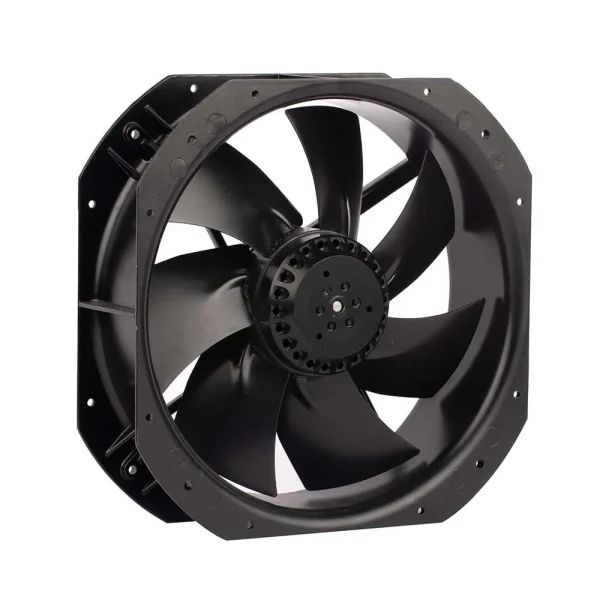

LWAA2E200S-7MKW-08 AC Axial Fan Ø200 mm
Ø200 mm | AC | Max airflow 1,009 m³/h | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAA2E200S-7MKW-08 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø200 mm, rated 230 V AC, maximum airflow 1,009 m³/h, noise 60 dB(A), input power 75 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA2E200S-7MKW-08 |
|---|---|
| Series | LWAA2E200 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 230 V |
| Voltage range | 198 ~ 242 V |
| Frequency | 60 Hz |
| Current | 0.34 A |
| Input power | 75 W |
| Speed | 2,800 rpm |
| Max. airflow | 1,009 m³/h |
| Noise | 60 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA2E200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

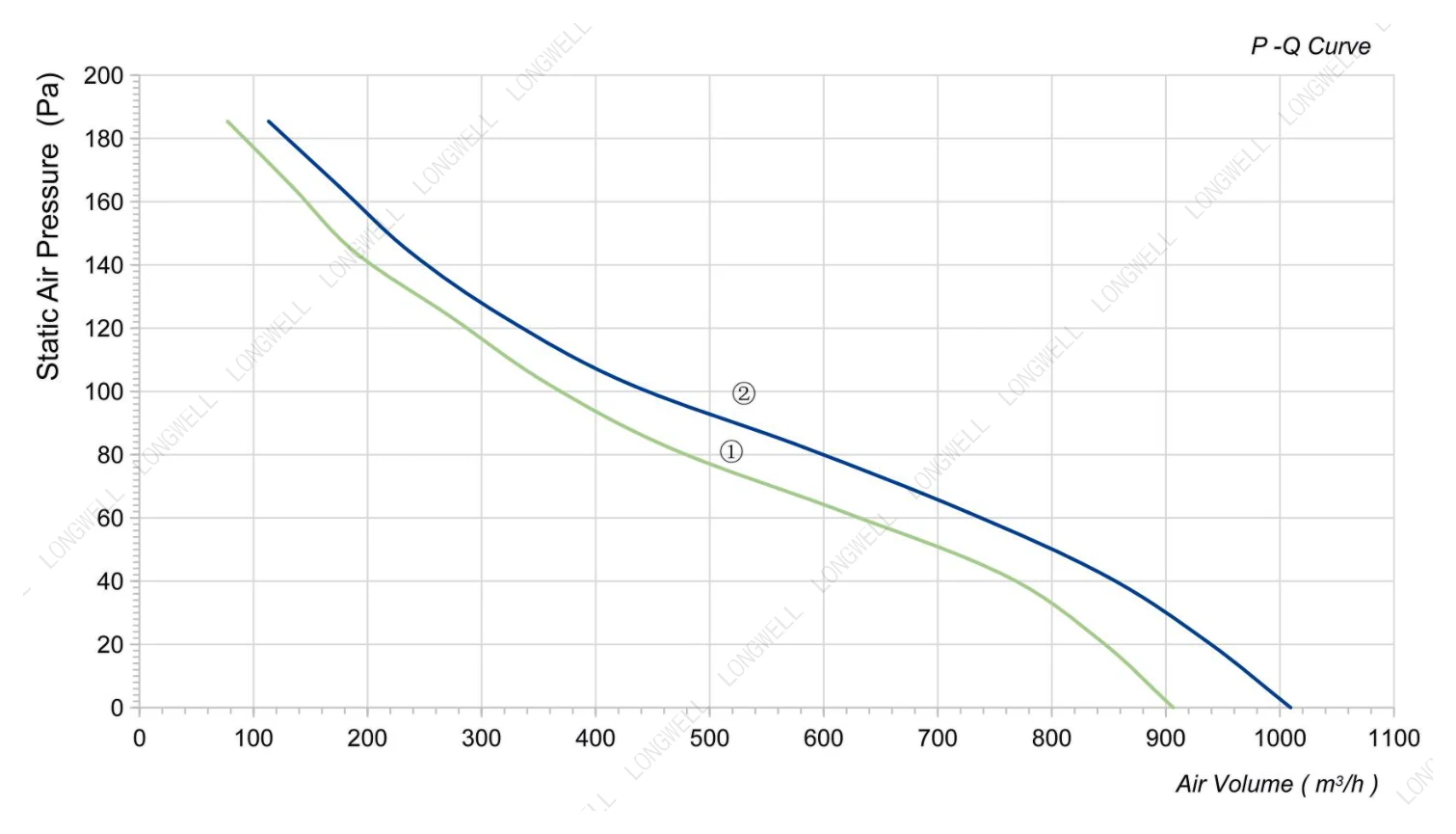

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA2E200S-7MKW-08 this model | 1,009 m³/h | see curve | 2,800 rpm | 75 W | 60 dB(A) | 230 V | |
| LWA-200(8")U(S)M-01 | 23 m³/h | see curve | 2,800 rpm | 135 W | — | 110-120 V | View |
| LWDA-200 (8")U-MWN-01 | 720 m³/h | see curve | 3,400 rpm | 179 W | 65 dB(A) | 110-120 V | View |
| LWDA-200 (8")U-MWN-03 | 720 m³/h | see curve | 3,400 rpm | 179 W | 61 dB(A) | 110-120 V | View |
| LWDA-200(8")S-PWN-10 | 735 m³/h | 303 Pa | 1,650 rpm | 113 W | 38 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-12 | 750 m³/h | 302 Pa | 1,950 rpm | 128 W | 38 dB(A) | 115 V | View |
| LWDA-200(8")S-PWN-09 | 910 m³/h | 384 Pa | 2,300 rpm | 130 W | 40 dB(A) | 230 V | View |
| LWDA-200S-MBN-13 | 987 m³/h | 515 Pa | 2,540 rpm | 176 W | 70 dB(A) | 230 V | View |
| LWFA-E-200-01 | 1,000 m³/h | 305 Pa | — | — | 58 dB(A) | — | View |
| LWDA-200 (8")S-MWN-02 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 59 dB(A) | 220-240 V | View |
| LWDA-200 (8")S-MWN-04 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 57 dB(A) | 220-240 V | View |
| LWDA-200S-PWN-14 | 1,236 m³/h | 391 Pa | 2,500 rpm | 130 W | 29 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-11 | 1,250 m³/h | 435 Pa | 2,480 rpm | 182 W | 41 dB(A) | 115 V | View |
| LWA-200(8")U(S)M-02 | 1,300 m³/h | 140 Pa | 2,800 rpm | 120 W | — | 110-120 V | View |
| LWDA-200(8")S-MWN-08 | 1,300 m³/h | 140 Pa | 2,800 rpm | 80 W | 62 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
