ImpellerØ200 mm7.9 in
Max airflow23 m³/h14 CFM
Voltage110-120 V
Speed2,800 rpm
Input power135 W

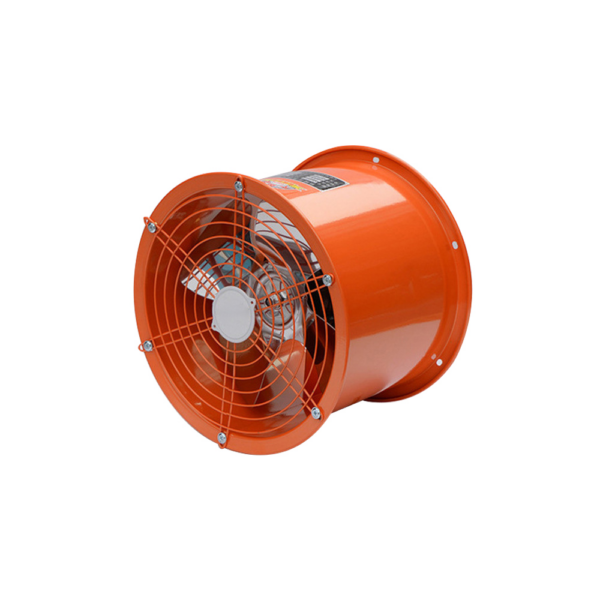

LWA-200(8″)U(S)M-01 Tube Axial Fan Ø200 mm

Ø200 mm | AC | Max airflow 23 m³/h

SKU: LWA-200(8")U(S)M-01 Categories: Axial Fans, Impeller Ø200–350 mm, Tube Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWA-200(8")U(S)M-01files in preparation

Another format or a non-standard variant? Ask an engineer · download center

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWA-200(8")U(S)M-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWA-200(8")U(S)M-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Technical description LWA-200(8")U(S)M-01

LWA-200(8")U(S)M-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø200 mm, rated 110-120 V AC, maximum airflow 23 m³/h, input power 135 W.

Technical data

Model	LWA-200(8")U(S)M-01
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	135 W
Speed	2,800 rpm
Max. airflow	23 m³/h
Impeller diameter	Ø200 mm
Blade diameter	200mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWA-200(8")U(S)M-01

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø200 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-200(8")U(S)M-01 this model	23 m³/h	see curve	2,800 rpm	135 W	—	110-120 V
LWAA4E200S-5MEW-19	464 m³/h	see curve	1,370 rpm	50 W	50 dB(A)	220 V	View
LWAA2D200S-7MKW-09	906 m³/h	see curve	2,300 rpm	65 W	58 dB(A)	380/400 V	View
LWAA2E200S-7MKW-07	906 m³/h	see curve	2,250 rpm	60 W	58 dB(A)	230 V	View
LWAA2E200S-7MEB-03	906 m³/h	see curve	2,300 rpm	65 W	53 dB(A)	380/400 V	View
LWAA2D200S-7MNW-01	906 m³/h	see curve	2,300 rpm	65 W	53 dB(A)	380 V	View
LWAA2D200S-7MEB-05	906 m³/h	see curve	2,300 rpm	65 W	53 dB(A)	380 V	View
LWAA2D200S-7MKW-10	1,009 m³/h	see curve	2,400 rpm	70 W	60 dB(A)	380/400 V	View
LWAA2E200S-7MKW-08	1,009 m³/h	see curve	2,800 rpm	75 W	60 dB(A)	230 V	View
LWAA2E200S-7MEB-04	1,009 m³/h	see curve	2,600 rpm	80 W	55 dB(A)	230 V	View
LWAA2D200S-7MNW-02	1,009 m³/h	see curve	2,600 rpm	80 W	55 dB(A)	380 V	View
LWAA2D200S-7MEB-06	1,009 m³/h	see curve	2,400 rpm	70 W	55 dB(A)	380 V	View
LWA-200(8")U(S)M-02	1,300 m³/h	140 Pa	2,800 rpm	120 W	—	110-120 V	View
