- ImpellerØ200 mm7.9 in
- Max airflow464 m³/h273 CFM
- Voltage220 V
- Speed1,370 rpm
- Input power50 W
- Noise50 dB(A)

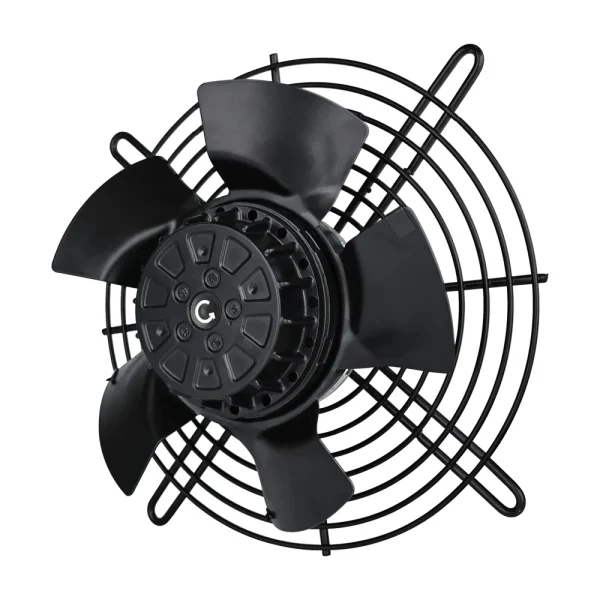

LWAA4E200S-5MEW-19 AC Axial Fan Ø200 mm
Ø200 mm | AC | Max airflow 464 m³/h | 50 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Video LWAA4E200S-5MEW-19
LWAA4E200S-5MEW-19 — construction, airflow path and running condition.

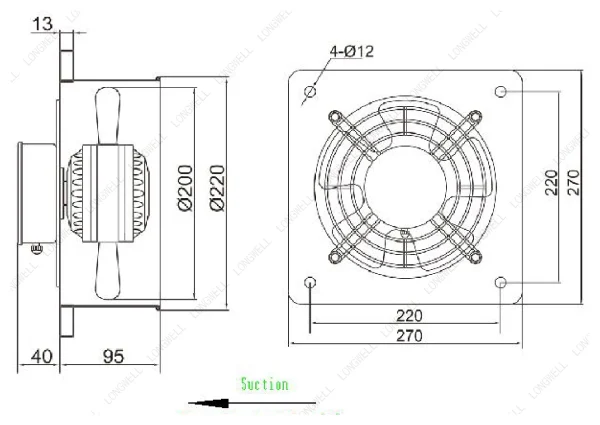

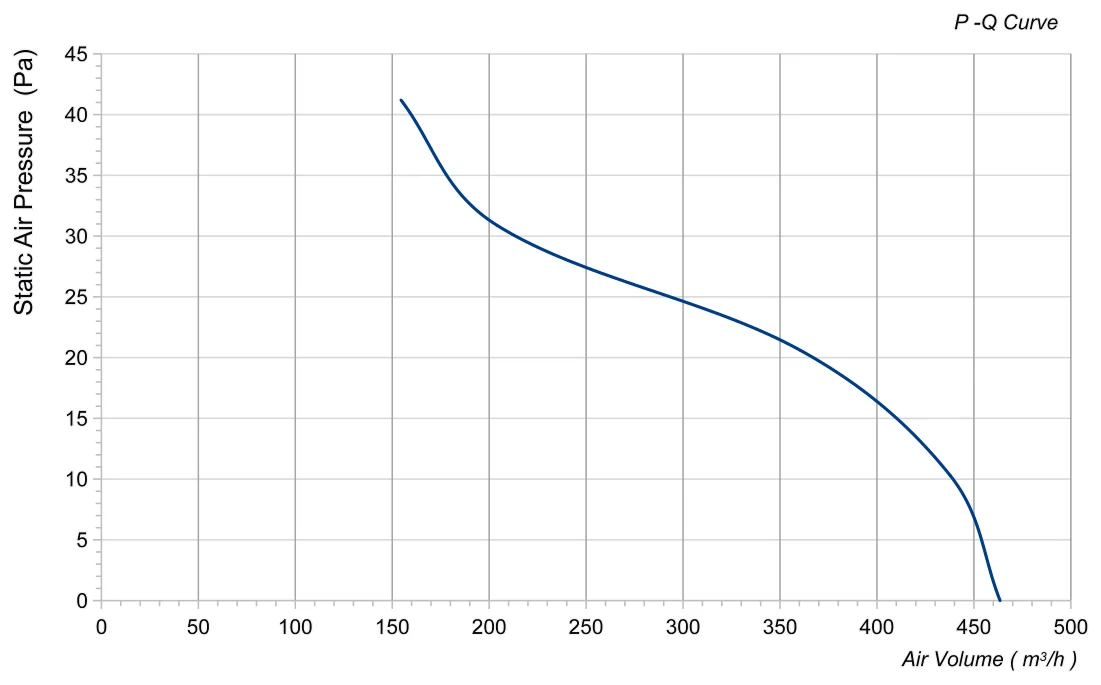

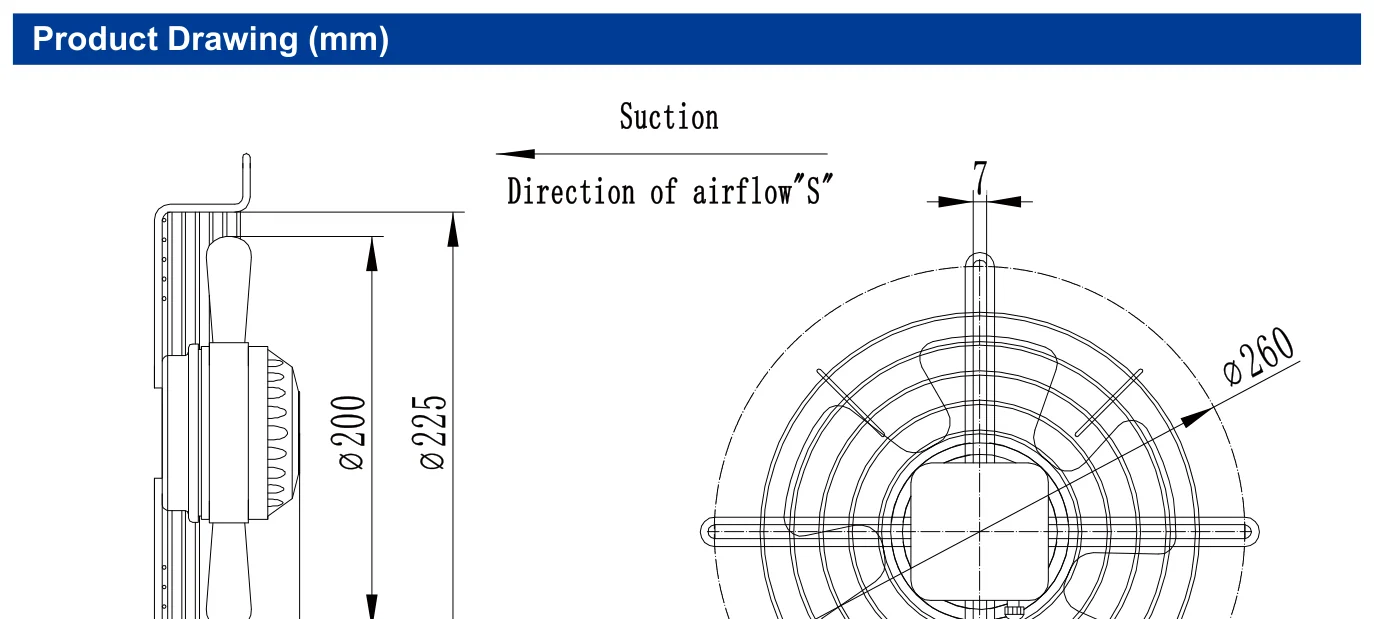

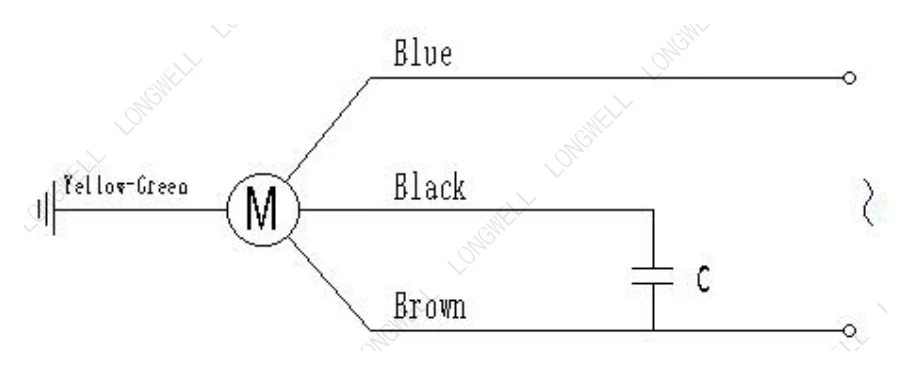

Drawing, Curve & Wiring LWAA4E200S-5MEW-19
Files for LWAA4E200S-5MEW-19: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAA4E200S-5MEW-19
LWAA4E200S-5MEW-19 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø200 mm, rated 220 V AC, maximum airflow 464 m³/h, noise 50 dB(A), input power 50 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4E200S-5MEW-19 |
|---|---|
| Series | LWAA4E200 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Current | 0.21 A |
| Input power | 50 W |
| Speed | 1,370 rpm |
| Max. airflow | 464 m³/h |
| Noise | 50 dB(A) |
| Ambient temperature | -40 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 20 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4E200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWAA4E200S-5MEW-19
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø200 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4E200S-5MEW-19 this model | 464 m³/h | see curve | 1,370 rpm | 50 W | 50 dB(A) | 220 V | |
| LWA-200(8")U(S)M-01 | 23 m³/h | see curve | 2,800 rpm | 135 W | — | 110-120 V | View |
| LWAA2D200S-7MKW-09 | 906 m³/h | see curve | 2,300 rpm | 65 W | 58 dB(A) | 380/400 V | View |
| LWAA2E200S-7MKW-07 | 906 m³/h | see curve | 2,250 rpm | 60 W | 58 dB(A) | 230 V | View |
| LWAA2E200S-7MEB-03 | 906 m³/h | see curve | 2,300 rpm | 65 W | 53 dB(A) | 380/400 V | View |
| LWAA2D200S-7MNW-01 | 906 m³/h | see curve | 2,300 rpm | 65 W | 53 dB(A) | 380 V | View |
| LWAA2D200S-7MEB-05 | 906 m³/h | see curve | 2,300 rpm | 65 W | 53 dB(A) | 380 V | View |
| LWAA2D200S-7MKW-10 | 1,009 m³/h | see curve | 2,400 rpm | 70 W | 60 dB(A) | 380/400 V | View |
| LWAA2E200S-7MKW-08 | 1,009 m³/h | see curve | 2,800 rpm | 75 W | 60 dB(A) | 230 V | View |
| LWAA2E200S-7MEB-04 | 1,009 m³/h | see curve | 2,600 rpm | 80 W | 55 dB(A) | 230 V | View |
| LWAA2D200S-7MNW-02 | 1,009 m³/h | see curve | 2,600 rpm | 80 W | 55 dB(A) | 380 V | View |
| LWAA2D200S-7MEB-06 | 1,009 m³/h | see curve | 2,400 rpm | 70 W | 55 dB(A) | 380 V | View |
| LWA-200(8")U(S)M-02 | 1,300 m³/h | 140 Pa | 2,800 rpm | 120 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
