Downloads for LWAA4D295S-5PNW-04
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ295 mm
- Max airflow2,009 m³/h
- Voltage380 V
- Speed1,450 rpm
- Input power90 W
- Noise50 dB(A)

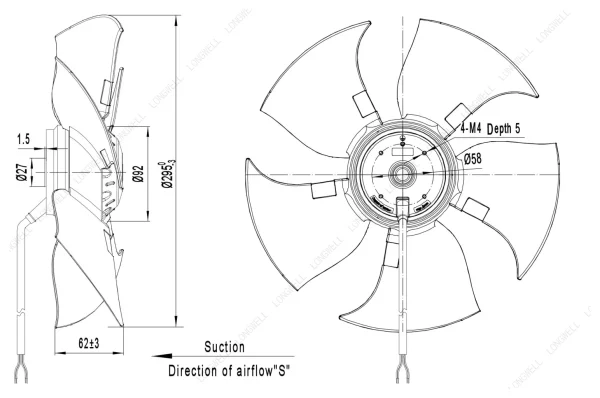

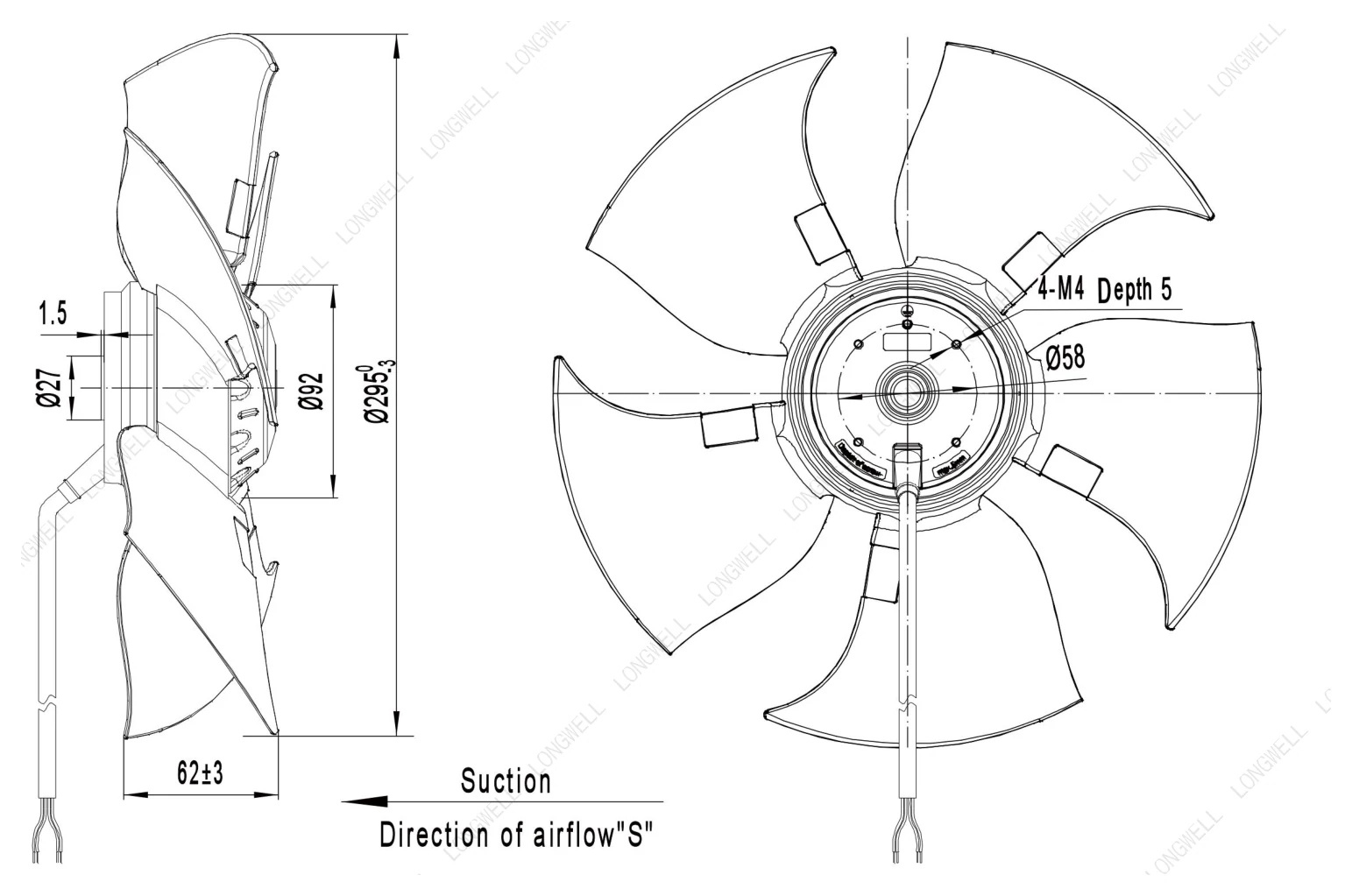

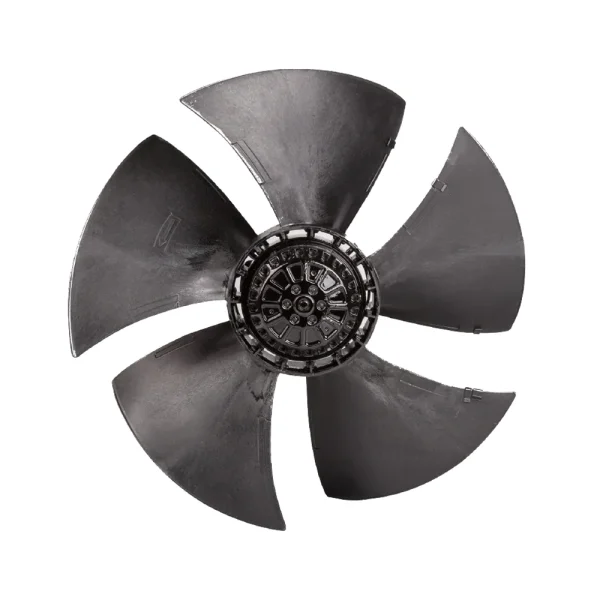

LWAA4D295S-5PNW-04 AC Axial Fan Ø295 mm
Ø295 mm | AC | Max airflow 2,009 m³/h | 50 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAA4D295S-5PNW-04 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø295 mm, rated 380 V AC, maximum airflow 2,009 m³/h, noise 50 dB(A), input power 90 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D295S-5PNW-04 |
|---|---|
| Series | LWAA4D295 |
| Motor type | AC |

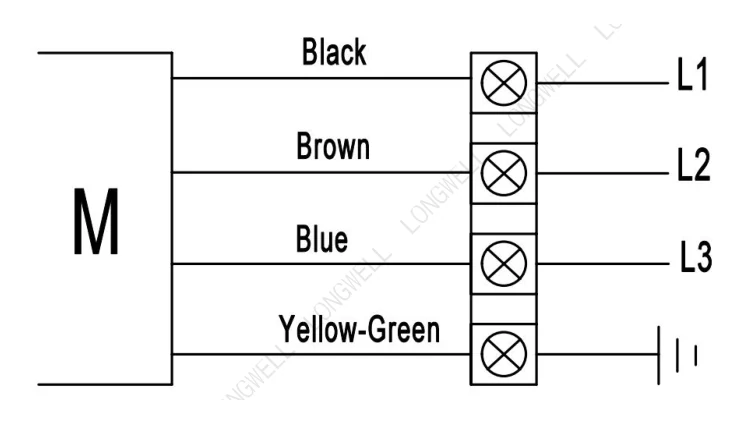

| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 60 Hz |
| Current | 0.17 A |
| Input power | 90 W |
| Speed | 1,450 rpm |
| Max. airflow | 2,009 m³/h |
| Noise | 50 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø295 mm |
| Impeller material | Plastic PA66+GF ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D295: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

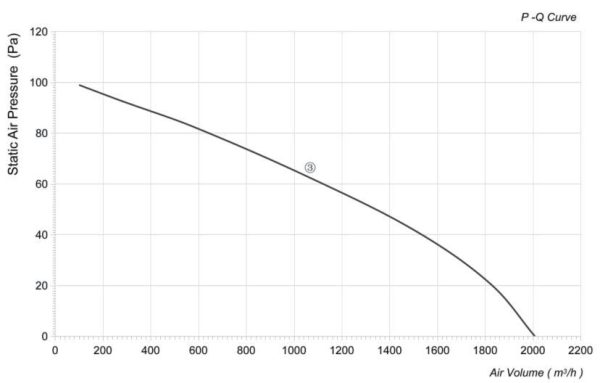

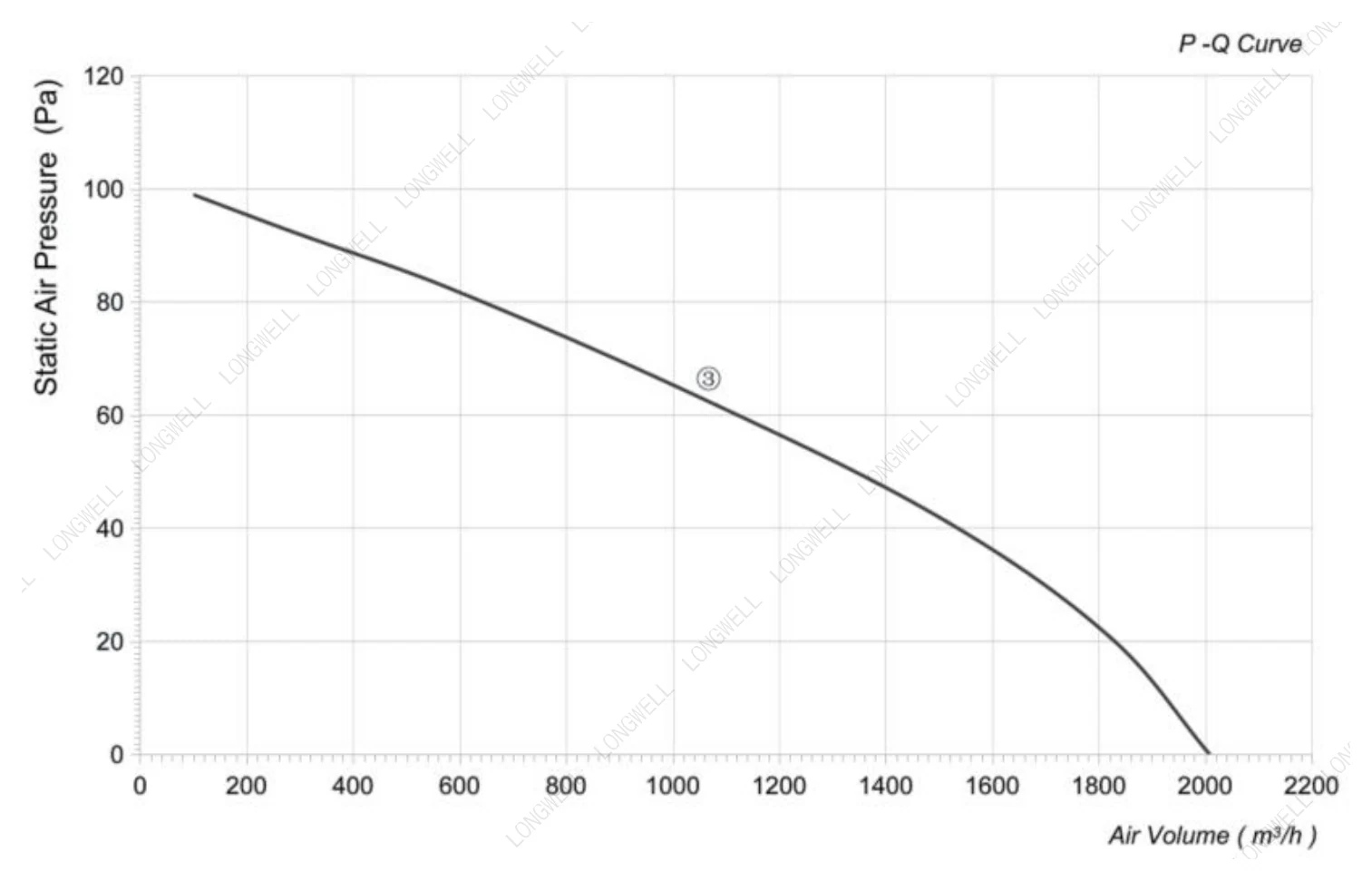

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø295 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D295S-5PNW-04 this model | 2,009 m³/h | see curve | 1,450 rpm | 90 W | 50 dB(A) | 380 V | |
| LWAA4E295S-5PNW-01 | 1,545 m³/h | see curve | 1,200 rpm | 65 W | 45 dB(A) | 220/230 V | View |

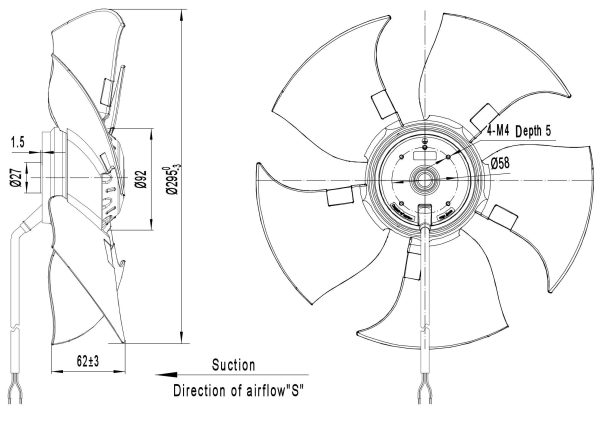

| LWAA4E295S-5PNW-02 | 1,597 m³/h | see curve | 1,400 rpm | 80 W | 48 dB(A) | 220/230 V | View |
| LWAA4D295S-5PNW-03 | 1,803 m³/h | see curve | 1,330 rpm | 75 W | 49 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
