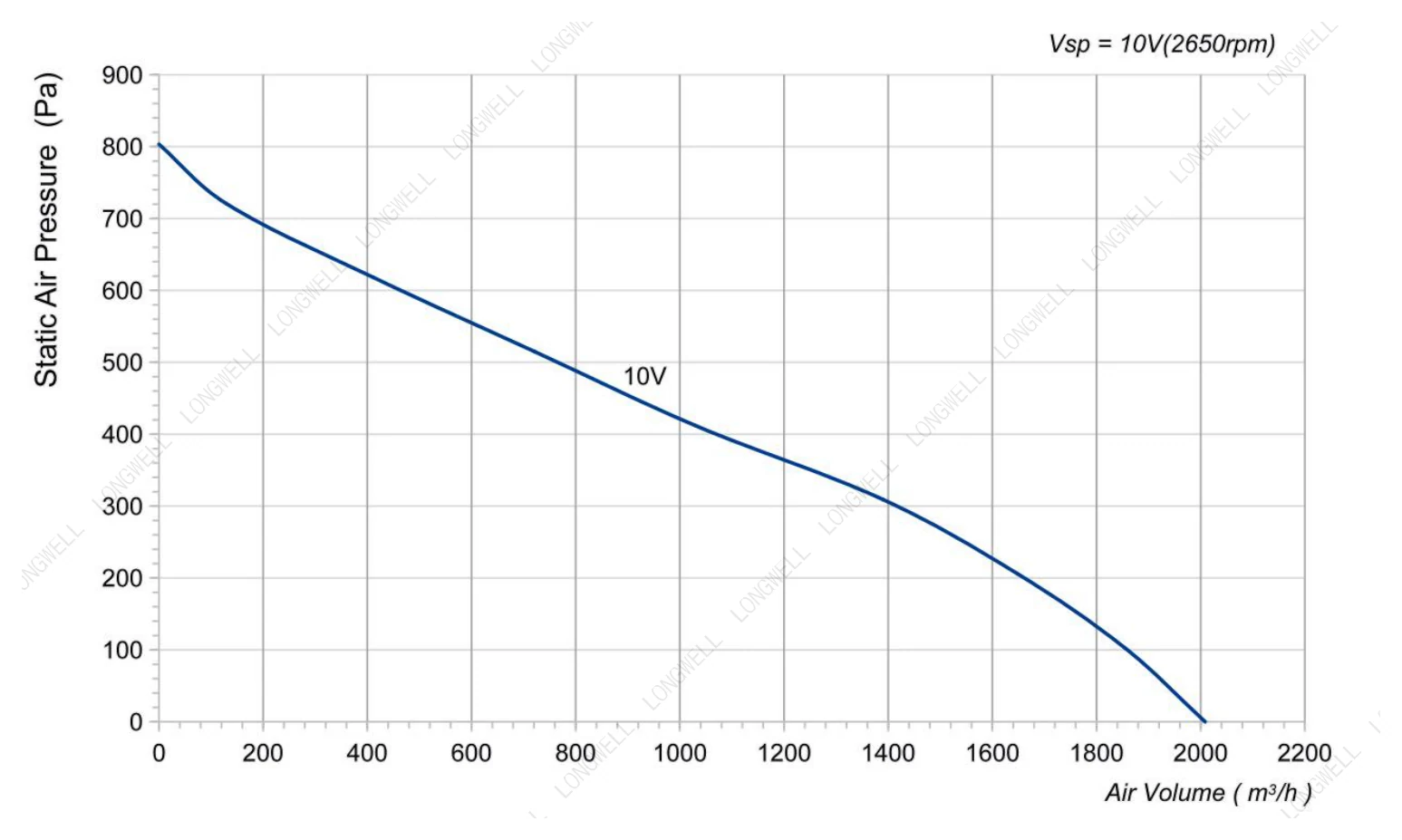

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ280 mm
- Max airflow2,008.5 m³/h
- Max static pressure803.4 Pa
- Voltage230 V
- Speed2,650 rpm
- Input power225 W
- Noise70 dB(A)

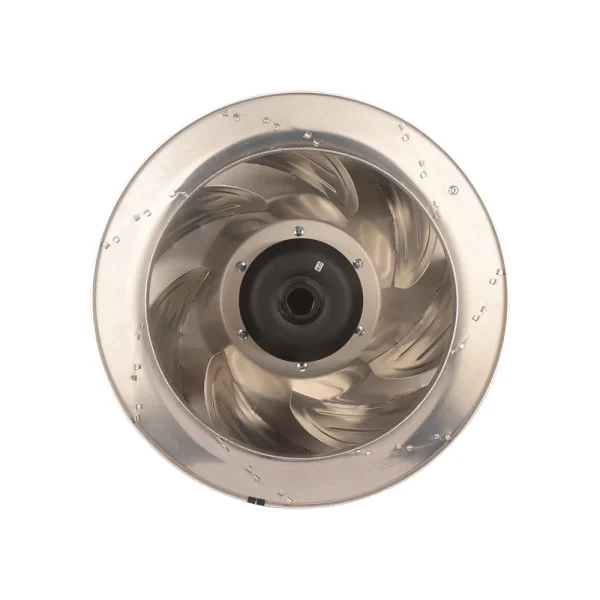

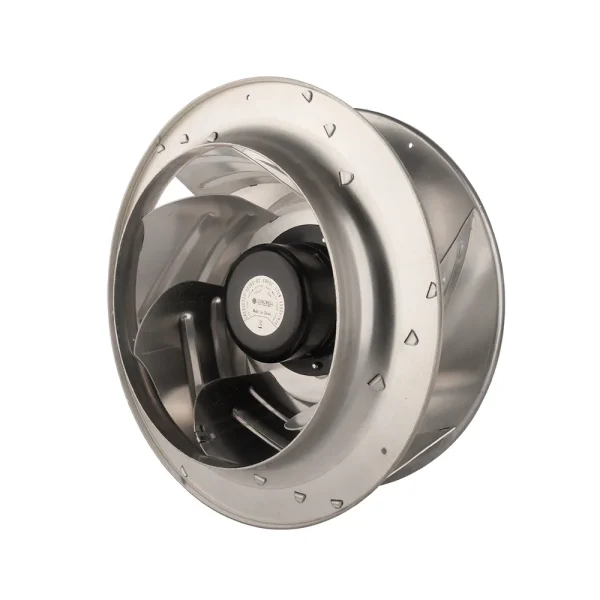

LWBE3G280-092NS-11 EC Backward Curved Centrifugal Fan Ø280 mm
Ø280 mm | EC | Max airflow 2,008.5 m³/h | Max static pressure 803.4 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

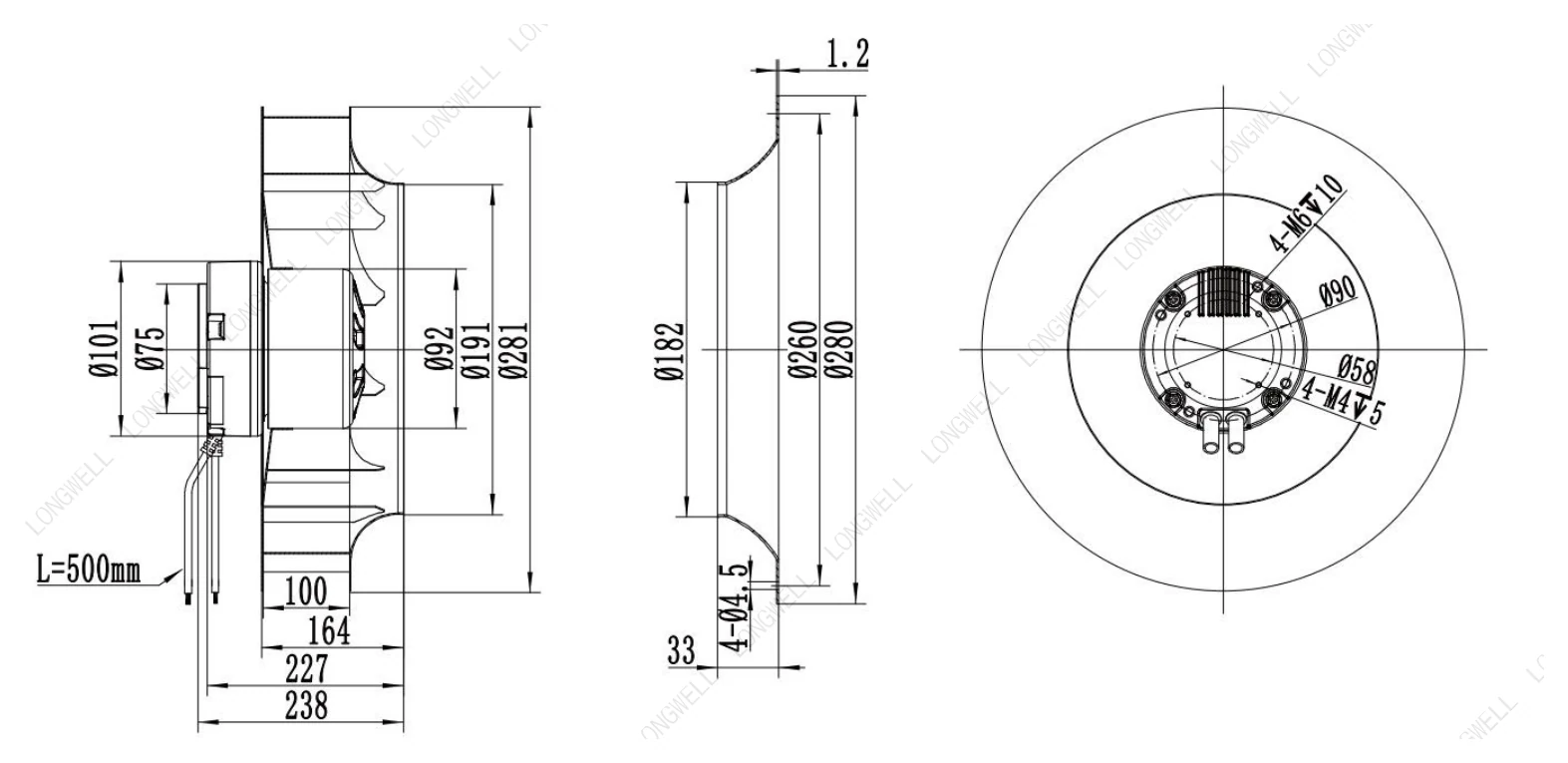

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBE3G280-092NS-11
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

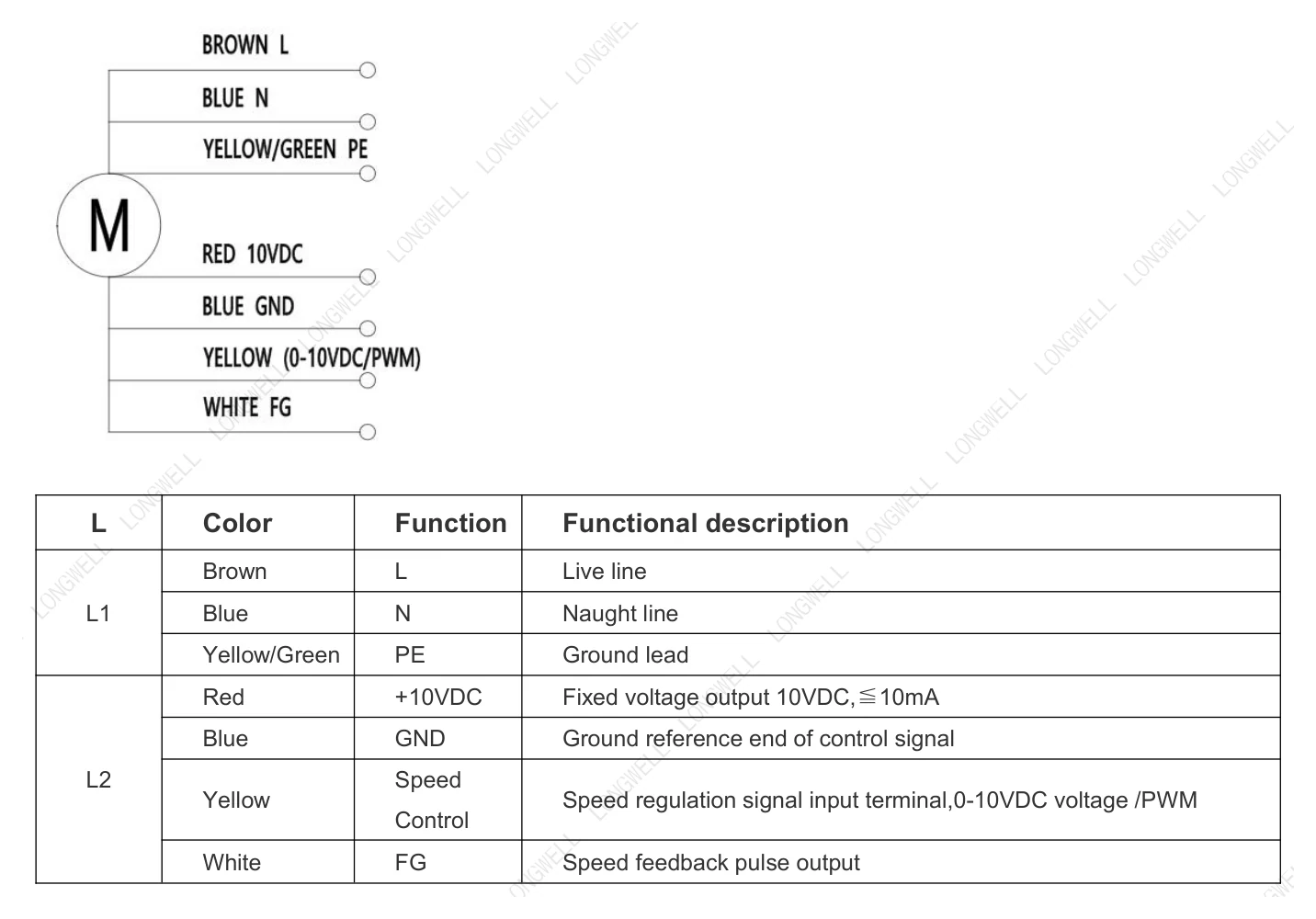

LWBE3G280-092NS-11 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø280 mm, rated 230 V EC, maximum airflow 2,008.5 m³/h, maximum static pressure 803.4 Pa, noise 70 dB(A), input power 225 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G280-092NS-11 |
|---|---|
| Series | LWBE3G280 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.6 A |
| Input power | 225 W |
| Speed | 2,650 rpm |
| Max. airflow | 2,008.5 m³/h |
| Max. airflow (CFM) | 1,182 CFM |
| Max. static pressure | 803.4 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø280 mm |
| Rotor diameter | 92 |
| Impeller material | Aluminum Alloy ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø280 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G280-092NS-11 this model | 2,008.5 m³/h | 803.4 Pa | 2,650 rpm | 225 W | 70 dB(A) | 230 V | |
| LWBE3G280-092PS-14 | 1,743 m³/h | 481 Pa | 2,200 rpm | 105 W | 69 dB(A) | 230 V | View |
| LWBE3G280-092PS-15 | 1,813 m³/h | 680 Pa | 2,600 rpm | 165 W | 74 dB(A) | 230 V | View |
| LWFE3G280-092PS-03 | 2,008.5 m³/h | 803.4 Pa | 2,650 rpm | 225 W | 70 dB(A) | 230 V | View |
| LWBE3G280-092PS-13 | 2,019 m³/h | 546 Pa | 2,200 rpm | 180 W | 72 dB(A) | 230 V | View |
| LWFE3G280-072PS-01 | 2,317.5 m³/h | 556.2 Pa | 1,910 rpm | 170 W | 73 dB(A) | 230 V | View |
| LWBE3G280-102PS-16 | 2,318 m³/h | 824 Pa | 2,760 rpm | 340 W | 78 dB(A) | 230 V | View |
| LWBE3G280-102PS-18 | 2,472 m³/h | 1,051 Pa | 3,100 rpm | 475 W | 82 dB(A) | 230 V | View |
| LWBE3G280-138PT-05 | 3,028 m³/h | 886 Pa | 3,000 rpm | 860 W | 85 dB(A) | 400 V | View |
| LWBE3G280-102PS-19 | 3,039 m³/h | 1,102 Pa | 3,000 rpm | 625 W | 82 dB(A) | 230 V | View |
| LWFE3G280-102PS-07 | 3,193 m³/h | 1,442 Pa | 3,000 rpm | 500 W | 75 dB(A) | 230 V | View |
| LWBE3G280-138PT-06 | 3,790 m³/h | 1,421 Pa | 3,500 rpm | 1,355 W | 89 dB(A) | 400 V | View |
| LWBE3G280-138NT-18 | 3,790 m³/h | 1,421 Pa | 3,500 rpm | 1,355 W | 89 dB(A) | 400 V | View |
| LWFE3G280-102PS-04 | 3,862.5 m³/h | 1,658 Pa | 3,270 rpm | 700 W | 85 dB(A) | 230 V | View |
| LWFE3G280-102PT-08 | 4,377.5 m³/h | 1,751 Pa | 3,370 rpm | 1,100 W | 78 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
