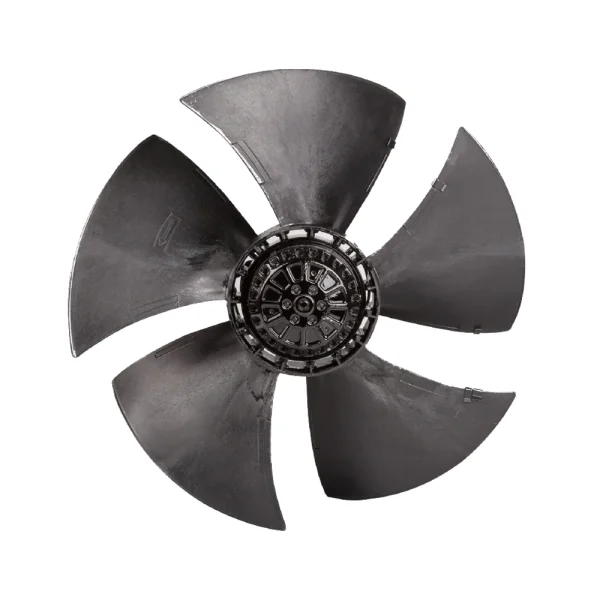

LWAA4E295S-5PNW-01 AC Axial Fan Ø295 mm

Ø295 mm | AC | Max airflow 1,545 m³/h | 45 dB(A)

SKU: LWAA4E295S-5PNW-01 Categories: AC Axial Fans, Axial Fans, Impeller Ø295–450 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAA4E295S-5PNW-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAA4E295S-5PNW-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

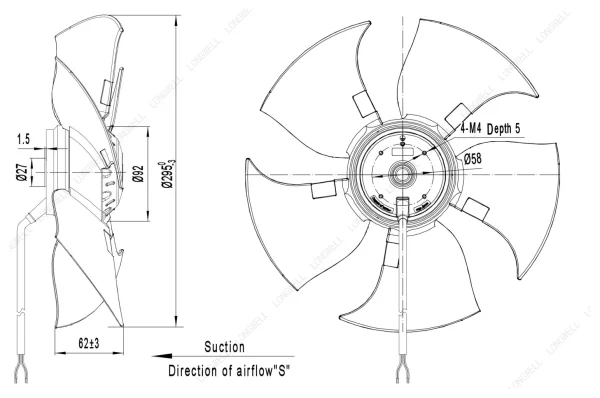

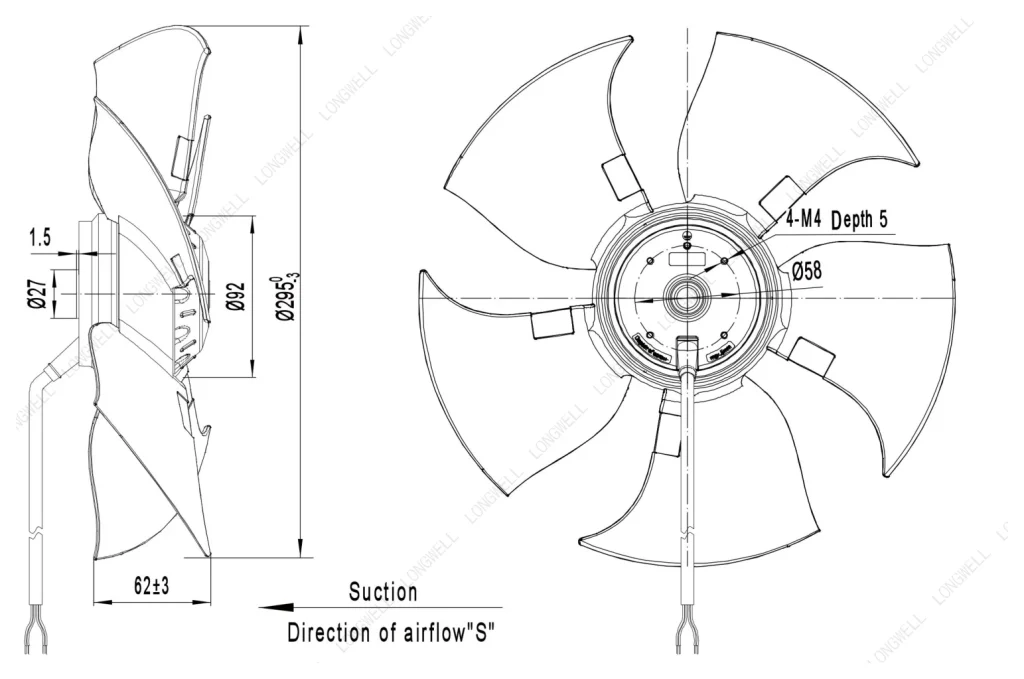

LWAA4E295S-5PNW-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

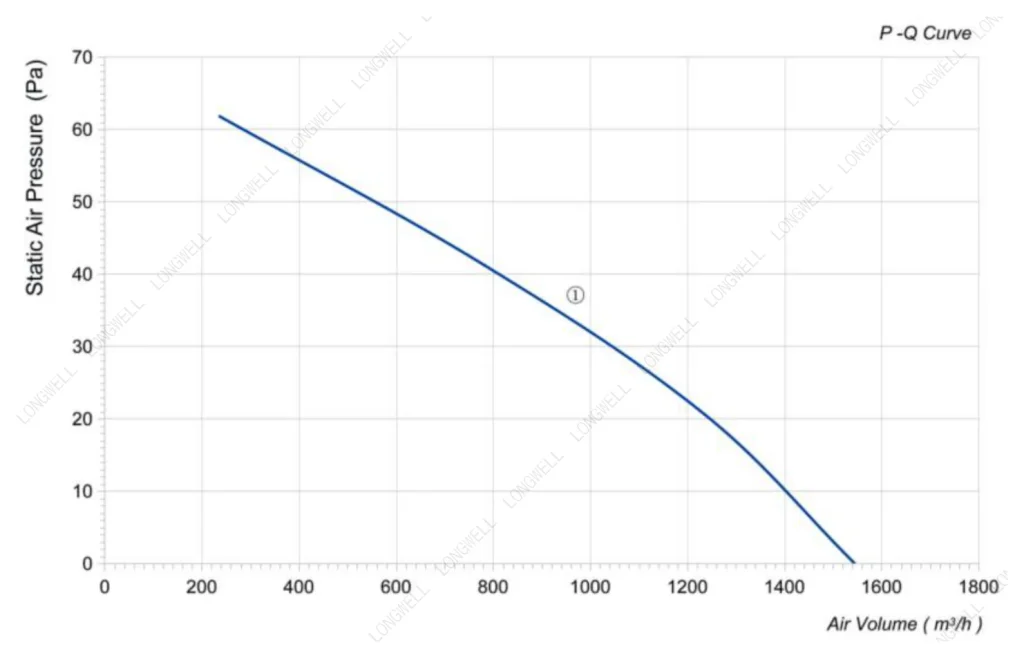

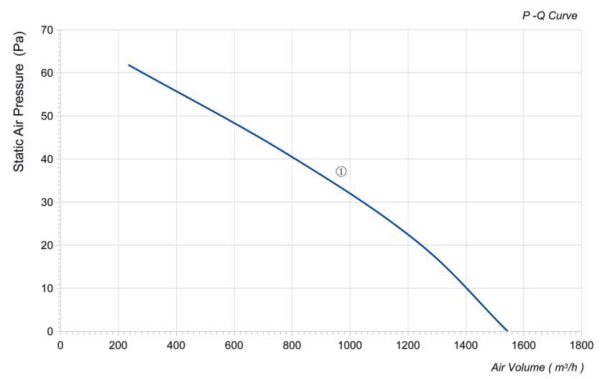

LWAA4E295S-5PNW-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA4E295S-5PNW-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAA4E295S-5PNW-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAA4E295S-5PNW-01 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø295 mm, rated 220/230 V AC, maximum airflow 1,545 m³/h, noise 45 dB(A), input power 65 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA4E295S-5PNW-01
Series	LWAA4E295
Motor type	AC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	198 ~ 242 V
Frequency	50 Hz
Current	0.3 A
Input power	65 W
Speed	1,200 rpm
Max. airflow	1,545 m³/h
Noise	45 dB(A)
Ambient temperature	-30 ~ +60 ℃
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 95 % RH
Altitude	< 1000m
Impeller diameter	Ø295 mm
Impeller material	Plastic PA66+GF ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA4E295: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø295 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA4E295S-5PNW-01 this model	1,545 m³/h	see curve	1,200 rpm	65 W	45 dB(A)	220/230 V
LWAA4E295S-5PNW-02	1,597 m³/h	see curve	1,400 rpm	80 W	48 dB(A)	220/230 V	View
LWAA4D295S-5PNW-03	1,803 m³/h	see curve	1,330 rpm	75 W	49 dB(A)	380 V	View
LWAA4D295S-5PNW-04	2,009 m³/h	see curve	1,450 rpm	90 W	50 dB(A)	380 V	View
