Downloads for LWAA4D400S-5MEB-11
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ400 mm15.7 in
- Max airflow4,532 m³/h2,667 CFM
- Voltage380 V
- Speed1,350 rpm
- Input power230 W
- Noise62 dB(A)

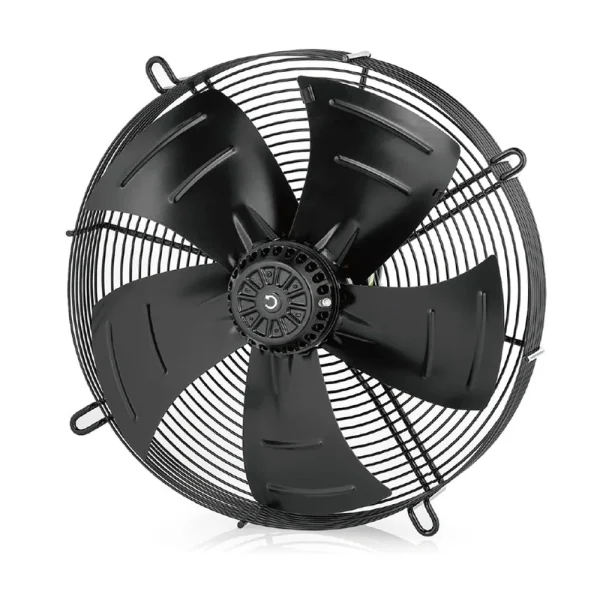

LWAA4D400S-5MEB-11 AC Axial Fan Ø400 mm
Ø400 mm | AC | Max airflow 4,532 m³/h | 62 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWAA4D400S-5MEB-11 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø400 mm, rated 380 V AC, maximum airflow 4,532 m³/h, noise 62 dB(A), input power 230 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D400S-5MEB-11 |
|---|---|
| Series | LWAA4D400 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 50 Hz |
| Current | 0.5 A |
| Input power | 230 W |
| Speed | 1,350 rpm |
| Max. airflow | 4,532 m³/h |
| Noise | 62 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø400 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

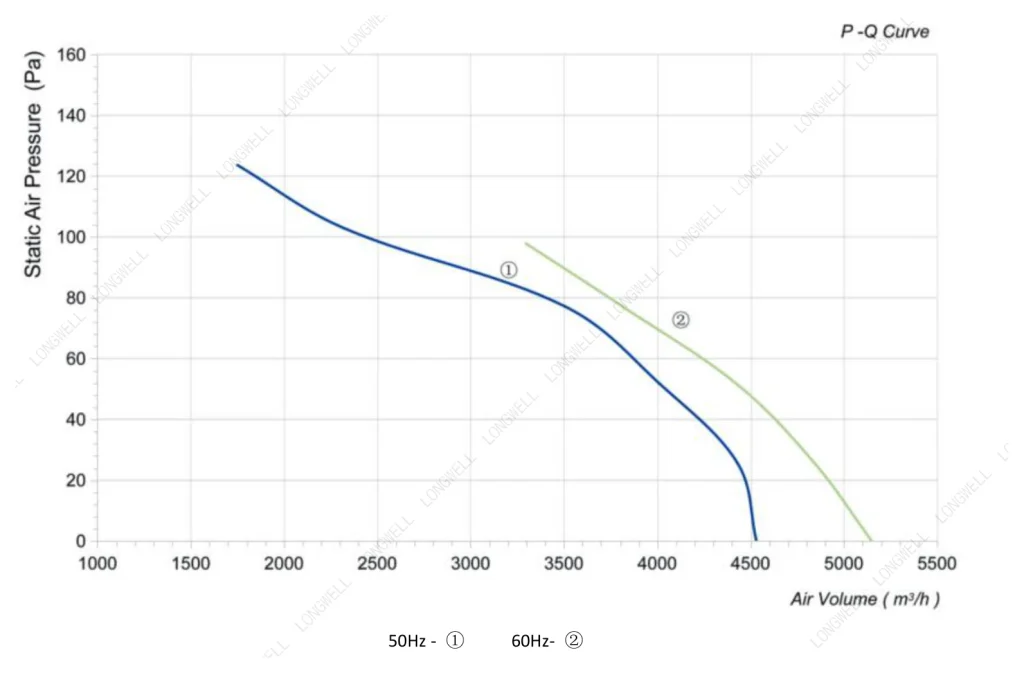

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø400 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D400S-5MEB-11 this model | 4,532 m³/h | see curve | 1,350 rpm | 230 W | 62 dB(A) | 380 V | |
| LWA-400(16")U(S)M-01 | 90 m³/h | see curve | 1,350 rpm | 170 W | — | 110-120 V | View |
| LWA-400(16")U(S)M-02 | 110 m³/h | see curve | 1,350 rpm | 200 W | — | 110-120 V | View |
| LWA-400(16")U(S)M-03 | 150 m³/h | see curve | 2,800 rpm | 750 W | — | 110-120 V | View |
| LWEA400S(T)M-068E | 2,280 m³/h | see curve | 1,450 rpm | 370 W | — | 220 V | View |
| LWEAF400-01 | 2,280 m³/h | see curve | 1,450 rpm | 370 W | — | 220 V | View |
| LWAA4D400S-5MEW-22 | 4,069 m³/h | see curve | 1,400 rpm | 180 W | 66 dB(A) | 380 V | View |
| LWAA4E400B-5MKB-23 | 4,223 m³/h | see curve | 1,580 rpm | 260 W | 62 dB(A) | 220/230 V | View |
| LWAA4D400S-5MEB-15 | 4,429 m³/h | see curve | 1,380 rpm | 225 W | 58 dB(A) | 380/400 V | View |
| LWEA400S(T)M-161E | 4,687 m³/h | 119 Pa | 1,450 rpm | 550 W | — | 220 V | View |
| LWAA4D400S-5MEB-16 | 4,893 m³/h | see curve | 1,400 rpm | 310 W | 60 dB(A) | 380/400 V | View |
| LWMFAF400-01 | 5,100 m³/h | 1,390 Pa | — | — | 90 dB(A) | 380 V | View |
| LWMFAF400-02 | 5,400 m³/h | 1,700 Pa | — | — | 89 dB(A) | 380 V | View |
| LWEA400S(T)M-162E | 9,336 m³/h | 474 Pa | 2,900 rpm | 1,100 W | — | 220 V | View |
| LWA-400(16")U(S)M-04 | 11,000 m³/h | 400 Pa | 2,800 rpm | 1,100 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
