ImpellerØ550 mm21.7 in
Max airflow8,755 m³/h5,150 CFM
Voltage380 V
Speed1,540 rpm
Input power725 W
Noise74 dB(A)

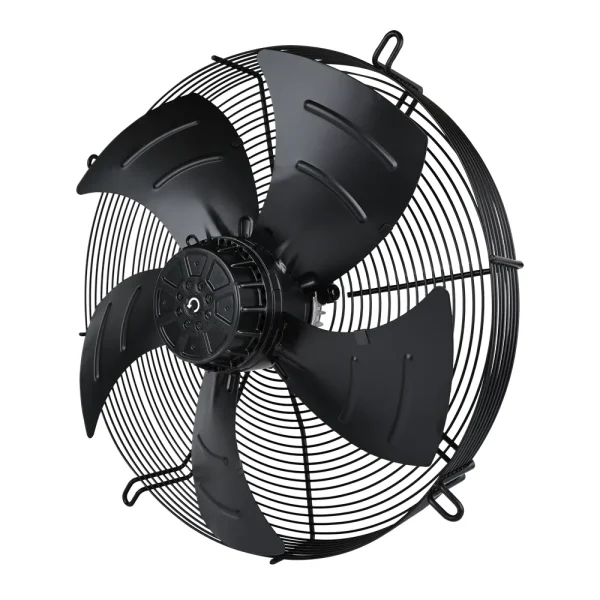

LWAA4D550S-5MEB-04 AC Axial Fan Ø550 mm

Ø550 mm | AC | Max airflow 8,755 m³/h | 74 dB(A)

SKU: LWAA4D550S-5MEB-04 Categories: AC Axial Fans, Axial Fans, Impeller Ø500–800 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC ( ) Axial fans( Standard Version) · SKU on PDF p. 23

All files for LWAA4D550S-5MEB-045 files · direct download

PDFFull product catalogue · model on PDF p. 23 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Heat exchangers & condensers Refrigeration Condensing units Refrigeration condensers All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAA4D550S-5MEB-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAA4D550S-5MEB-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAA4D550S-5MEB-04

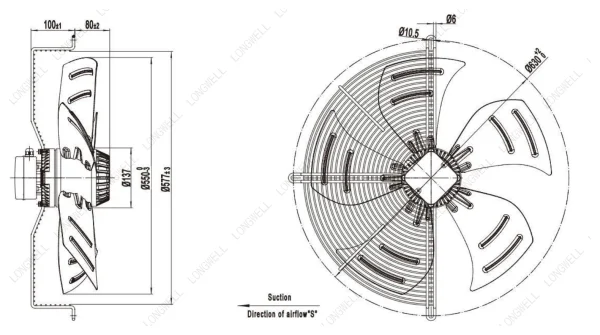

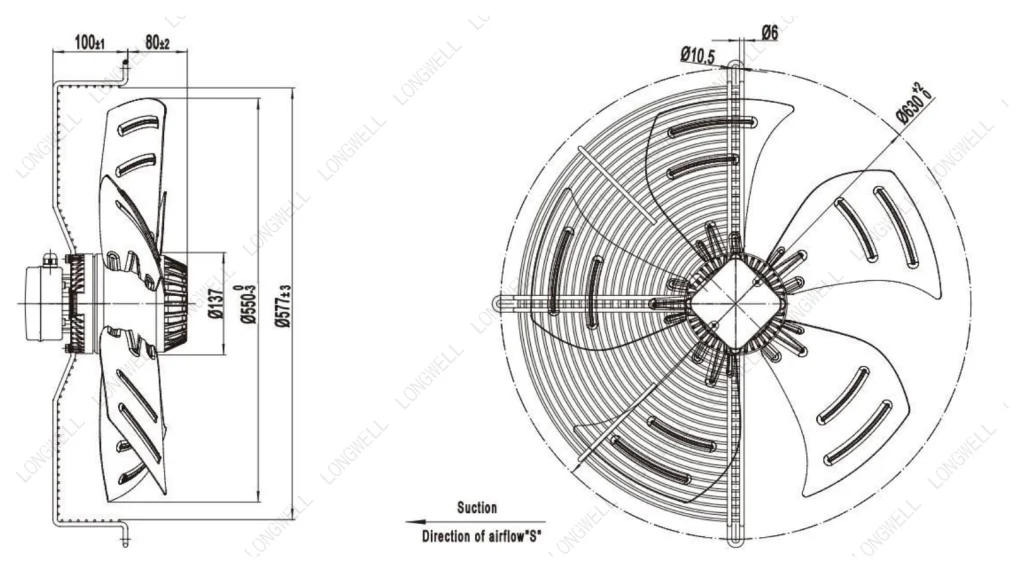

LWAA4D550S-5MEB-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

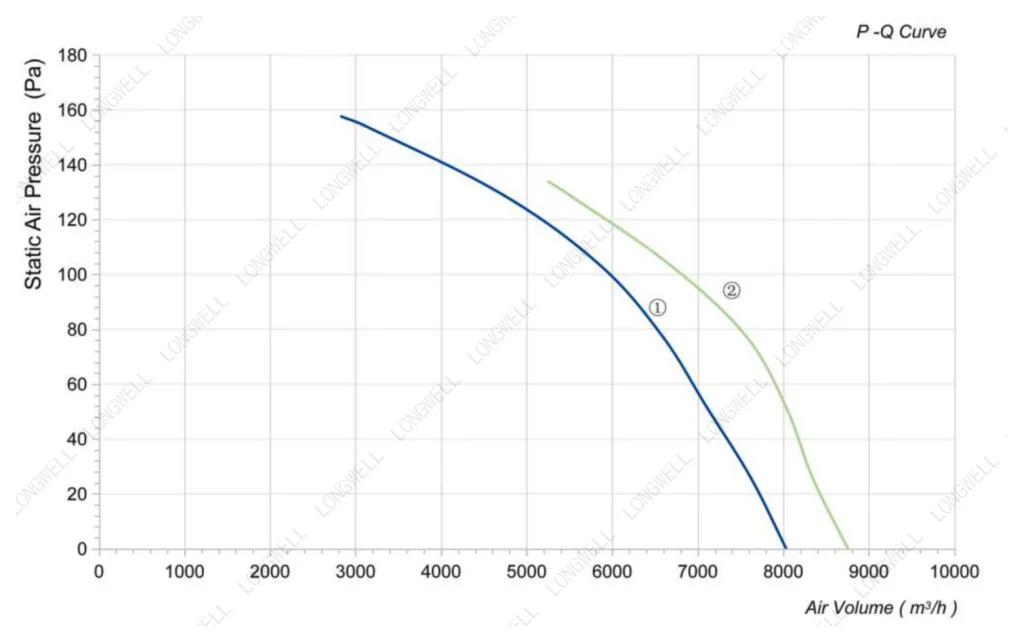

LWAA4D550S-5MEB-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA4D550S-5MEB-04 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAA4D550S-5MEB-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAA4D550S-5MEB-04

LWAA4D550S-5MEB-04 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø550 mm, rated 380 V AC, maximum airflow 8,755 m³/h, noise 74 dB(A), input power 725 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA4D550S-5MEB-04
Series	LWAA4D550
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Voltage range	342 ~ 418 V
Frequency	60 Hz
Current	1.4 A
Input power	725 W
Speed	1,540 rpm
Max. airflow	8,755 m³/h
Max. airflow (CFM)	5,150 CFM
Noise	74 dB(A)
Ambient temperature	-30 ~ +60 ℃
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø550 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA4D550: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
