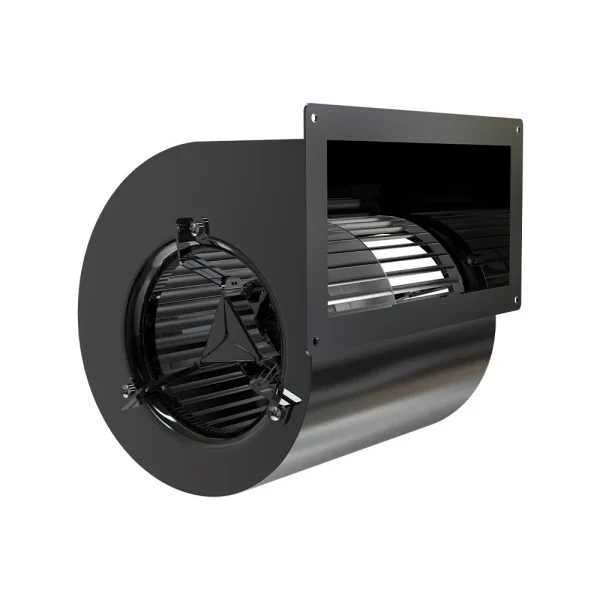

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ315 mm12.4 in
Max airflow8,732 m³/h5,139 CFM
Max static pressure783 Pa3.14 in. wg
Voltage380 V
Speed1,070 rpm
Input power2,400 W3.22 hp
Noise81 dB(A)

LWFE3G315-188DS-01 EC Dual Inlet Forward Centrifugal Blower Ø315 mm

Ø315 mm | EC | Max airflow 8,732 m³/h | Max static pressure 783 Pa | 81 dB(A)

SKU: LWFE3G315-188DS-01 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø180–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueEC EC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 15

All files for LWFE3G315-188DS-012 files · direct download

PDFFull product catalogue · model on PDF p. 15 WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFE3G315-188DS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFE3G315-188DS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFE3G315-188DS-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

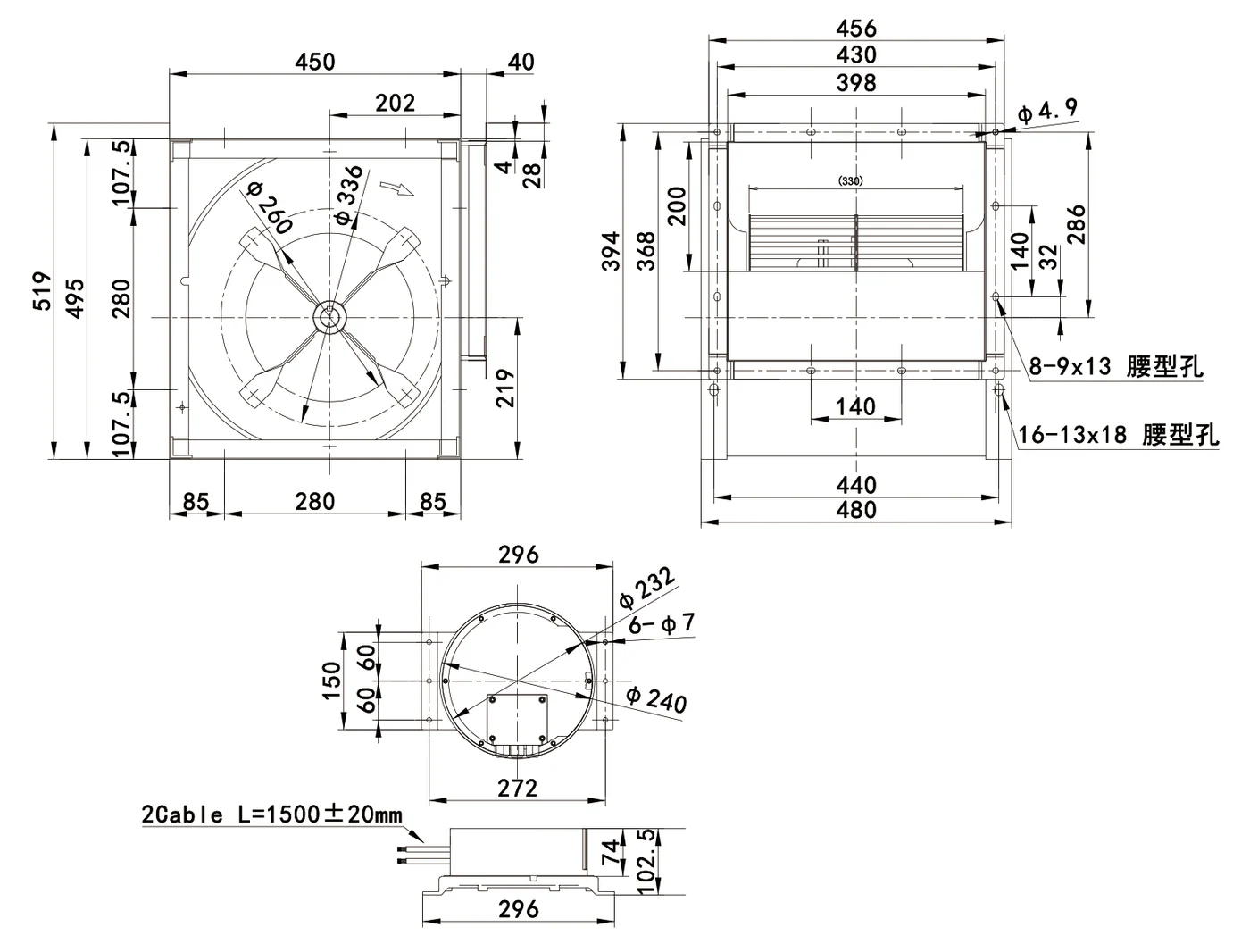

Dimensional drawing LWFE3G315-188DS-01

LWFE3G315-188DS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWFE3G315-188DS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFE3G315-188DS-01

LWFE3G315-188DS-01 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø315 mm, rated 380 V EC, maximum airflow 8,732 m³/h, maximum static pressure 783 Pa, noise 81 dB(A), input power 2,400 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G315-188DS-01
Series	LWFE3G315
Motor type	EC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	4 A
Input power	2,400 W
Speed	1,070 rpm
Max. airflow	8,732 m³/h
Max. static pressure	783 Pa
Noise	81 dB(A)
Ambient temperature	-30 ~ 50 °C
Impeller diameter	Ø315 mm
Rotor diameter	188 mm
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
