- ImpellerØ560 mm22.0 in
- Max airflow8,471 m³/h4,986 CFM
- Max static pressure110 Pa0.44 in. wg
- Voltage380 V
- Speed960 rpm
- Input power1,100 W1.47 hp

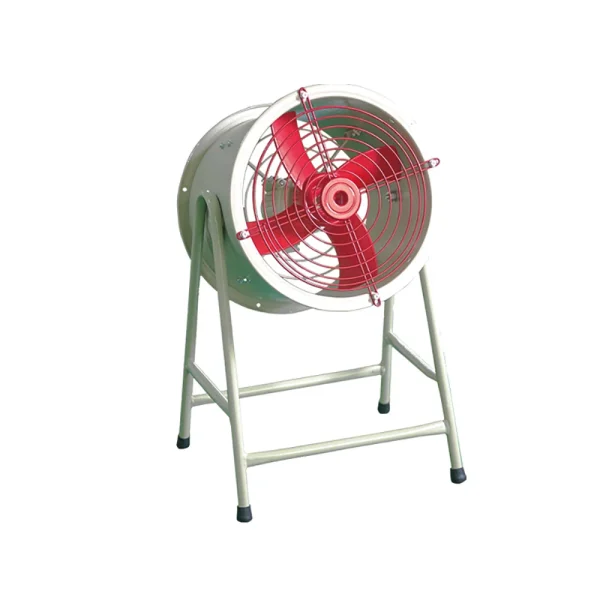

LWEA560TM-166E Industrial Axial Fan Ø560 mm
Ø560 mm | AC | Max airflow 8,471 m³/h | Max static pressure 110 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
All files for LWEA560TM-166E1 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Heat pump fan programme · Telecom & power cabinet cooling · Cold chain supermarket retrofit · Dry-type transformer cooling — all case studies on longwellfans.com
Typical applications: Roof exhaust · Cooling towers · Harvest stores · Industrial machinery — all industries
LWEA560TM-166E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø560 mm, rated 380 V AC, maximum airflow 8,471 m³/h, maximum static pressure 110 Pa, input power 1,100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWEA560TM-166E |
|---|---|
| Series | LWEA560 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Input power | 1,100 W |
| Speed | 960 rpm |
| Max. airflow | 8,471 m³/h |
| Max. static pressure | 110 Pa |
| Impeller diameter | Ø560 mm |
| Blade diameter | 560mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA560: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø560 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA560TM-166E this model | 8,471 m³/h | 110 Pa | 960 rpm | 1,100 W | — | 380 V | |
| LWMFAF560-01 | 11,700 m³/h | 3,180 Pa | — | — | 95 dB(A) | 380 V | View |
| LWEA560TM-165E | 12,812 m³/h | 232 Pa | 1,450 rpm | 1,100 W | — | 380 V | View |
| LWMFAF560-02 | 14,400 m³/h | 3,315 Pa | — | — | 95 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
