- ImpellerØ560 mm
- Max airflow12,812 m³/h
- Max static pressure232 Pa
- Voltage380 V
- Speed1,450 rpm
- Input power1,100 W

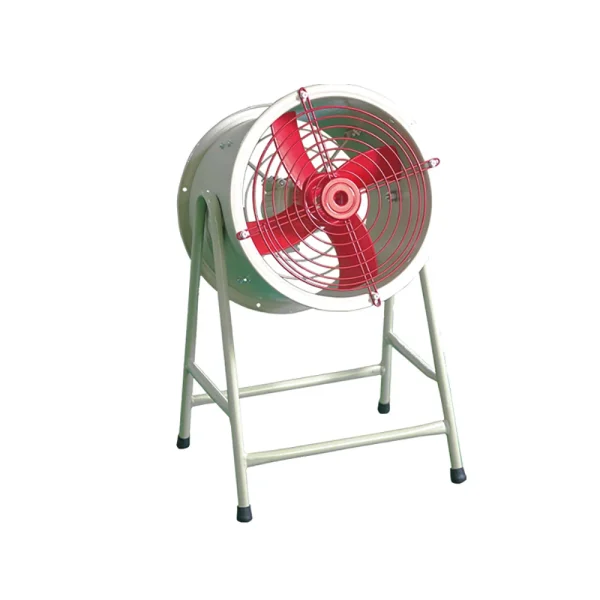

LWEA560TM-165E Industrial Axial Fan Ø560 mm
Ø560 mm | AC | Max airflow 12,812 m³/h | Max static pressure 232 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWEA560TM-165E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø560 mm, rated 380 V AC, maximum airflow 12,812 m³/h, maximum static pressure 232 Pa, input power 1,100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWEA560TM-165E |
|---|---|
| Series | LWEA560 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Input power | 1,100 W |
| Speed | 1,450 rpm |
| Max. airflow | 12,812 m³/h |
| Max. static pressure | 232 Pa |
| Impeller diameter | Ø560 mm |
| Blade diameter | 560mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA560: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø560 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA560TM-165E this model | 12,812 m³/h | 232 Pa | 1,450 rpm | 1,100 W | — | 380 V | |
| LWEA560TM-166E | 8,471 m³/h | 110 Pa | 960 rpm | 1,100 W | — | 380 V | View |
| LWBA6D560-188NT-04 | 9,270 m³/h | 464 Pa | 910 rpm | 900 W | 73 dB(A) | 380 V | View |
| LWBA6D560-188NT-02 | 9,270 m³/h | 464 Pa | 910 rpm | 900 W | 73 dB(A) | 380 V | View |
| LWBA4D560-188NT-03 | 11,330 m³/h | 948 Pa | 1,350 rpm | 2,500 W | 85 dB(A) | 380 V | View |
| LWMFAF560-01 | 11,700 m³/h | 3,180 Pa | — | — | 95 dB(A) | 380 V | View |
| LWBA4D560-188NT-05 | 13,125 m³/h | 798 Pa | 1,350 rpm | 1,980 W | 83.9 dB(A) | 380 V | View |
| LWBA4D560-188NT-01 | 13,287 m³/h | 948 Pa | 1,340 rpm | 2,500 W | 85 dB(A) | 380 V | View |
| LWMFAF560-02 | 14,400 m³/h | 3,315 Pa | — | — | 95 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
