- ImpellerØ630 mm24.8 in
- Max airflow11,948 m³/h7,032 CFM
- Voltage380 V
- Speed1,350 rpm
- Input power850 W1.14 hp
- Noise75 dB(A)
LWAA4D630S-5MEB-01 AC Axial Fan Ø630 mm
Ø630 mm | AC | Max airflow 11,948 m³/h | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

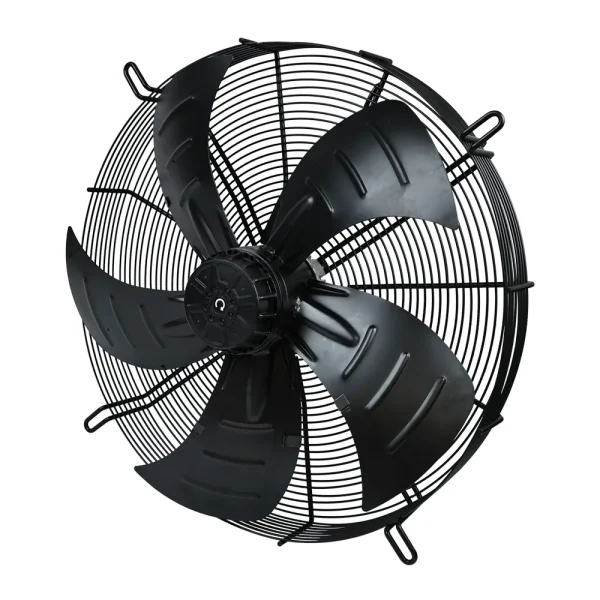

LWAA4D630S-5MEB-01 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø630 mm, rated 380 V AC, maximum airflow 11,948 m³/h, noise 75 dB(A), input power 850 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D630S-5MEB-01 |
|---|---|
| Series | LWAA4D630 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 50 Hz |
| Current | 1.6 A |
| Input power | 850 W |
| Speed | 1,350 rpm |
| Max. airflow | 11,948 m³/h |
| Max. airflow (CFM) | 7,028 CFM |
| Noise | 75 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -10 ~ 40℃ |
| Humidity | 0 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø630 mm |
| Impeller material | Aluminum and magnesium alloys ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D630: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

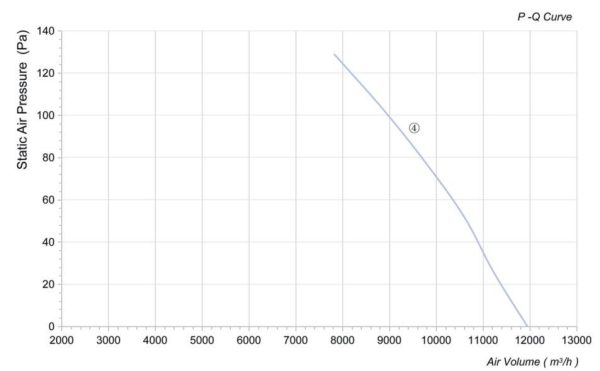

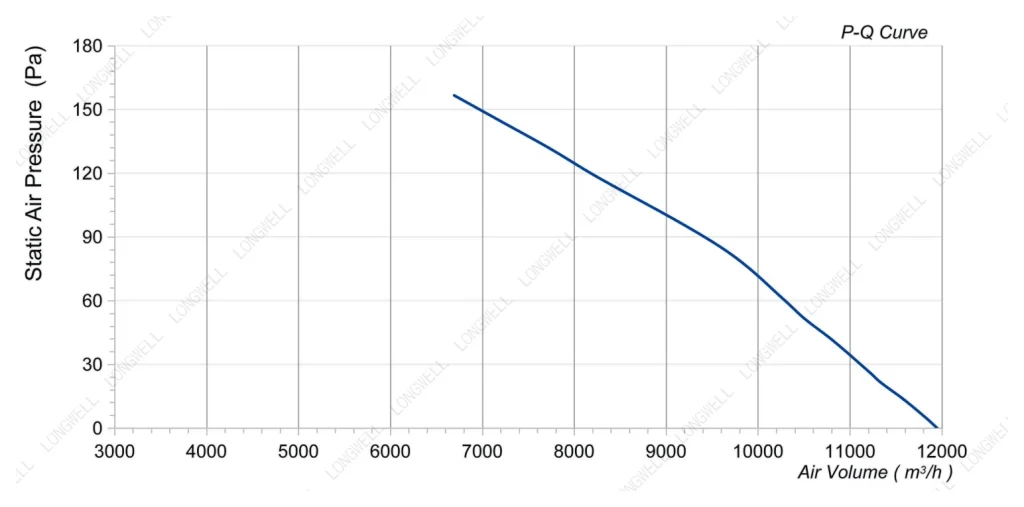

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø630 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D630S-5MEB-01 this model | 11,948 m³/h | see curve | 1,350 rpm | 850 W | 75 dB(A) | 380 V | |
| LWAA8E630S-5MEB-06 | 7,210 m³/h | see curve | 680 rpm | 250 W | 60 dB(A) | 220/230 V | View |
| LWAA8D630S-5MEB-07 | 7,210 m³/h | see curve | 680 rpm | 250 W | 60 dB(A) | 380 V | View |
| LWBA8D630-188NT-02 | 9,270 m³/h | 288 Pa | 700 rpm | 700 W | 72 dB(A) | 380 V | View |
| LWAA6E630S-4MKB-09 | 10,815 m³/h | see curve | 925 rpm | 450 W | 68 dB(A) | 230 V | View |
| LWAA6D630B-5MKB-12 | 11,021 m³/h | see curve | 900 rpm | 520 W | 67 dB(A) | 380/400 V | View |
| LWAA6E630S-5MEB-02 | 11,021 m³/h | see curve | 900 rpm | 520 W | 67 dB(A) | 220/230 V | View |
| LWAA6E630S-5MEB-03 | 11,536 m³/h | see curve | 1,050 rpm | 705 W | 69 dB(A) | 220/230 V | View |
| LWAA6D630B-5MKB-13 | 12,154 m³/h | see curve | 1,050 rpm | 740 W | 69 dB(A) | 380/400 V | View |
| LWBA6D630-188NT-01 | 12,360 m³/h | 494 Pa | 900 rpm | 1,500 W | 80 dB(A) | 380 V | View |
| LWAA4D630S-5MEW-14 | 12,669 m³/h | see curve | 1,380 rpm | 950 W | — | 380 V | View |
| LWMFAF630-01 | 15,000 m³/h | 3,690 Pa | — | — | 95 dB(A) | 380 V | View |
| LWAA4D630S-7MKB-08 | 15,450 m³/h | see curve | 1,400 rpm | 1,550 W | 76 dB(A) | 380/400 V | View |
| LWBA4D630-188NT-03 | 17,955 m³/h | 956 Pa | 1,210 rpm | 3,320 W | 86.9 dB(A) | 380 V | View |
| LWEA630TM-167E | 18,250 m³/h | 294 Pa | 1,450 rpm | 1,500 W | — | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
