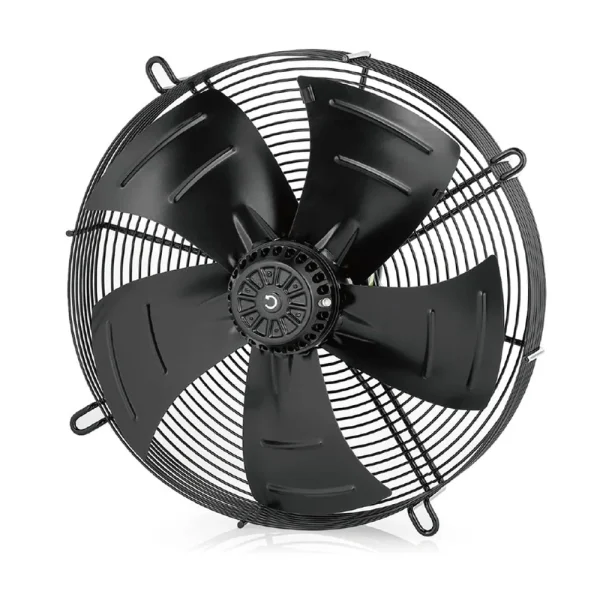

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ400 mm15.7 in
Max airflow3,090 m³/h1,819 CFM
Voltage380 V
Speed1,100 rpm
Input power120 W
Noise52 dB(A)

LWAA6D400S-5MEB-08 AC Axial Fan Ø400 mm

Ø400 mm | AC | Max airflow 3,090 m³/h | 52 dB(A)

SKU: LWAA6D400S-5MEB-08 Categories: AC Axial Fans, Axial Fans, Impeller Ø295–450 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC ( ) Axial fans( Standard Version) · SKU on PDF p. 14

All files for LWAA6D400S-5MEB-085 files · direct download

PDFFull product catalogue · model on PDF p. 14 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Heat exchangers & condensers Refrigeration Condensing units Refrigeration condensers All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAA6D400S-5MEB-08

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAA6D400S-5MEB-08datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAA6D400S-5MEB-08

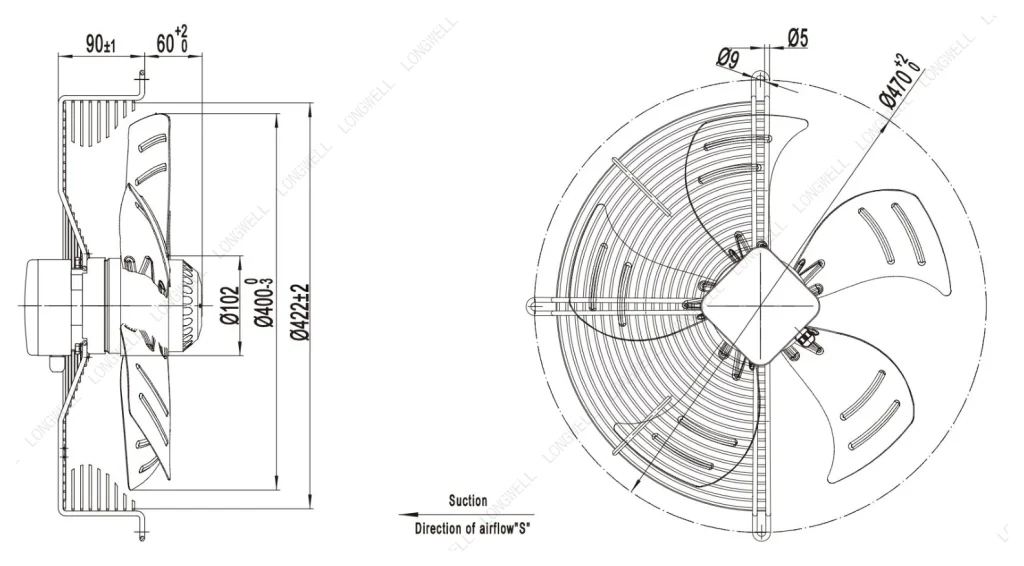

LWAA6D400S-5MEB-08 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

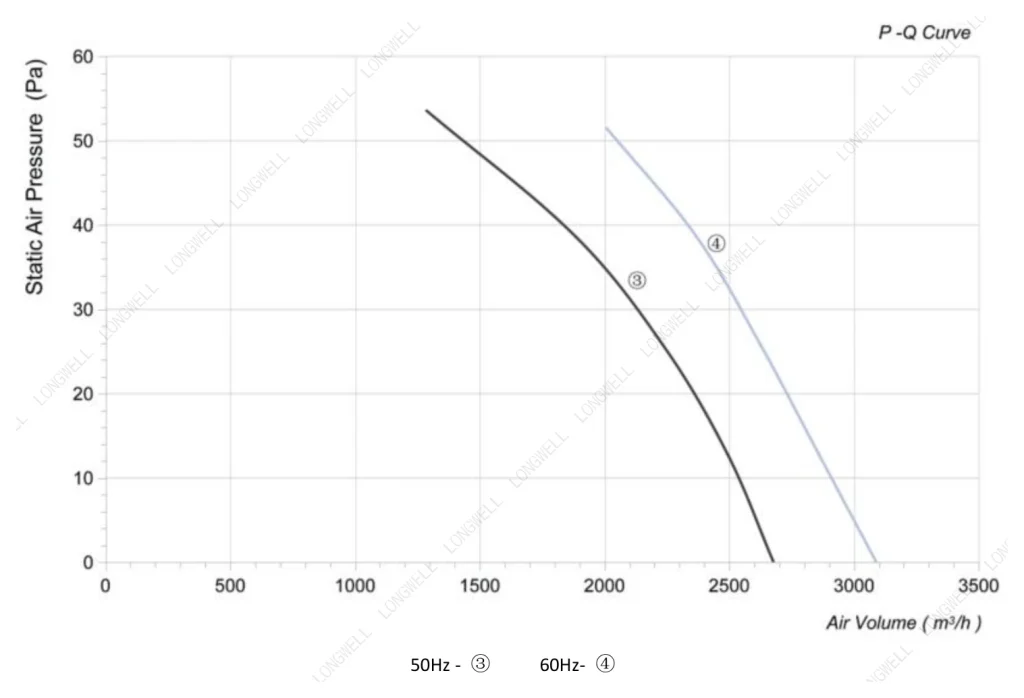

LWAA6D400S-5MEB-08 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWAA6D400S-5MEB-08 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAA6D400S-5MEB-08: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAA6D400S-5MEB-08

LWAA6D400S-5MEB-08 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø400 mm, rated 380 V AC, maximum airflow 3,090 m³/h, noise 52 dB(A), input power 120 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA6D400S-5MEB-08
Series	LWAA6D400
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Voltage range	342 ~ 418 V
Frequency	60 Hz
Current	0.31 A
Input power	120 W
Speed	1,100 rpm
Max. airflow	3,090 m³/h
Noise	52 dB(A)
Ambient temperature	-30 ~ +60 ℃
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 95 % RH
Altitude	< 1000m
Impeller diameter	Ø400 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA6D400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
