ImpellerØ800 mm31.5 in
Max airflow24,720 m³/h14,844 CFM
Voltage380 V
Speed900 rpm
Input power1,600 W2.14 hp
Noise80 dB(A)

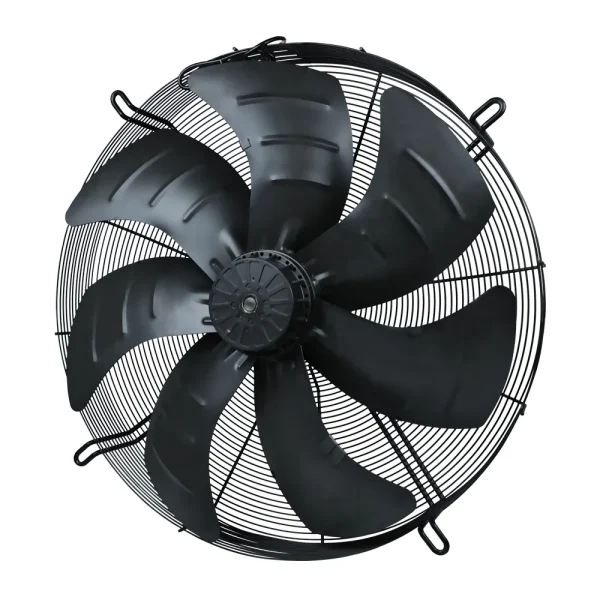

LWAA6D800S-7MEB-01 AC Axial Fan Ø800 mm

Ø800 mm | AC | Max airflow 24,720 m³/h | 80 dB(A)

SKU: LWAA6D800S-7MEB-01 Categories: AC Axial Fans, Axial Fans, Impeller Ø500–800 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAA6D800S-7MEB-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAA6D800S-7MEB-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

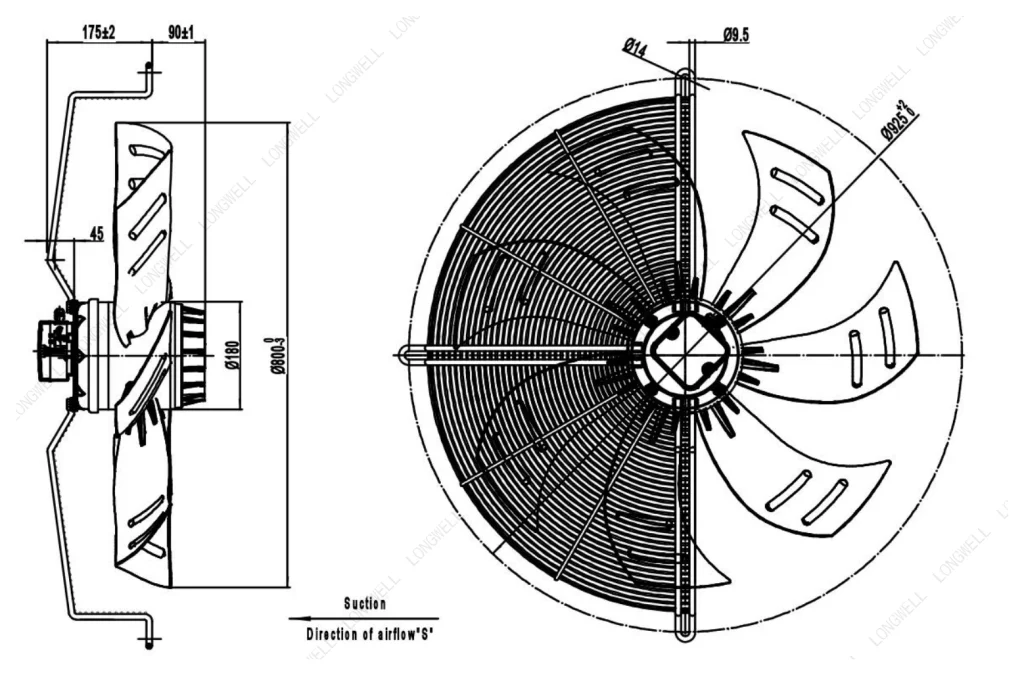

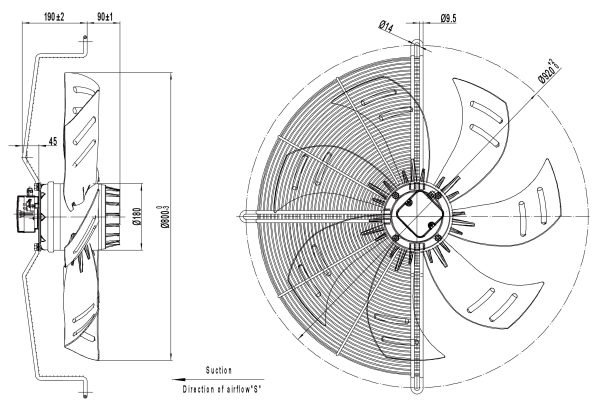

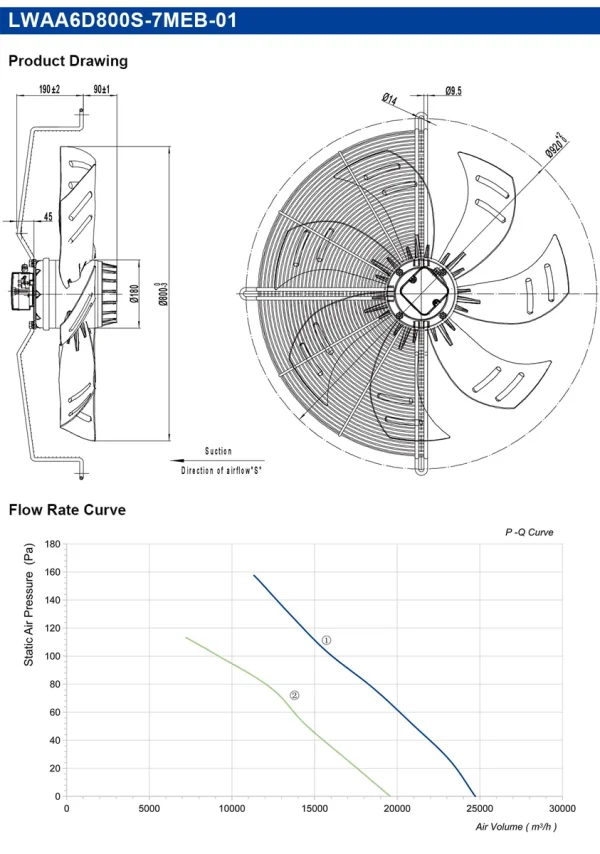

LWAA6D800S-7MEB-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

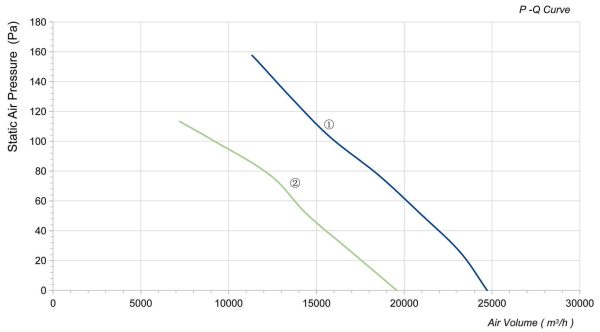

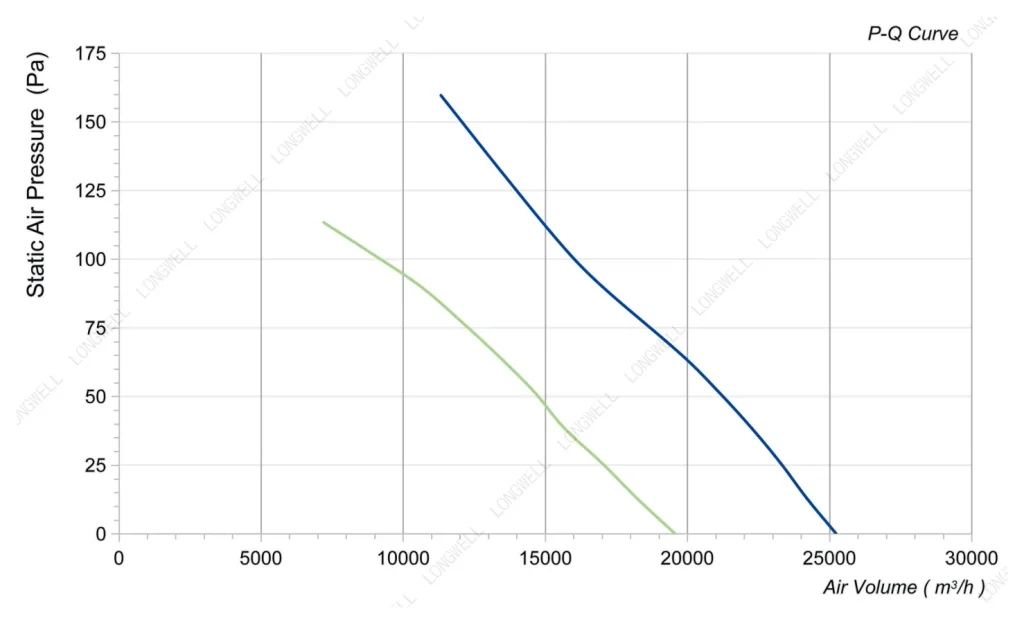

LWAA6D800S-7MEB-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

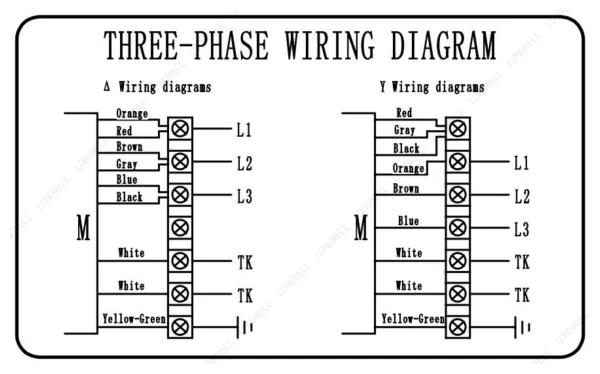

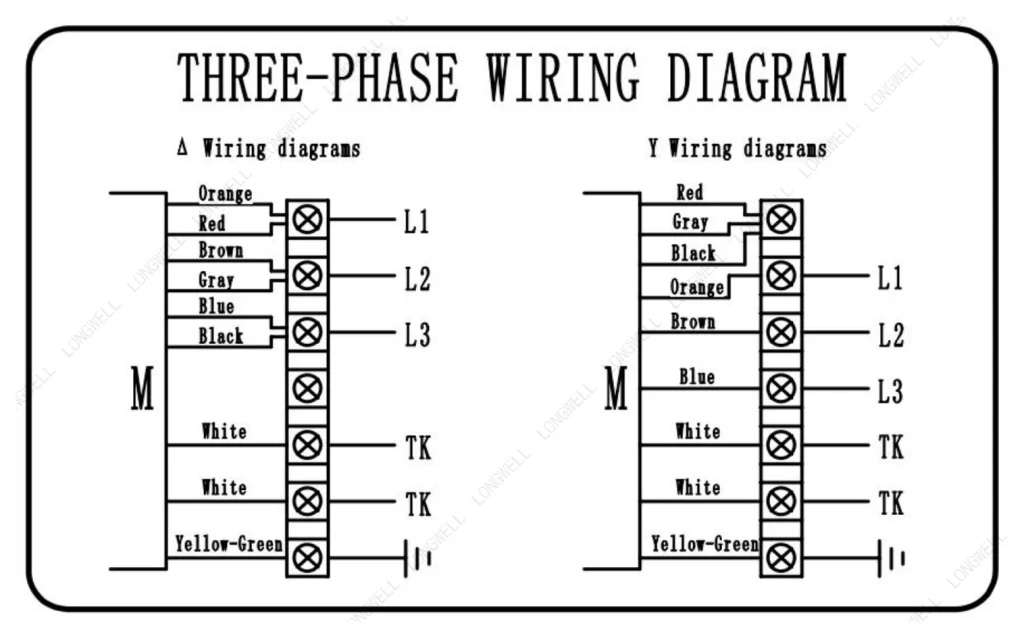

LWAA6D800S-7MEB-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAA6D800S-7MEB-01

PDFDatasheet PDFDrawing · 188 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAA6D800S-7MEB-01 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø800 mm, rated 380 V AC, maximum airflow 24,720 m³/h, noise 80 dB(A), input power 1,600 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWAA6D800S-7MEB-01
Series	LWAA6D800
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Voltage range	342 ~ 418 V
Frequency	50 Hz
Current	3.7 A
Input power	1,600 W
Speed	900 rpm
Max. airflow	24,720 m³/h
Max. airflow (CFM)	14,844 CFM
Noise	80 dB(A)
Ambient temperature	-30 ~ +60 ℃
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø800 mm
Impeller material	Cold-rolled sheet ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAA6D800: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø800 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAA6D800S-7MEB-01 this model	24,720 m³/h	see curve	900 rpm	1,600 W	80 dB(A)	380 V
LWAA6D800S-5MKB-03	17,510 m³/h	see curve	710 rpm	785 W	65 dB(A)	380 V	View
LWAA6D800S-7MEB-05	20,703 m³/h	see curve	960 rpm	1,600 W	—	380 V	View
LWAA6D800S-5MKB-04	23,999 m³/h	see curve	920 rpm	1,780 W	78.9 dB(A)	380 V	View
LWEA800TM-170E	24,739 m³/h	208 Pa	960 rpm	2,200 W	—	380 V	View
LWAA6D800S-7MEB-02	25,750 m³/h	see curve	900 rpm	1,850 W	80 dB(A)	380/400 V	View
LWAA6D800S-7MKB-02	25,750 m³/h	see curve	900 rpm	1,850 W	80 dB(A)	380 V	View
LWEA800TM-169E	37,370 m³/h	474 Pa	1,450 rpm	4,000 W	—	380 V	View
