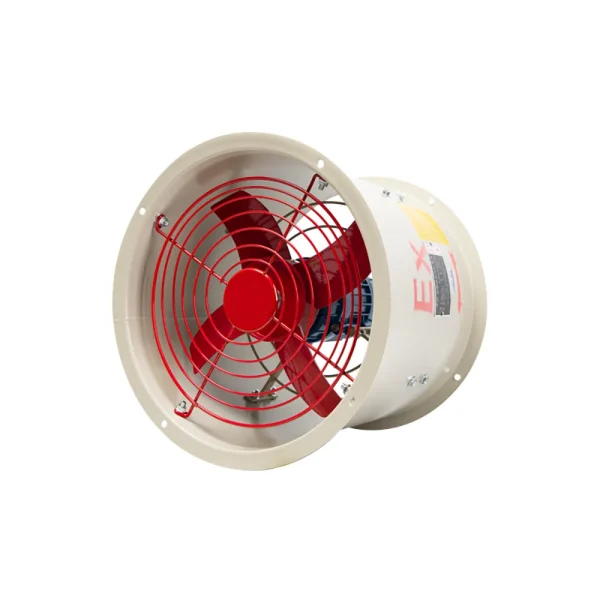

LWEAF750-01 product photo
LWEAF750-01 product photo
  • ImpellerØ750 mm
  • Max airflow10,500 m³/h
  • Voltage380 V
  • Speed1,450 rpm
  • Input power1,500 W

LWEAF750-01 Tube Axial Fan Ø750 mm

Ø750 mm | AC | Max airflow 10,500 m³/h

SKU: LWEAF750-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWEAF750-01 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWEAF750-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø750 mm, rated 380 V AC, maximum airflow 10,500 m³/h, input power 1,500 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWEAF750-01
Series LWEAF750
Motor type AC
Phase 3-phase
Rated voltage 380 V
Input power 1,500 W
Speed 1,450 rpm
Max. airflow 10,500 m³/h
Impeller diameter Ø750 mm
Blade diameter 750mm

Typical applications

  • Condensers, evaporators and dry coolers
  • Heat-pump and chiller outdoor units
  • Building and workshop ventilation
  • Cooling towers and transformer cooling

Series LWEAF750: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø750 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWEAF750-01 this model 10,500 m³/hsee curve 1,450 rpm1,500 W—380 V
LWA-750(30")U(S)M-01 260 m³/hsee curve 1,100 rpm420 W68 dB(A)110-120 V View
LWEA750S(T)M-072E 10,500 m³/hsee curve 1,450 rpm1,500 W—220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
