LWAD3G200 series dimensional drawing (shared by several models)

LWAD3G200 series performance curve (shared by several models)

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ200 mm7.9 in
Max airflow979 m³/h576 CFM
Max static pressure319 Pa1.28 in. wg
Voltage310 V
Speed3,000 rpm
Input power55 W
Noise60 dB(A)

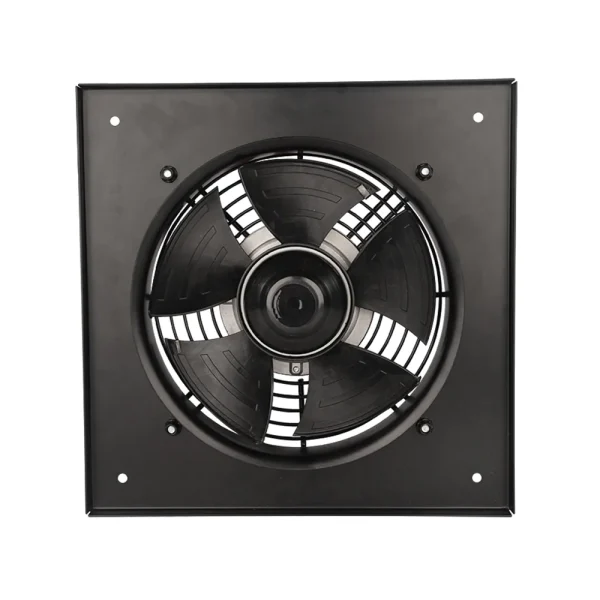

LWAD3G200ZS-7MGW-07 DC Axial Fan Ø200 mm

Ø200 mm | DC | Max airflow 979 m³/h | Max static pressure 319 Pa | 60 dB(A)

SKU: LWAD3G200ZS-7MGW-07 Categories: Axial Fans, DC Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueDC DC Axial fans · SKU on PDF p. 8

All files for LWAD3G200ZS-7MGW-073 files · direct download

PDFFull product catalogue · model on PDF p. 8 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Bottle coolers Display cases Decentralised ventilation Drive & control cabinets All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAD3G200ZS-7MGW-07

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD3G200ZS-7MGW-07datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWAD3G200ZS-7MGW-07

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 310 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWAD3G200ZS-7MGW-07

LWAD3G200ZS-7MGW-07 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD3G200ZS-7MGW-07 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAD3G200ZS-7MGW-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD3G200ZS-7MGW-07

LWAD3G200ZS-7MGW-07 is a LONGWELL DC Axial Fan from the DC Axial Fans range, impeller Ø200 mm, rated 310 V DC, maximum airflow 979 m³/h, maximum static pressure 319 Pa, noise 60 dB(A), input power 55 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD3G200ZS-7MGW-07
Series	LWAD3G200
Motor type	DC
Rated voltage	310 V
Frequency	50 Hz
Current	0.17 A
Input power	55 W
Speed	3,000 rpm
Max. airflow	979 m³/h
Max. static pressure	319 Pa
Noise	60 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø200 mm
Impeller material	Metal sheet
Protection class	IP44
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAD3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
