Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 310 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

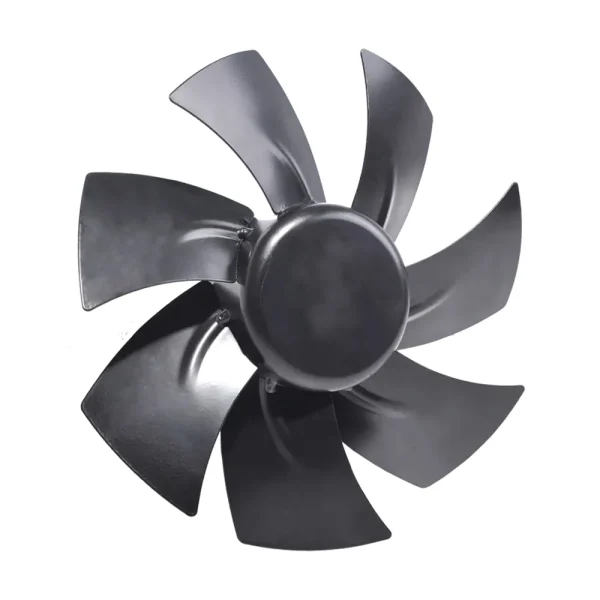

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ200 mm7.9 in
- Max airflow979 m³/h576 CFM
- Max static pressure319 Pa1.28 in. wg
- Voltage310 V
- Speed3,000 rpm
- Input power55 W
- Noise60 dB(A)
LWAD3G200ZS-7MNW-03 DC Axial Fan Ø200 mm
Ø200 mm | DC | Max airflow 979 m³/h | Max static pressure 319 Pa | 60 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueDC DC Axial fans · SKU on PDF p. 8
All files for LWAD3G200ZS-7MNW-033 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Heat pump fan programme · Telecom & power cabinet cooling · Cold chain supermarket retrofit · Dry-type transformer cooling — all case studies on longwellfans.com
Typical applications: Bottle coolers · Display cases · Decentralised ventilation · Drive & control cabinets — all industries
Downloads for LWAD3G200ZS-7MNW-03
PDFFull product catalogue · DC DC Axial fans · model on PDF p. 8 · 7.2 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWAD3G200ZS-7MNW-03 is a LONGWELL DC Axial Fan from the DC Axial Fans range, impeller Ø200 mm, rated 310 V DC, maximum airflow 979 m³/h, maximum static pressure 319 Pa, noise 60 dB(A), input power 55 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWAD3G200ZS-7MNW-03 |
|---|---|
| Series | LWAD3G200 |
| Motor type | DC |
| Rated voltage | 310 V |
| Frequency | 50 Hz |
| Current | 0.17 A |
| Input power | 55 W |
| Speed | 3,000 rpm |
| Max. airflow | 979 m³/h |
| Max. static pressure | 319 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø200 mm |
| Impeller material | Metal sheet |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAD3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAD3G200ZS-7MNW-03 this model | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | |
| LWAD3G200ZS-7MGW-07 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZB-7MGW-08 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZS-7MEW-05 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZB-7MEW-06 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZB-7MNW-04 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200HS-7MKB-02 | 1,236 m³/h | 278 Pa | 3,000 rpm | 60 W | 62 dB(A) | 48 V | View |
| LWAD3G200MS-7MKB-01 | 1,236 m³/h | 278 Pa | 3,000 rpm | 60 W | 62 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
