LWAD3G300 series dimensional drawing (shared by several models)

LWAD3G300 series performance curve (shared by several models)

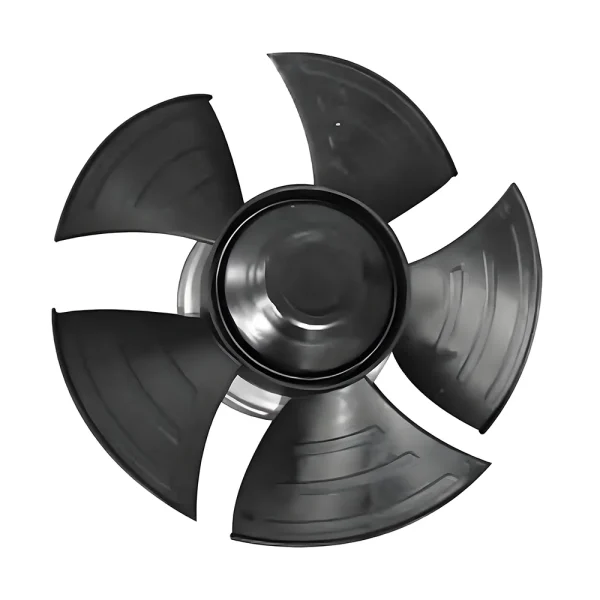

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ300 mm11.8 in
Max airflow2,524 m³/h1,486 CFM
Max static pressure185 Pa0.74 in. wg
Voltage310 V
Speed2,100 rpm
Input power165 W
Noise69 dB(A)

LWAD3G300ZB-5PNW-02 DC Axial Fan Ø300 mm

Ø300 mm | DC | Max airflow 2,524 m³/h | Max static pressure 185 Pa | 69 dB(A)

SKU: LWAD3G300ZB-5PNW-02 Categories: Axial Fans, DC Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueDC DC Axial fans · SKU on PDF p. 10

All files for LWAD3G300ZB-5PNW-023 files · direct download

PDFFull product catalogue · model on PDF p. 10 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as Sanyo Denki San Ace Cold Storage — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Bottle coolers Display cases Decentralised ventilation Drive & control cabinets All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWAD3G300ZB-5PNW-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAD3G300ZB-5PNW-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWAD3G300ZB-5PNW-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 310 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWAD3G300ZB-5PNW-02

LWAD3G300ZB-5PNW-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD3G300ZB-5PNW-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAD3G300ZB-5PNW-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAD3G300ZB-5PNW-02

LWAD3G300ZB-5PNW-02 is a LONGWELL DC Axial Fan from the DC Axial Fans range, impeller Ø300 mm, rated 310 V DC, maximum airflow 2,524 m³/h, maximum static pressure 185 Pa, noise 69 dB(A), input power 165 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD3G300ZB-5PNW-02
Series	LWAD3G300
Motor type	DC
Rated voltage	310 V
Frequency	50 Hz
Current	0.52 A
Input power	165 W
Speed	2,100 rpm
Max. airflow	2,524 m³/h
Max. static pressure	185 Pa
Noise	69 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø300 mm
Impeller material	PA66
Protection class	IP42
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAD3G300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAD3G300ZB-5PNW-02

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø300 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD3G300ZB-5PNW-02 this model	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V
LWAD3G300ZB-5PKW-06	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V	View
LWAD3G300ZS-5PKW-05	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V	View
LWAD3G300ZB-5PEW-04	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V	View
LWAD3G300ZS-5PEW-03	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V	View
LWAD3G300ZS-5PNW-01	2,524 m³/h	185 Pa	2,100 rpm	165 W	69 dB(A)	310 V	View
