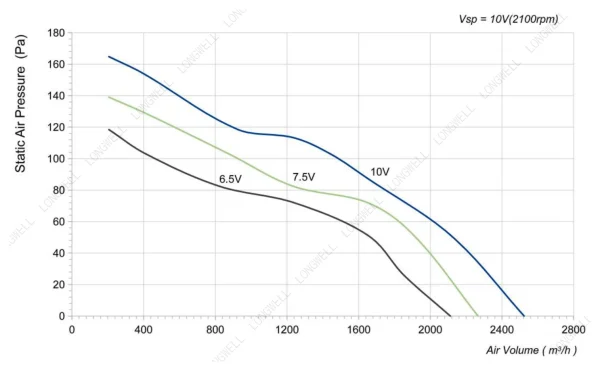

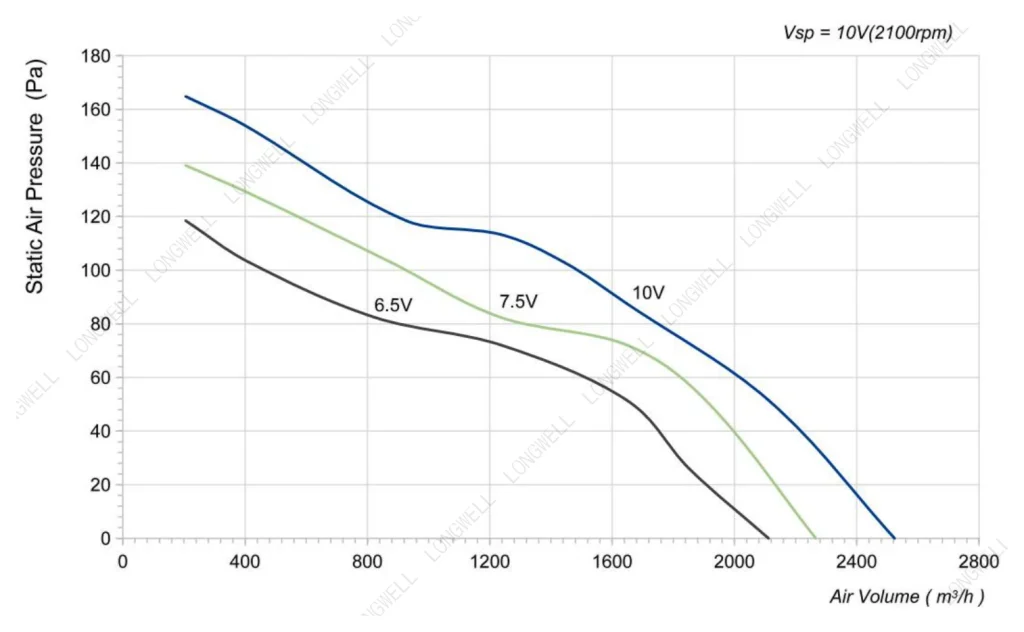

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ315 mm12.4 in
- Max airflow2,575 m³/h1,516 CFM
- Max static pressure164 Pa0.66 in. wg
- Voltage220/230 V
- Speed2,100 rpm
- Input power165 W
- Noise66 dB(A)

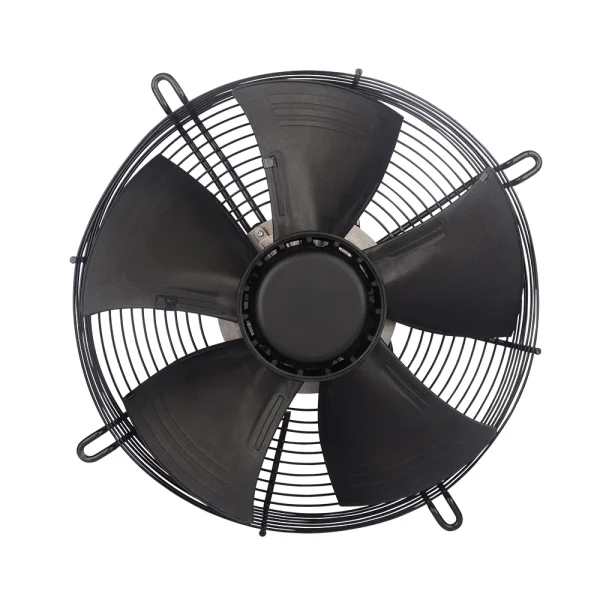

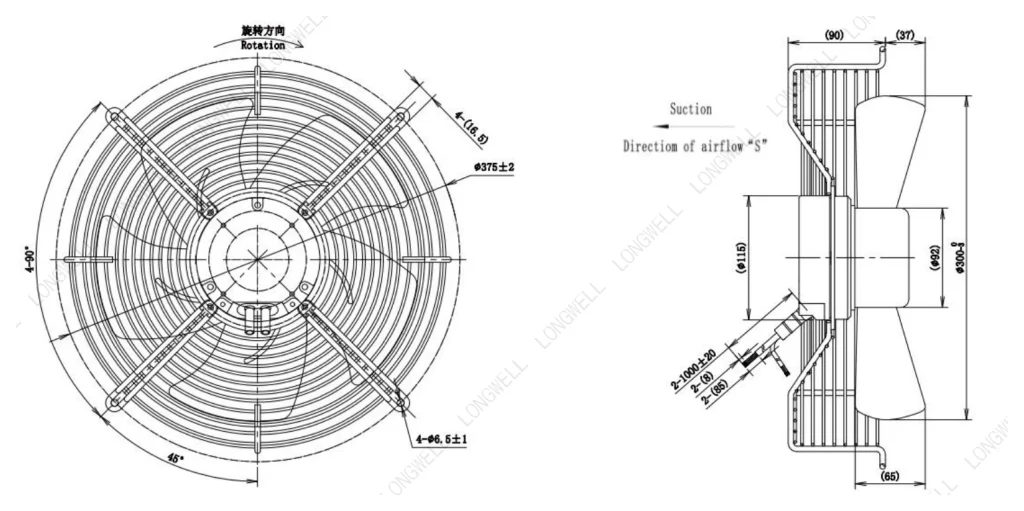

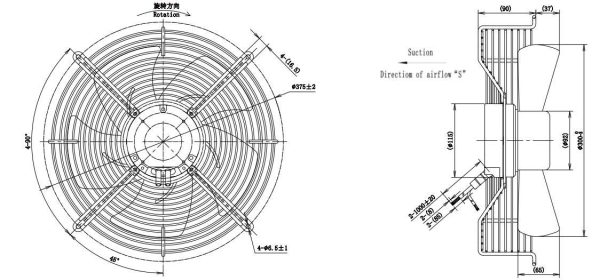

LWAE3G315SS-5PEW-03 EC Axial Fan Ø315 mm
Ø315 mm | EC | Max airflow 2,575 m³/h | Max static pressure 164 Pa | 66 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWAE3G315SS-5PEW-03
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

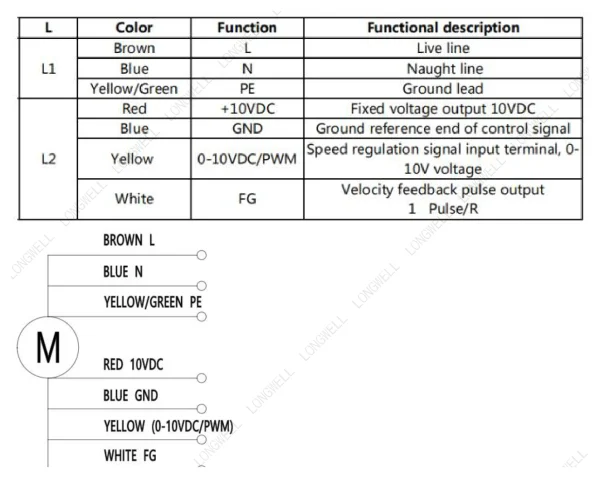

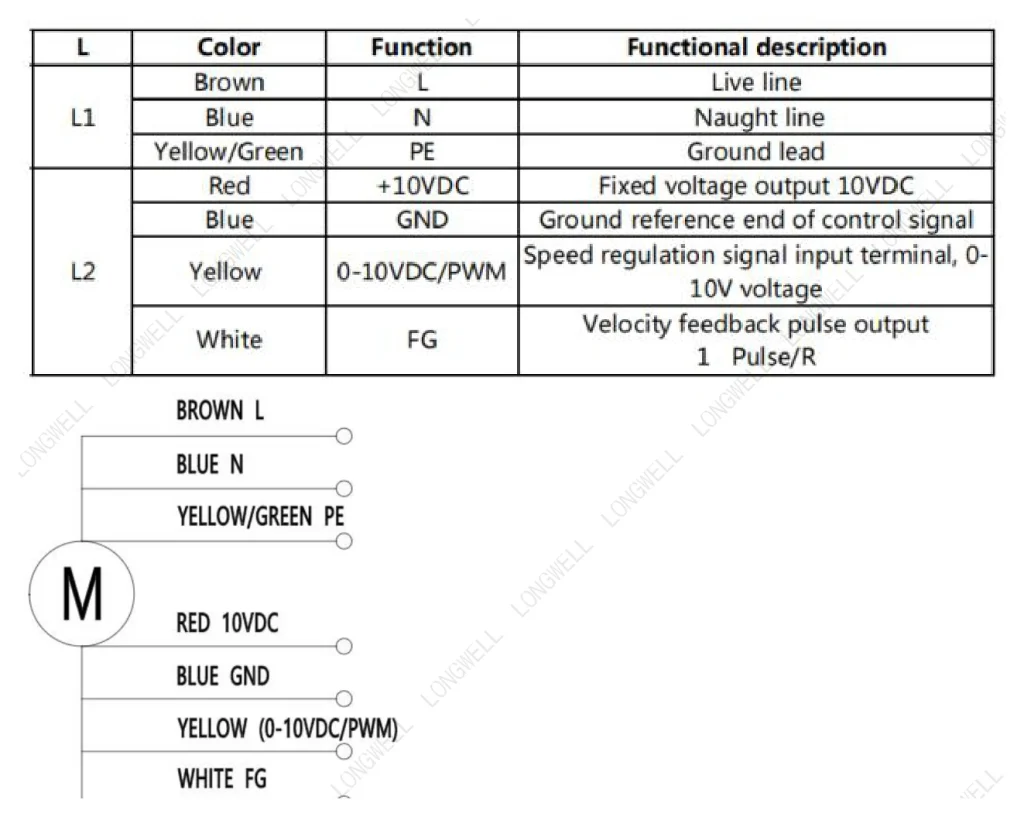

LWAE3G315SS-5PEW-03 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø315 mm, rated 220/230 V EC, maximum airflow 2,575 m³/h, maximum static pressure 164 Pa, noise 66 dB(A), input power 165 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G315SS-5PEW-03 |
|---|---|
| Series | LWAE3G315 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50 Hz |
| Current | 1.1 A |
| Input power | 165 W |
| Speed | 2,100 rpm |
| Max. airflow | 2,575 m³/h |
| Max. static pressure | 164 Pa |
| Noise | 66 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø315 mm |
| Impeller material | PA66 ( Impeller ) |
| Protection class | IP54 |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø315 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G315SS-5PEW-03 this model | 2,575 m³/h | 164 Pa | 2,100 rpm | 165 W | 66 dB(A) | 220/230 V | |
| LWDE-315S-MBN-01 | 1,839 m³/h | 793 Pa | 2,700 rpm | 220 W | 77 dB(A) | 230 V | View |
| LWAE3G315ST-5PNW-02 | 2,575 m³/h | 164 Pa | 2,100 rpm | 165 W | 66 dB(A) | 220/230 V | View |
| LWAE3G315ST-5PEW-04 | 2,575 m³/h | 164 Pa | 2,100 rpm | 165 W | 66 dB(A) | 220/230 V | View |
| LWAE3G315SS-5PNW-01 | 2,575 m³/h | 164 Pa | 2,100 rpm | 165 W | 66 dB(A) | 220/230 V | View |
| LWFE3G315-188DS-01 | 8,732 m³/h | 783 Pa | 1,070 rpm | 2,400 W | 81 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
