ImpellerØ315 mm12.4 in
Max airflow2,575 m³/h1,516 CFM
Max static pressure164 Pa0.66 in. wg
Voltage220/230 V
Speed2,100 rpm
Input power165 W
Noise66 dB(A)

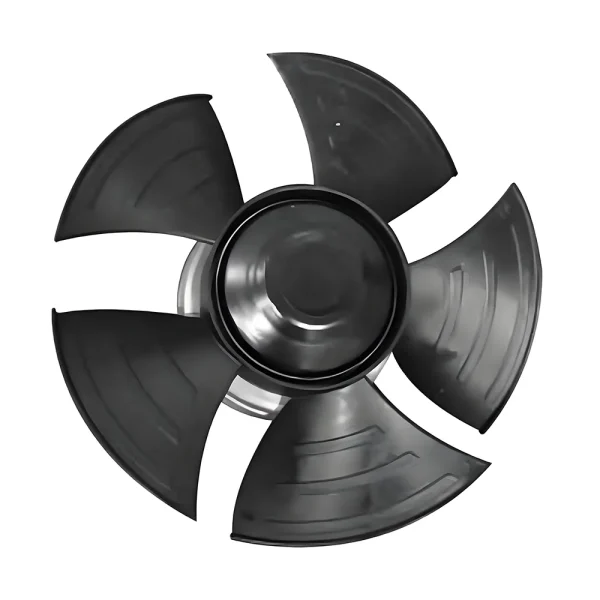

LWAE3G315SS-5PNW-01 EC Axial Fan Ø315 mm

Ø315 mm | EC | Max airflow 2,575 m³/h | Max static pressure 164 Pa | 66 dB(A)

SKU: LWAE3G315SS-5PNW-01 Categories: Axial Fans, EC Axial Fans, Impeller Ø300–450 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAE3G315SS-5PNW-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAE3G315SS-5PNW-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

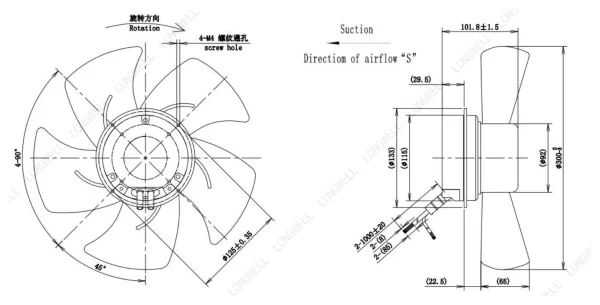

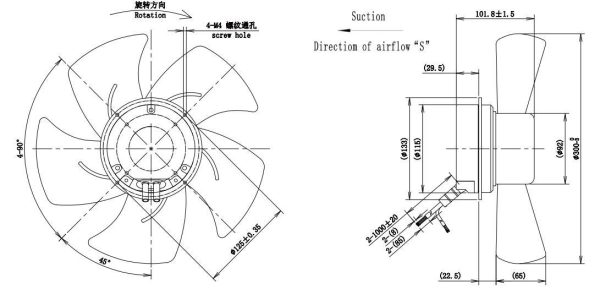

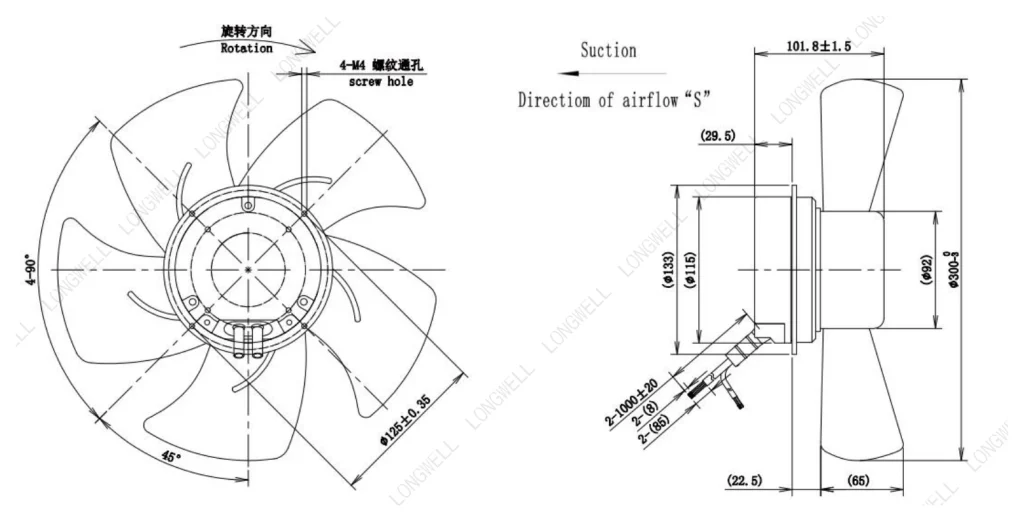

LWAE3G315SS-5PNW-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

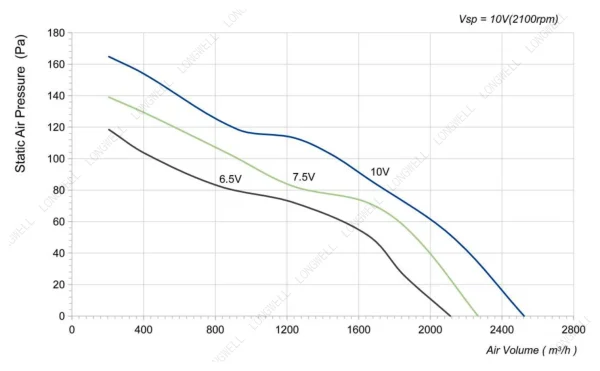

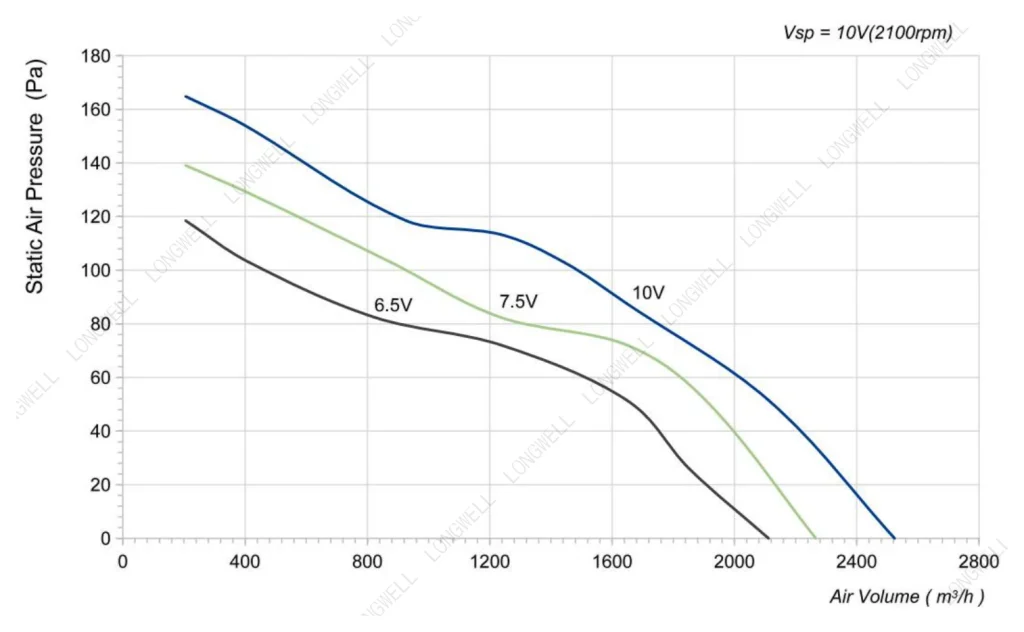

LWAE3G315SS-5PNW-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

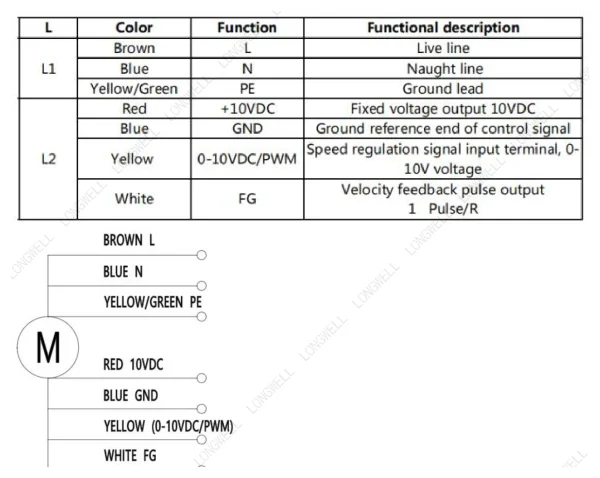

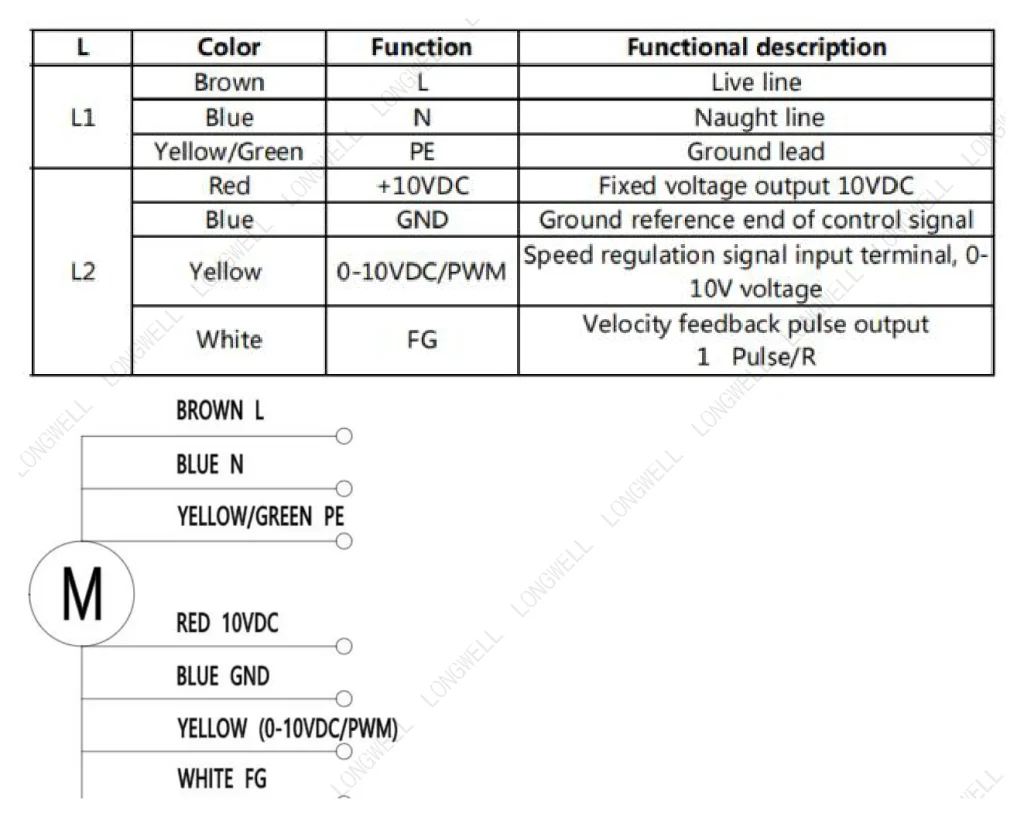

LWAE3G315SS-5PNW-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAE3G315SS-5PNW-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE3G315SS-5PNW-01 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø315 mm, rated 220/230 V EC, maximum airflow 2,575 m³/h, maximum static pressure 164 Pa, noise 66 dB(A), input power 165 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G315SS-5PNW-01
Series	LWAE3G315
Motor type	EC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	176 ~ 264 V
Frequency	50 Hz
Current	1.1 A
Input power	165 W
Speed	2,100 rpm
Max. airflow	2,575 m³/h
Max. static pressure	164 Pa
Noise	66 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø315 mm
Impeller material	PA66 ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø315 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAE3G315SS-5PNW-01 this model	2,575 m³/h	164 Pa	2,100 rpm	165 W	66 dB(A)	220/230 V
LWDE-315S-MBN-01	1,839 m³/h	793 Pa	2,700 rpm	220 W	77 dB(A)	230 V	View
LWAE3G315ST-5PNW-02	2,575 m³/h	164 Pa	2,100 rpm	165 W	66 dB(A)	220/230 V	View
LWAE3G315ST-5PEW-04	2,575 m³/h	164 Pa	2,100 rpm	165 W	66 dB(A)	220/230 V	View
LWAE3G315SS-5PEW-03	2,575 m³/h	164 Pa	2,100 rpm	165 W	66 dB(A)	220/230 V	View
LWFE3G315-188DS-01	8,732 m³/h	783 Pa	1,070 rpm	2,400 W	81 dB(A)	380 V	View
