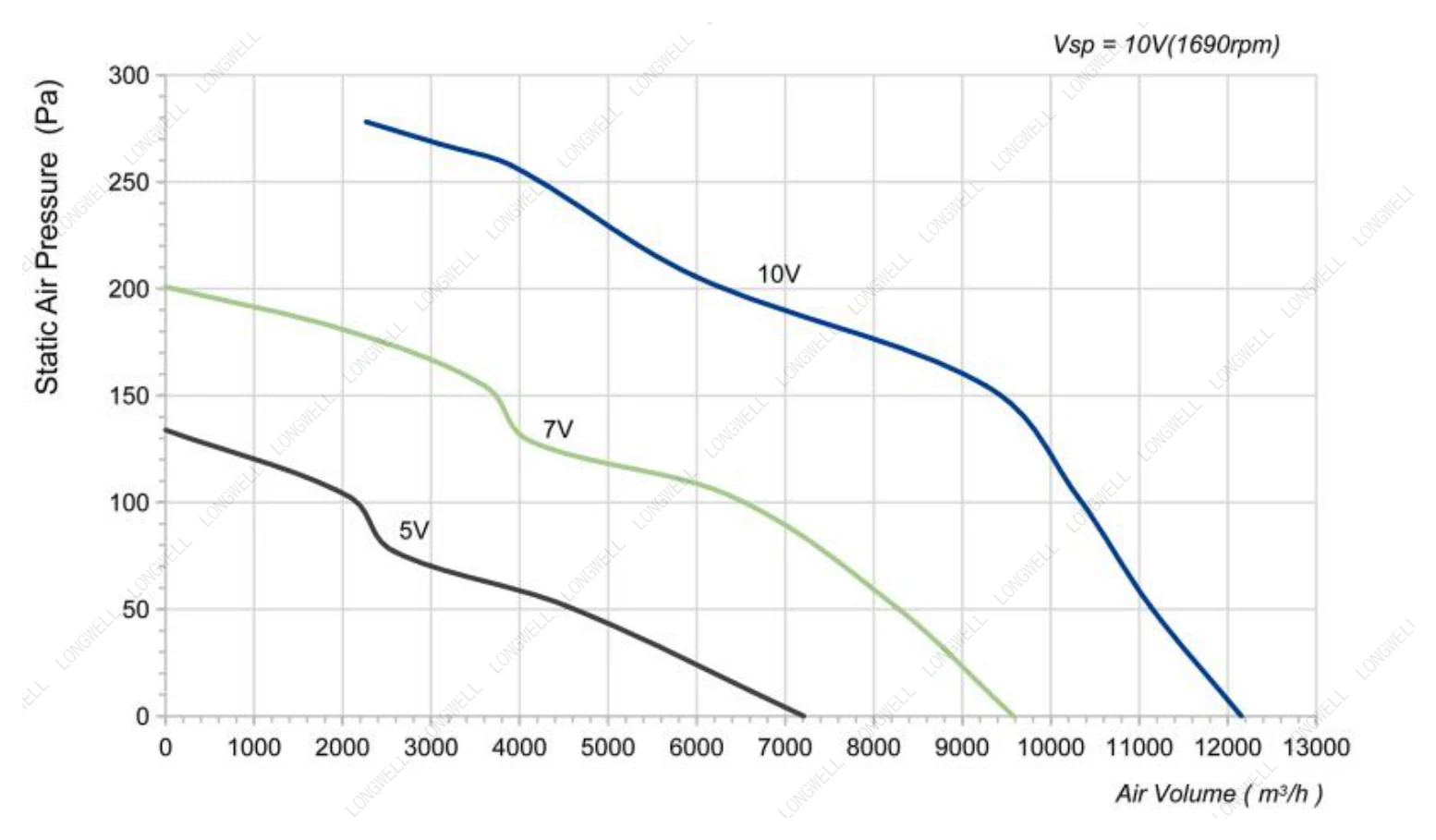

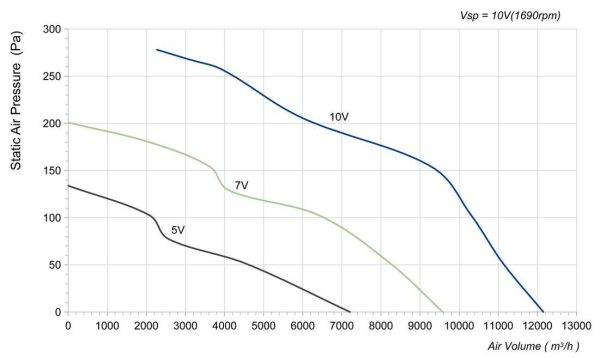

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ550 mm
- Max airflow12,154 m³/h
- Max static pressure278 Pa
- Voltage380 V
- Speed1,690 rpm
- Input power950 W
- Noise78 dB(A)

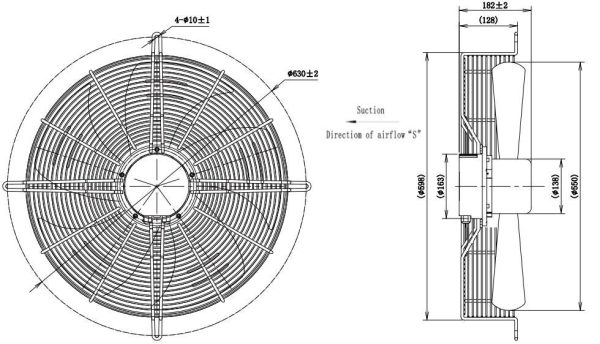

LWAE3G550TS-5MEW-03 EC Axial Fan Ø550 mm
Ø550 mm | EC | Max airflow 12,154 m³/h | Max static pressure 278 Pa | 78 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWAE3G550TS-5MEW-03 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø550 mm, rated 380 V EC, maximum airflow 12,154 m³/h, maximum static pressure 278 Pa, noise 78 dB(A), input power 950 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G550TS-5MEW-03 |
|---|---|
| Series | LWAE3G550 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 304 ~ 456 V |
| Frequency | 50/60 Hz |
| Current | 1.65 A |
| Input power | 950 W |
| Speed | 1,690 rpm |
| Max. airflow | 12,154 m³/h |
| Max. airflow (CFM) | 7,149 CFM |
| Max. static pressure | 278 Pa |
| Noise | 78 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 30 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø550 mm |
| Impeller material | Sheet steel ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |

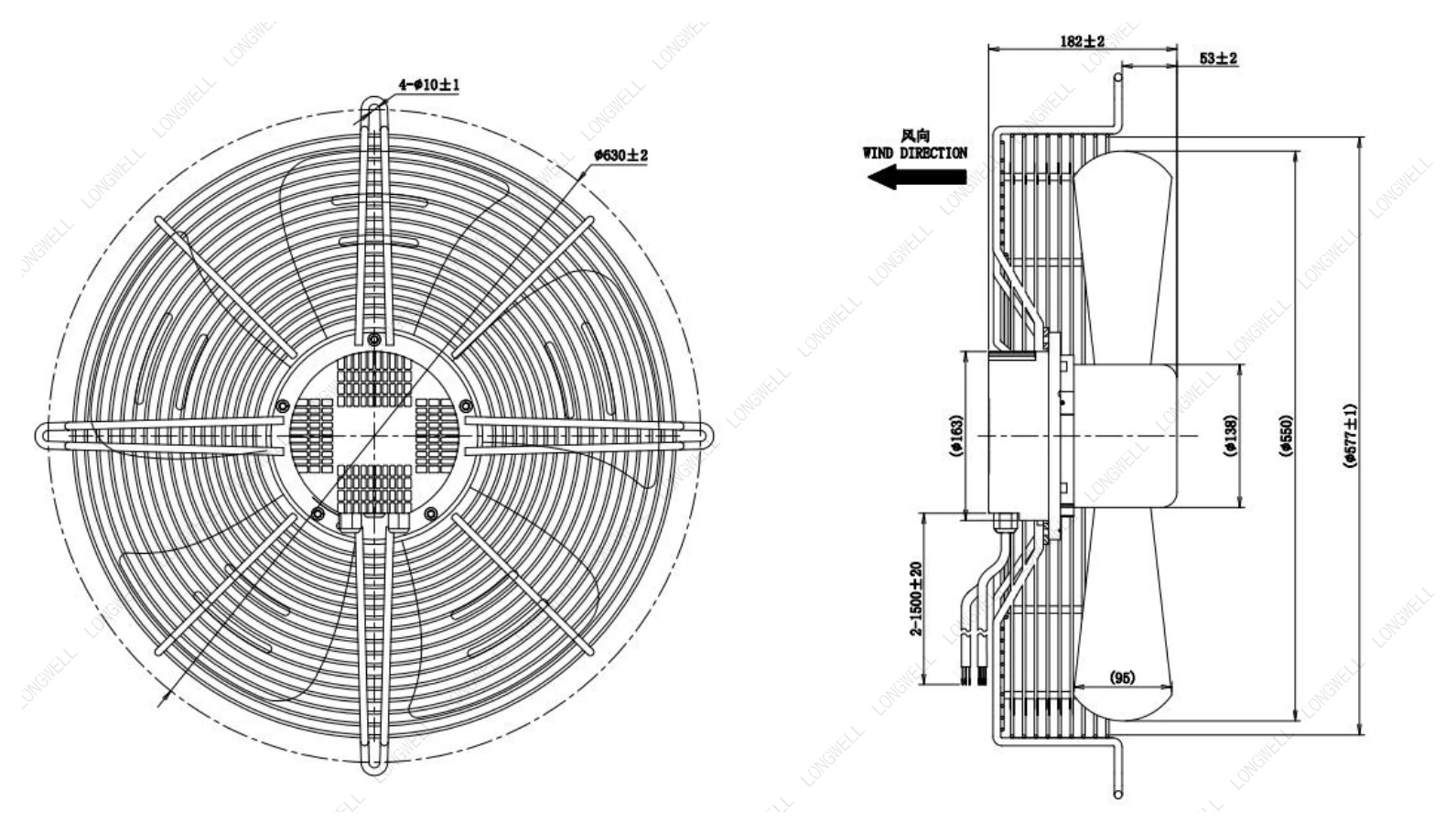

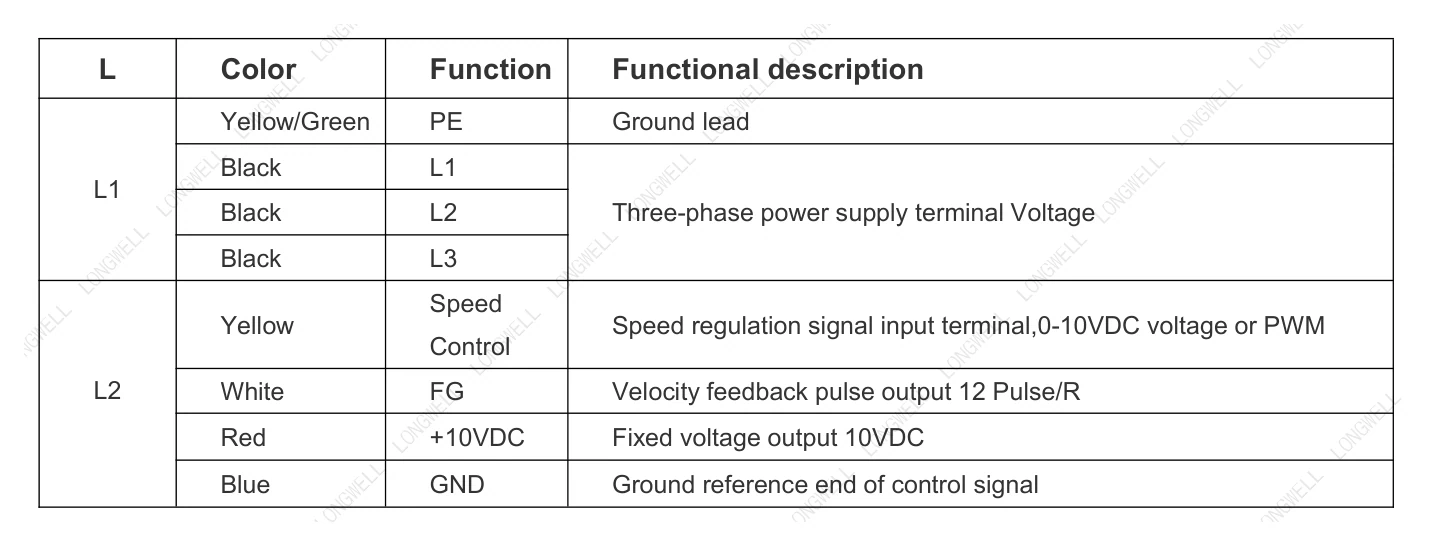

| Speed control | Control input 0~10VDC / PWM |
| Control signal | Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.1VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% . |
| Speed feedback | Tach output: 12 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V. |
| Auxiliary output | Output 10VDC, Max Current 10 mA |
| Protection functions | Over-temperature protection, Over-current protection, Locked-rotor protection’ |
| Soft start | Delay time <30 seconds to full speed |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G550: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø550 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G550TS-5MEW-03 this model | 12,154 m³/h | 278 Pa | 1,690 rpm | 950 W | 78 dB(A) | 380 V | |
| LWAE3G550TT-5MNW-02 | 10,506 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G550TT-5MKW-06 | 12,154 m³/h | 278 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G550TT-5MEW-04 | 12,154 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G550TS-5MNW-01 | 12,154 m³/h | 330 Pa | 1,690 rpm | 850 W | 78 dB(A) | 380 V | View |
| LWAE3G550TS-5MKW-05 | 12,154 m³/h | 280 Pa | 1,690 rpm | 950 W | 78 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
