Downloads for LWAE3G630TS-5MKW-09
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ630 mm
- Max airflow12,566 m³/h
- Max static pressure258 Pa
- Voltage3 V
- Speed930 rpm
- Input power580 W
- Noise75 dB(A)

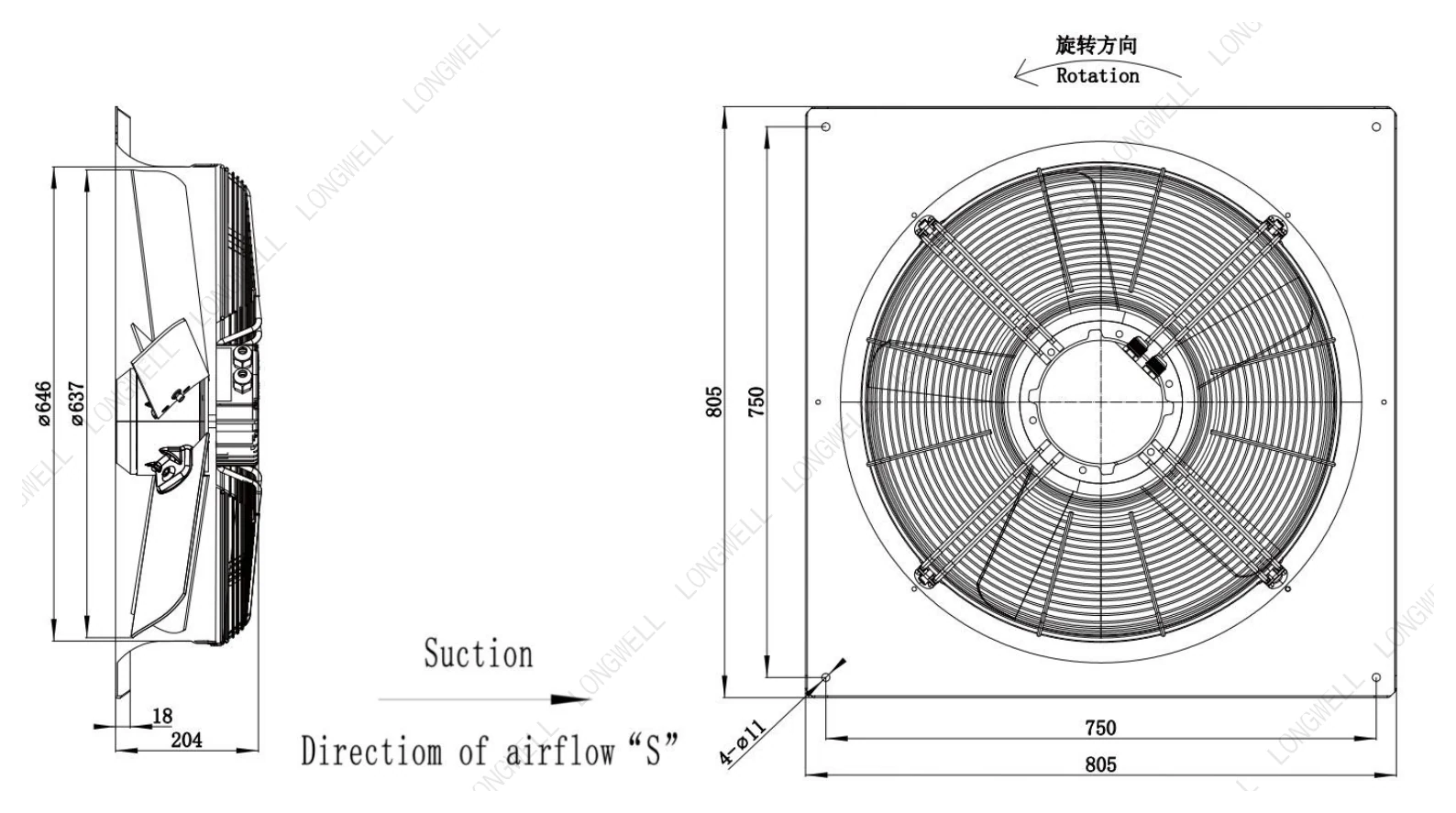

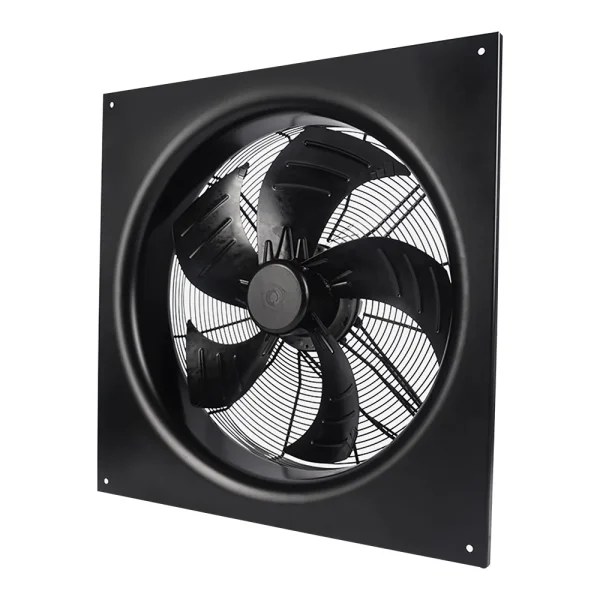

LWAE3G630TS-5MKW-09 EC Axial Fan Ø630 mm
Ø630 mm | EC | Max airflow 12,566 m³/h | Max static pressure 258 Pa | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

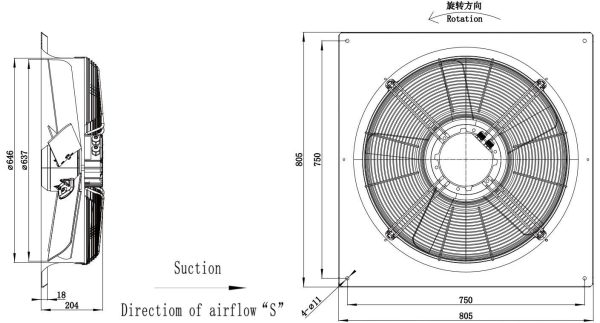

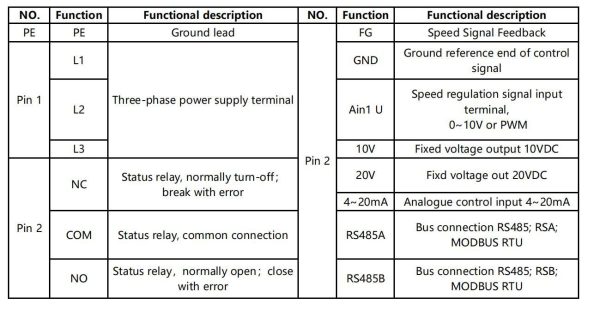

LWAE3G630TS-5MKW-09 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø630 mm, rated 3 V EC, maximum airflow 12,566 m³/h, maximum static pressure 258 Pa, noise 75 dB(A), input power 580 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G630TS-5MKW-09 |
|---|---|
| Series | LWAE3G630 |
| Motor type | EC |
| Rated voltage | 3 V |
| Voltage range | 304 ~ 456 V |
| Frequency | 50 Hz |
| Current | 1.15 A |
| Input power | 580 W |
| Speed | 930 rpm |
| Max. airflow | 12,566 m³/h |
| Max. static pressure | 258 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø630 mm |
| Impeller material | aluminium alloy ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G630: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

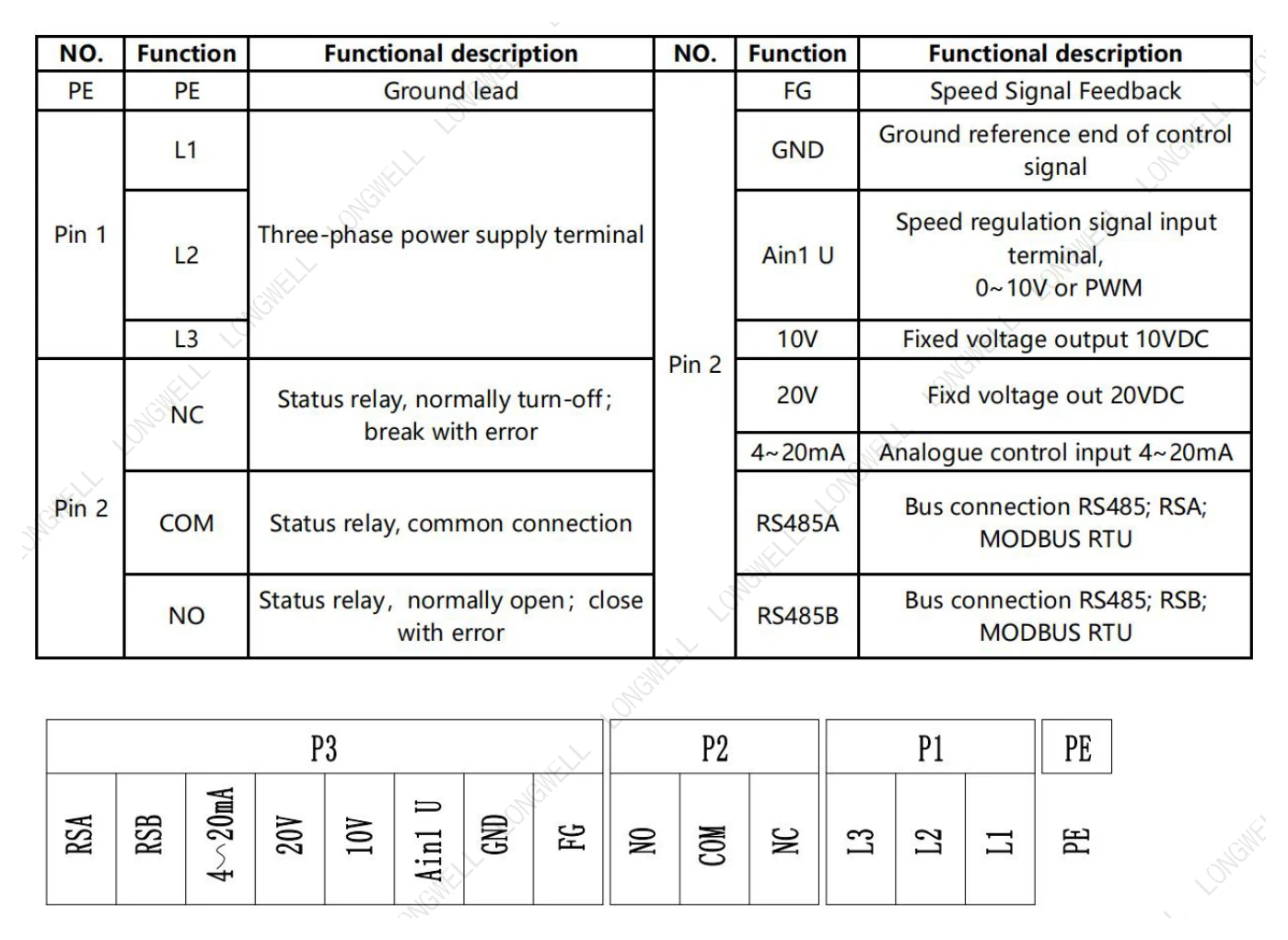

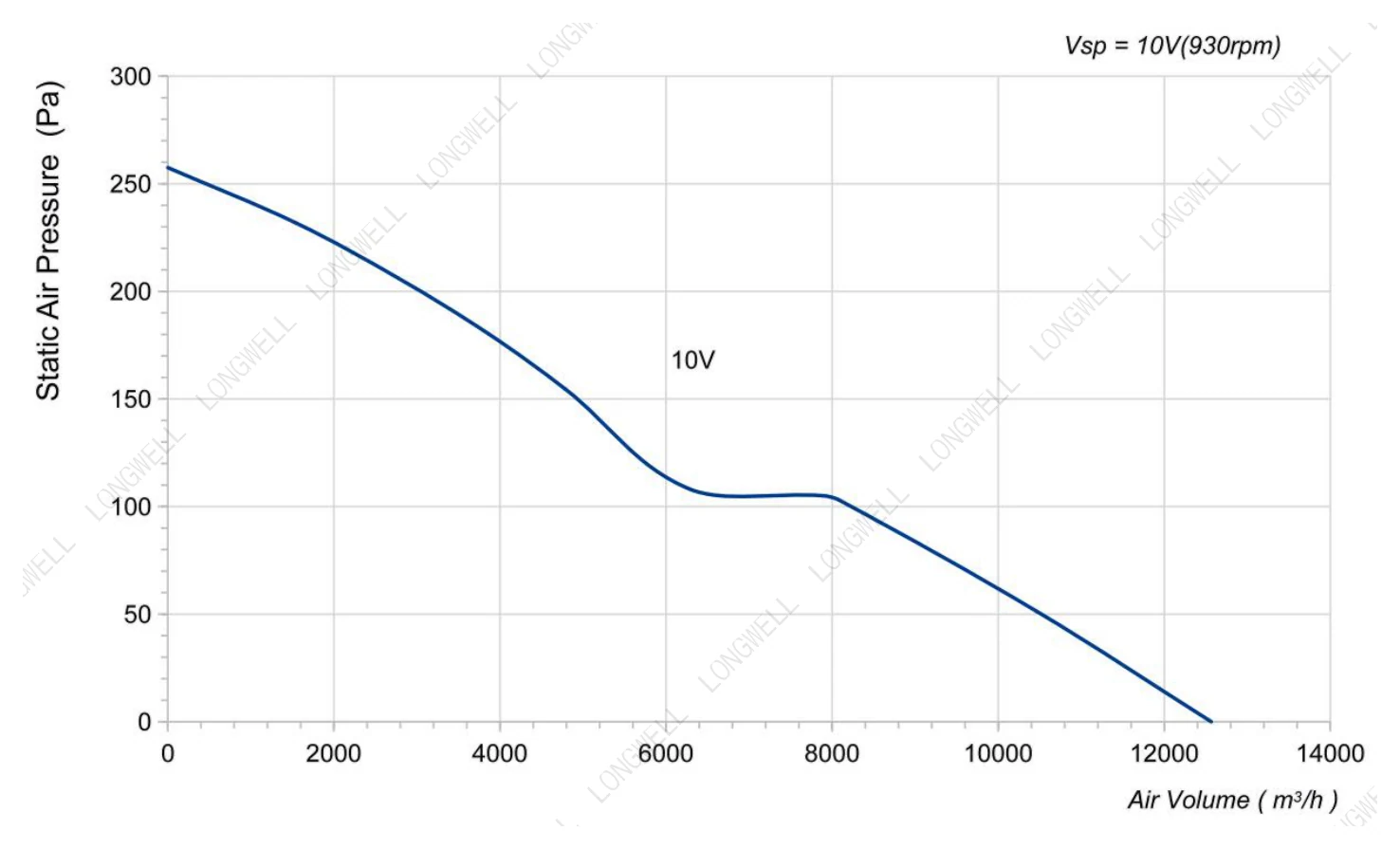

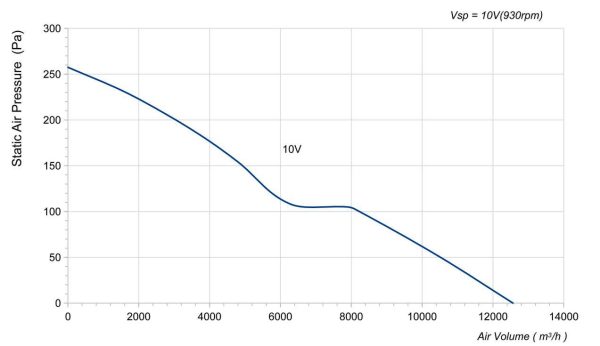

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
