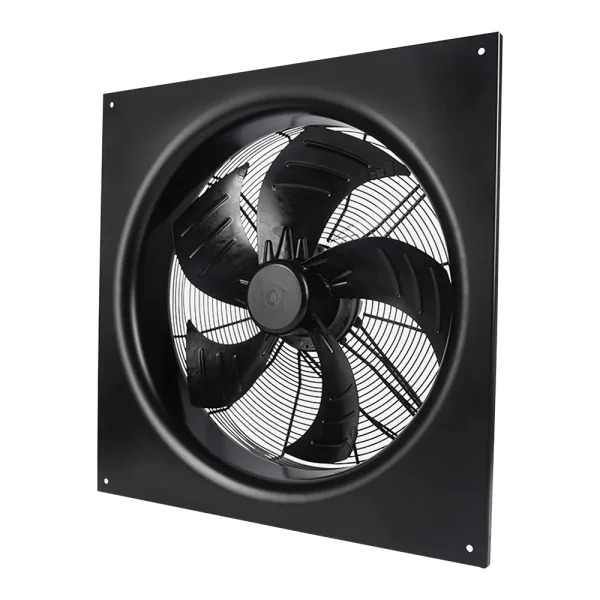

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ630 mm24.8 in
Max airflow12,777 m³/h7,520 CFM
Max static pressure188 Pa0.75 in. wg
Voltage230 V
Speed1,086 rpm
Input power679 W
Noise70 dB(A)

LWAE3G630SS-5PKW-10 EC Axial Fan Ø630 mm

Ø630 mm | EC | Max airflow 12,777 m³/h | Max static pressure 188 Pa | 70 dB(A)

SKU: LWAE3G630SS-5PKW-10 Categories: Axial Fans, EC Axial Fans, Impeller Ø500–900 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC EC Axial fans · SKU on PDF p. 30

All files for LWAE3G630SS-5PKW-106 files · direct download

PDFFull product catalogue · model on PDF p. 30 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as Ziehl-Abegg FN063, ebm-papst W3G630, Ziehl-Abegg ZAbluefin 630, Ziehl-Abegg ZAvblue 630 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Heat pumps Hybrid heat-pump systems Adiabatic cooling Process cooling All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STEP3D model (STEP)29.8 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWAE3G630SS-5PKW-10

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE3G630SS-5PKW-10datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWAE3G630SS-5PKW-10

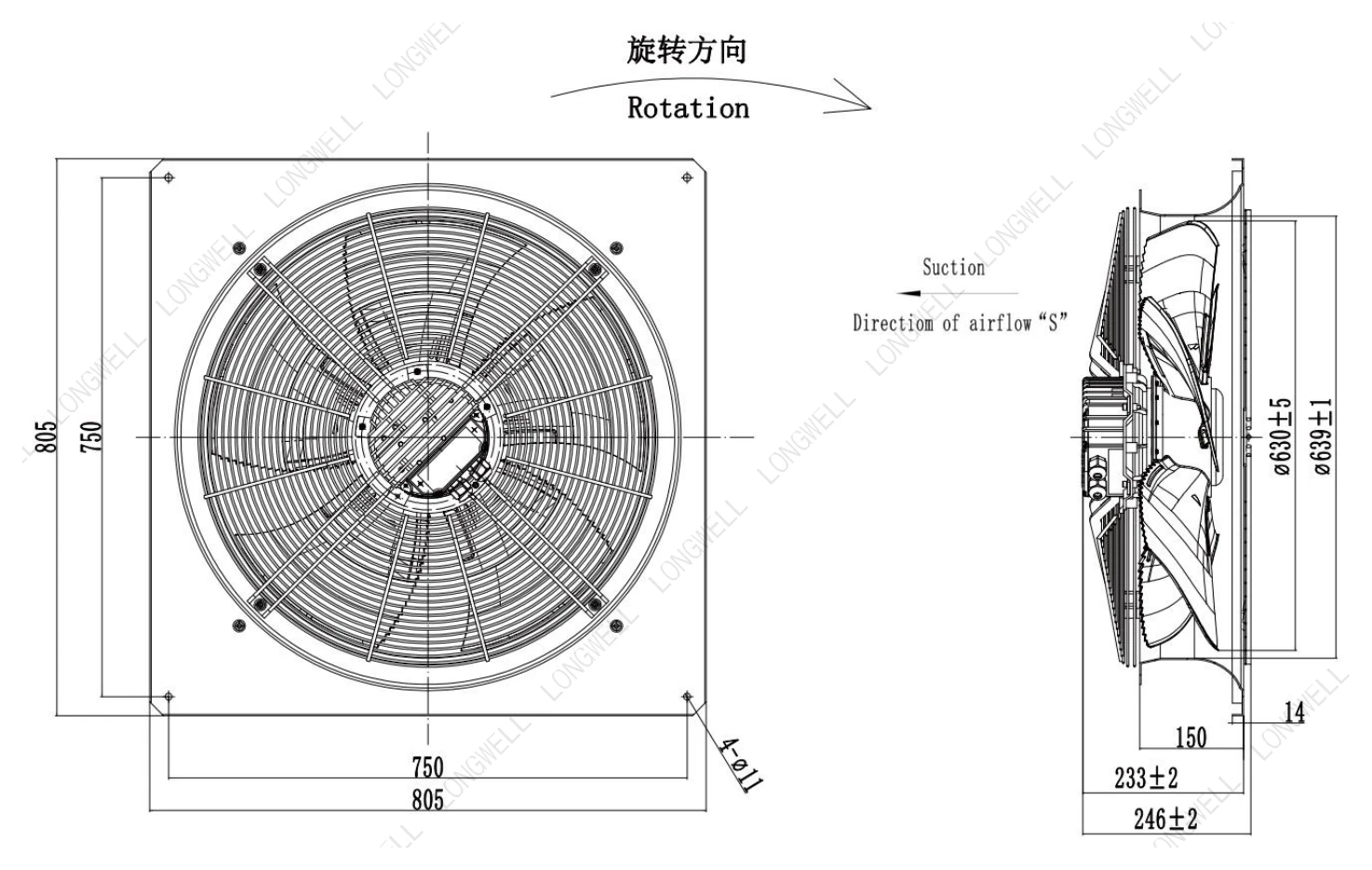

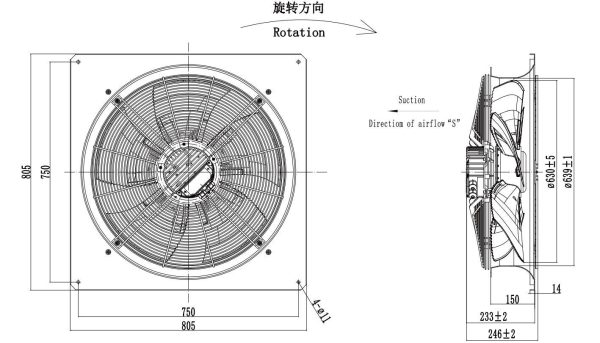

LWAE3G630SS-5PKW-10 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

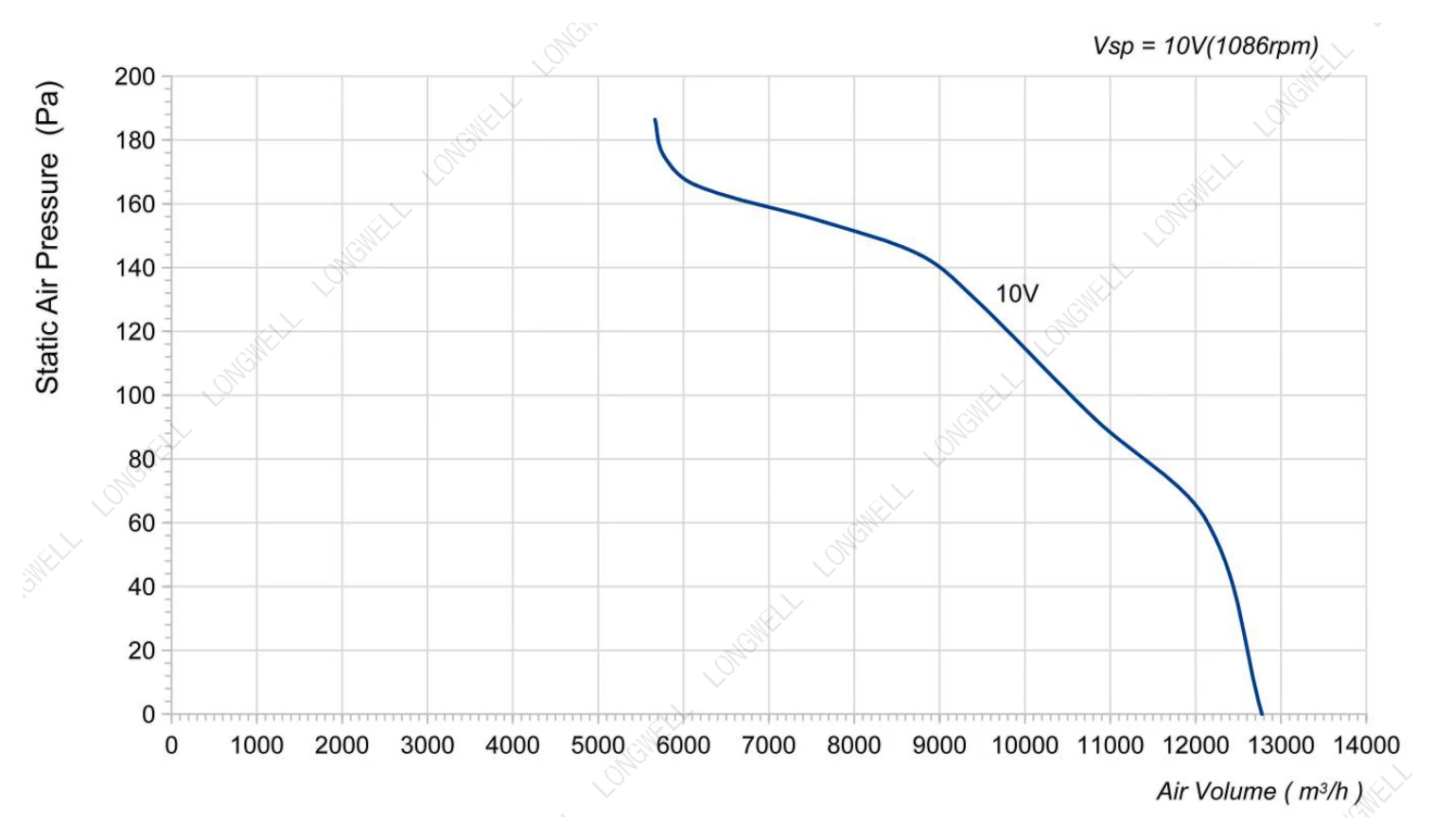

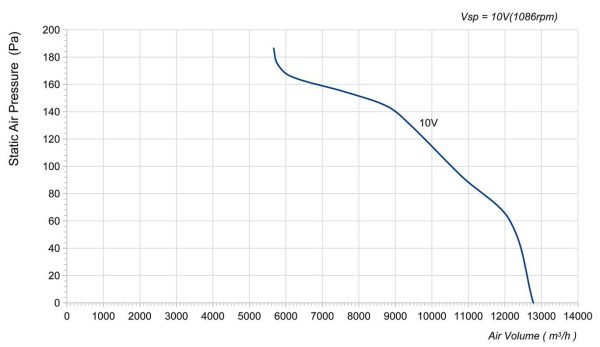

LWAE3G630SS-5PKW-10 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

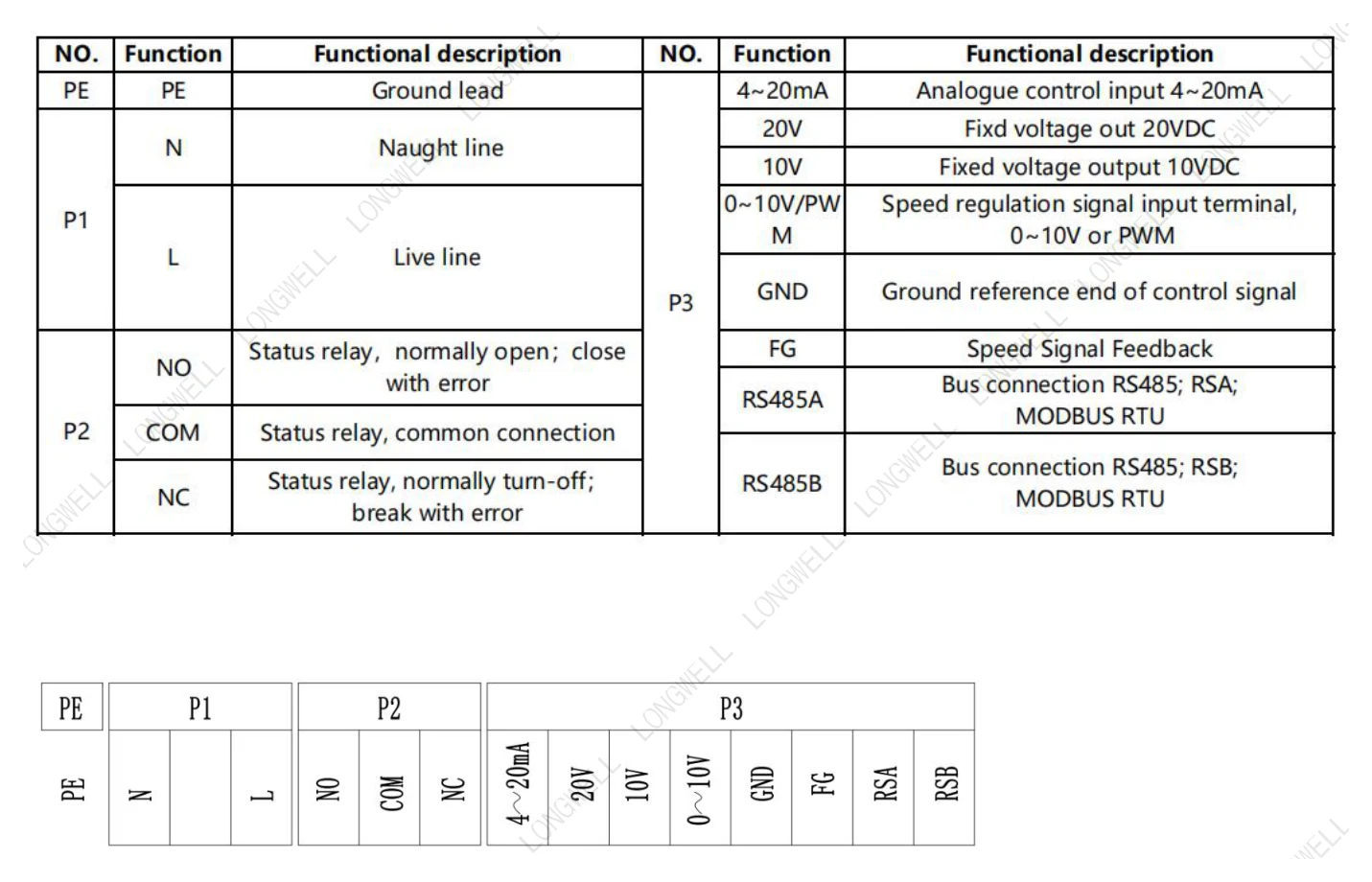

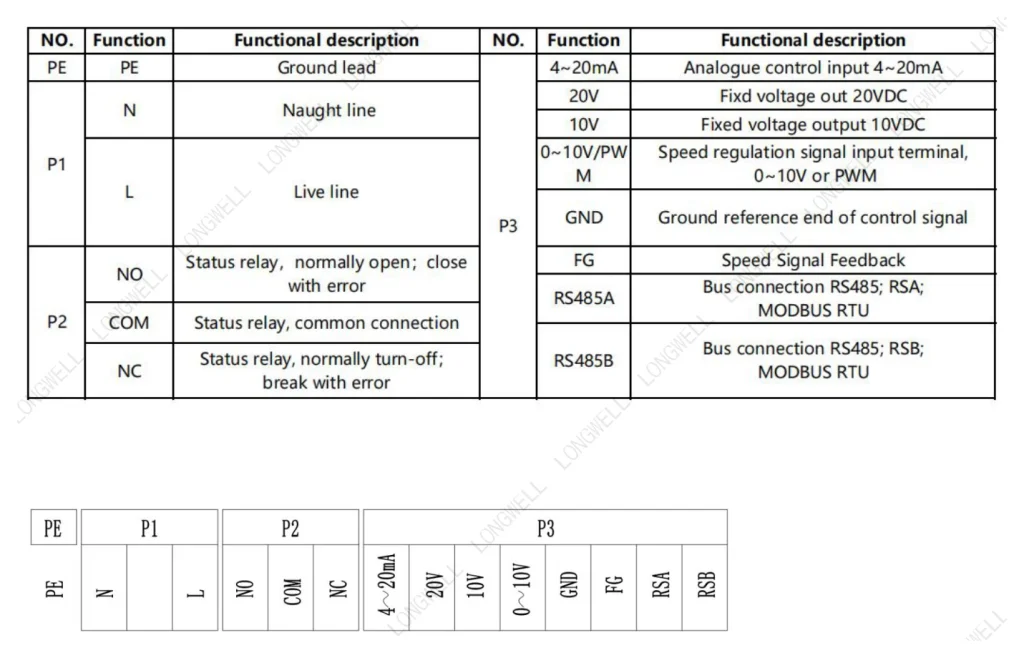

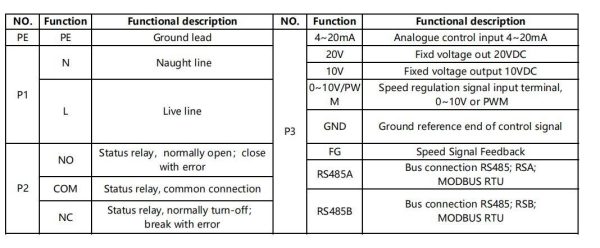

LWAE3G630SS-5PKW-10 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWAE3G630SS-5PKW-10: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE3G630SS-5PKW-10

LWAE3G630SS-5PKW-10 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø630 mm, rated 230 V EC, maximum airflow 12,777 m³/h, maximum static pressure 188 Pa, noise 70 dB(A), input power 679 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G630SS-5PKW-10
Series	LWAE3G630
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Voltage range	176 ~ 264 V
Frequency	50 Hz
Current	2.96 A
Input power	679 W
Speed	1,086 rpm
Max. airflow	12,777 m³/h
Max. static pressure	188 Pa
Noise	70 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø630 mm
Impeller material	PA66 ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G630: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
