ImpellerØ160 mm6.3 in
Max airflow453 m³/h267 CFM
Max static pressure608 Pa2.44 in. wg
Voltage230 V
Speed1,450 rpm
Input power150 W
Noise57 dB(A)

LWFA2E160-092SS-03 AC Single Inlet Forward Centrifugal Blower Ø160 mm

Ø160 mm | AC | Max airflow 453 m³/h | Max static pressure 608 Pa | 57 dB(A)

SKU: LWFA2E160-092SS-03 Categories: Centrifugal Fans, Impeller Ø160–315 mm, Single Inlet Forward Curved Blowers

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Single Inlet Forward Centrifugal Blower · SKU on PDF p. 11

All files for LWFA2E160-092SS-035 files · direct download

PDFFull product catalogue · model on PDF p. 11 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Solid-fuel heating Commercial dishwashers Commercial dryers Fan burners All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)18.9 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWFA2E160-092SS-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA2E160-092SS-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFA2E160-092SS-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFA2E160-092SS-03

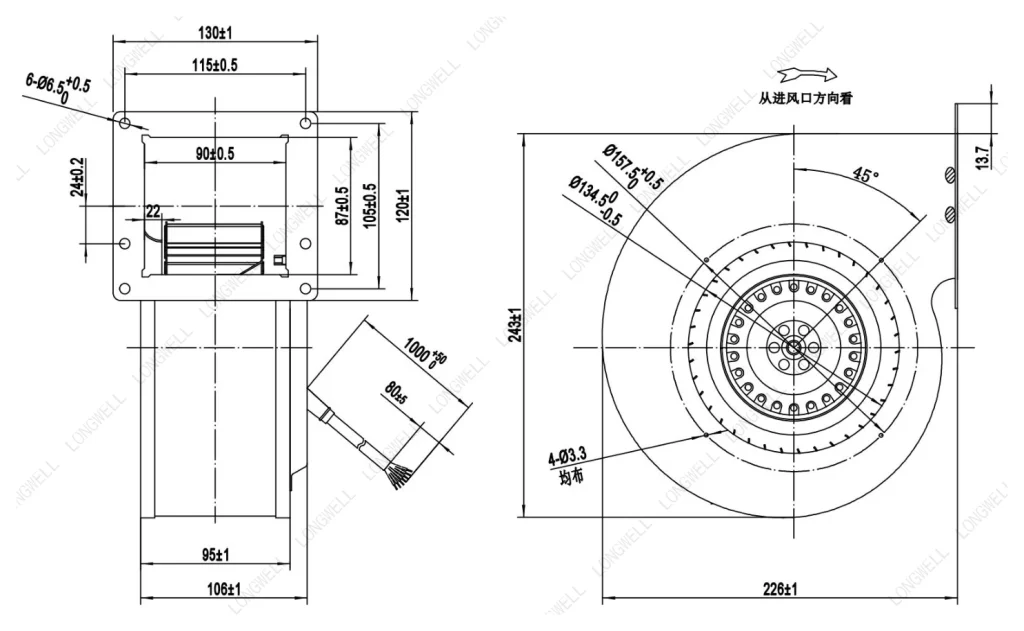

LWFA2E160-092SS-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

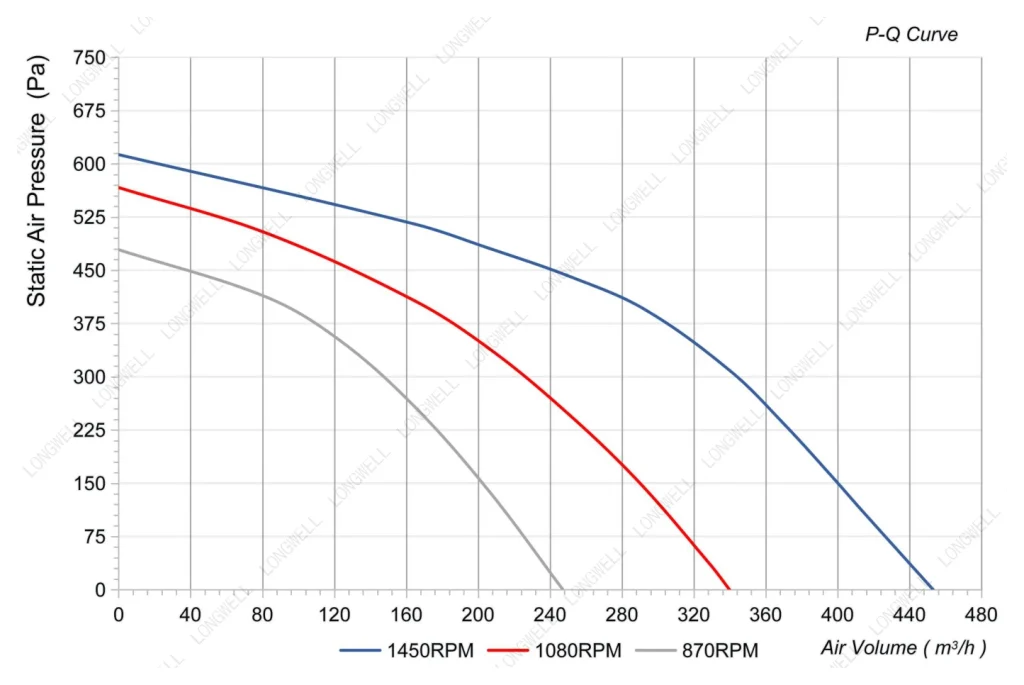

LWFA2E160-092SS-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

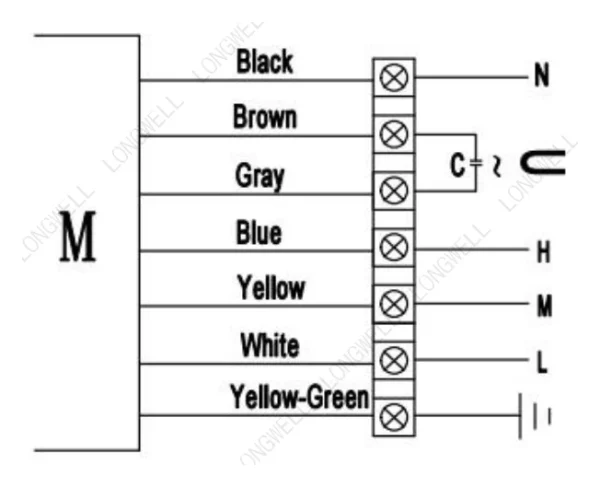

LWFA2E160-092SS-03 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFA2E160-092SS-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA2E160-092SS-03

LWFA2E160-092SS-03 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø160 mm, rated 230 V AC, maximum airflow 453 m³/h, maximum static pressure 608 Pa, noise 57 dB(A), input power 150 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA2E160-092SS-03
Series	LWFA2E160
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.67 A
Input power	150 W
Speed	1,450 rpm
Max. airflow	453 m³/h
Max. static pressure	608 Pa
Noise	57 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø160 mm
Rotor diameter	92 mm
Impeller material	Plastic PA66 ( Impeller )
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA2E160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
