LWBA2E225-092NS-06 AC Backward Curved Centrifugal Fan Ø225 mm

Ø225 mm | AC | Max airflow 1,166 m³/h | Max static pressure 578 Pa | 68.6 dB(A)

SKU: LWBA2E225-092NS-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWBA2E225-092NS-06 — construction, airflow path and running condition.

LWBA2E225-092NS-06 AC Backward Curved Centrifugal Fan | Shipping & Packing · open in video library

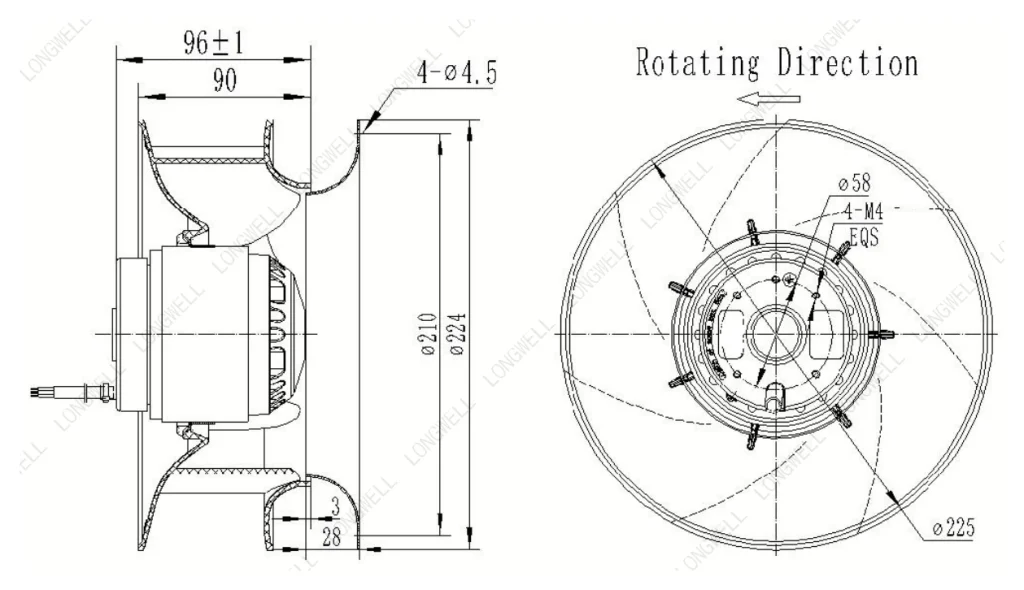

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWBA2E225-092NS-06 Dimensional drawing

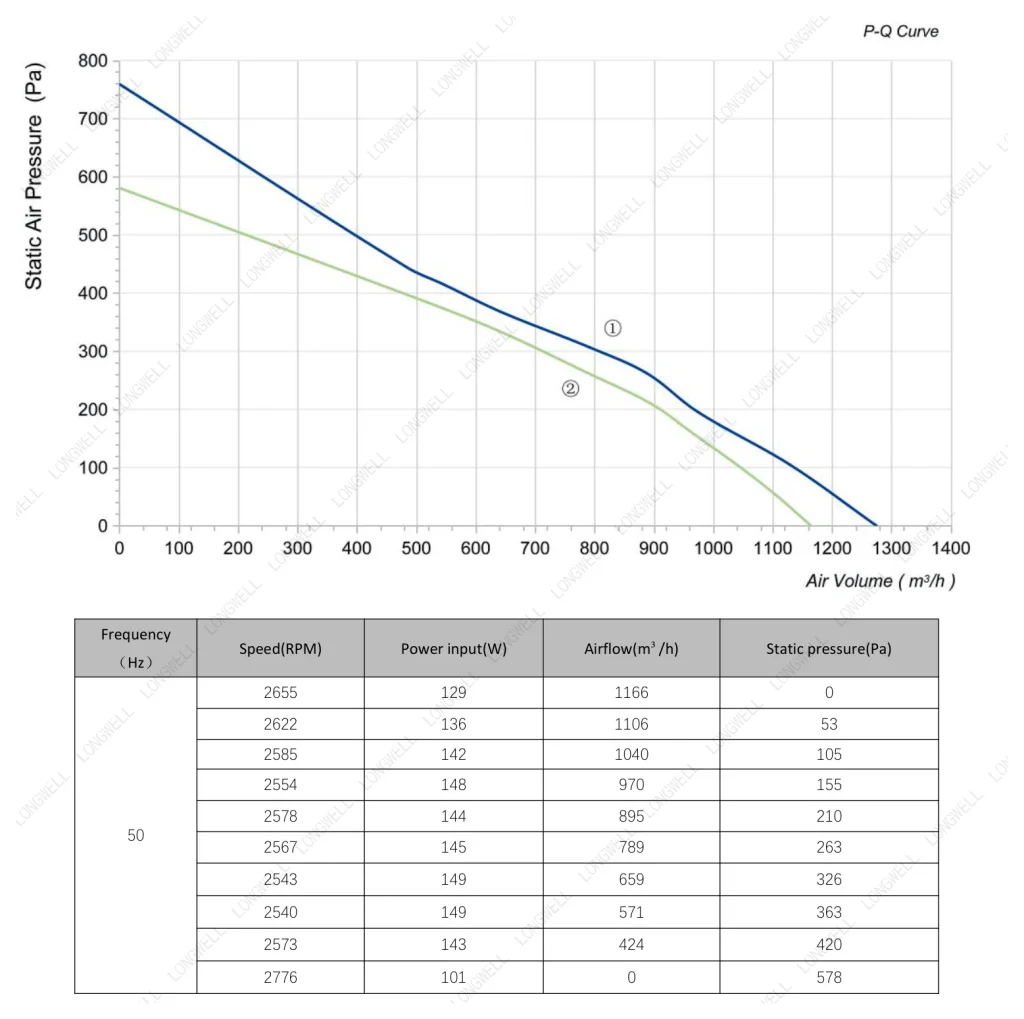

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWBA2E225-092NS-06 Performance curve (P-Q)
Wiring diagramLead colours and terminal assignment; TK = motor thermal contact.
LWBA2E225-092NS-06 Wiring diagram

Downloads for LWBA2E225-092NS-06

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBA2E225-092NS-06 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø225 mm, rated 230 V AC, maximum airflow 1,166 m³/h, maximum static pressure 578 Pa, noise 68.6 dB(A), input power 129 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWBA2E225-092NS-06
Series LWBA2E225
Motor type AC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Current 0.56 A
Input power 129 W
Speed 2,655 rpm
Max. airflow 1,166 m³/h
Max. static pressure 578 Pa
Noise 68.6 dB(A)
Ambient temperature -40 ~ 60 °C
Storage temperature -40 ~ 80℃
Humidity 0 ~ 85 % RH
Altitude < 1000m
Impeller diameter Ø225 mm
Rotor diameter 92
Impeller material PA6+GF ( Impeller )
Protection class IP44
Insulation class F
Bearing Maintenance-free ball bearings
Duty S1
Balance grade G6.3
Vibration standard JB/T 8689
Service life 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Rotation Clockwise,seen on rotor

Typical applications

  • Air handling units (AHU) and rooftop units (RTU)
  • Data-center CRAH / CRAC units and fan walls
  • Dust extraction and process ventilation
  • Fan filter units and air purifiers

Series LWBA2E225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø225 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWBA2E225-092NS-06 this model 1,166 m³/h578 Pa 2,655 rpm129 W68.6 dB(A)230 V
LWBA2D225-092NT-03 618 m³/h165 Pa 1,420 rpm45 W54 dB(A)380 V View
LWBA4D225-092NT-04 690 m³/h216 Pa 1,650 rpm47 W60 dB(A)380 V View
LWBA2E225-092NS-13 1,133 m³/h546 Pa 2,630 rpm125 W74 dB(A)230 V View
LWBA2D225-092NT-11 1,133 m³/h546 Pa 2,600 rpm135 W74 dB(A)380 V View
LWBA2E225-092NS-09 1,133 m³/h546 Pa 2,600 rpm135 W74 dB(A)230 V View
LWBA2D225-092NT-08 1,139 m³/h588 Pa 2,645 rpm119 W68.6 dB(A)380 V View
LWBA2D225-092NT-12 1,257 m³/h695 Pa 2,900 rpm180 W76 dB(A)380 V View
LWBA2E225-092NS-10 1,257 m³/h695 Pa 2,900 rpm180 W76 dB(A)230 V View
LWBA2E225-092NU-05 1,276 m³/h756 Pa 2,905 rpm178 W71.3 dB(A)115 V View
LWBA2D225-092NT-07 1,318 m³/h788 Pa 3,095 rpm190 W71.8 dB(A)380 V View
LWFA6D225-138NT-03 1,339 m³/h236.9 Pa 930 rpm300 W59 dB(A)380 V View
LWFA4D225-138NT-01 1,648 m³/h288.4 Pa 1,300 rpm490 W65 dB(A)380 V View
LWFA4E225-138NS-02 1,761 m³/h288.4 Pa 1,320 rpm510 W65 dB(A)230 V View
LWFA-E-225-01 2,300 m³/h325 Pa ——65 dB(A)220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
