- ImpellerØ65 mm2.6 in
- Max airflow1,178 m³/h693 CFM
- Max static pressure58 Pa0.23 in. wg
- Voltage24 V
- Speed1,800 rpm
- Input power100.8 W
- Noise55 dB(A)
LWCD-651100MN-06 DC Cross Flow Fan Ø65 mm
Ø65 mm | DC | Max airflow 1,178 m³/h | Max static pressure 58 Pa | 55 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-651100MN-06
LWCD-651100MN-06 — construction, airflow path and running condition.

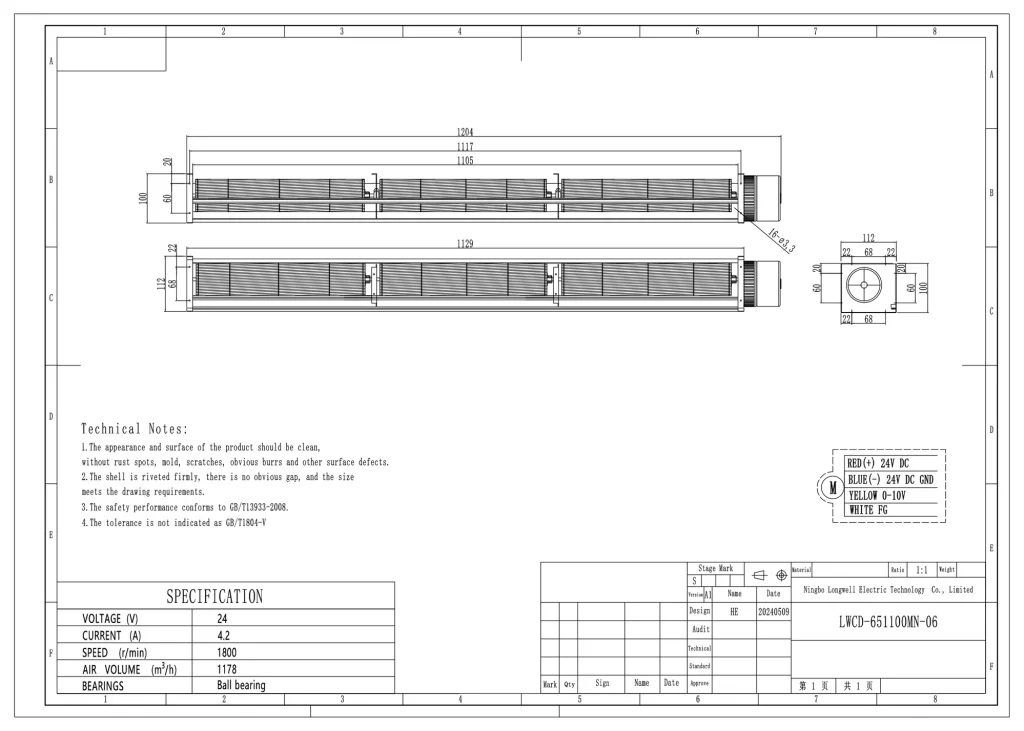

Dimensional drawing LWCD-651100MN-06
Files for LWCD-651100MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCD-651100MN-06
LWCD-651100MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø65 mm, rated 24 V DC, maximum airflow 1,178 m³/h, maximum static pressure 58 Pa, noise 55 dB(A), input power 100.8 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-651100MN-06 |
|---|---|
| Series | LWCD651100 |
| Motor type | DC |
| Inlet | Triple |
| Rated voltage | 24 V |
| Current | 4.2 A |
| Input power | 100.8 W |
| Speed | 1,800 rpm |
| Max. airflow | 1,178 m³/h |
| Max. static pressure | 58 Pa |
| Noise | 55 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø65 mm |
| Outlet length | 1105mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy 40,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment Operating temperature: -20~50 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -25~60 °C |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T8689 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD651100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
