Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ220 mm8.7 in
- Max airflow999 m³/h588 CFM
- Max static pressure515 Pa2.07 in. wg
- Voltage230 V
- Speed2,700 rpm
- Input power100 W
- Noise73 dB(A)
LWBA2E220-092NS-05 AC Backward Curved Centrifugal Fan Ø220 mm
Ø220 mm | AC | Max airflow 999 m³/h | Max static pressure 515 Pa | 73 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Performance curve (P-Q) LWBA2E220-092NS-05
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

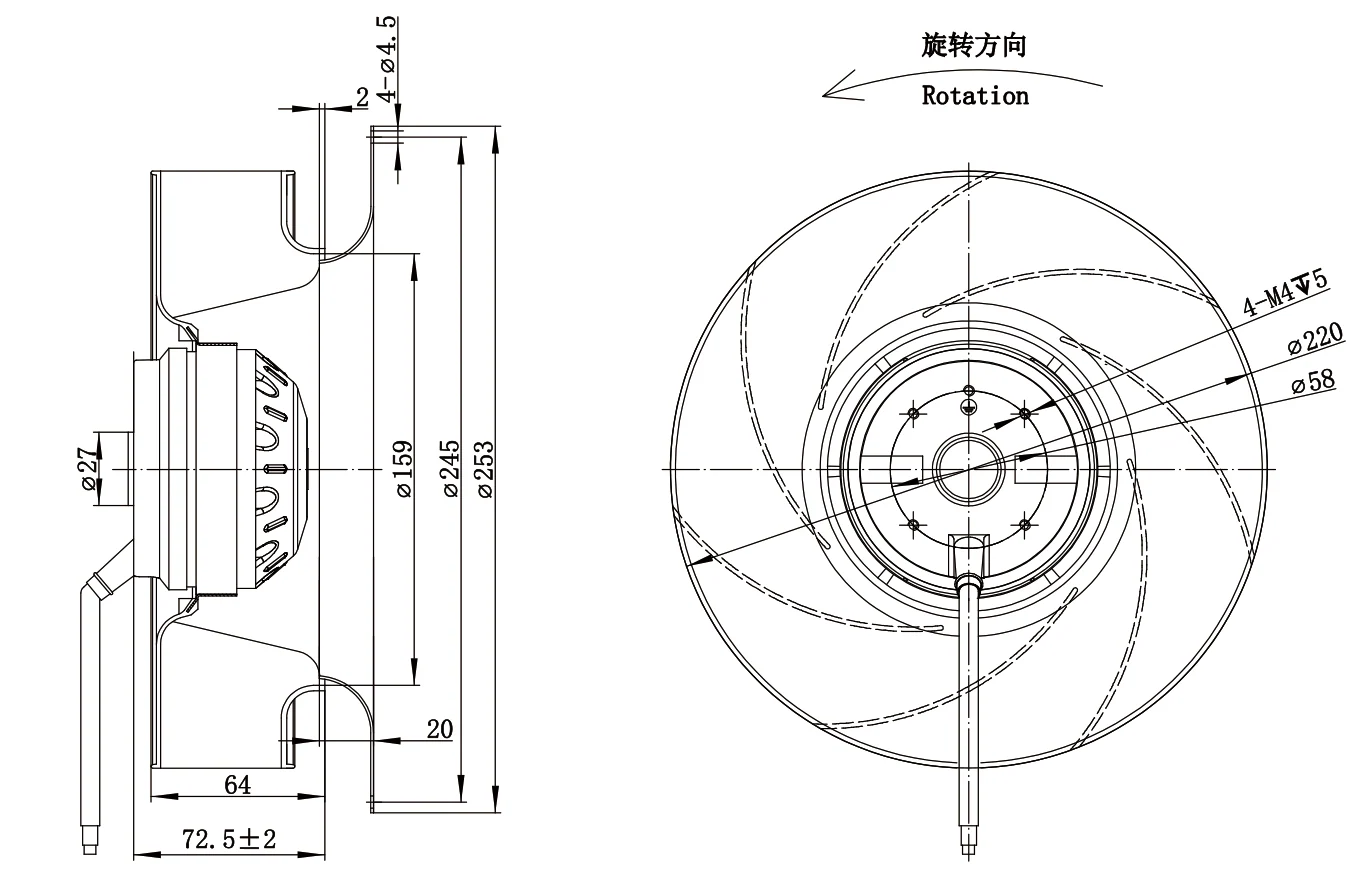

Dimensional drawing LWBA2E220-092NS-05
Files for LWBA2E220-092NS-05: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBA2E220-092NS-05
LWBA2E220-092NS-05 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø220 mm, rated 230 V AC, maximum airflow 999 m³/h, maximum static pressure 515 Pa, noise 73 dB(A), input power 100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA2E220-092NS-05 |
|---|---|
| Series | LWBA2E220 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 60 Hz |
| Current | 0.46 A |
| Input power | 100 W |
| Speed | 2,700 rpm |
| Max. airflow | 999 m³/h |
| Max. static pressure | 515 Pa |
| Noise | 73 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø220 mm |
| Rotor diameter | 92 mm |
| Impeller material | Plastic PA66 |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2E220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWBA2E220-092NS-05
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø220 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA2E220-092NS-05 this model | 999 m³/h | 515 Pa | 2,700 rpm | 100 W | 73 dB(A) | 230 V | |
| LWBA4D220-092NT-11 | 567 m³/h | 155 Pa | 1,400 rpm | 38 W | 52 dB(A) | 380 V | View |
| LWBA4E220-092NS-09 | 567 m³/h | 155 Pa | 1,420 rpm | 40 W | 52 dB(A) | 230 V | View |
| LWBA4D220-092NT-12 | 628 m³/h | 206 Pa | 1,650 rpm | 41 W | 52 dB(A) | 380 V | View |
| LWBA4E220-092NS-10 | 628 m³/h | 206 Pa | 1,650 rpm | 41 W | 58 dB(A) | 230 V | View |
| LWBA4E220-092NS-03 | 767 m³/h | 399 Pa | 2,180 rpm | 64 W | 62.2 dB(A) | 230 V | View |
| LWBA2E220-092NS-08 | 824 m³/h | 474 Pa | 2,500 rpm | 95 W | 70 dB(A) | 230 V | View |
| LWBA2D220-092NT-06 | 937 m³/h | 484 Pa | 2,500 rpm | 85 W | 70 dB(A) | 380 V | View |
| LWBA2E220-092NS-04 | 937 m³/h | 484 Pa | 2,500 rpm | 90 W | 70 dB(A) | 230 V | View |
| LWBA2E220-092NS-02 | 945 m³/h | 515 Pa | 2,530 rpm | 101 W | 66.6 dB(A) | 230 V | View |
| LWBA2D220-092NT-07 | 999 m³/h | 515 Pa | 2,700 rpm | 100 W | 73 dB(A) | 380 V | View |
| LWBA2E220-092NS-01 | 1,029 m³/h | 662 Pa | 2,780 rpm | 129 W | 67.1 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWBA2E220 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWBE3G225-092NU-17Ø225 mm · 1,359.6 m³/h · 906.4 Pa · ECadjacent size
LWBA2D225-092NT-12Ø225 mm · 1,257 m³/h · 695 Pa · ACadjacent size
LWBE3G225-092NS-10Ø225 mm · 1,359.6 m³/h · 906.4 Pa · ECadjacent size
LWBA2E225-092NS-13Ø225 mm · 1,133 m³/h · 546 Pa · ACadjacent size
LWBA2D225-092NT-11Ø225 mm · 1,133 m³/h · 546 Pa · ACadjacent size
LWBE3G225-072NU-16Ø225 mm · 1,313.25 m³/h · 1,030 Pa · ECadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWBA2D220-092NT-07Ø220 mm · 999 m³/h · 515 Pa · ACsimilar duty
LWCA-90680SN-06Ø90 mm · 1,000 m³/h · 97 Pa · ACsimilar duty
LWCA-120380SN-06Ø120 mm · 1,000 m³/h · 68 Pa · ACsimilar duty
LWCD-80720MN-06Ø80 mm · 1,000 m³/h · 82 Pa · DCsimilar duty
LWDA-180(7")S-MWN-01Ø180 mm · 1,000 m³/h · 90 Pa · ACsimilar duty
LWFA-E-200-01Ø200 mm · 1,000 m³/h · 305 Pa · ACsimilar dutySee all Backward Curved Centrifugal Fans · select by duty point
