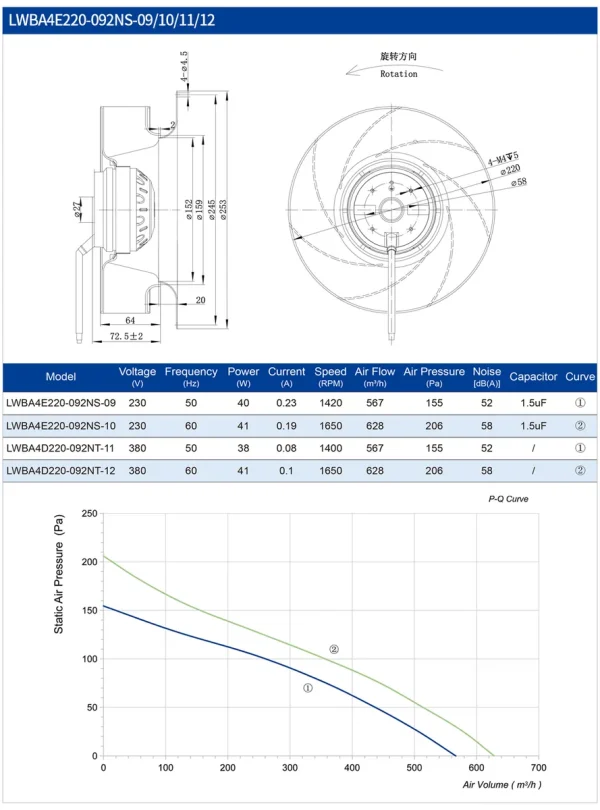

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ220 mm
- Max airflow767 m³/h
- Max static pressure399 Pa
- Voltage230 V
- Speed2,180 rpm
- Input power64 W
- Noise62.2 dB(A)

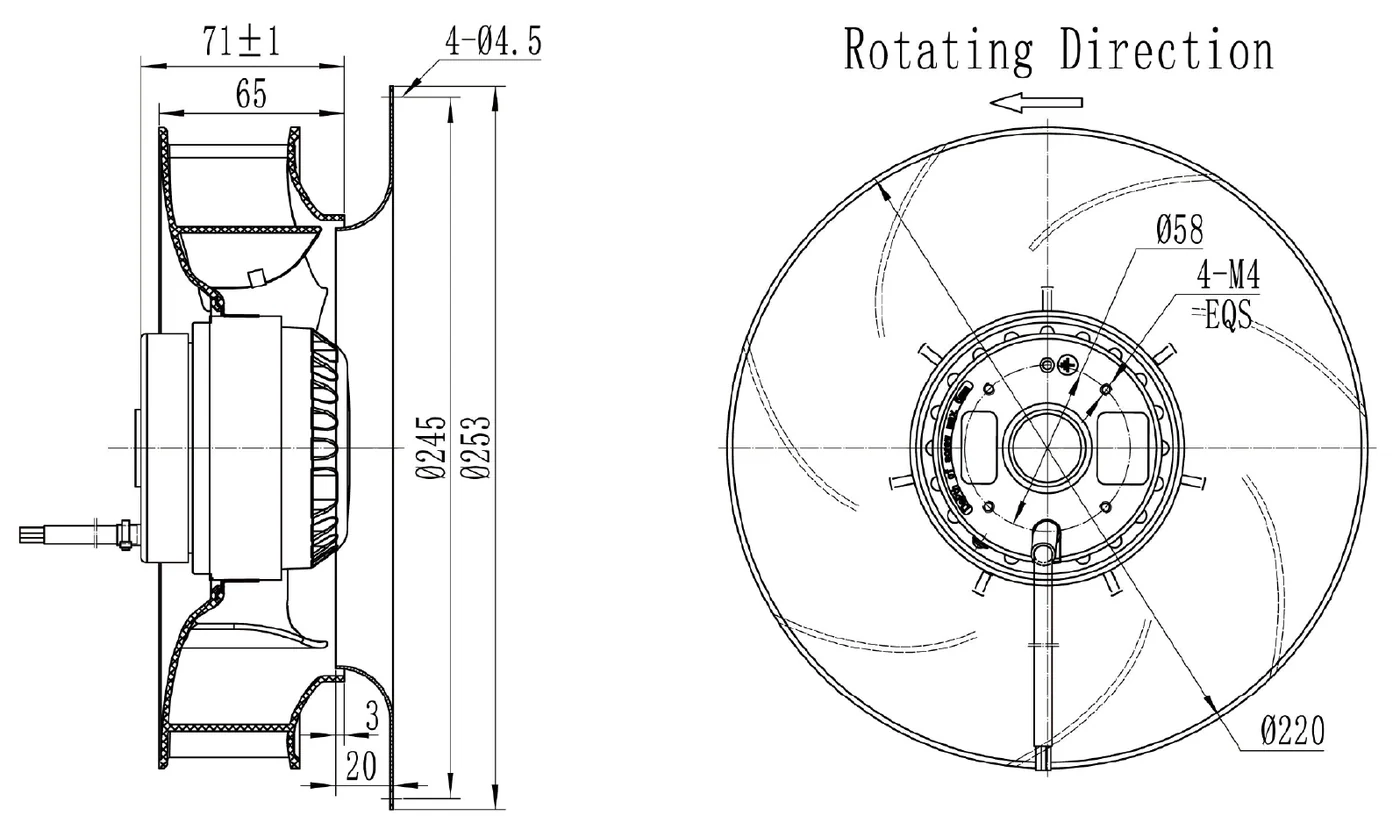

LWBA4E220-092NS-03 AC Backward Curved Centrifugal Fan Ø220 mm
Ø220 mm | AC | Max airflow 767 m³/h | Max static pressure 399 Pa | 62.2 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBA4E220-092NS-03
PDFDatasheet · 1.7 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4E220-092NS-03 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø220 mm, rated 230 V AC, maximum airflow 767 m³/h, maximum static pressure 399 Pa, noise 62.2 dB(A), input power 64 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA4E220-092NS-03 |
|---|---|
| Series | LWBA4E220 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.29 A |
| Input power | 64 W |
| Speed | 2,180 rpm |
| Max. airflow | 767 m³/h |
| Max. static pressure | 399 Pa |
| Noise | 62.2 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø220 mm |
| Rotor diameter | 92 |
| Impeller material | Plastic PA66 |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4E220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø220 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA4E220-092NS-03 this model | 767 m³/h | 399 Pa | 2,180 rpm | 64 W | 62.2 dB(A) | 230 V | |
| LWBA4D220-092NT-11 | 567 m³/h | 155 Pa | 1,400 rpm | 38 W | 52 dB(A) | 380 V | View |
| LWBA4E220-092NS-09 | 567 m³/h | 155 Pa | 1,420 rpm | 40 W | 52 dB(A) | 230 V | View |
| LWBA4D220-092NT-12 | 628 m³/h | 206 Pa | 1,650 rpm | 41 W | 52 dB(A) | 380 V | View |
| LWBA4E220-092NS-10 | 628 m³/h | 206 Pa | 1,650 rpm | 41 W | 58 dB(A) | 230 V | View |
| LWBA2E220-092NS-08 | 824 m³/h | 474 Pa | 2,500 rpm | 95 W | 70 dB(A) | 230 V | View |
| LWBA2D220-092NT-06 | 937 m³/h | 484 Pa | 2,500 rpm | 85 W | 70 dB(A) | 380 V | View |
| LWBA2E220-092NS-04 | 937 m³/h | 484 Pa | 2,500 rpm | 90 W | 70 dB(A) | 230 V | View |
| LWBA2E220-092NS-02 | 945 m³/h | 515 Pa | 2,530 rpm | 101 W | 66.6 dB(A) | 230 V | View |
| LWBA2D220-092NT-07 | 999 m³/h | 515 Pa | 2,700 rpm | 100 W | 73 dB(A) | 380 V | View |
| LWBA2E220-092NS-05 | 999 m³/h | 515 Pa | 2,700 rpm | 100 W | 73 dB(A) | 230 V | View |
| LWBA2E220-092NS-01 | 1,029 m³/h | 662 Pa | 2,780 rpm | 129 W | 67.1 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
