Downloads for LWAE3G710SS-5MKW-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ710 mm
- Max airflow13,390 m³/h
- Max static pressure211 Pa
- Voltage380 V
- Speed960 rpm
- Input power650 W
- Noise75 dB(A)

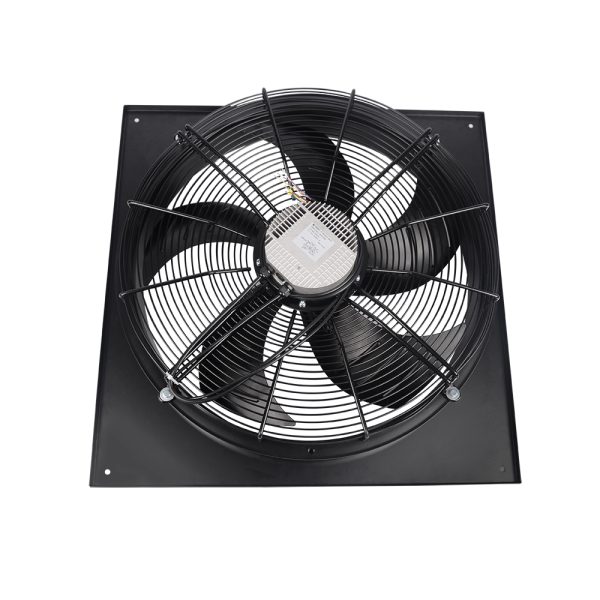

LWAE3G710SS-5MKW-02 EC Axial Fan Ø710 mm
Ø710 mm | EC | Max airflow 13,390 m³/h | Max static pressure 211 Pa | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

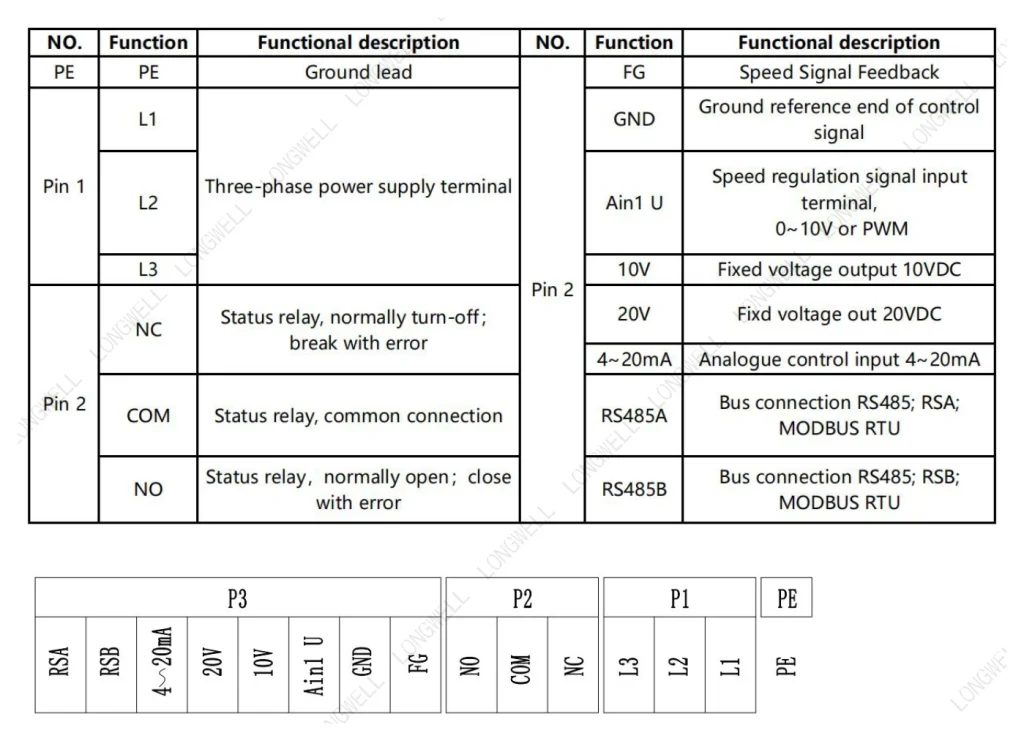

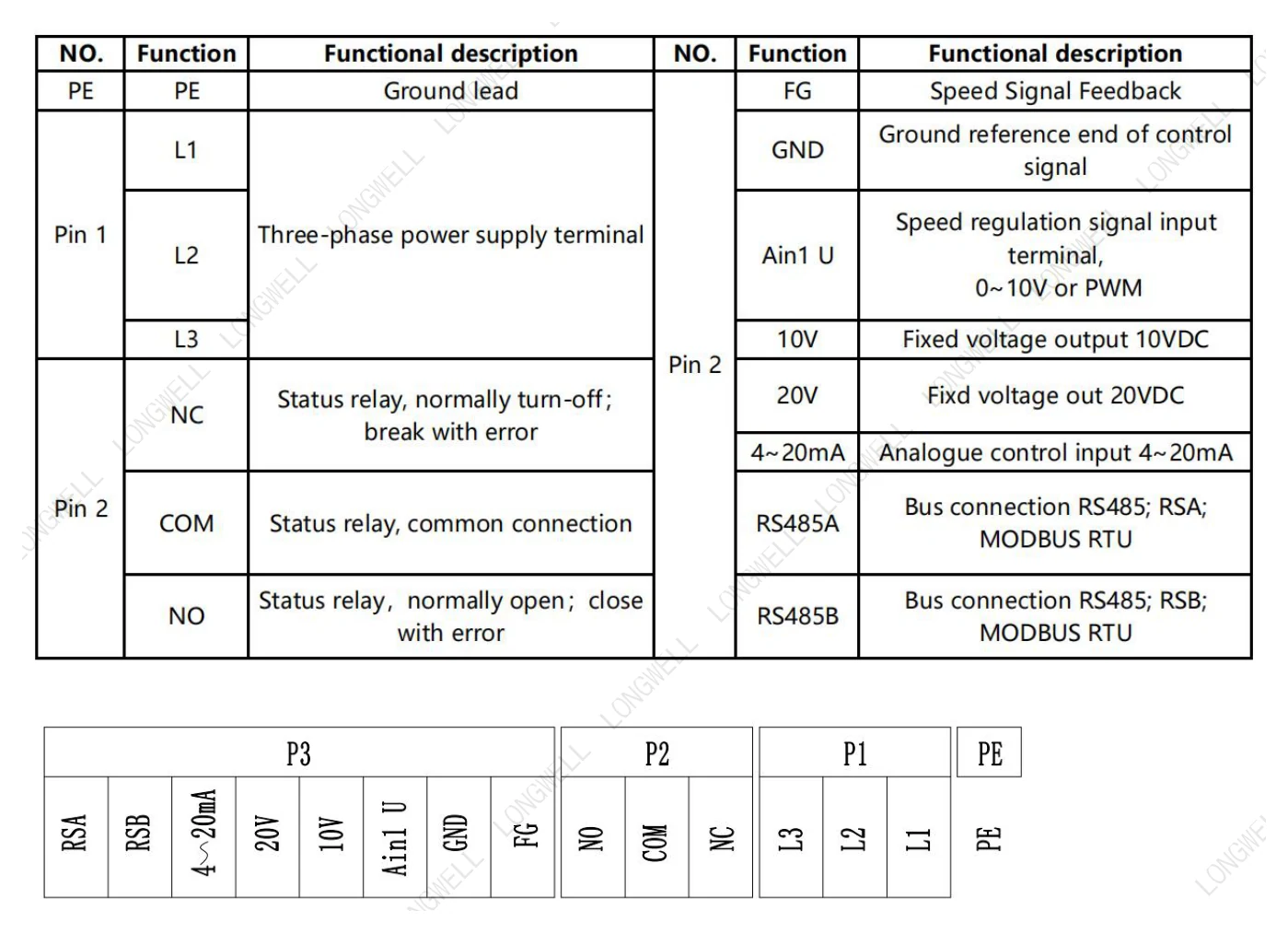

LWAE3G710SS-5MKW-02 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø710 mm, rated 380 V EC, maximum airflow 13,390 m³/h, maximum static pressure 211 Pa, noise 75 dB(A), input power 650 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G710SS-5MKW-02 |
|---|---|
| Series | LWAE3G710 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 304 ~ 456 V |
| Current | 1.3 A |
| Input power | 650 W |
| Speed | 960 rpm |
| Max. airflow | 13,390 m³/h |
| Max. static pressure | 211 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |

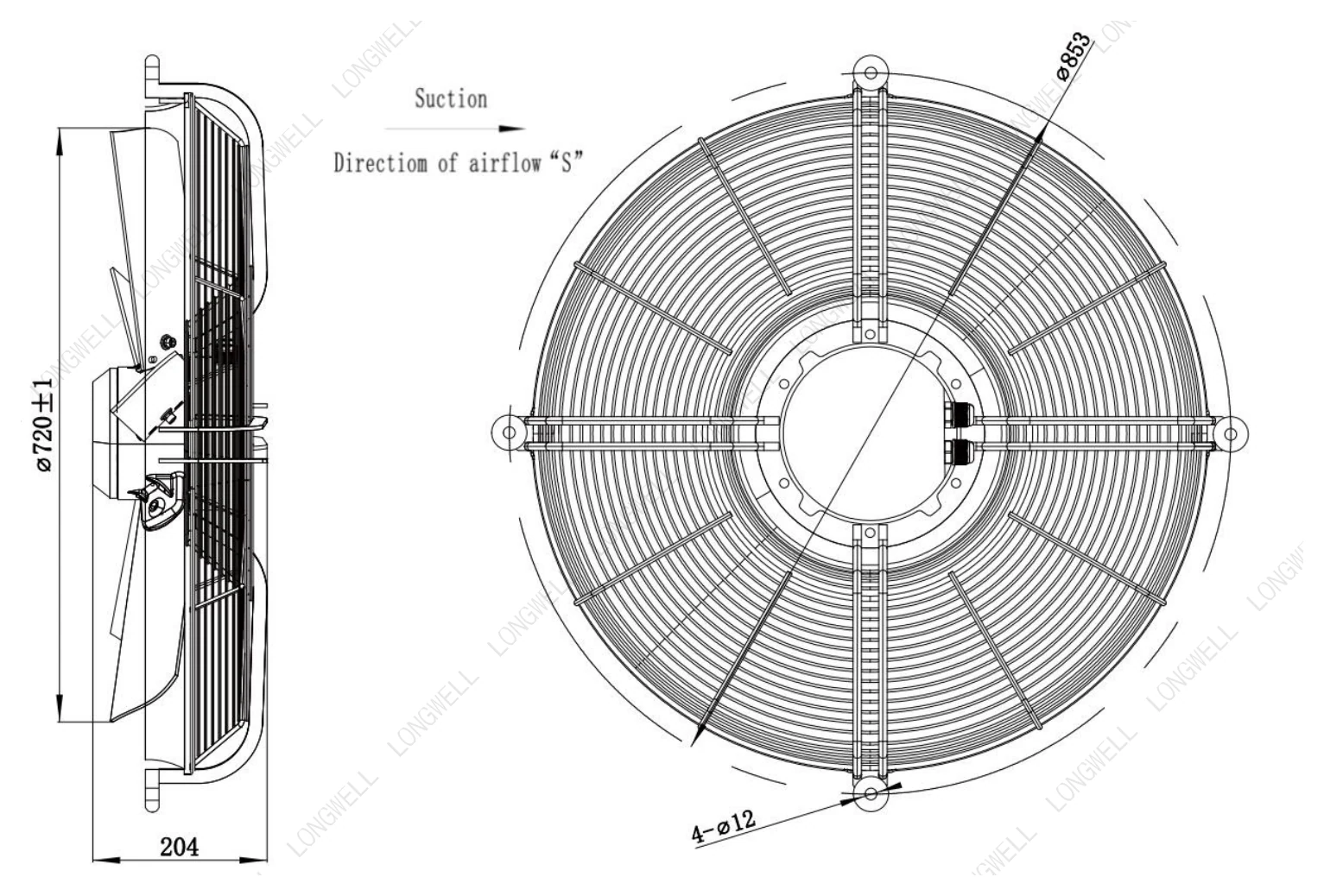

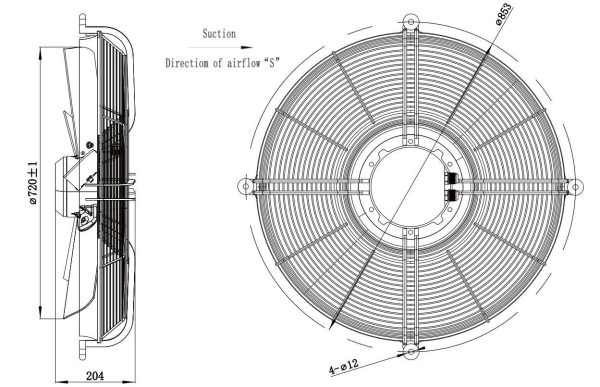

| Impeller diameter | Ø710 mm |
| Impeller material | aluminium alloy ( Impeller ) |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G710: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

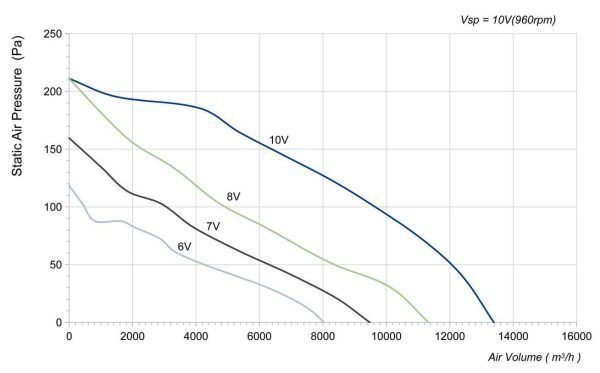

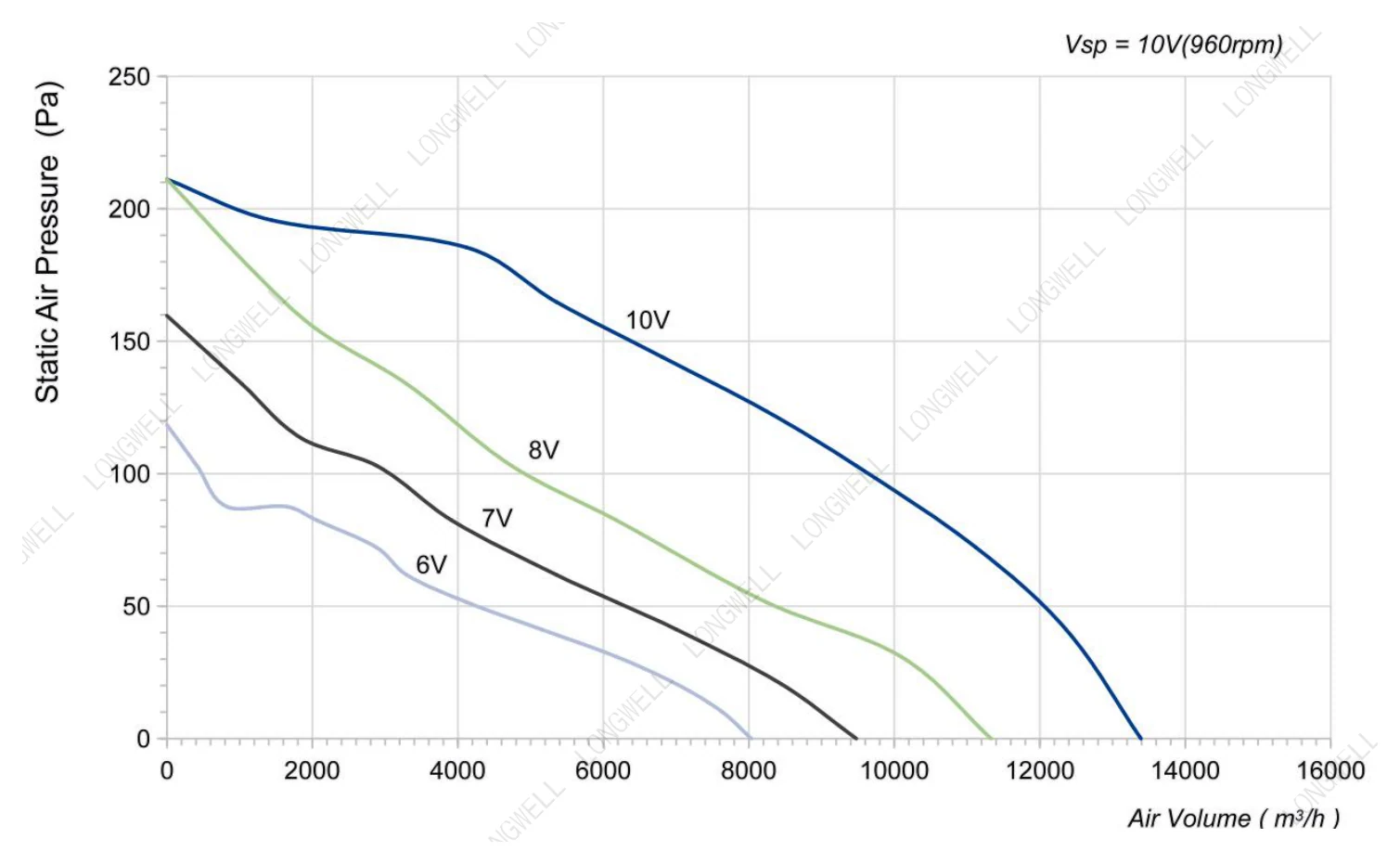

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø710 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G710SS-5MKW-02 this model | 13,390 m³/h | 211 Pa | 960 rpm | 650 W | 75 dB(A) | 380 V | |
| LWAE3G710TS-5MKW-02 | 13,390 m³/h | 258 Pa | 980 rpm | 650 W | 75 dB(A) | 3-380 V | View |
| LWAE3G710TS-5MKW-01 | 13,905 m³/h | see curve | 960 rpm | 520 W | 75 dB(A) | 230 V | View |
| LWAE3G710SS-5MEW-01 | 13,905 m³/h | 218 Pa | 960 rpm | 520 W | 75 dB(A) | 230 V | View |
| LWAE3G710TS-5PKW-03 | 19,177 m³/h | 244 Pa | 1,200 rpm | 1,146 W | 81 dB(A) | 380/400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
