- ImpellerØ710 mm28.0 in
- Max airflow13,390 m³/h7,881 CFM
- Max static pressure258 Pa1.04 in. wg
- Voltage3-380 V
- Speed980 rpm
- Input power650 W
- Noise75 dB(A)

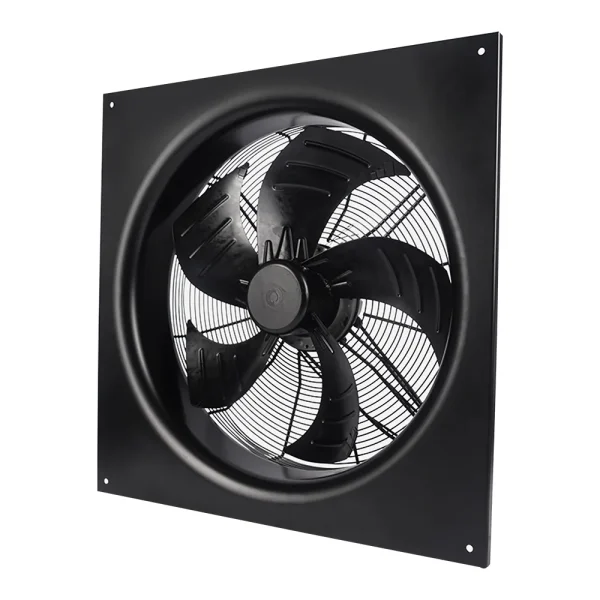

LWAE3G710TS-5MKW-02 EC Axial Fan Ø710 mm
Ø710 mm | EC | Max airflow 13,390 m³/h | Max static pressure 258 Pa | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

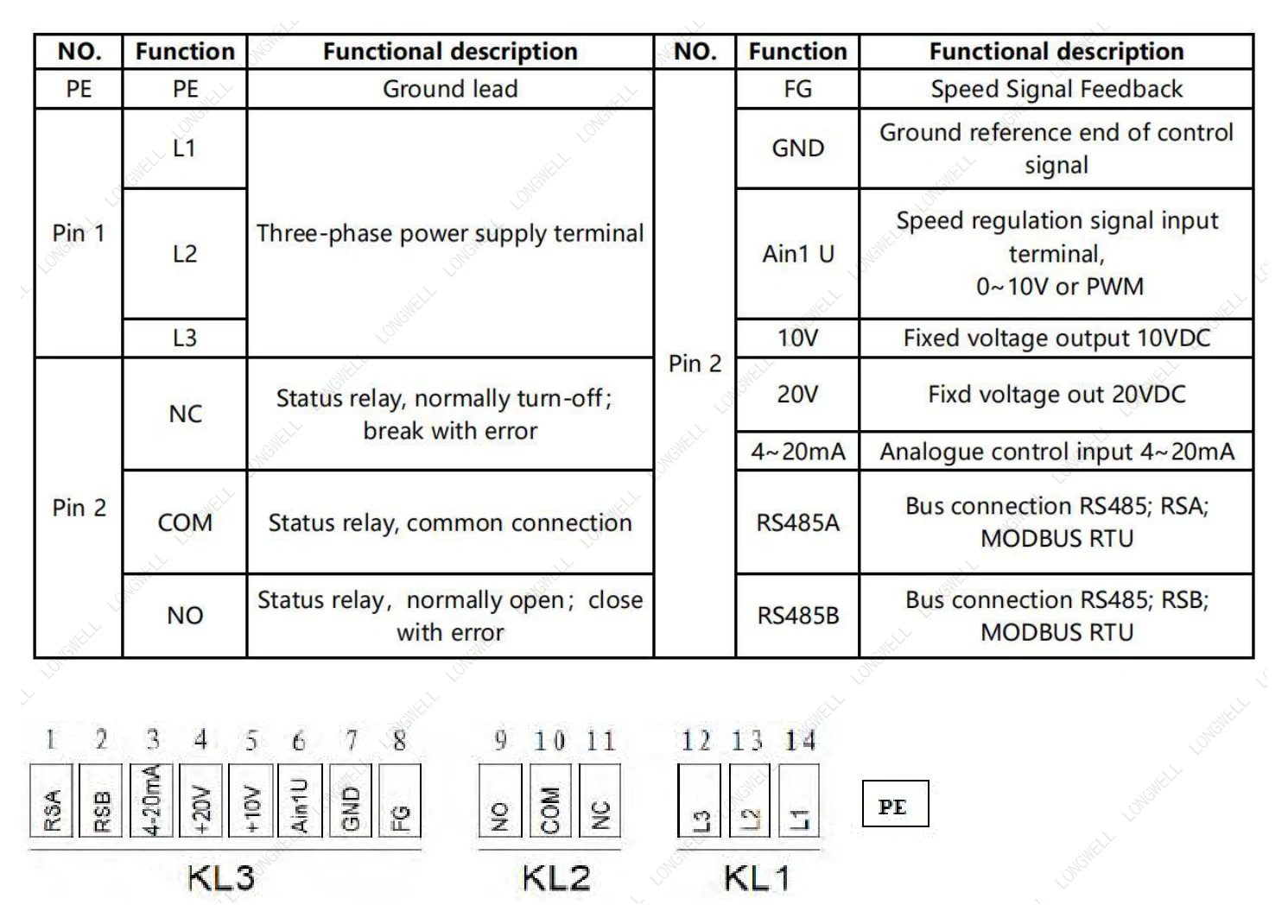

LWAE3G710TS-5MKW-02 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø710 mm, rated 3-380 V EC, maximum airflow 13,390 m³/h, maximum static pressure 258 Pa, noise 75 dB(A), input power 650 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G710TS-5MKW-02 |
|---|---|
| Series | LWAE3G710 |
| Motor type | EC |
| Rated voltage | 3-380 V |
| Frequency | 50 Hz |
| Current | 1.3 A |
| Input power | 650 W |
| Speed | 980 rpm |
| Max. airflow | 13,390 m³/h |
| Max. airflow (CFM) | 8,482 CFM |
| Max. static pressure | 258 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 5 ~ 95% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø710 mm |
| Impeller material | Aluminum alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G710: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

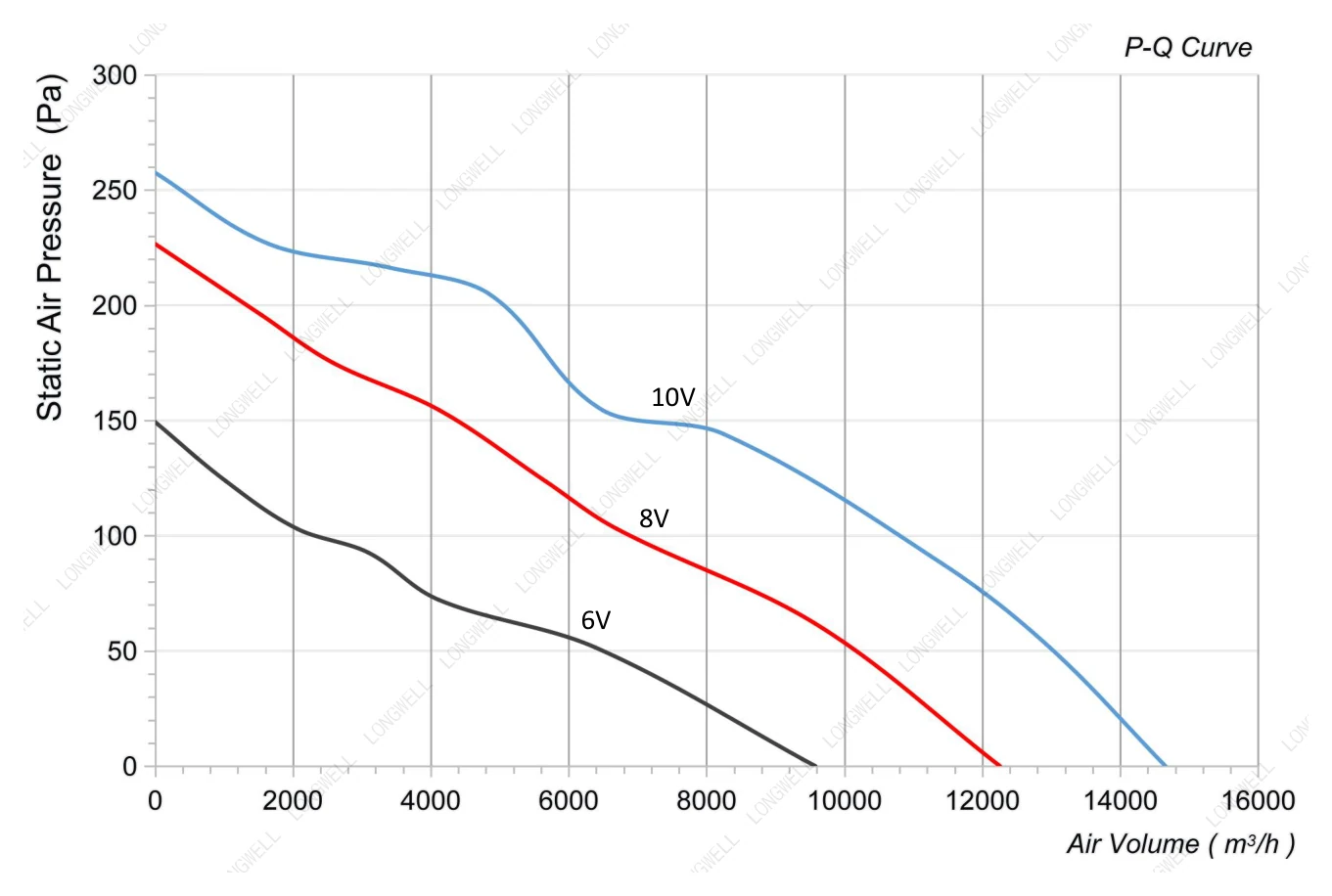

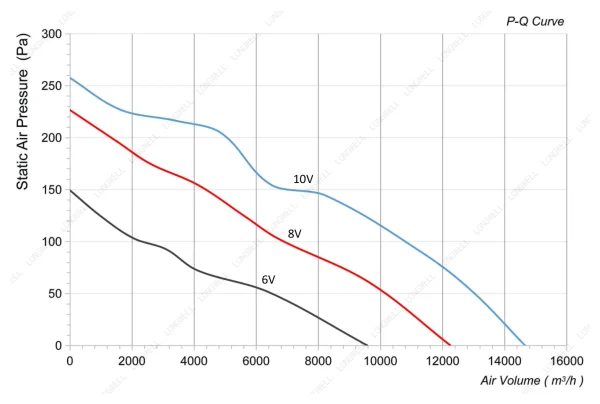

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø710 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G710TS-5MKW-02 this model | 13,390 m³/h | 258 Pa | 980 rpm | 650 W | 75 dB(A) | 3-380 V | |
| LWAE3G710SS-5MKW-02 | 13,390 m³/h | 211 Pa | 960 rpm | 650 W | 75 dB(A) | 380 V | View |
| LWAE3G710TS-5MKW-01 | 13,905 m³/h | see curve | 960 rpm | 520 W | 75 dB(A) | 230 V | View |
| LWAE3G710SS-5MEW-01 | 13,905 m³/h | 218 Pa | 960 rpm | 520 W | 75 dB(A) | 230 V | View |
| LWAE3G710TS-5PKW-03 | 19,177 m³/h | 244 Pa | 1,200 rpm | 1,146 W | 81 dB(A) | 380/400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
