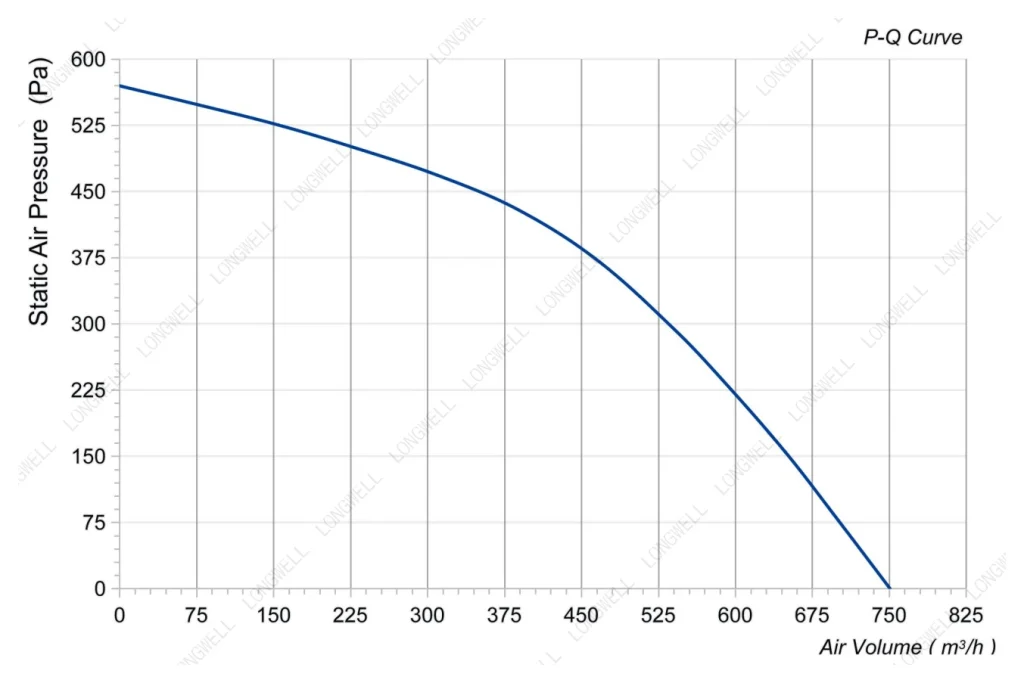

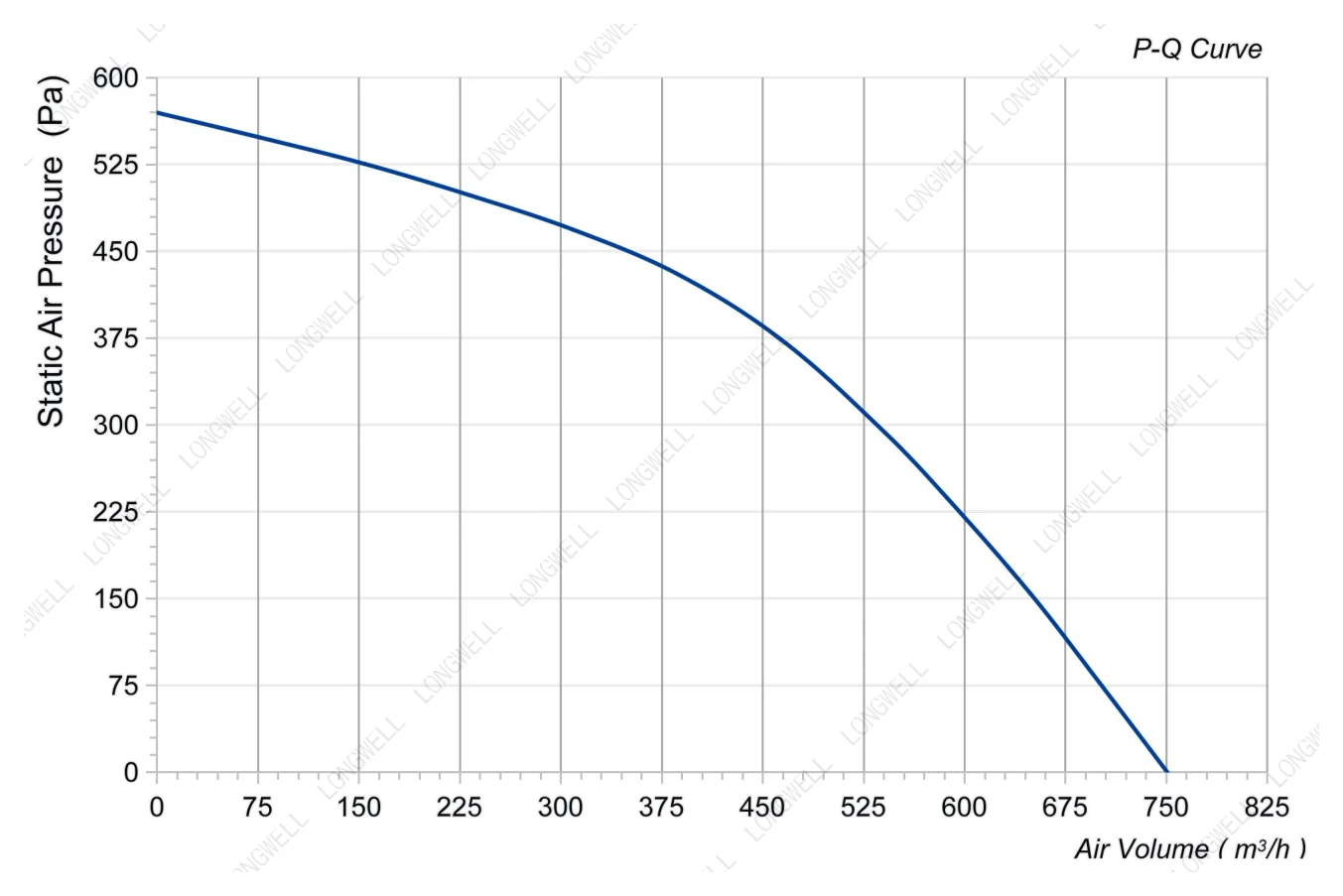

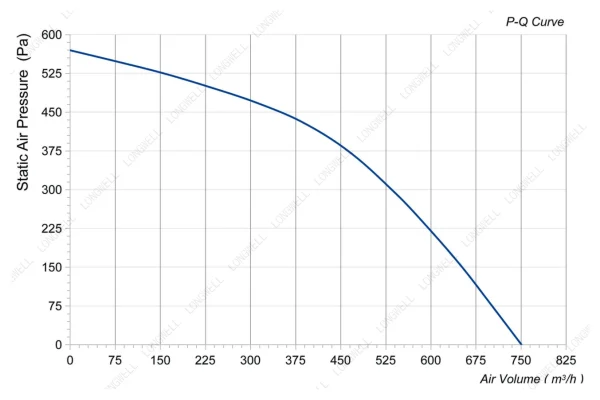

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ175 mm6.9 in
- Max airflow618 m³/h364 CFM
- Max static pressure515 Pa2.07 in. wg
- Voltage48 V
- Speed3,900 rpm
- Input power75 W
- Noise71 dB(A)

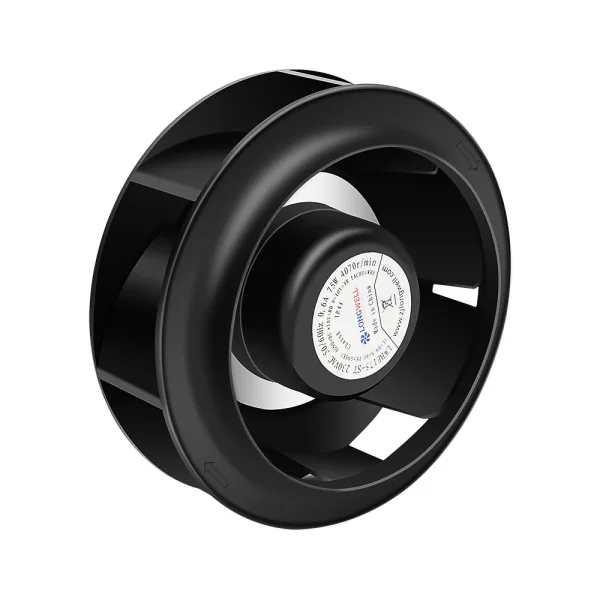

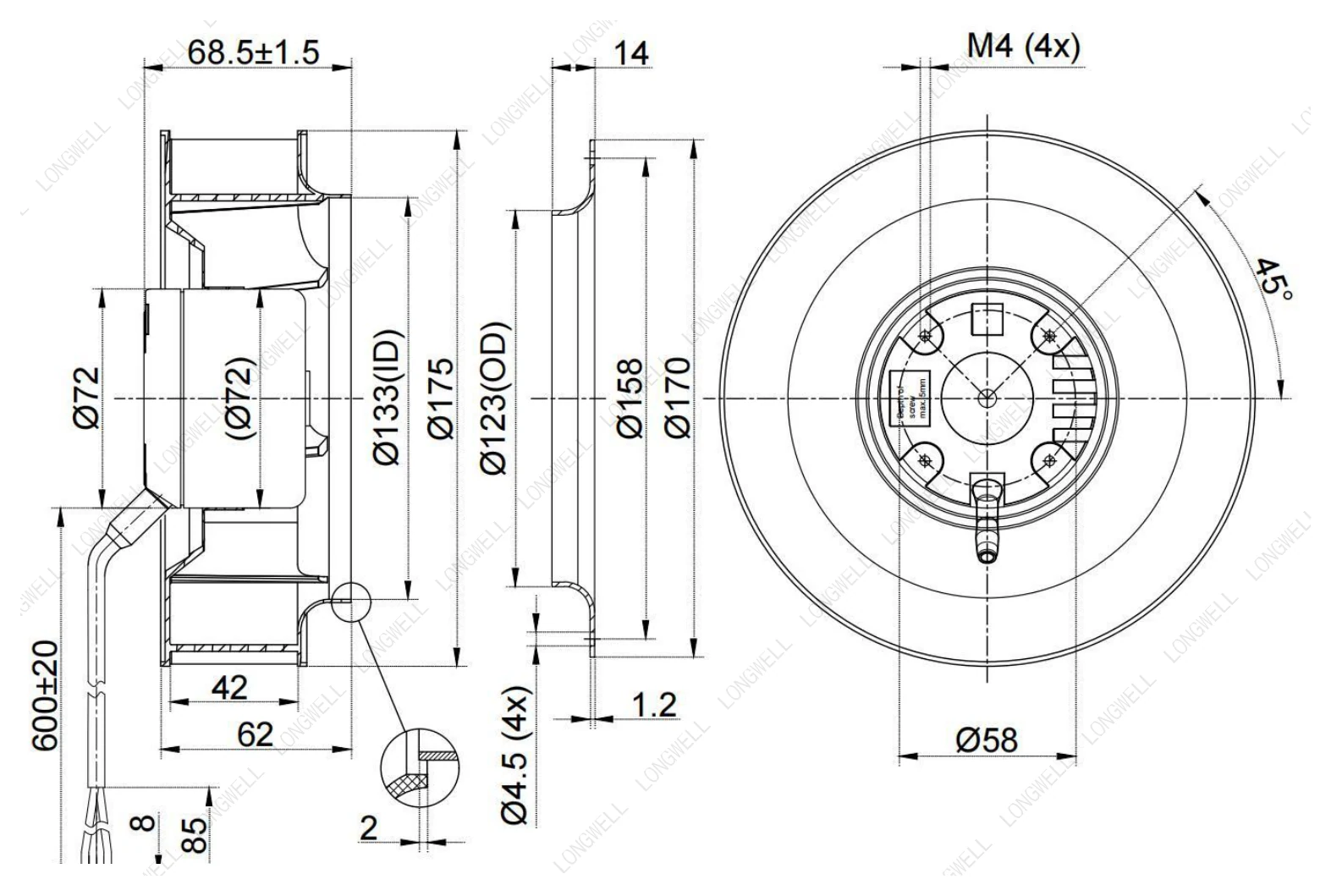

LWBD3G175-072NH-03 DC Backward Curved Centrifugal Fan Ø175 mm
Ø175 mm | DC | Max airflow 618 m³/h | Max static pressure 515 Pa | 71 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBD3G175-072NH-03
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBD3G175-072NH-03 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø175 mm, rated 48 V DC, maximum airflow 618 m³/h, maximum static pressure 515 Pa, noise 71 dB(A), input power 75 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

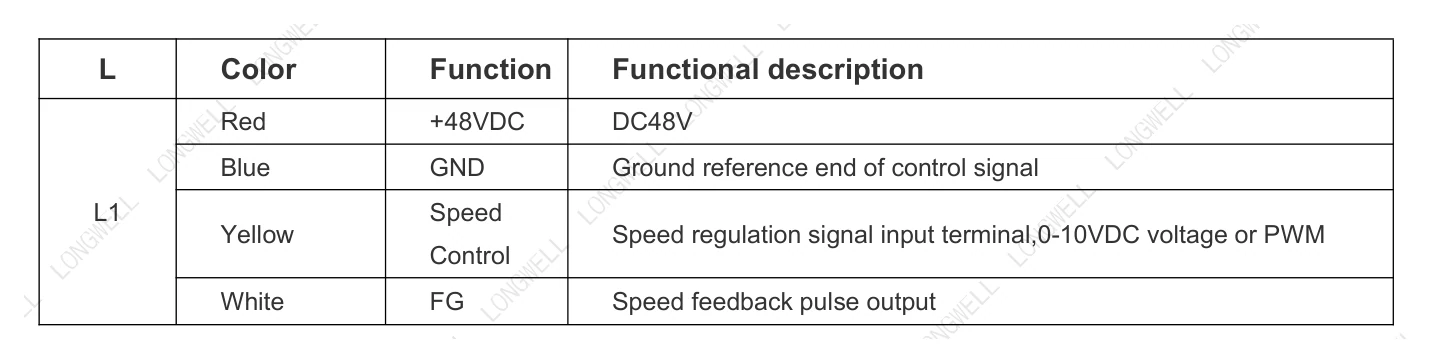

Technical data
| Model | LWBD3G175-072NH-03 |
|---|---|
| Series | LWBD3G175 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 1.5 A |
| Input power | 75 W |
| Speed | 3,900 rpm |
| Max. airflow | 618 m³/h |
| Max. airflow (CFM) | 442 CFM |
| Max. static pressure | 515 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 75℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø175 mm |
| Rotor diameter | 72 |
| Impeller material | Propylene with glass-fiber reinforced ( Impeller ) |
| Protection class | IP42 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G175: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø175 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBD3G175-072NH-03 this model | 618 m³/h | 515 Pa | 3,900 rpm | 75 W | 71 dB(A) | 48 V | |
| LWBD3G175-072NM-02 | 618 m³/h | 515 Pa | 3,900 rpm | 75 W | 71 dB(A) | 24 V | View |
| LWBD3G175-072NM-04 | 670 m³/h | 319 Pa | 2,800 rpm | 50 W | 68 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
