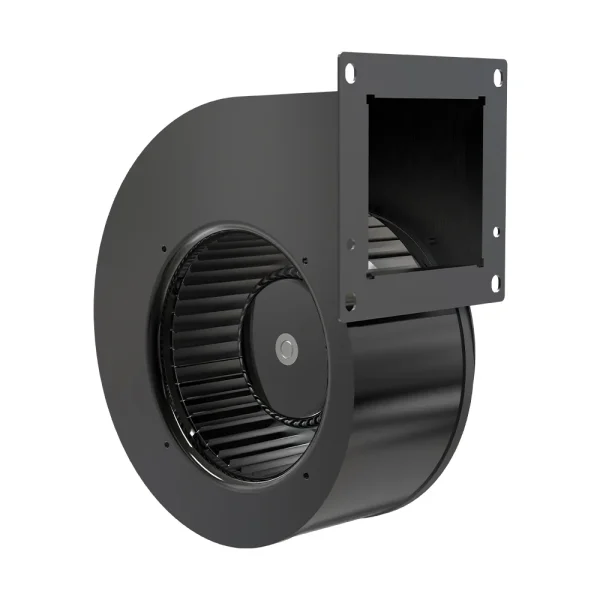

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ180 mm7.1 in
- Max airflow618 m³/h368 CFM
- Max static pressure618 Pa2.48 in. wg
- Voltage48 V
- Speed1,250 rpm
- Input power90 W
- Noise67 dB(A)
LWFD3G180-092SH-01 DC Single Inlet Forward Centrifugal Blower Ø180 mm
Ø180 mm | DC | Max airflow 618 m³/h | Max static pressure 618 Pa | 67 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

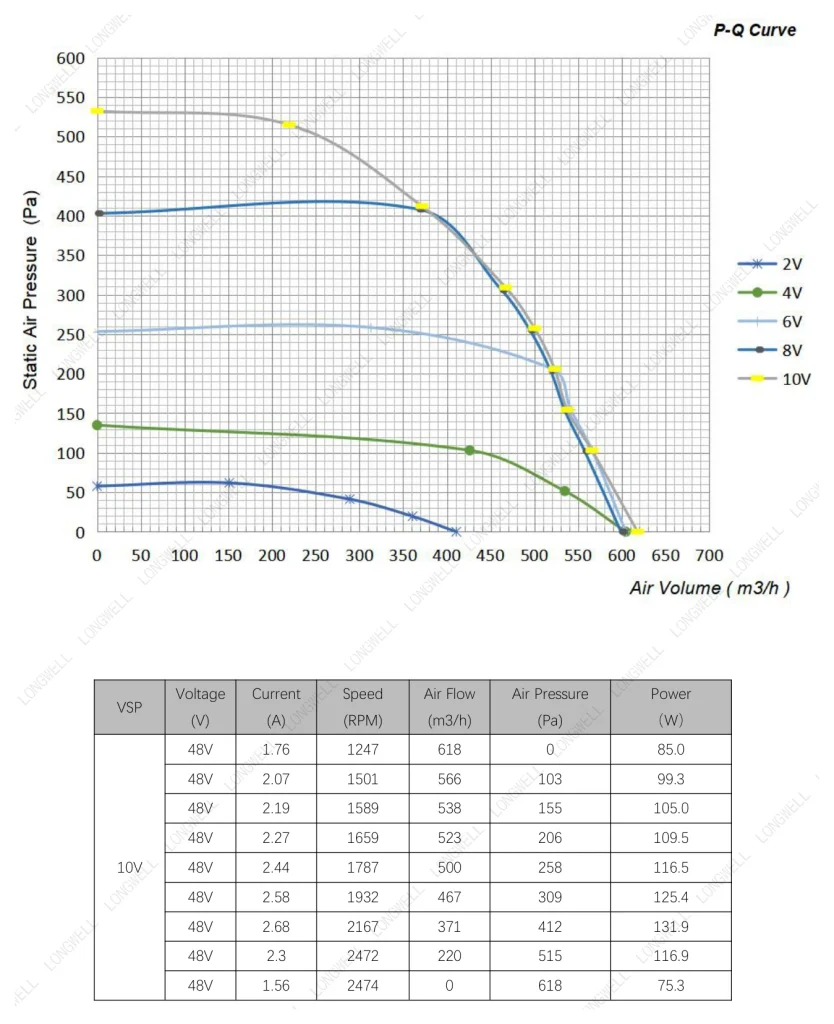

Performance curve (P-Q) LWFD3G180-092SH-01
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (5 here, rated 48 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

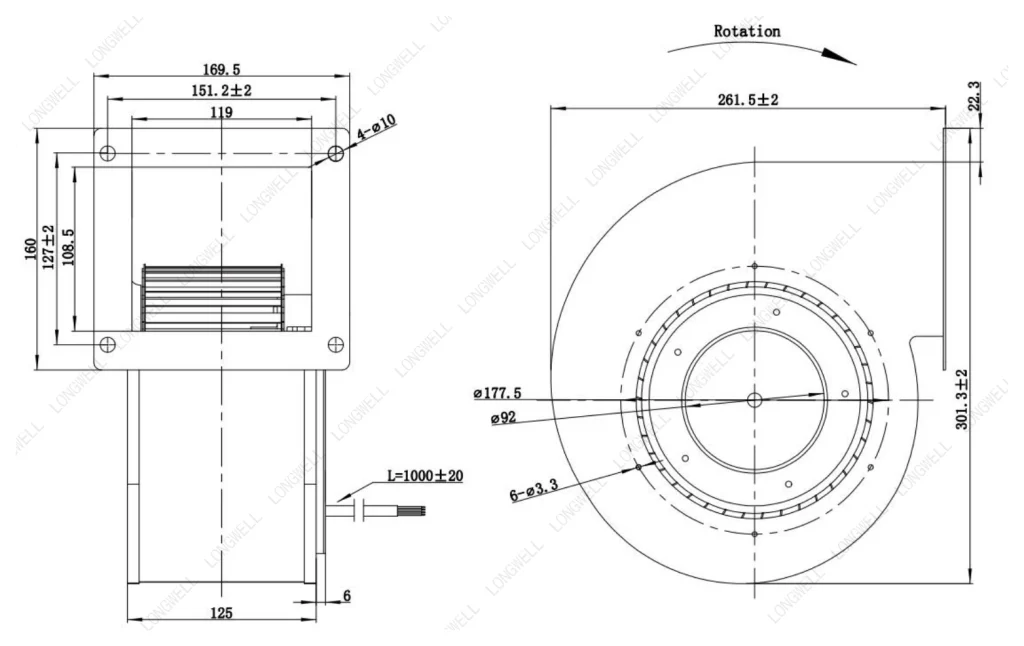

Drawing, Curve & Wiring LWFD3G180-092SH-01
Files for LWFD3G180-092SH-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFD3G180-092SH-01
LWFD3G180-092SH-01 is a LONGWELL DC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø180 mm, rated 48 V DC, maximum airflow 618 m³/h, maximum static pressure 618 Pa, noise 67 dB(A), input power 90 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWFD3G180-092SH-01 |
|---|---|
| Series | LWFD3G180 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 1.9 A |
| Input power | 90 W |
| Speed | 1,250 rpm |
| Max. airflow | 618 m³/h |
| Max. airflow (CFM) | 368 CFM |
| Max. static pressure | 618 Pa |
| Noise | 67 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø180 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised Sheet( Impeller ) |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
| Speed control | Control input 0~10VDC/PWM |
| Control signal | Control signal VSP voltage range1VDC~10VDC(During normal operation, when the VSP voltage is below 1.2VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10V,duty cycle 30%–70% . |

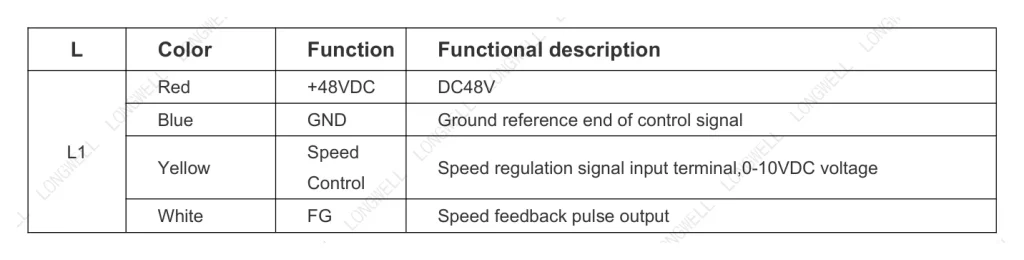

| Speed feedback | Tach output: 3 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+ |
| Protection functions | Polarity Protection |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFD3G180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
