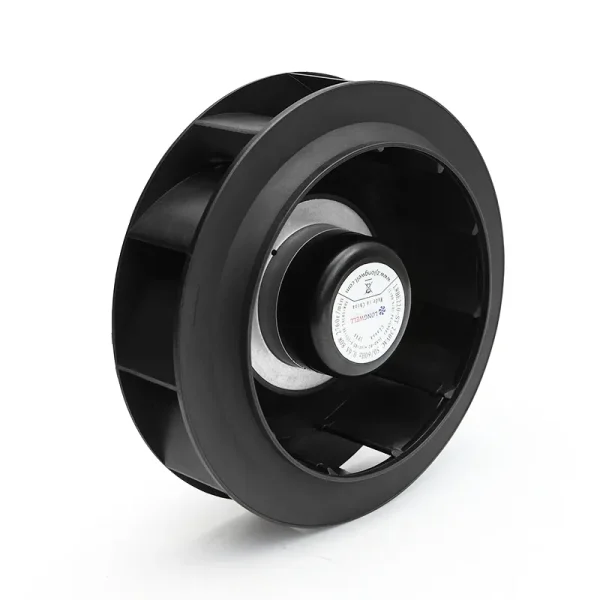

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ220 mm8.7 in
- Max airflow1,030 m³/h639 CFM
- Max static pressure577 Pa2.32 in. wg
- Voltage48 V
- Speed3,100 rpm
- Input power110 W
- Noise73 dB(A)
LWBD3G220-092NH-05 DC Backward Curved Centrifugal Fan Ø220 mm
Ø220 mm | DC | Max airflow 1,030 m³/h | Max static pressure 577 Pa | 73 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

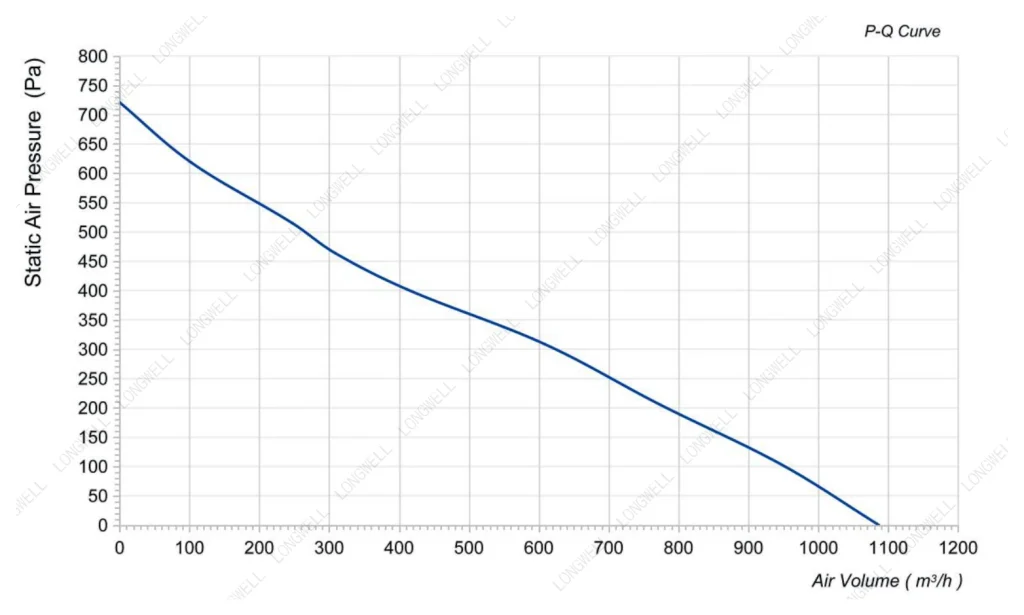

Performance curve (P-Q) LWBD3G220-092NH-05
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 48 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWBD3G220-092NH-05
LWBD3G220-092NH-05 — construction, airflow path and running condition.

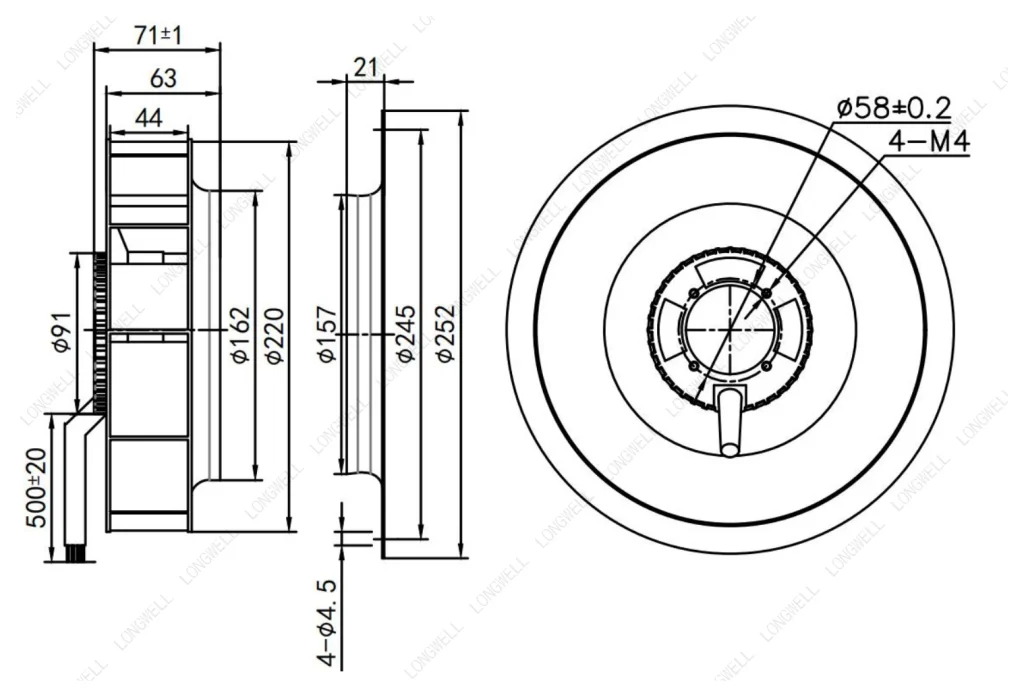

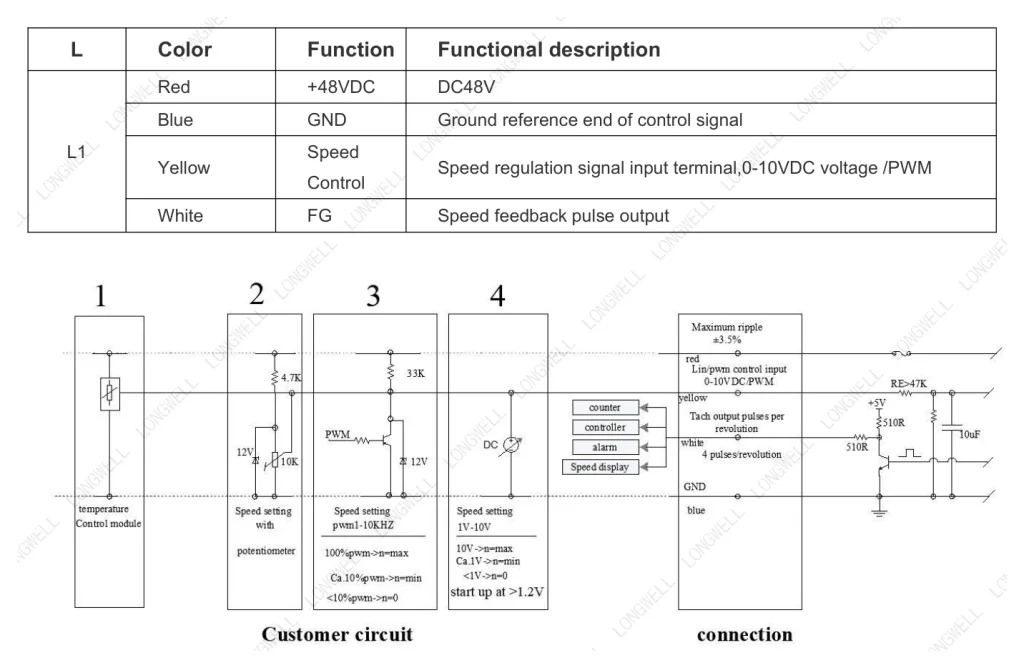

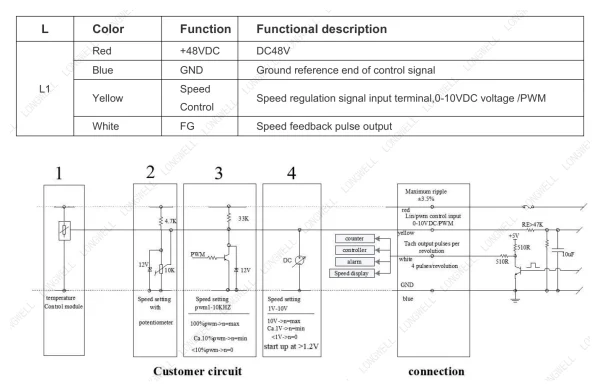

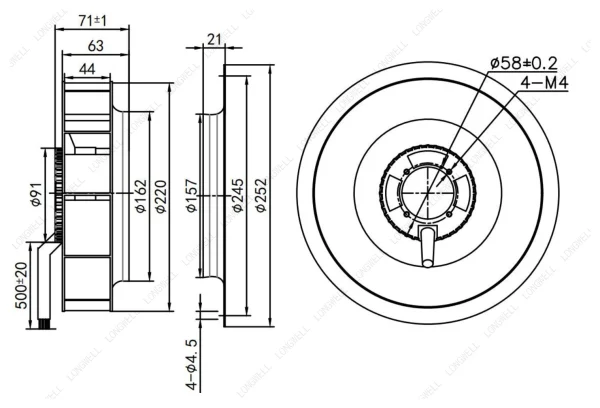

Drawing, Curve & Wiring LWBD3G220-092NH-05
Files for LWBD3G220-092NH-05: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBD3G220-092NH-05
LWBD3G220-092NH-05 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø220 mm, rated 48 V DC, maximum airflow 1,030 m³/h, maximum static pressure 577 Pa, noise 73 dB(A), input power 110 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWBD3G220-092NH-05 |
|---|---|
| Series | LWBD3G220 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 2.3 A |
| Input power | 110 W |
| Speed | 3,100 rpm |
| Max. airflow | 1,030 m³/h |
| Max. airflow (CFM) | 639 CFM |
| Max. static pressure | 577 Pa |
| Noise | 73 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø220 mm |
| Rotor diameter | 92 mm |
| Impeller material | PA6+GF ( Impeller ) |
| Protection class | IP42 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G220: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Product-line certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO management-system certificate and the certificates whose model list covers this model. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateCE-LVD / CE-EMCVoluntary certificates of conformity issued by KTS; the covered models are listed on each certificate.
PDFCE-LVD certificate of conformity KB230605L01 · LWBD3G
PDFCE-EMC certificate of conformity KB230605E01 · LWBD3GETLIntertek Authorization to Mark, control no. 5022563; the covered model ranges are stated on the document.
PDFETL Authorization to Mark · report 230100446HAN-001 · LWAD3G / LWBD3G / LWFD3G / LWDD3GNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWBD3G220-092NH-05
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø220 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBD3G220-092NH-05 this model | 1,030 m³/h | 577 Pa | 3,100 rpm | 110 W | 73 dB(A) | 48 V | |
| LWBD3G220-092NM-04 | 1,030 m³/h | 577 Pa | 3,100 rpm | 110 W | 73 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWBD3G220 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWBE3G225-092NU-17Ø225 mm · 1,359.6 m³/h · 906.4 Pa · ECadjacent size
LWBA2D225-092NT-12Ø225 mm · 1,257 m³/h · 695 Pa · ACadjacent size
LWBE3G225-092NS-10Ø225 mm · 1,359.6 m³/h · 906.4 Pa · ECadjacent size
LWBA2E225-092NS-13Ø225 mm · 1,133 m³/h · 546 Pa · ACadjacent size
LWBA2D225-092NT-11Ø225 mm · 1,133 m³/h · 546 Pa · ACadjacent size
LWBE3G225-072NU-16Ø225 mm · 1,313.25 m³/h · 1,030 Pa · ECadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
