ImpellerØ225 mm8.9 in
Max airflow1,442 m³/h849 CFM
Max static pressure288.4 Pa1.16 in. wg
Voltage380 V
Speed1,390 rpm
Input power400 W
Noise73 dB(A)

LWFA4D225-138ST-02 AC Single Inlet Forward Centrifugal Blower Ø225 mm

Ø225 mm | AC | Max airflow 1,442 m³/h | Max static pressure 288.4 Pa | 73 dB(A)

SKU: LWFA4D225-138ST-02 Categories: Centrifugal Fans, Impeller Ø160–315 mm, Single Inlet Forward Curved Blowers

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Single Inlet Forward Centrifugal Blower · SKU on PDF p. 13

All files for LWFA4D225-138ST-025 files · direct download

PDFFull product catalogue · model on PDF p. 13 WEBPDimensional drawing WEBPPerformance curve PDFSeries catalogue

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Solid-fuel heating Commercial dishwashers Commercial dryers Fan burners All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFA4D225-138ST-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA4D225-138ST-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFA4D225-138ST-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWFA4D225-138ST-02

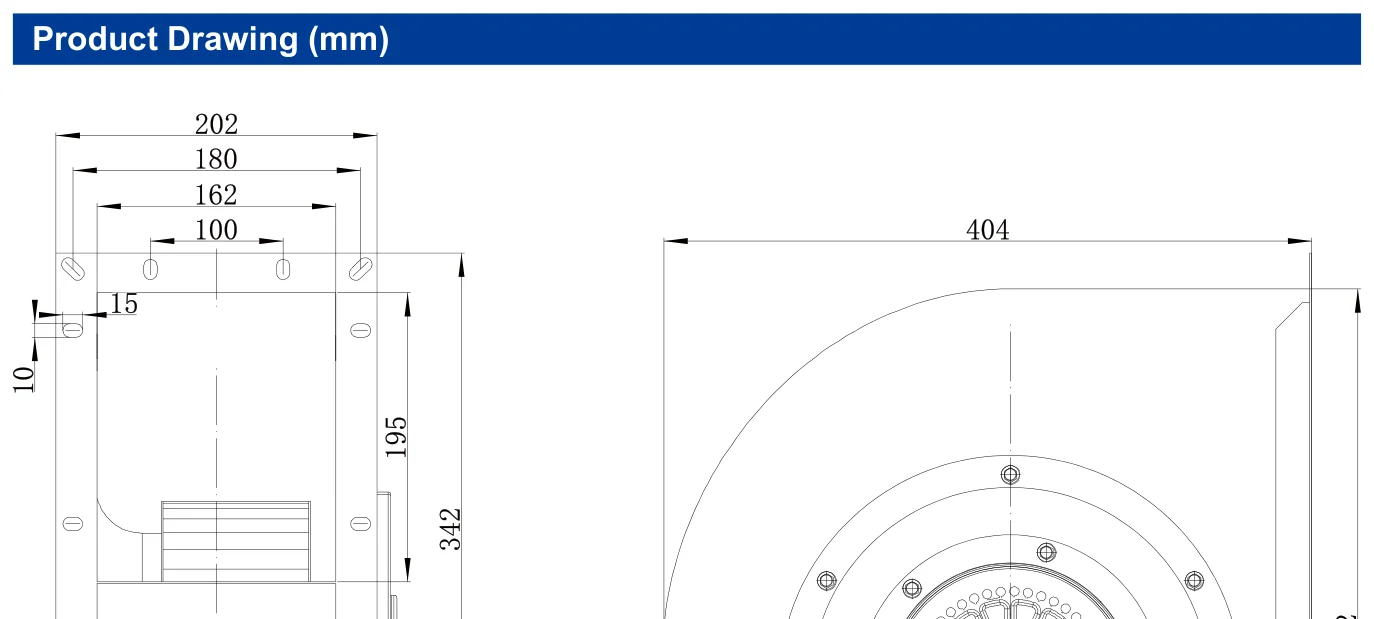

LWFA4D225-138ST-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

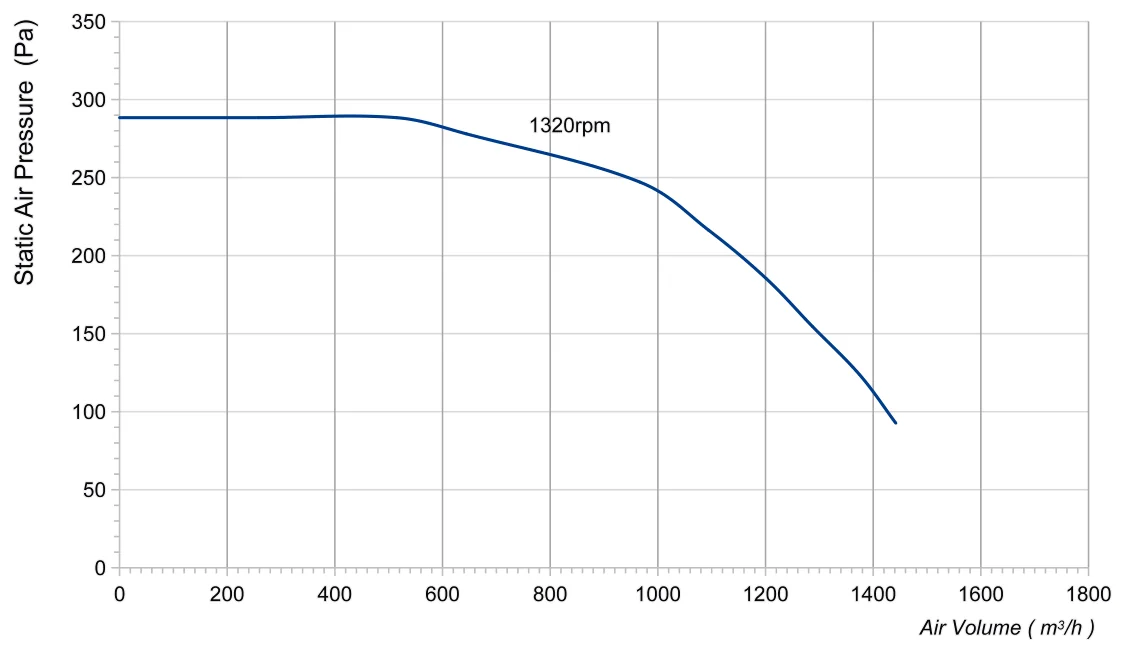

LWFA4D225-138ST-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFA4D225-138ST-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA4D225-138ST-02

LWFA4D225-138ST-02 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø225 mm, rated 380 V AC, maximum airflow 1,442 m³/h, maximum static pressure 288.4 Pa, noise 73 dB(A), input power 400 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4D225-138ST-02
Series	LWFA4D225
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	0.9 A
Input power	400 W
Speed	1,390 rpm
Max. airflow	1,442 m³/h
Max. static pressure	288.4 Pa
Noise	73 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø225 mm
Rotor diameter	138 mm
Impeller material	Galvanised sheet steel
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4D225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
