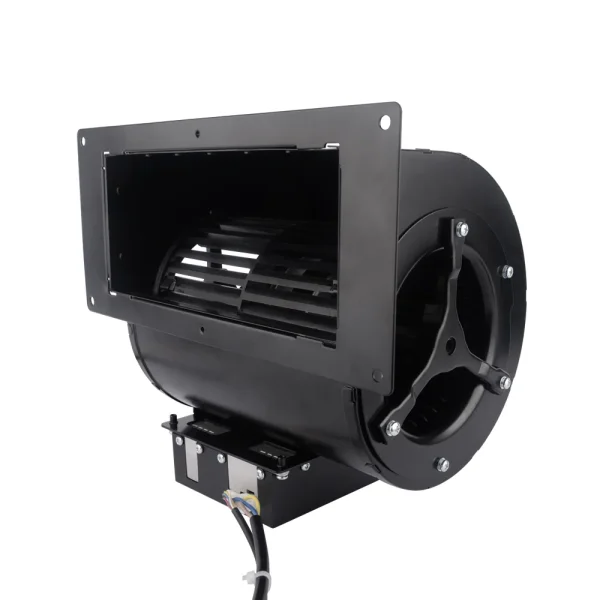

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ225 mm8.9 in
Max airflow3,605 m³/h2,122 CFM
Max static pressure577 Pa2.32 in. wg
Voltage380 V
Speed1,450 rpm
Input power1,050 W1.41 hp
Noise78 dB(A)

LWFE3G225-138DS-01 EC Dual Inlet Forward Centrifugal Blower Ø225 mm

Ø225 mm | EC | Max airflow 3,605 m³/h | Max static pressure 577 Pa | 78 dB(A)

SKU: LWFE3G225-138DS-01 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø180–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC EC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 11

All files for LWFE3G225-138DS-015 files · direct download

PDFFull product catalogue · model on PDF p. 11 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFE3G225-138DS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFE3G225-138DS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFE3G225-138DS-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFE3G225-138DS-01

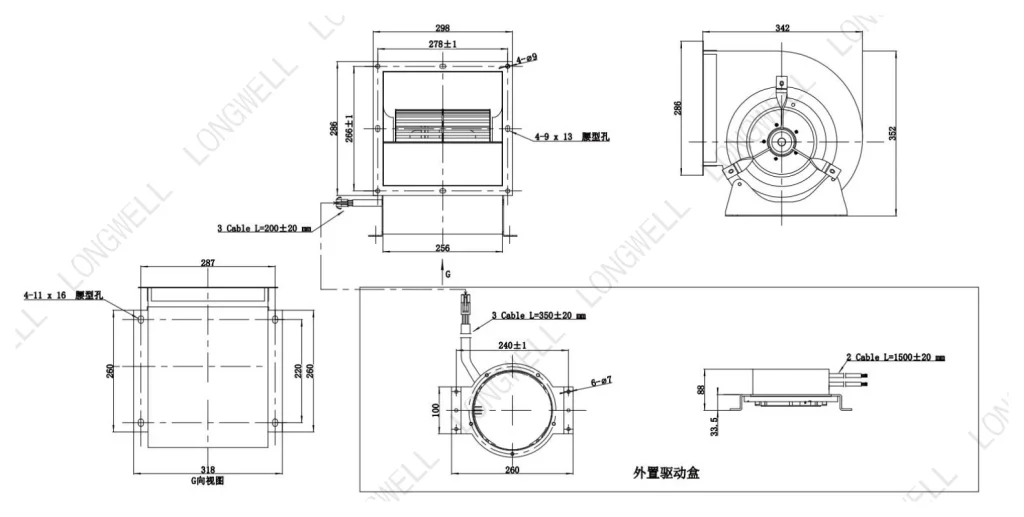

LWFE3G225-138DS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

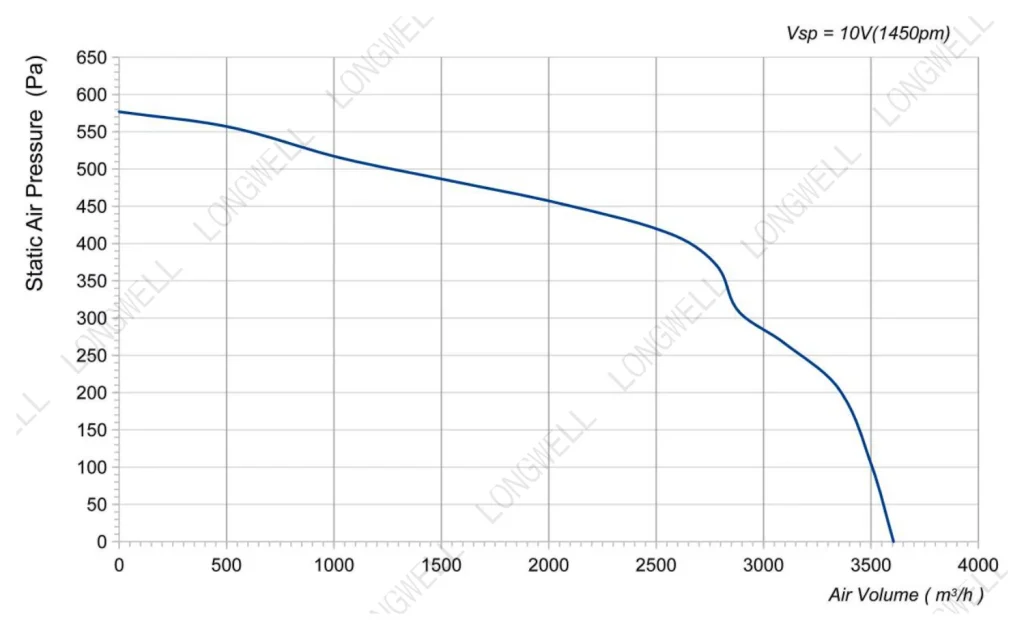

LWFE3G225-138DS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

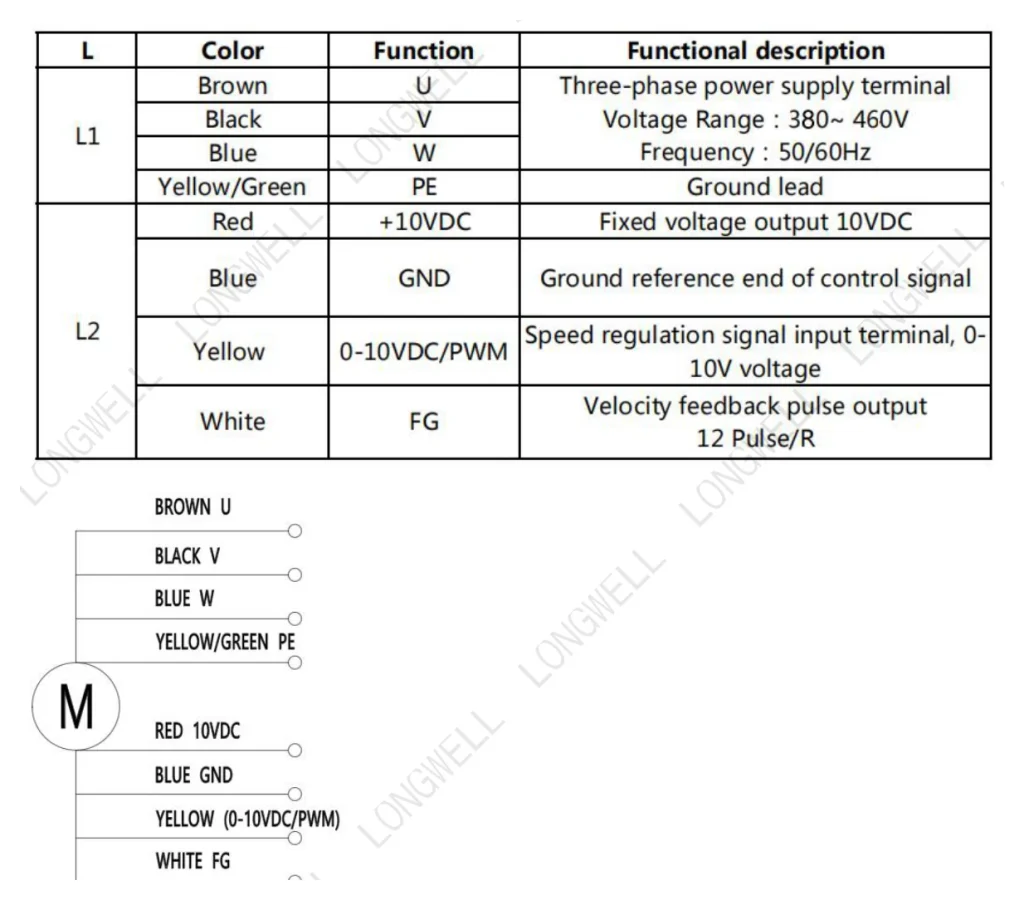

LWFE3G225-138DS-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFE3G225-138DS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFE3G225-138DS-01

LWFE3G225-138DS-01 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø225 mm, rated 380 V EC, maximum airflow 3,605 m³/h, maximum static pressure 577 Pa, noise 78 dB(A), input power 1,050 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G225-138DS-01
Series	LWFE3G225
Motor type	EC
Phase	3-phase
Rated voltage	380 V
Frequency	50 Hz
Current	1.8 A
Input power	1,050 W
Speed	1,450 rpm
Max. airflow	3,605 m³/h
Max. static pressure	577 Pa
Noise	78 dB(A)
Ambient temperature	-30 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø225 mm
Rotor diameter	138 mm
Impeller material	Metal ( Impeller )
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
