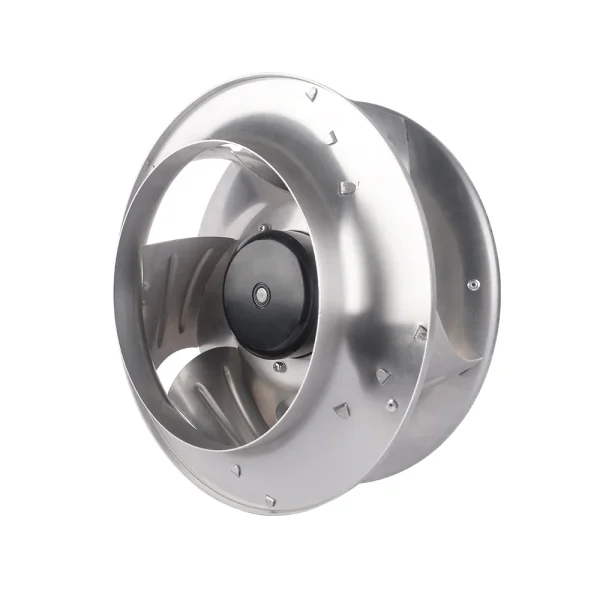

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ270 mm10.6 in
Max airflow1,545 m³/h909 CFM
Max static pressure332 Pa1.33 in. wg
Voltage115 V
Speed1,900 rpm
Input power170 W
Noise68 dB(A)

LWBE3G270-092NU-01 EC Backward Curved Centrifugal Fan Ø270 mm

Ø270 mm | EC | Max airflow 1,545 m³/h | Max static pressure 332 Pa | 68 dB(A)

SKU: LWBE3G270-092NU-01 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø250–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Backward centrifugal fans #1 · SKU on PDF p. 17

All files for LWBE3G270-092NU-014 files · direct download

PDFFull product catalogue · model on PDF p. 17 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWBE3G270-092NU-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G270-092NU-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBE3G270-092NU-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (3 here, rated 115 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWBE3G270-092NU-01

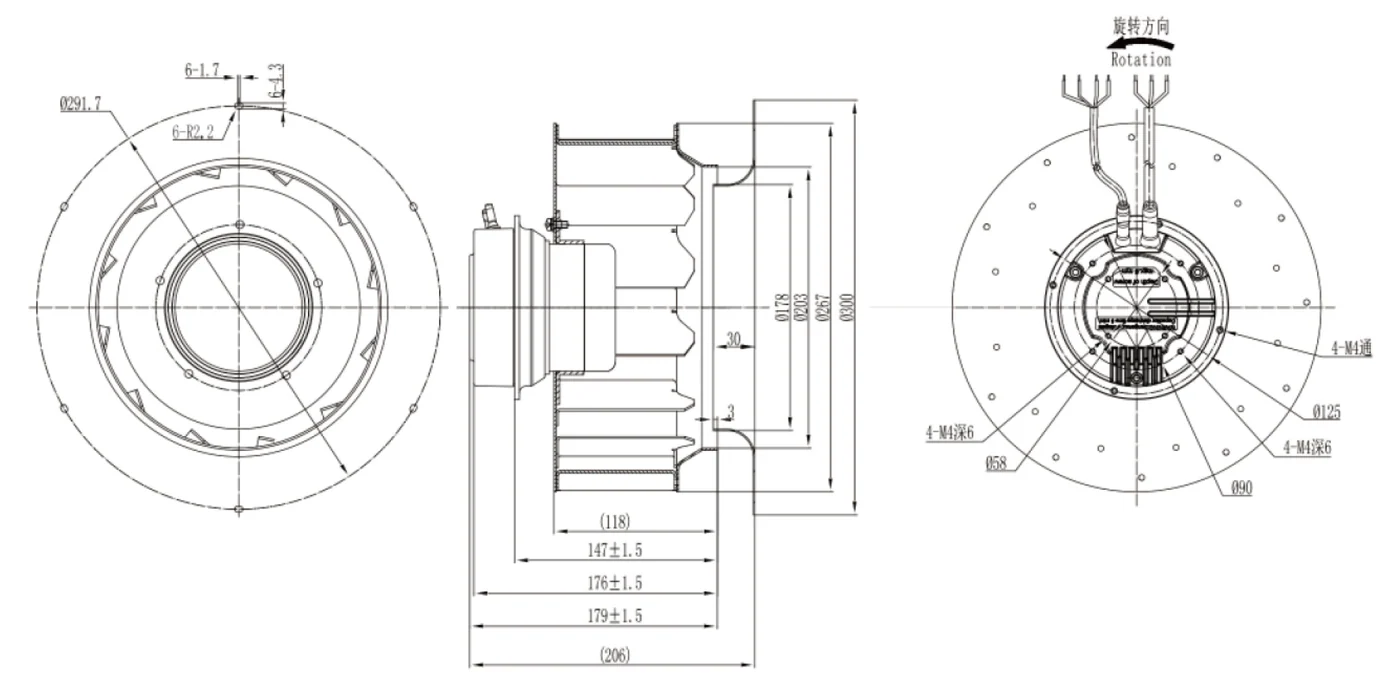

LWBE3G270-092NU-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

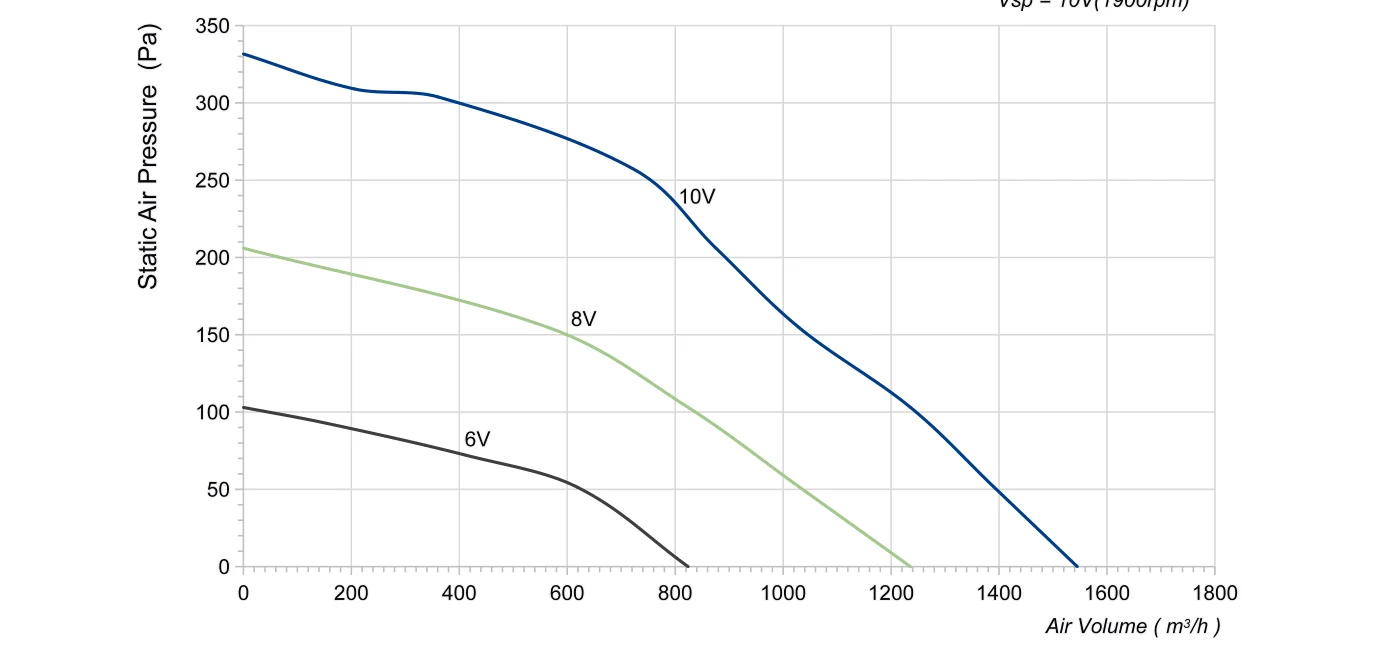

LWBE3G270-092NU-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWBE3G270-092NU-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBE3G270-092NU-01

LWBE3G270-092NU-01 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø270 mm, rated 115 V EC, maximum airflow 1,545 m³/h, maximum static pressure 332 Pa, noise 68 dB(A), input power 170 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWBE3G270-092NU-01
Series	LWBE3G270
Motor type	EC
Phase	1-phase
Rated voltage	115 V
Frequency	50 Hz
Current	2.3 A
Input power	170 W
Speed	1,900 rpm
Max. airflow	1,545 m³/h
Max. static pressure	332 Pa
Noise	68 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø270 mm
Rotor diameter	92 mm
Impeller material	Aluminum Alloy
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBE3G270: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
