ImpellerØ310 mm12.2 in
Max airflow2,235 m³/h1,315 CFM
Max static pressure474 Pa1.90 in. wg
Voltage310 V
Speed1,850 rpm
Input power160 W
Noise75 dB(A)

LWBD3G310-092NZ-05 DC Backward Curved Centrifugal Fan Ø310 mm

Ø310 mm | DC | Max airflow 2,235 m³/h | Max static pressure 474 Pa | 75 dB(A)

SKU: LWBD3G310-092NZ-05 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø250–355 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

Get a quote · LWBD3G310-092NZ-05

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWBD3G310-092NZ-05drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

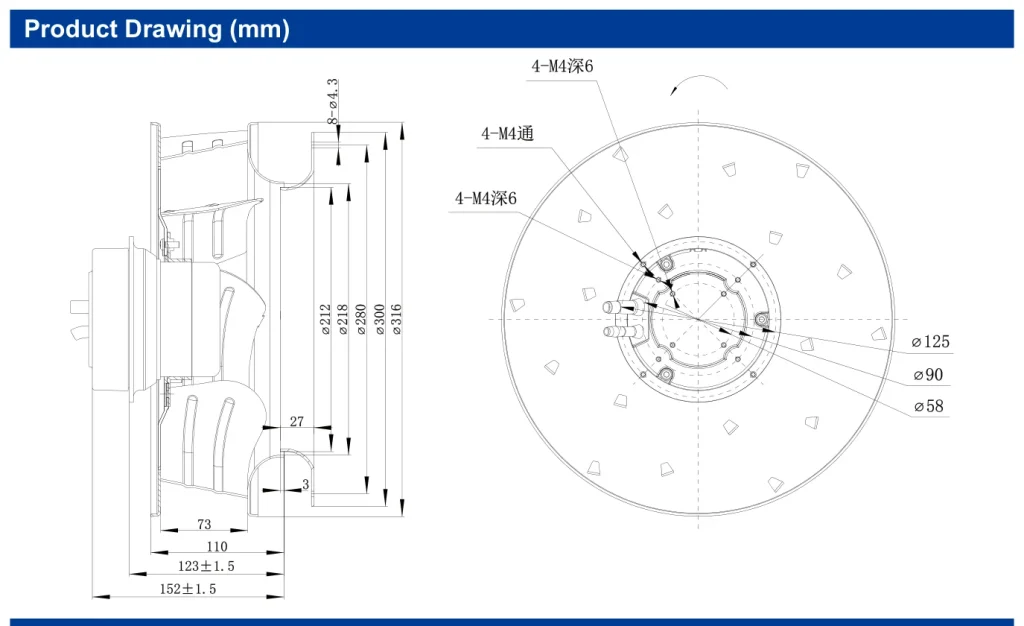

LWBD3G310-092NZ-05 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

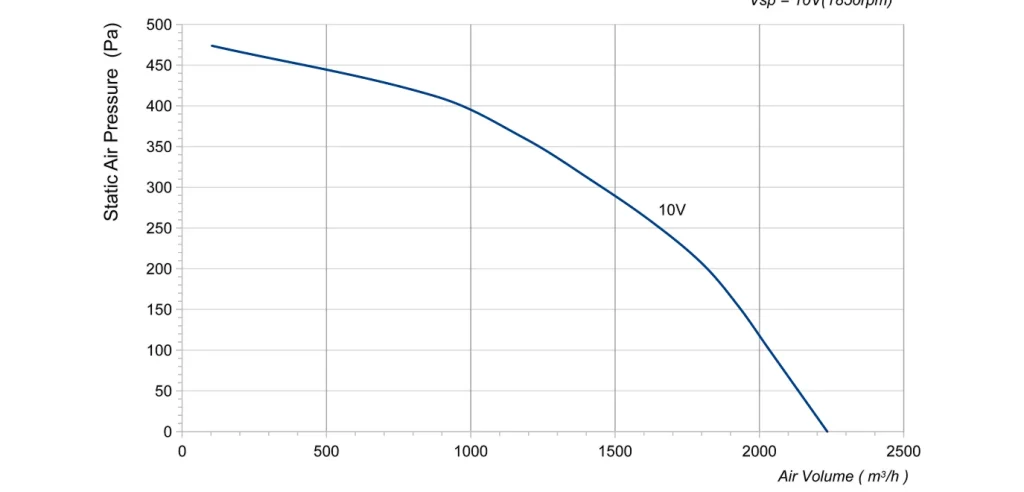

LWBD3G310-092NZ-05 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Downloads for LWBD3G310-092NZ-05

PDFDatasheet · 2 MB

Need a non-standard size or another format? Ask an engineer or search the download center.

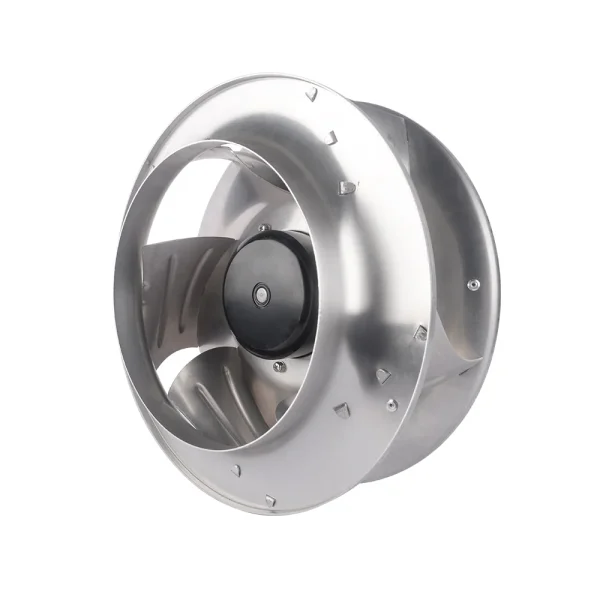

LWBD3G310-092NZ-05 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø310 mm, rated 310 V DC, maximum airflow 2,235 m³/h, maximum static pressure 474 Pa, noise 75 dB(A), input power 160 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWBD3G310-092NZ-05
Series	LWBD3G310
Motor type	DC
Rated voltage	310 V
Current	0.52 A
Input power	160 W
Speed	1,850 rpm
Max. airflow	2,235 m³/h
Max. static pressure	474 Pa
Noise	75 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø310 mm
Rotor diameter	92
Impeller material	Sheet Aluminum
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBD3G310: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø310 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWBD3G310-092NZ-05 this model	2,235 m³/h	474 Pa	1,850 rpm	160 W	75 dB(A)	310 V
LWBD3G310-102NH-03	2,163 m³/h	510 Pa	1,900 rpm	192 W	73 dB(A)	48 V	View
LWBD3G310-092NH-02	2,266 m³/h	391 Pa	1,600 rpm	120 W	72 dB(A)	48 V	View
LWBD3G310-092NM-01	2,266 m³/h	391 Pa	1,600 rpm	120 W	72 dB(A)	24 V	View
LWBD3G310-102NH-04	2,524 m³/h	530 Pa	1,970 rpm	230 W	75 dB(A)	48 V	View
