ImpellerØ315 mm12.4 in
Max airflow1,571 m³/h925 CFM
Max static pressure412 Pa1.65 in. wg
Voltage230 V
Speed1,600 rpm
Input power115 W
Noise58 dB(A)

LWBA4E315-102NS-02 AC Backward Curved Centrifugal Fan Ø315 mm

Ø315 mm | AC | Max airflow 1,571 m³/h | Max static pressure 412 Pa | 58 dB(A)

SKU: LWBA4E315-102NS-02 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø250–355 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Backward centrifugal fans · SKU on PDF p. 23

All files for LWBA4E315-102NS-023 files · direct download

PDFFull product catalogue · model on PDF p. 23 WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWBA4E315-102NS-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBA4E315-102NS-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBA4E315-102NS-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Dimensional drawing LWBA4E315-102NS-02

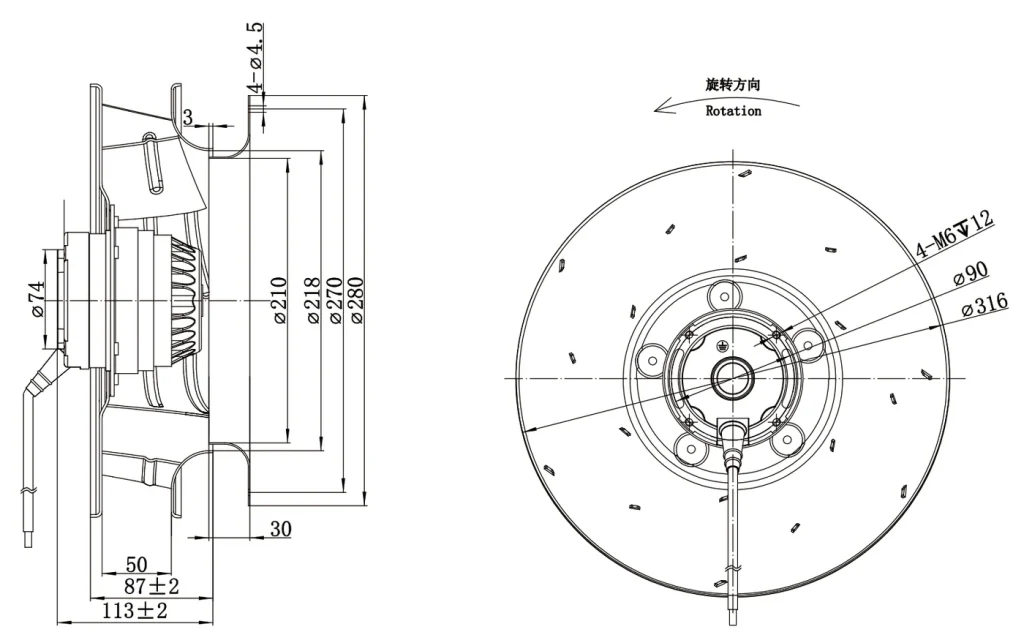

LWBA4E315-102NS-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWBA4E315-102NS-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBA4E315-102NS-02

LWBA4E315-102NS-02 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø315 mm, rated 230 V AC, maximum airflow 1,571 m³/h, maximum static pressure 412 Pa, noise 58 dB(A), input power 115 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWBA4E315-102NS-02
Series	LWBA4E315
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	60 Hz
Current	0.6 A
Input power	115 W
Speed	1,600 rpm
Max. airflow	1,571 m³/h
Max. static pressure	412 Pa
Noise	58 dB(A)
Ambient temperature	-40 ~ 65 °C
Impeller diameter	Ø315 mm
Rotor diameter	102 mm
Impeller material	Aluminum Alloy
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBA4E315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
