Need a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ310 mm12.2 in
- Max airflow2,163 m³/h1,273 CFM
- Max static pressure510 Pa2.05 in. wg
- Voltage48 V
- Speed1,900 rpm
- Input power192 W
- Noise73 dB(A)

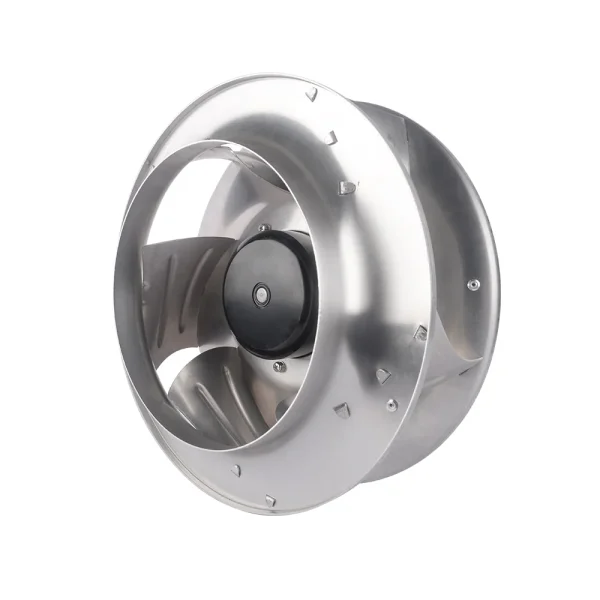

LWBD3G310-102NH-03 DC Backward Curved Centrifugal Fan Ø310 mm
Ø310 mm | DC | Max airflow 2,163 m³/h | Max static pressure 510 Pa | 73 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWBD3G310-102NH-03 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø310 mm, rated 48 V DC, maximum airflow 2,163 m³/h, maximum static pressure 510 Pa, noise 73 dB(A), input power 192 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWBD3G310-102NH-03 |
|---|---|
| Series | LWBD3G310 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 4 A |
| Input power | 192 W |
| Speed | 1,900 rpm |
| Max. airflow | 2,163 m³/h |
| Max. airflow (CFM) | 1,272 CFM |
| Max. static pressure | 510 Pa |
| Noise | 73 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |

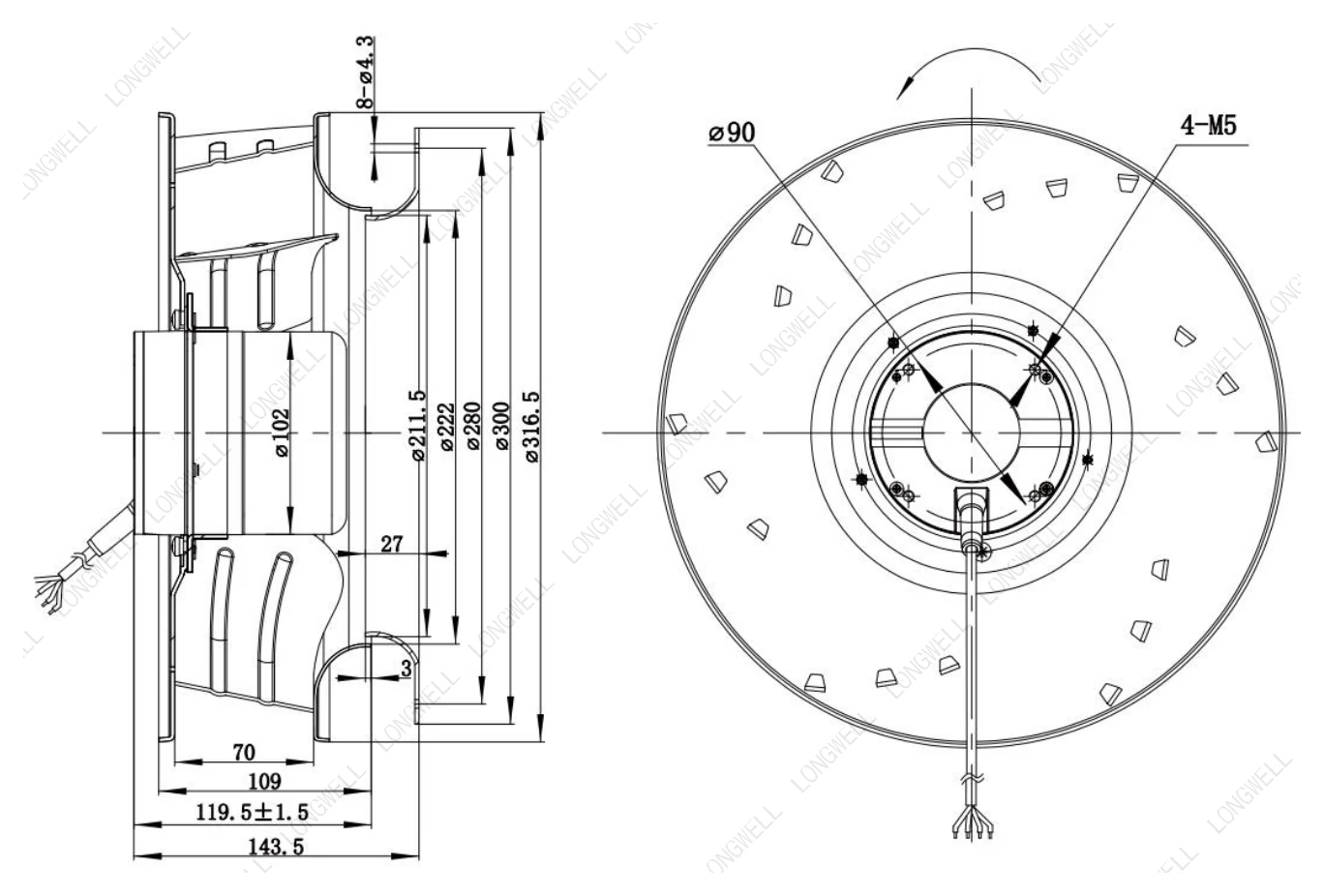

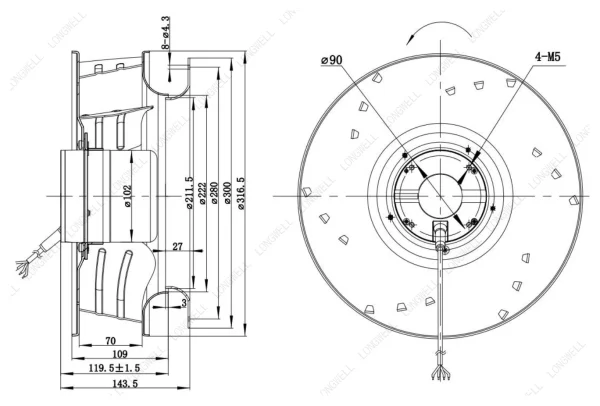

| Impeller diameter | Ø310 mm |
| Rotor diameter | 102 |
| Impeller material | Aluminum alloy ( Impeller ) |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |

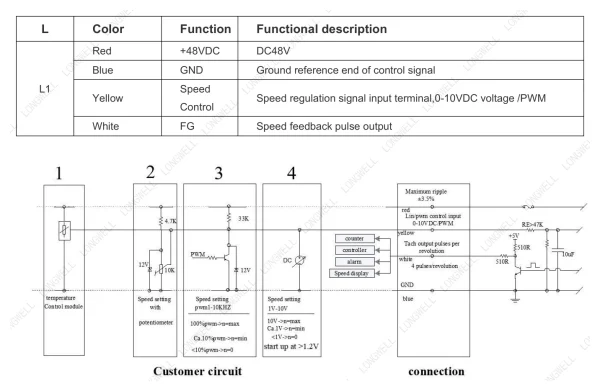

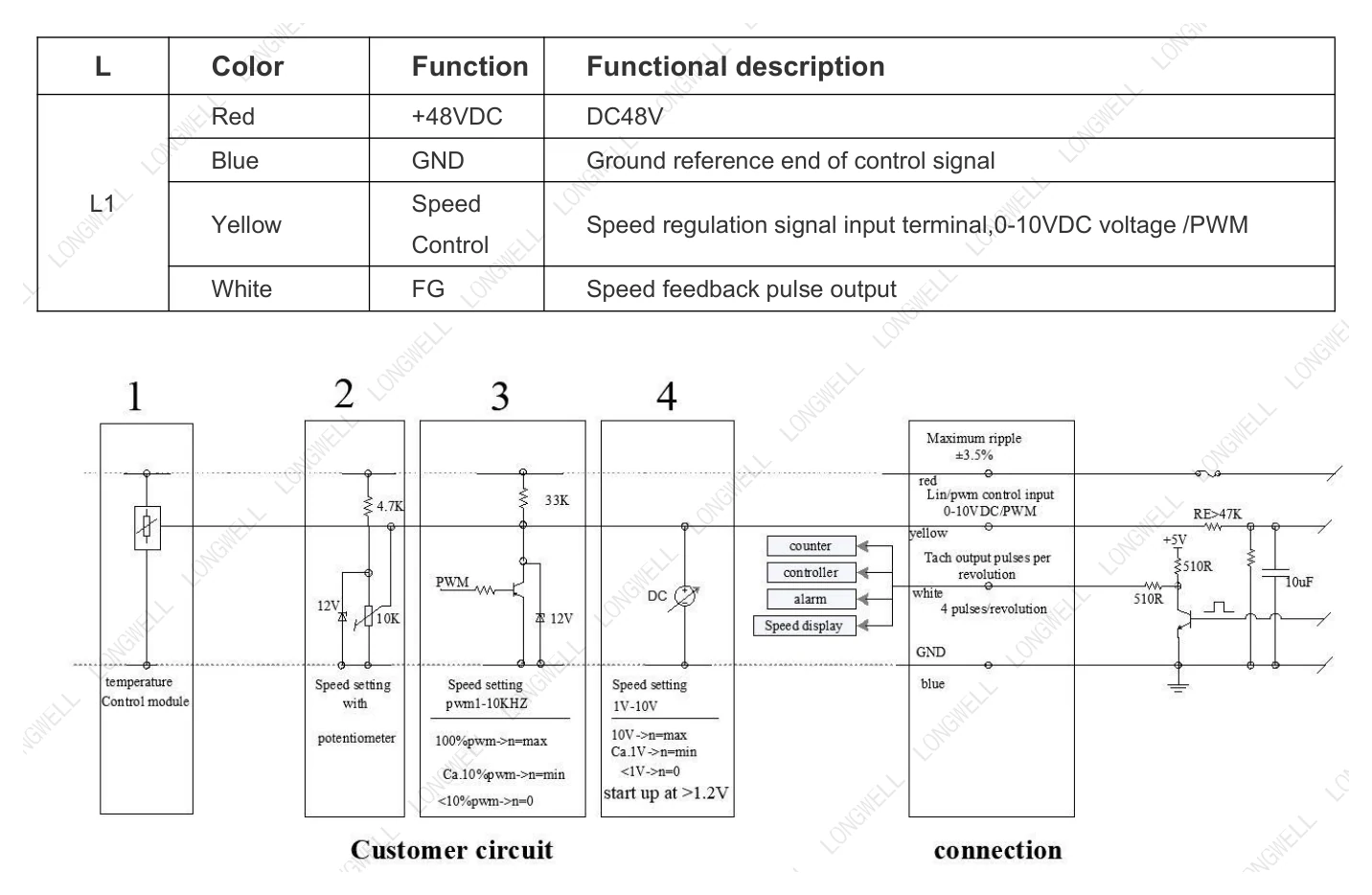

| Speed control | Control input 0~10VDC/PWM |
| Control signal | Control signal VSP voltage range1VDC~10VDC(During normal operation, when the VSP voltage is below 1.2VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10V,duty cycle 10%–100% . |
| Speed feedback | Tach output: 4 Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+ |
| Protection functions | Polarity Protection |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G310: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

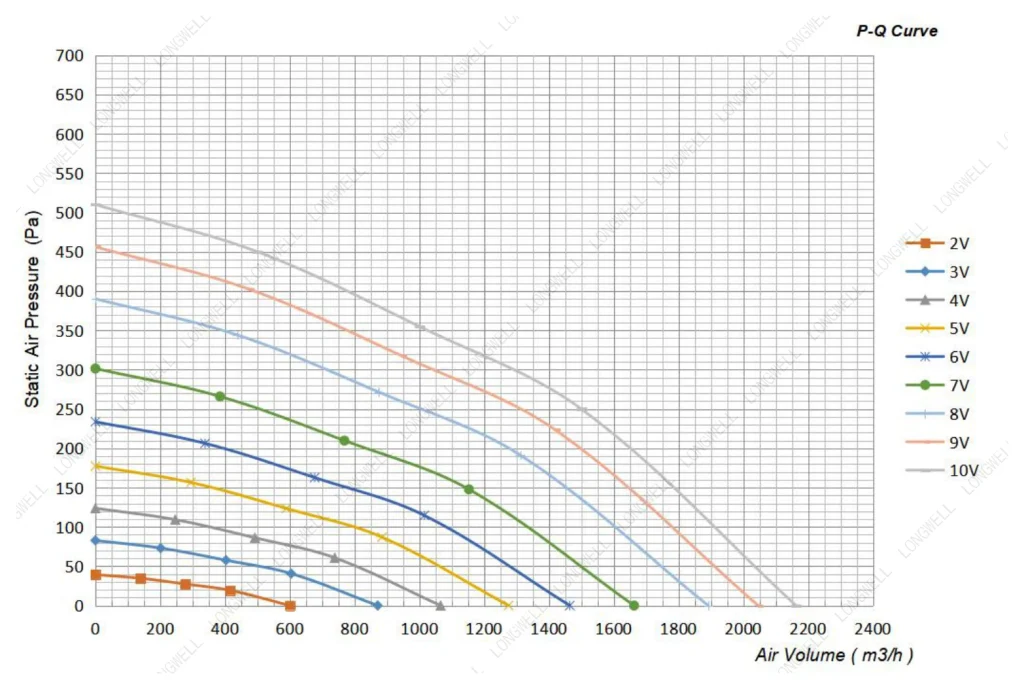

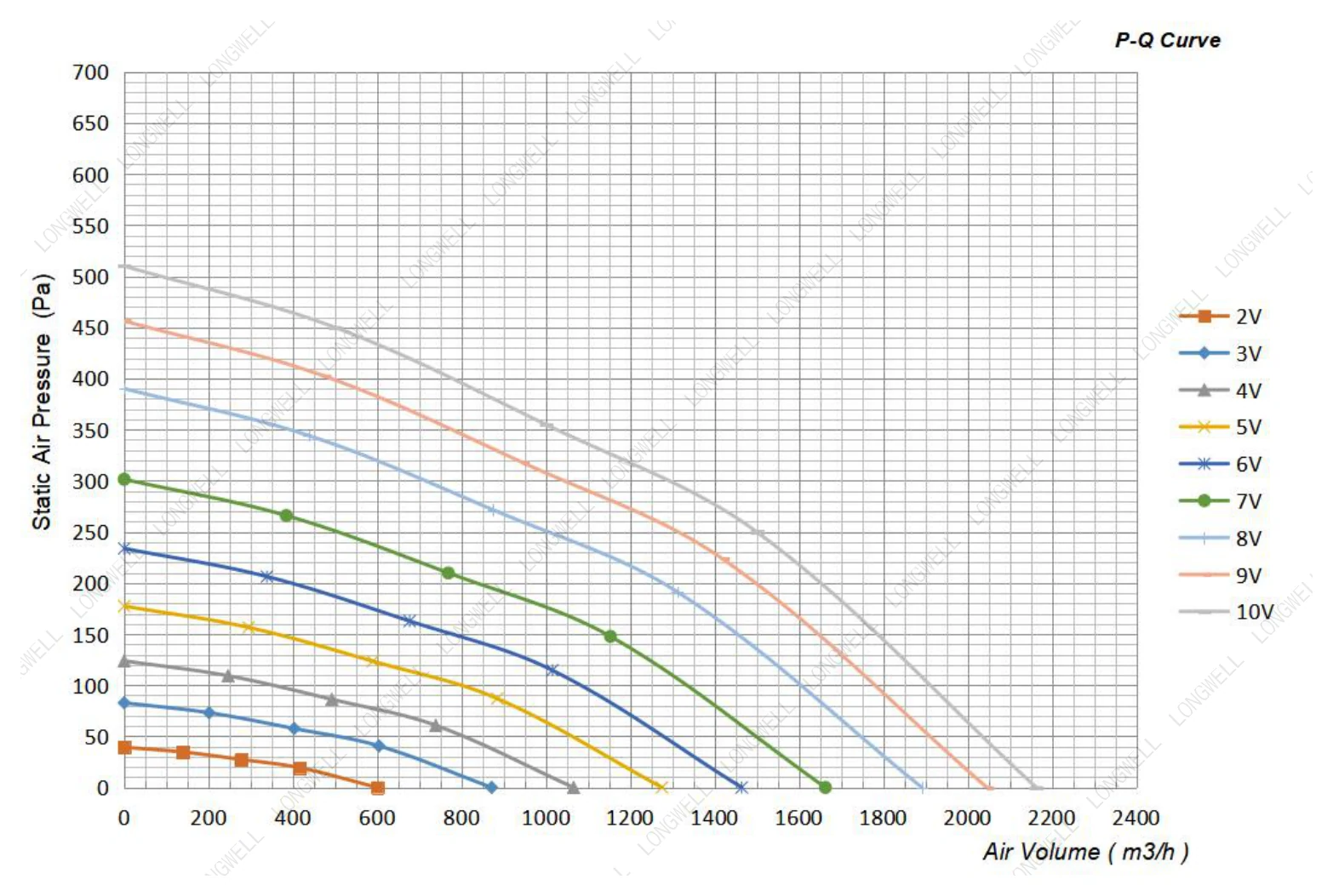

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø310 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBD3G310-102NH-03 this model | 2,163 m³/h | 510 Pa | 1,900 rpm | 192 W | 73 dB(A) | 48 V | |
| LWBD3G310-092NZ-05 | 2,235 m³/h | 474 Pa | 1,850 rpm | 160 W | 75 dB(A) | 310 V | View |
| LWBD3G310-092NH-02 | 2,266 m³/h | 391 Pa | 1,600 rpm | 120 W | 72 dB(A) | 48 V | View |
| LWBD3G310-092NM-01 | 2,266 m³/h | 391 Pa | 1,600 rpm | 120 W | 72 dB(A) | 24 V | View |
| LWBD3G310-102NH-04 | 2,524 m³/h | 530 Pa | 1,970 rpm | 230 W | 75 dB(A) | 48 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
