- ImpellerØ133 mm5.2 in
- Max airflow773 m³/h455 CFM
- Max static pressure288 Pa1.16 in. wg
- Voltage230 V
- Speed1,750 rpm
- Input power105 W
- Noise69 dB(A)
LWFE3G133-072DS-01 EC Dual Inlet Forward Centrifugal Blower Ø133 mm
Ø133 mm | EC | Max airflow 773 m³/h | Max static pressure 288 Pa | 69 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

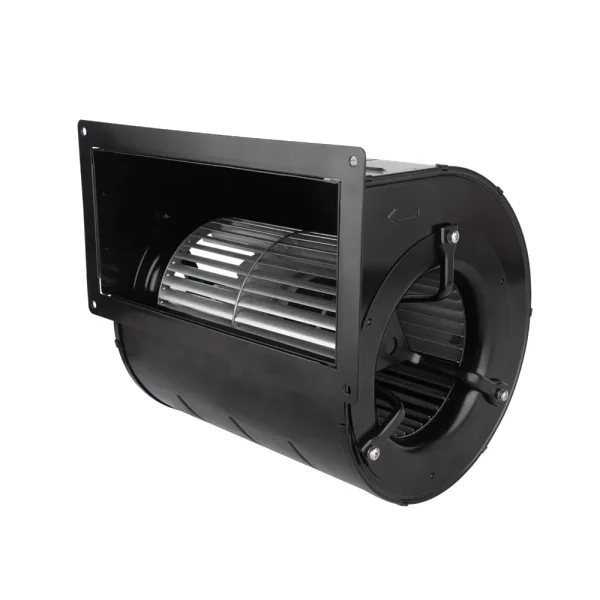

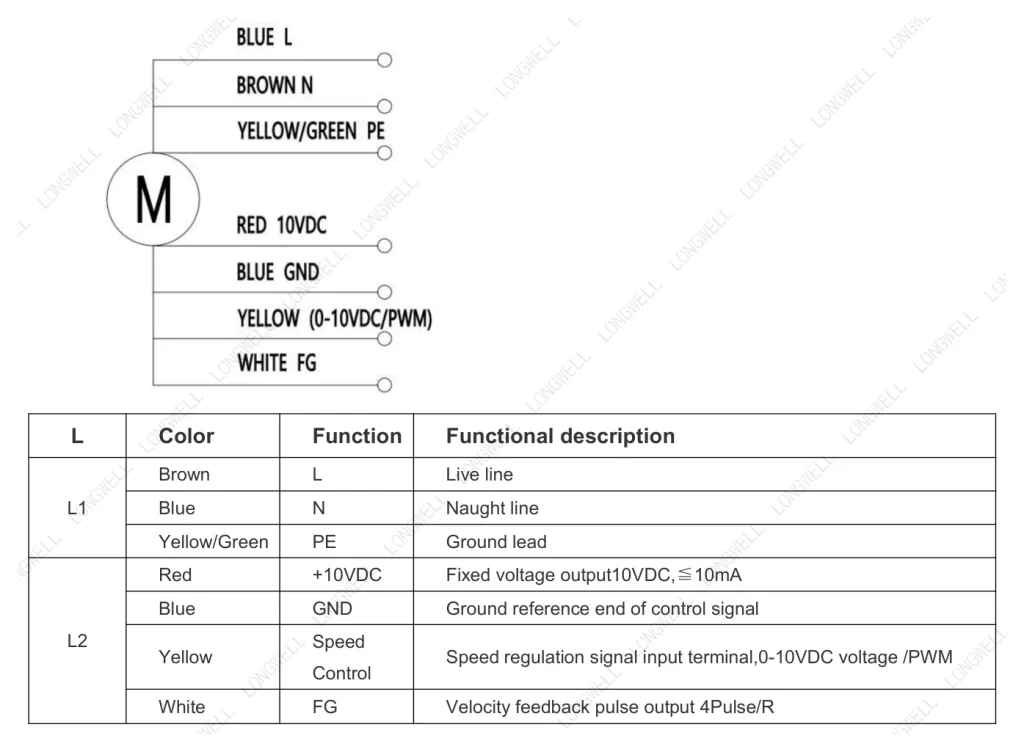

LWFE3G133-072DS-01 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 230 V EC, maximum airflow 773 m³/h, maximum static pressure 288 Pa, noise 69 dB(A), input power 105 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G133-072DS-01 |
|---|---|
| Series | LWFE3G133 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.8 A |
| Input power | 105 W |
| Speed | 1,750 rpm |
| Max. airflow | 773 m³/h |
| Max. airflow (CFM) | 455 CFM |
| Max. static pressure | 288 Pa |
| Noise | 69 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 72 |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

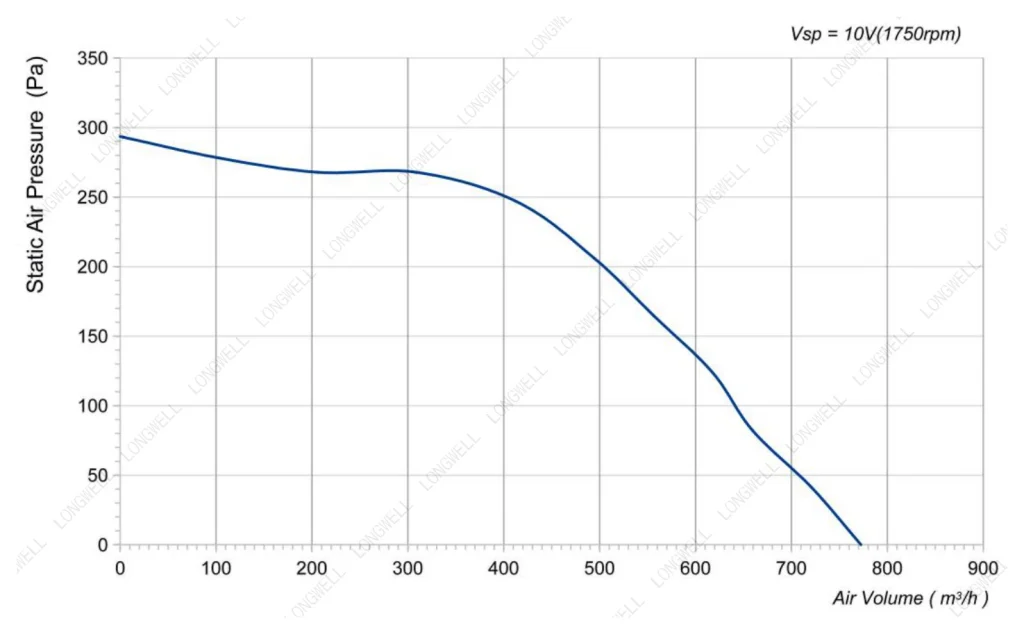

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø133 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G133-072DS-01 this model | 773 m³/h | 288 Pa | 1,750 rpm | 105 W | 69 dB(A) | 230 V | |
| LWFE3G133-072PS-02 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 230 V | View |
| LWBE3G133-072NU-09 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 115 V | View |
| LWBE3G133-072NS-07 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 230 V | View |
| LWFE3G133-072SS-01 | 319 m³/h | 191 Pa | 2,050 rpm | 65 W | 68 dB(A) | 230 V | View |
| LWFE3G133-072PS-03 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 230 V | View |
| LWBE3G133-072NU-10 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 115 V | View |
| LWBE3G133-072NS-08 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 230 V | View |
| LWFE3G133-072NS-01 | 433 m³/h | 288 Pa | 2,290 rpm | 85 W | 63 dB(A) | 230 V | View |
| LWBE3G133-072PS-06 | 473 m³/h | 609 Pa | 5,200 rpm | 72 W | 68 dB(A) | 230 V | View |
| LWBE3G133-072NS-06 | 473 m³/h | 609 Pa | 5,220 rpm | 72 W | 68 dB(A) | 230 V | View |
| LWFE3G133-092DS-03 | 690 m³/h | 330 Pa | 1,550 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWFE3G133-072DS-02 | 979 m³/h | 484 Pa | 1,450 rpm | 120 W | 70 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
