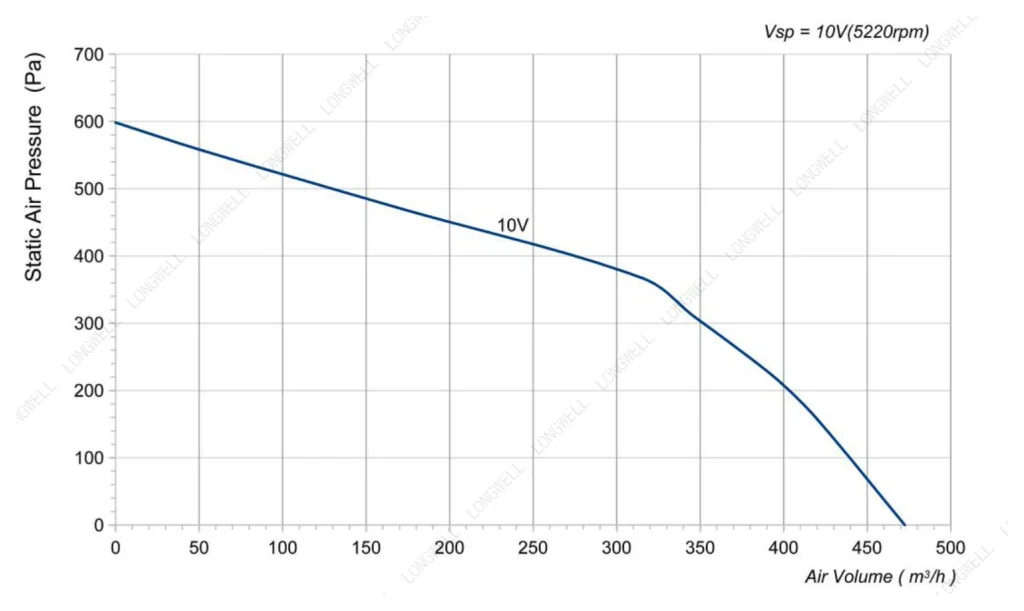

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ133 mm5.2 in
- Max airflow473 m³/h278 CFM
- Max static pressure609 Pa2.44 in. wg
- Voltage230 V
- Speed5,200 rpm
- Input power72 W
- Noise68 dB(A)
LWBE3G133-072PS-06 EC Plug Fan Ø133 mm
Ø133 mm | EC | Max airflow 473 m³/h | Max static pressure 609 Pa | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC plug fans #1 · SKU on PDF p. 6, 7
All files for LWBE3G133-072PS-066 files · direct download

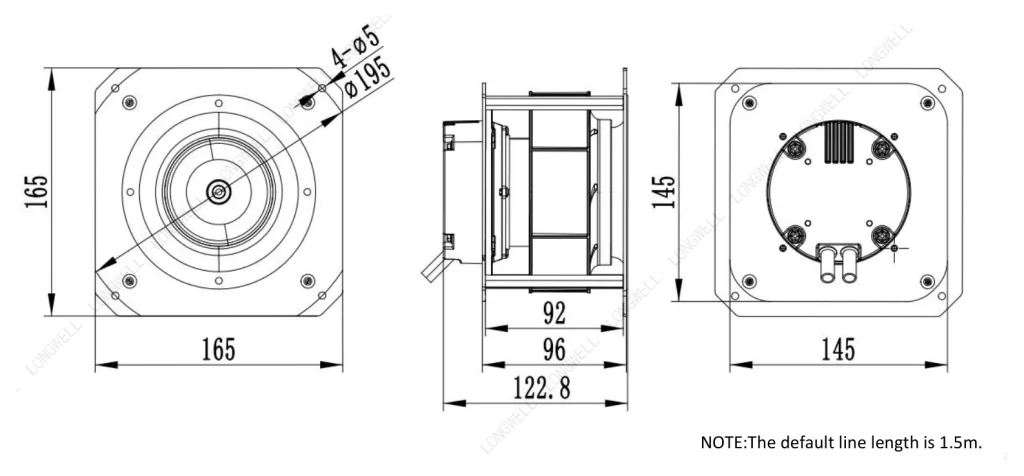

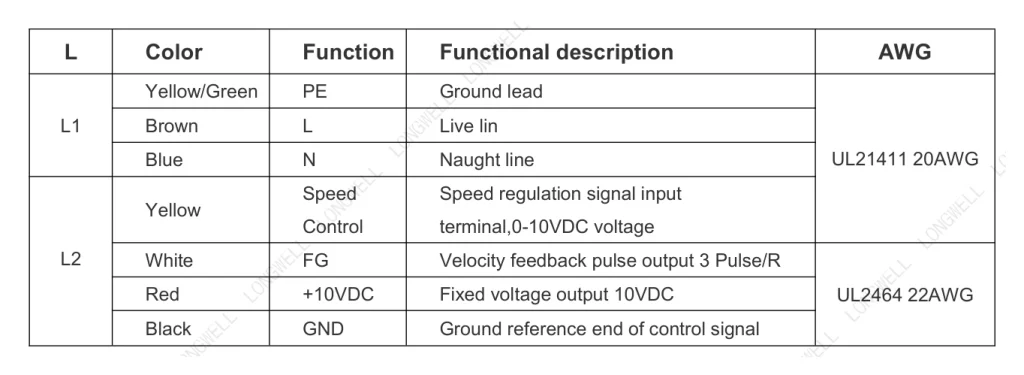

PDFFull product catalogue · model on PDF p. 6, 7WEBPDimensional drawingWEBPPerformance curveWEBPWiring diagramDOCXDatasheet
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com
Cross-reference: same impeller size class as ebm-papst K3G133 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
Typical applications: Industrial AHUs · Air conditioning · Air handling units · FanGrid arrays — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBE3G133-072PS-06
PDFDatasheetPDFFull product catalogue · EC ( ) EC plug fans #1 · model on PDF p. 6, 7 · 48.6 MBDOCXDatasheet · 542 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G133-072PS-06 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø133 mm, rated 230 V EC, maximum airflow 473 m³/h, maximum static pressure 609 Pa, noise 68 dB(A), input power 72 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G133-072PS-06 |
|---|---|
| Series | LWBE3G133 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.38 ±10% A |
| Input power | 72 W |
| Speed | 5,200 rpm |
| Max. airflow | 473 m³/h |
| Max. airflow (CFM) | 278 CFM |
| Max. static pressure | 609 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø133 mm |
| Rotor diameter | 72 mm |
| Impeller material | PA6+GF (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Speed control | 0–10 VDC |
| Control signal | 1.5±0.1–9.5±0.2 VDC; below 1.0±0.1 VDC standby |
| Speed feedback | 3 pulses/rev, open-collector output, external 10 kΩ pull-up |
| Auxiliary output | 10±0.3 VDC, max. 10 mA |
| Protection functions | over-temperature protection, over-current protection, locked-rotor protection |
| Soft start | full-speed start delay <35 s |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø133 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G133-072PS-06 this model | 473 m³/h | 609 Pa | 5,200 rpm | 72 W | 68 dB(A) | 230 V | |
| LWBE3G133-072NU-09 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 115 V | View |
| LWBE3G133-072NS-07 | 267.8 m³/h | 453.2 Pa | 3,800 rpm | 30 W | 63 dB(A) | 230 V | View |
| LWFE3G133-072SS-01 | 319 m³/h | 191 Pa | 2,050 rpm | 65 W | 68 dB(A) | 230 V | View |
| LWBE3G133-072NU-10 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 115 V | View |
| LWBE3G133-072NS-08 | 432.6 m³/h | 432.6 Pa | 4,400 rpm | 53 W | 70 dB(A) | 230 V | View |
| LWFE3G133-072NS-01 | 433 m³/h | 288 Pa | 2,290 rpm | 85 W | 63 dB(A) | 230 V | View |
| LWBE3G133-072NS-06 | 473 m³/h | 609 Pa | 5,220 rpm | 72 W | 68 dB(A) | 230 V | View |
| LWFE3G133-092DS-03 | 690 m³/h | 330 Pa | 1,550 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWFE3G133-072DS-01 | 773 m³/h | 288 Pa | 1,750 rpm | 105 W | 69 dB(A) | 230 V | View |
| LWFE3G133-072DS-02 | 979 m³/h | 484 Pa | 1,450 rpm | 120 W | 70 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
