ImpellerØ175 mm6.9 in
Max airflow741.6 m³/h436 CFM
Max static pressure535.6 Pa2.15 in. wg
Voltage230 V
Speed3,300 rpm
Input power85 W
Noise72 dB(A)

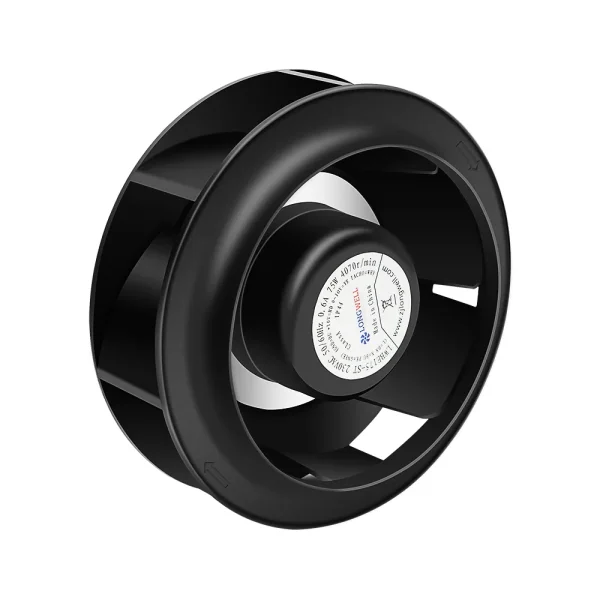

LWBE3G175-072NS-03 EC Backward Curved Centrifugal Fan Ø175 mm

Ø175 mm | EC | Max airflow 741.6 m³/h | Max static pressure 535.6 Pa | 72 dB(A)

SKU: LWBE3G175-072NS-03 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø133–225 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Backward centrifugal fans #2 · SKU on PDF p. 8

All files for LWBE3G175-072NS-036 files · direct download

PDFFull product catalogue · model on PDF p. 8 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram PDFCatalog

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Cross-reference: same impeller size class as ebm-papst K3G175, ebm-papst R3G175 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STEP3D model (STEP)2.9 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBE3G175-072NS-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBE3G175-072NS-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBE3G175-072NS-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (10 here, rated 230 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWBE3G175-072NS-03

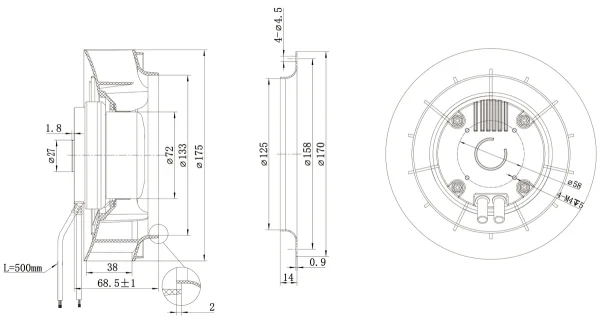

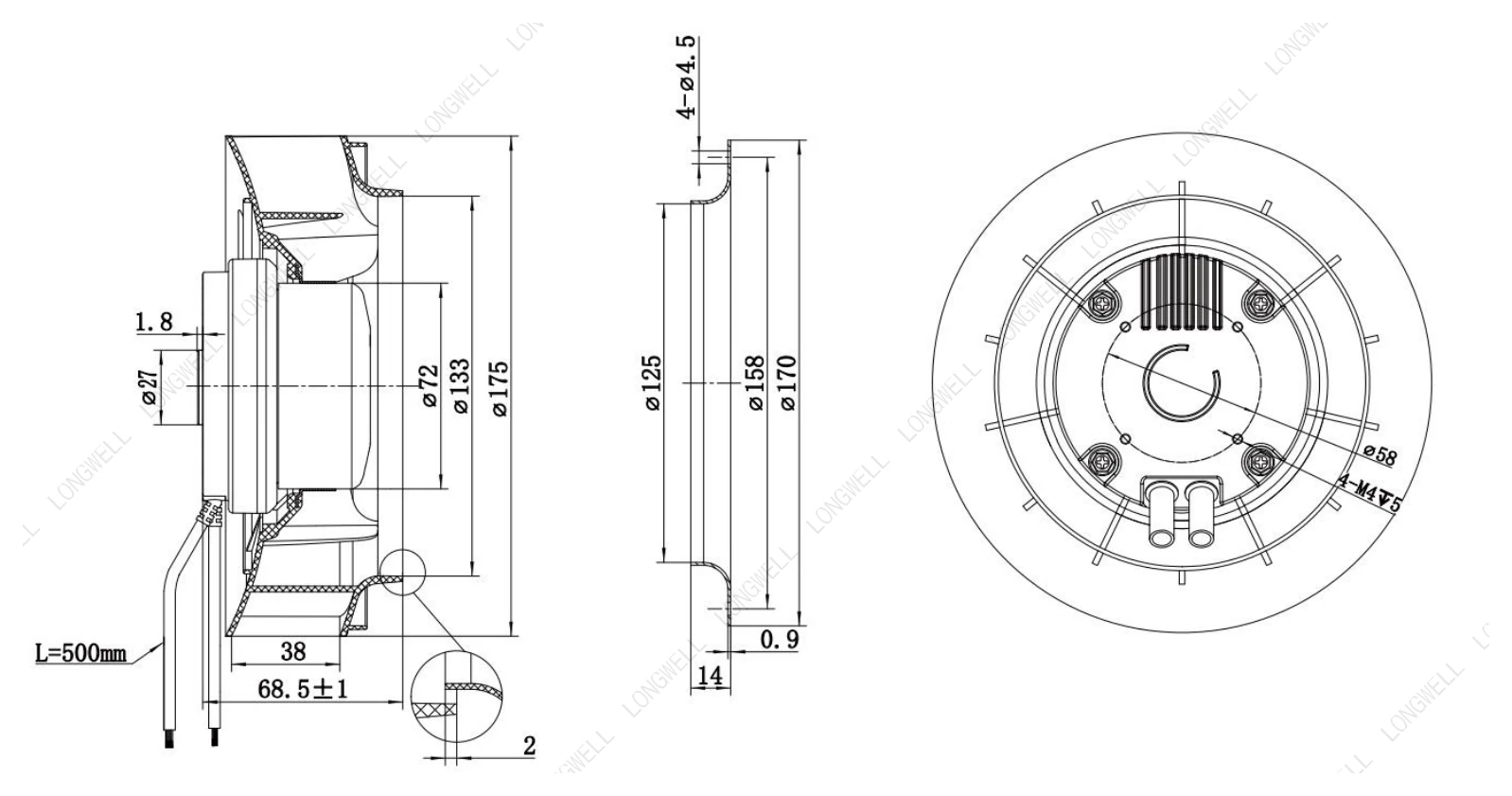

LWBE3G175-072NS-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

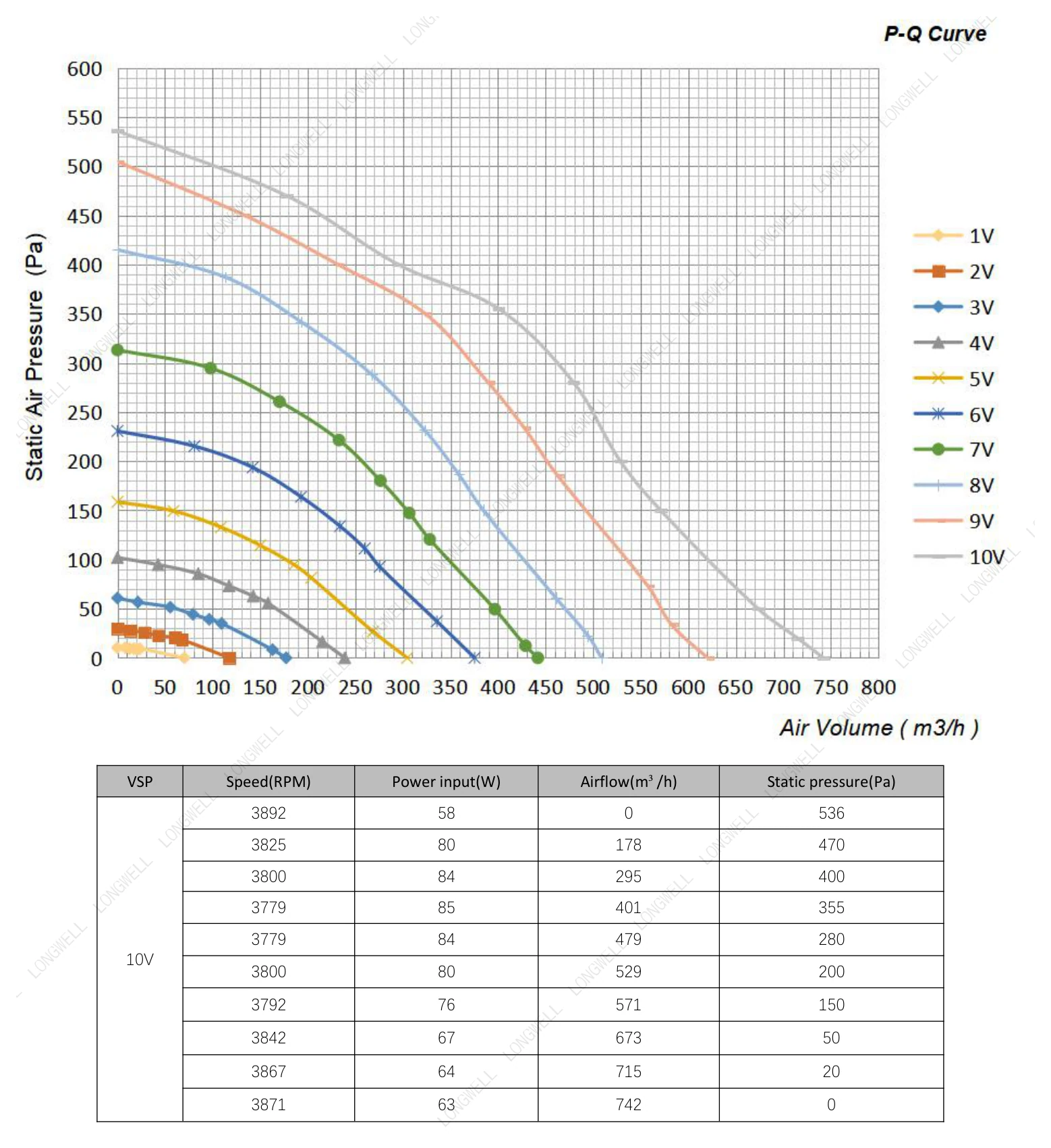

LWBE3G175-072NS-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

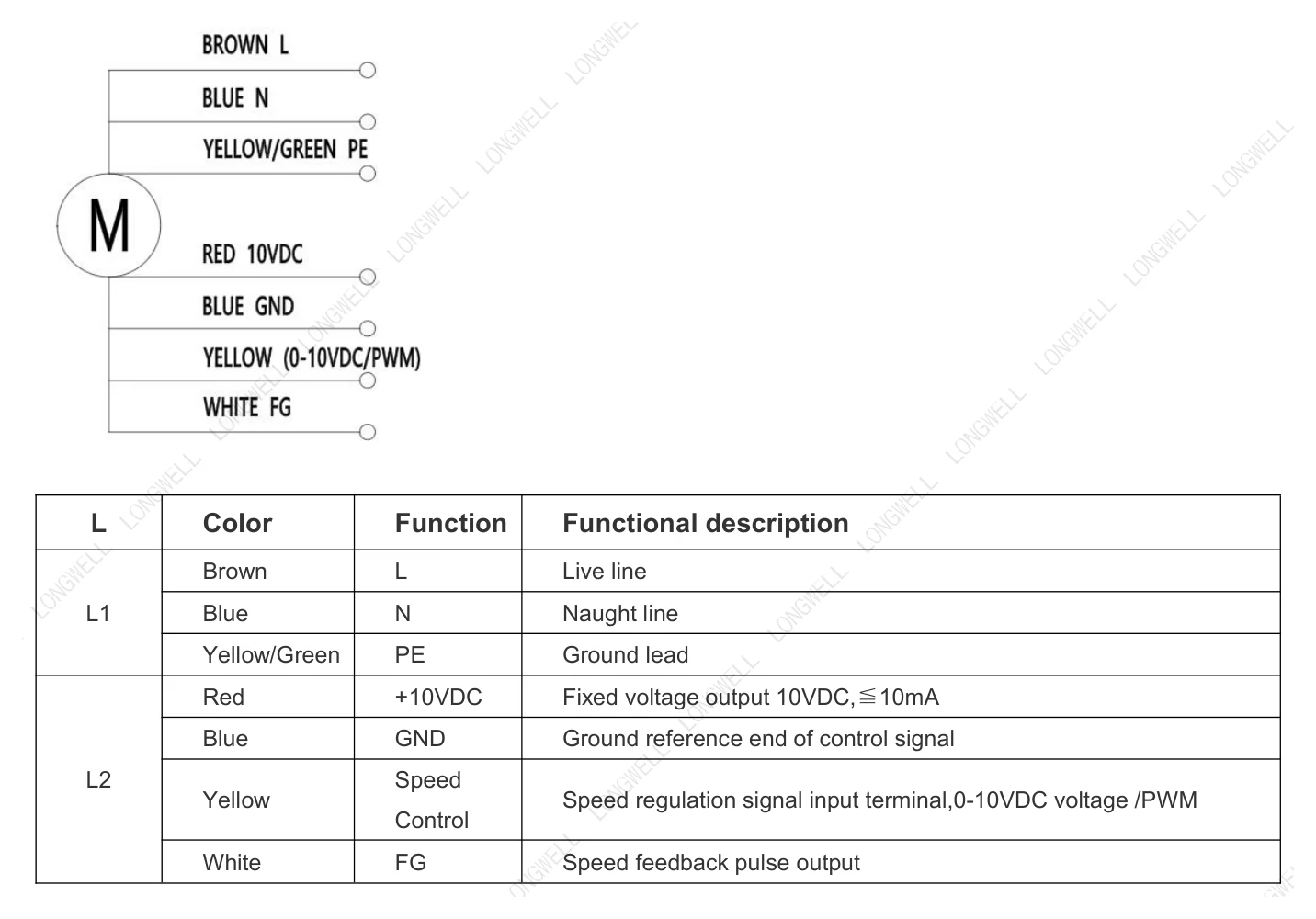

LWBE3G175-072NS-03 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.
