ImpellerØ250 mm9.8 in
Max airflow1,751 m³/h1,031 CFM
Max static pressure824 Pa3.31 in. wg
Voltage230 V
Speed3,170 rpm
Input power270 W
Noise84 dB(A)

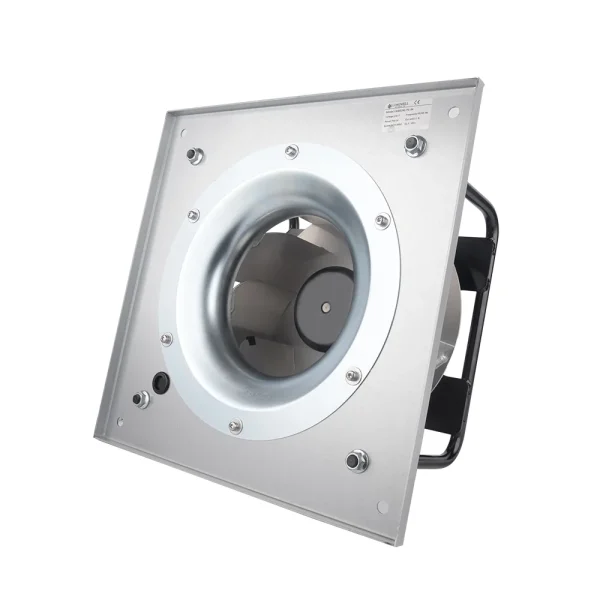

LWBE3G250-102PS-23 EC Plug Fan Ø250 mm

Ø250 mm | EC | Max airflow 1,751 m³/h | Max static pressure 824 Pa | 84 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWBE3G250-102PS-23

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWBE3G250-102PS-23drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

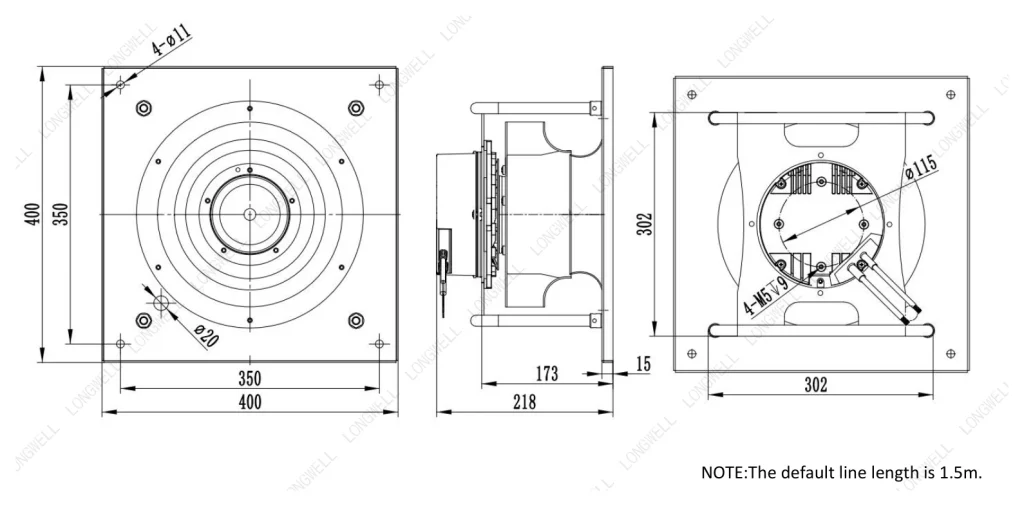

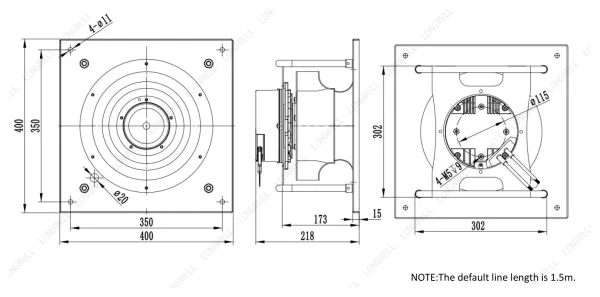

LWBE3G250-102PS-23 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

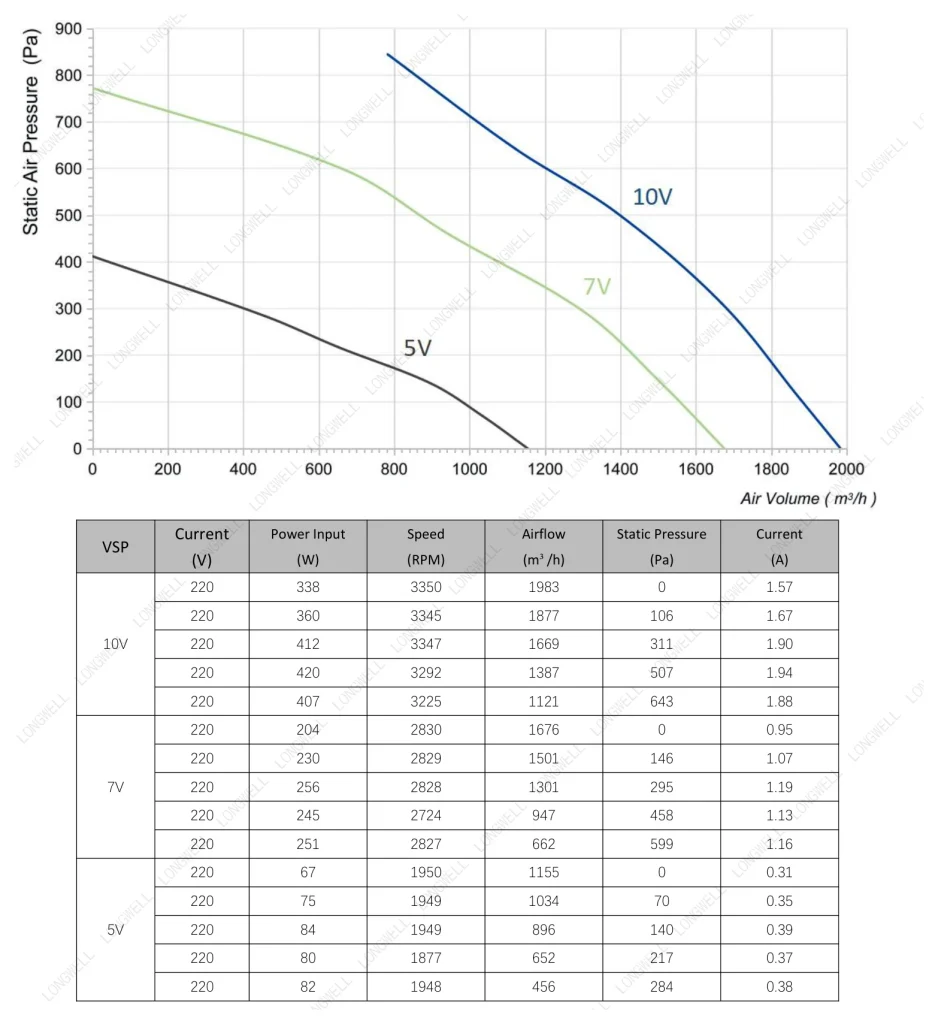

LWBE3G250-102PS-23 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

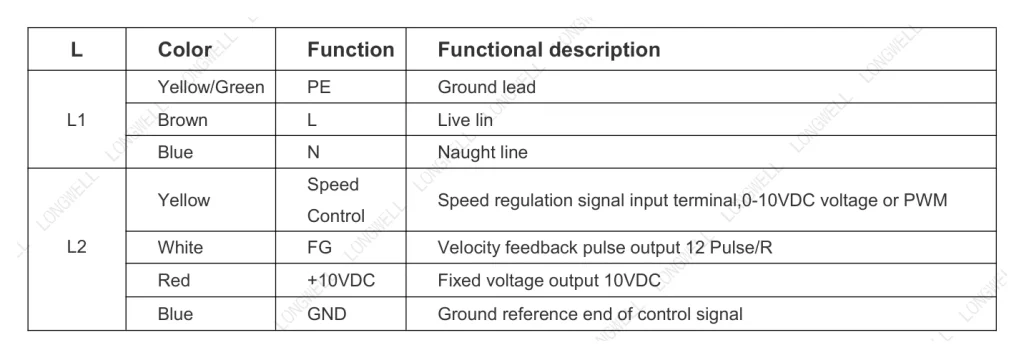

LWBE3G250-102PS-23 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWBE3G250-102PS-23

DOCXDatasheet · 549 KB PDFDatasheet · 679 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWBE3G250-102PS-23 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø250 mm, rated 230 V EC, maximum airflow 1,751 m³/h, maximum static pressure 824 Pa, noise 84 dB(A), input power 270 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
