- ImpellerØ500 mm19.7 in
- Max airflow13,472 m³/h7,924 CFM
- Max static pressure1,541 Pa6.19 in. wg
- Voltage400 V
- Speed2,200 rpm
- Input power4,200 W5.63 hp
- Noise88 dB(A)

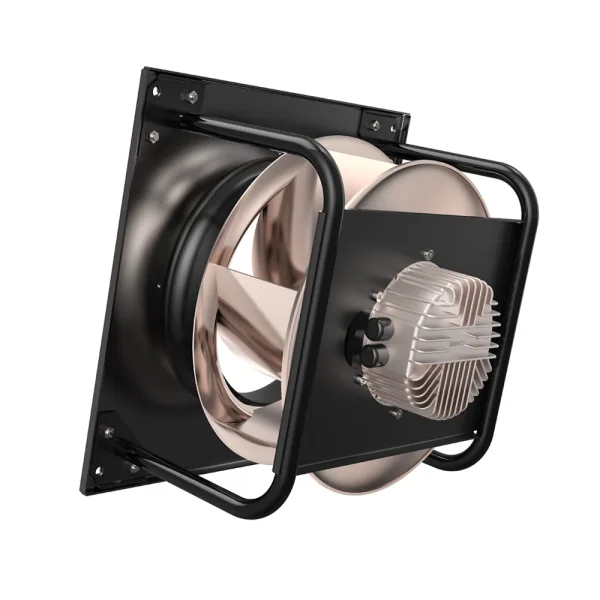

LWBE3G500-188PT-05 EC Plug Fan Ø500 mm
Ø500 mm | EC | Max airflow 13,472 m³/h | Max static pressure 1,541 Pa | 88 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Cross-reference: same impeller size class as ebm-papst K3G500, ebm-papst RadiPac 500, Ziehl-Abegg RH50C — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Performance curve (P-Q) LWBE3G500-188PT-05
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 400 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

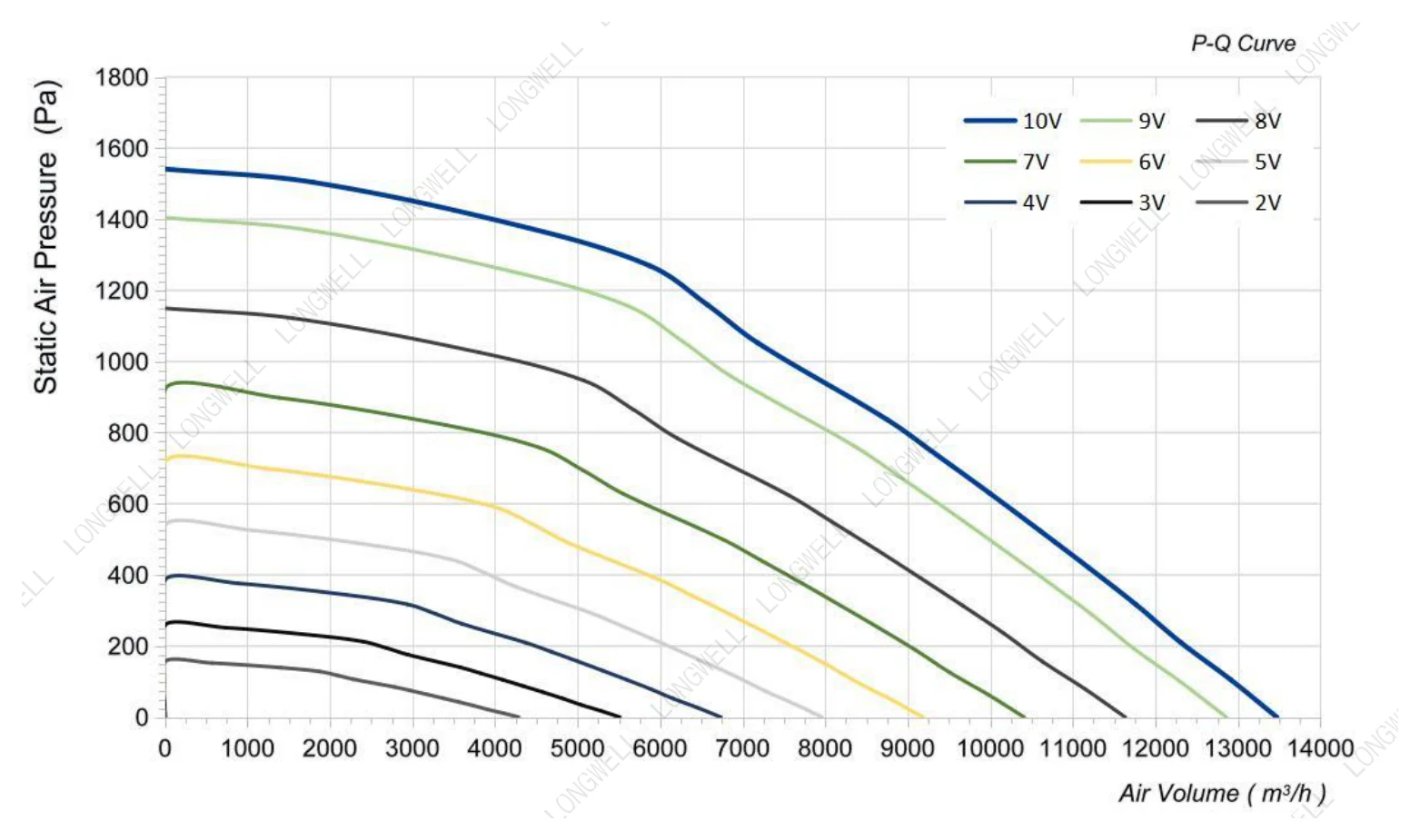

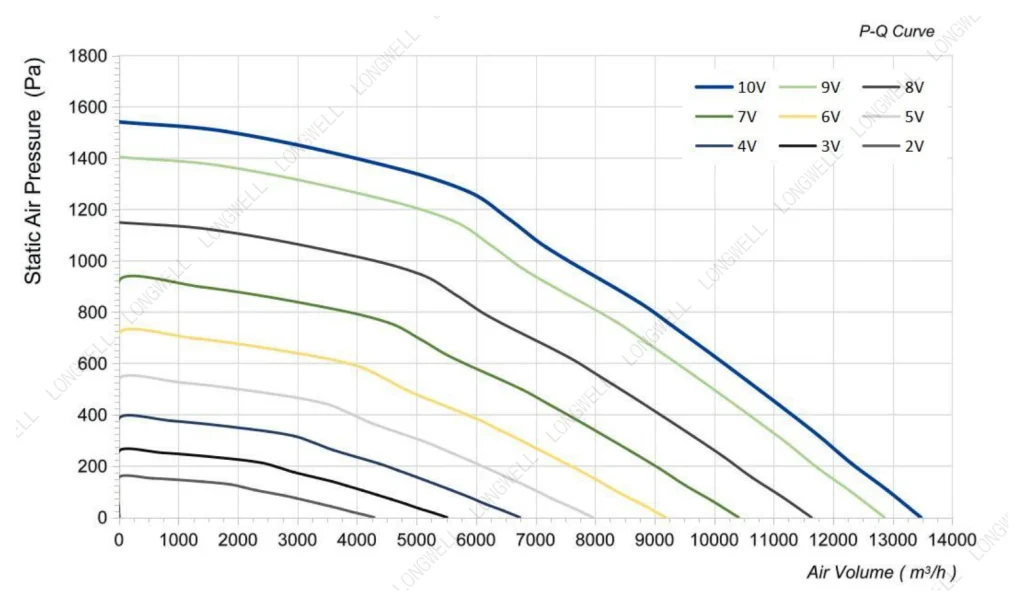

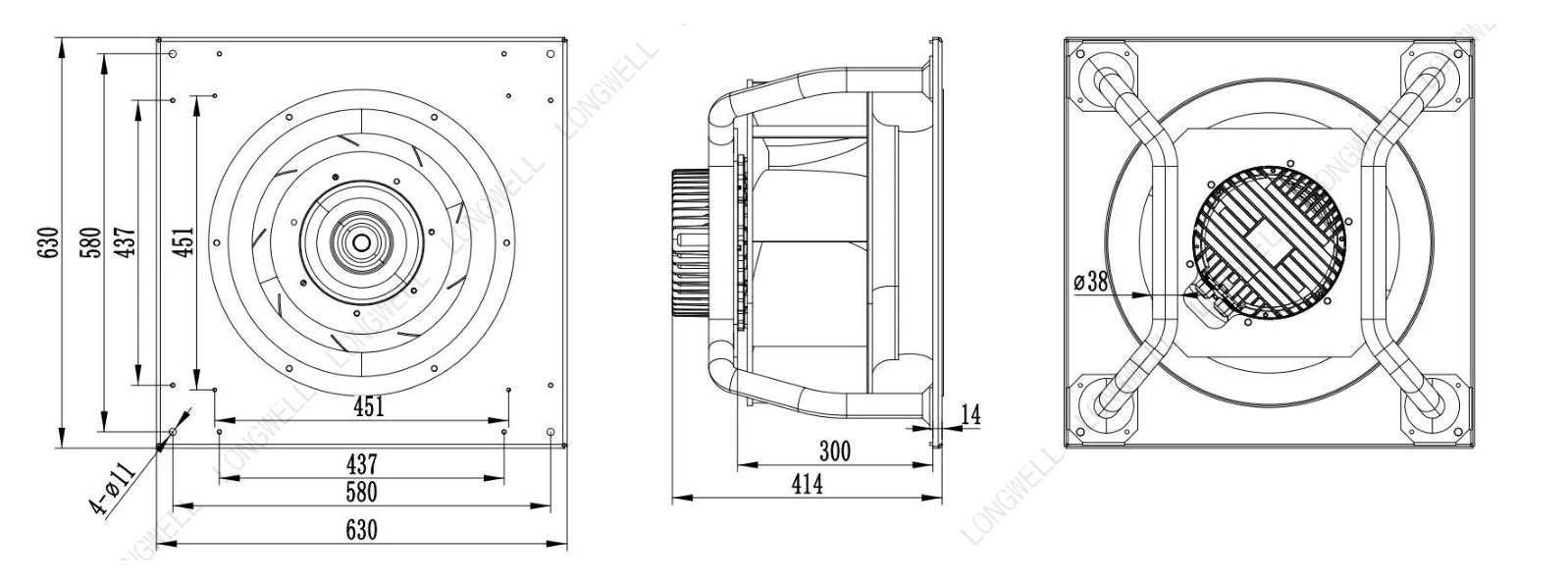

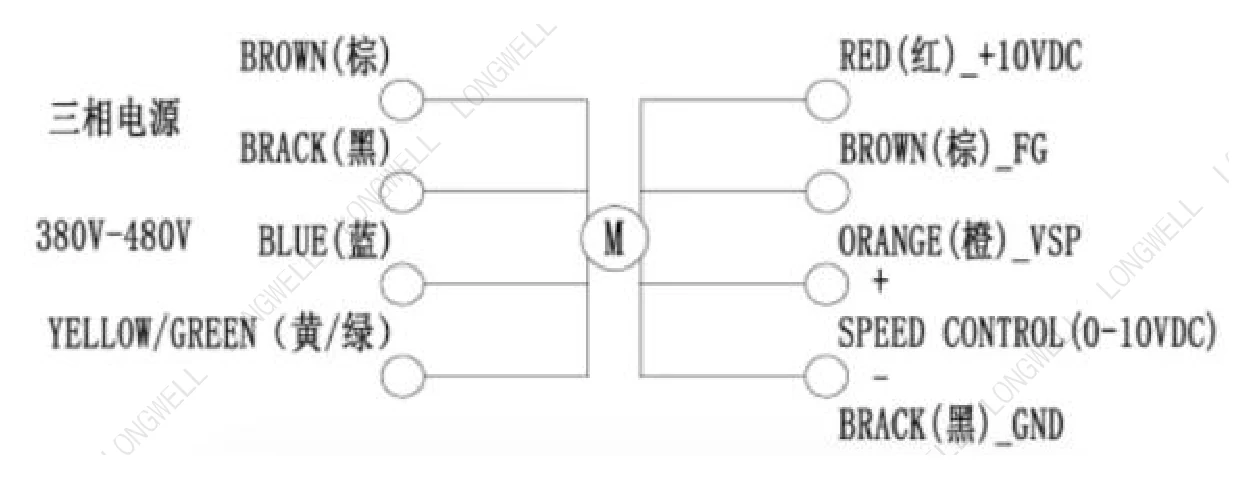

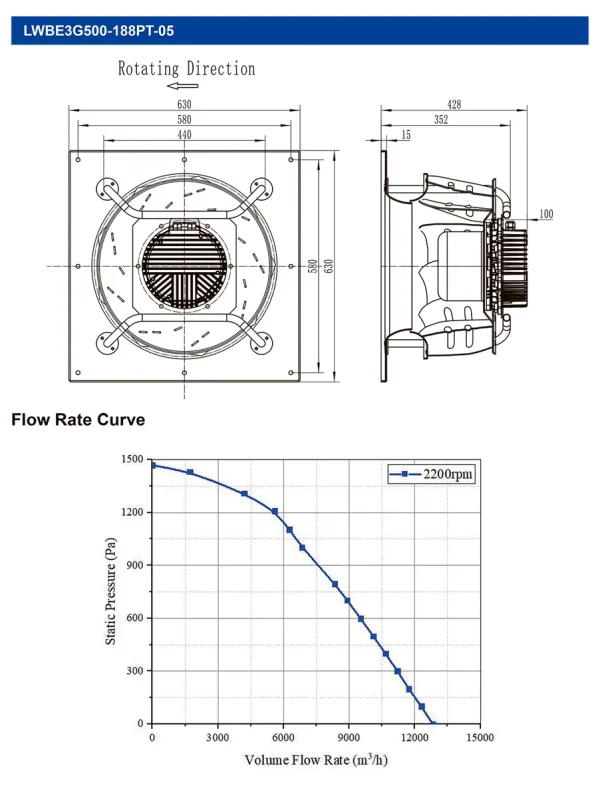

Drawing, Curve & Wiring LWBE3G500-188PT-05
Files for LWBE3G500-188PT-05: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBE3G500-188PT-05
LWBE3G500-188PT-05 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø500 mm, rated 400 V EC, maximum airflow 13,472 m³/h, maximum static pressure 1,541 Pa, noise 88 dB(A), input power 4,200 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G500-188PT-05 |
|---|---|
| Series | LWBE3G500 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 400 V |
| Voltage range | 304~456 |
| Frequency | 50 Hz |
| Current | 9 A |
| Input power | 4,200 W |
| Speed | 2,200 rpm |
| Max. airflow | 13,472 m³/h |
| Max. airflow (CFM) | 7,924 CFM |
| Max. static pressure | 1,541 Pa |
| Noise | 88 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø500 mm |
| Rotor diameter | 188 mm |
| Impeller material | Aluminum Alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Speed control | Control input 0~10VDC(RS485 external control box can be connected) |
| Control signal | Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode) |
| Speed feedback | Tach output: 15Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+ |
| Auxiliary output | Output 10±0.3VDC, Max Current: 22mA |
| Communication | LWRS485-04 |
| Protection functions | Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, Input power supply lacks phase protection |
| Soft start | Delay time <35 seconds to full speed |
