- ImpellerØ450 mm17.7 in
- Max airflow4,017 m³/h2,364 CFM
- Max static pressure309 Pa1.24 in. wg
- Voltage380 V
- Speed920 rpm
- Input power300 W
- Noise60 dB(A)
LWBA6D450-138NT-07 AC Backward Curved Centrifugal Fan Ø450 mm
Ø450 mm | AC | Max airflow 4,017 m³/h | Max static pressure 309 Pa | 60 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Performance curve (P-Q) LWBA6D450-138NT-07
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 380 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

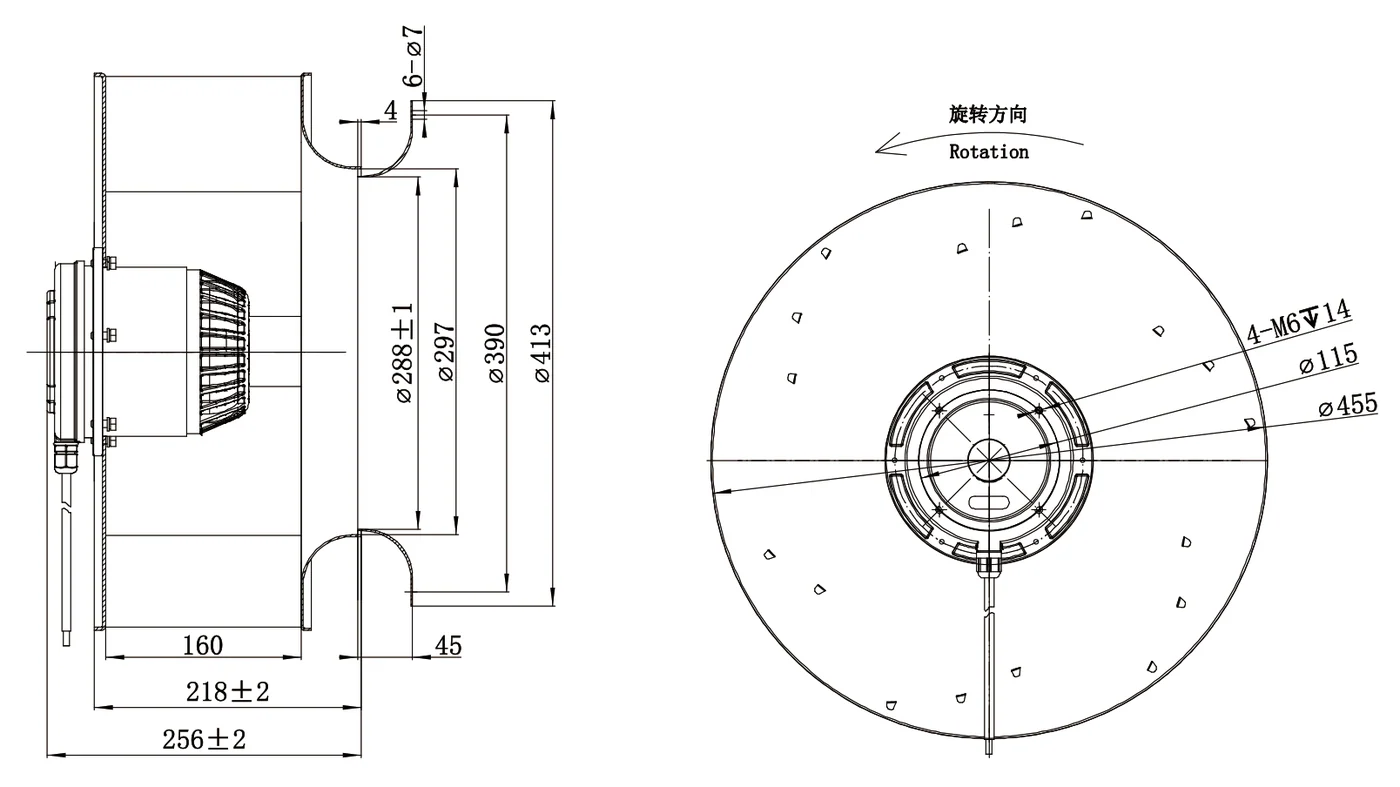

Dimensional drawing LWBA6D450-138NT-07
Files for LWBA6D450-138NT-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBA6D450-138NT-07
LWBA6D450-138NT-07 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø450 mm, rated 380 V AC, maximum airflow 4,017 m³/h, maximum static pressure 309 Pa, noise 60 dB(A), input power 300 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA6D450-138NT-07 |
|---|---|
| Series | LWBA6D450 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 1 A |
| Input power | 300 W |
| Speed | 920 rpm |
| Max. airflow | 4,017 m³/h |
| Max. static pressure | 309 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø450 mm |
| Rotor diameter | 138 mm |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA6D450: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
