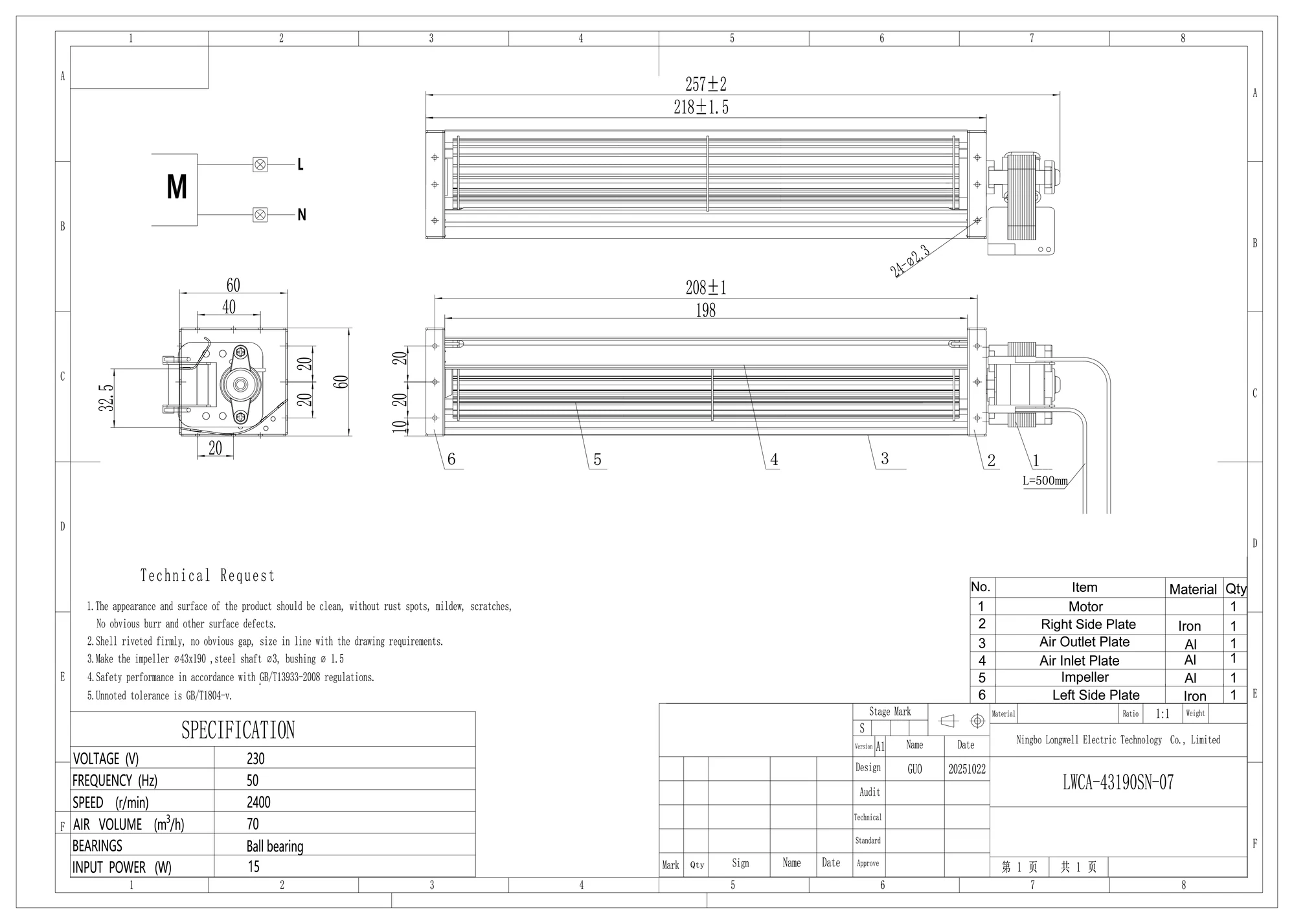

LWCA-43190SN-07 — construction, airflow path and running condition.
- ImpellerØ43 mm
- Max airflow70 m³/h
- Max static pressure14 Pa
- Voltage230 V
- Speed2,400 rpm
- Input power15 W
- Noise38 dB(A)

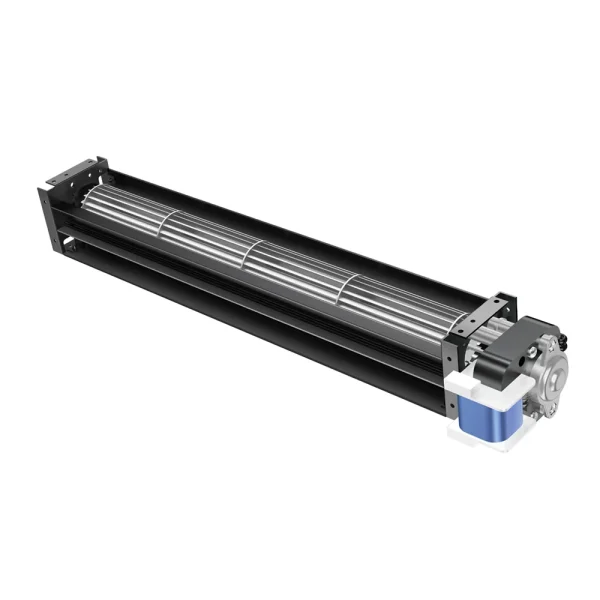

LWCA-43190SN-07 AC Cross Flow Fan Ø43 mm
Ø43 mm | AC | Max airflow 70 m³/h | Max static pressure 14 Pa | 38 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWCA-43190SN-07 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø43 mm, rated 230 V AC, maximum airflow 70 m³/h, maximum static pressure 14 Pa, noise 38 dB(A), input power 15 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-43190SN-07 |
|---|---|
| Series | LWCA43190 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 15 W |
| Speed | 2,400 rpm |
| Max. airflow | 70 m³/h |
| Max. static pressure | 14 Pa |
| Noise | 38 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø43 mm |
| Outlet length | 198mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA43190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø43 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-43190SN-07 this model | 70 m³/h | 14 Pa | 2,400 rpm | 15 W | 38 dB(A) | 230 V | |
| LWF-3200-02B | — | see curve | — | 3,200 W | — | 220 V | View |
| LWCA-4390SN-07 | 41 m³/h | 18 Pa | 2,700 rpm | 14 W | 37 dB(A) | 230 V | View |
| LWCA-4390UN-06 | 48 m³/h | 22 Pa | 3,000 rpm | 17 W | 37 dB(A) | 115 V | View |
| LWCA-43150SN-07 | 61 m³/h | 16 Pa | 2,500 rpm | 15 W | 38 dB(A) | 230 V | View |
| LWCA-43150UN-06 | 72 m³/h | 22 Pa | 3,000 rpm | 17 W | 38 dB(A) | 115 V | View |
| LWCA-43190UN-06 | 86 m³/h | 22 Pa | 2,900 rpm | 18 W | 39 dB(A) | 115 V | View |
| LWCA-43250SN-07 | 90 m³/h | 15 Pa | 2,500 rpm | 19 W | 38 dB(A) | 230 V | View |
| LWCA-43250UN-06 | 110 m³/h | 21 Pa | 2,800 rpm | 22 W | 39 dB(A) | 115 V | View |
| LWCA-43290SN-07 | 115 m³/h | 11 Pa | 2,300 rpm | 19 W | 37 dB(A) | 230 V | View |
| LWCA-43350SN-07 | 130 m³/h | 15 Pa | 2,400 rpm | 21 W | 39 dB(A) | 230 V | View |
| LWCA-43290UN-06 | 135 m³/h | 21 Pa | 2,800 rpm | 23 W | 40 dB(A) | 115 V | View |
| LWCA-43350UN-06 | 150 m³/h | 19 Pa | 2,700 rpm | 21 W | 41 dB(A) | 115 V | View |
| LWCA-43420SN-07 | 163 m³/h | 21 Pa | 2,300 rpm | 21 W | 40 dB(A) | 230 V | View |
| LWCA-43420UN-06 | 170 m³/h | 20 Pa | 2,600 rpm | 22 W | 42 dB(A) | 115 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
