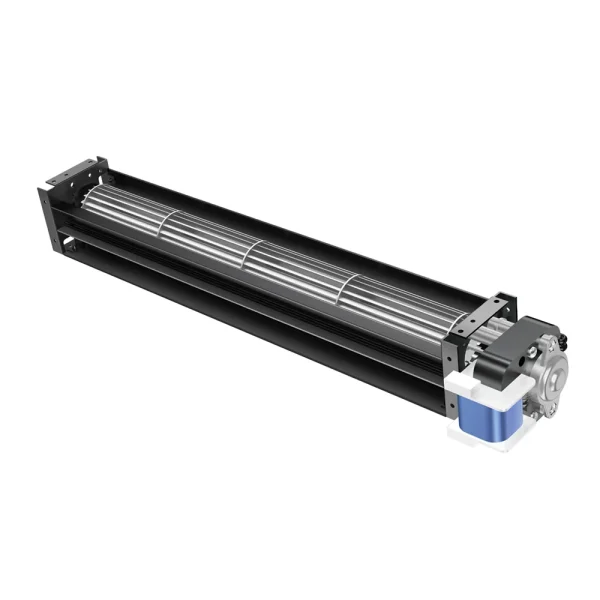

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ43 mm1.7 in
- Max airflow48 m³/h28 CFM
- Max static pressure22 Pa0.09 in. wg
- Voltage115 V
- Speed3,000 rpm
- Input power17 W
- Noise37 dB(A)
LWCA-4390UN-06 AC Cross Flow Fan Ø43 mm
Ø43 mm | AC | Max airflow 48 m³/h | Max static pressure 22 Pa | 37 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Catalogue table LWCA-4390UN-06
Files for LWCA-4390UN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCA-4390UN-06
LWCA-4390UN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø43 mm, rated 115 V AC, maximum airflow 48 m³/h, maximum static pressure 22 Pa, noise 37 dB(A), input power 17 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-4390UN-06 |
|---|---|
| Series | LWCA4390 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 115 V |
| Frequency | 60 Hz |
| Input power | 17 W |
| Speed | 3,000 rpm |
| Max. airflow | 48 m³/h |
| Max. static pressure | 22 Pa |
| Noise | 37 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø43 mm |
| Outlet length | 98mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA4390: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
