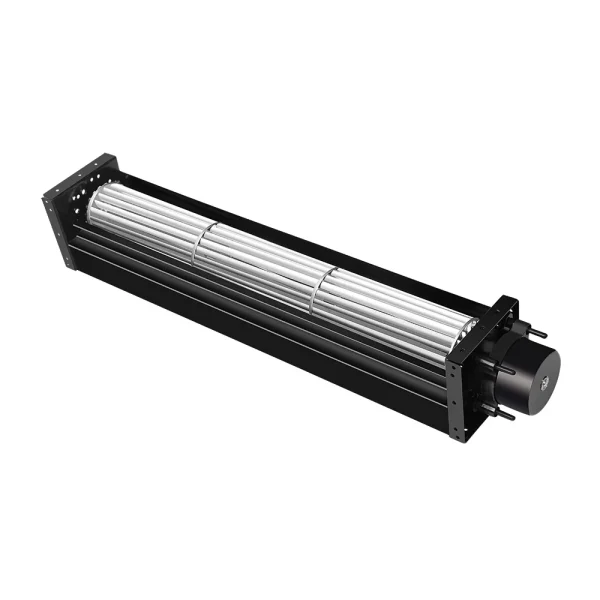

LWCD-30290LN-06 product photo
LWCD-30290LN-06 product photo
LWCD-30290LN-06 product photo
  • ImpellerØ30 mm
  • Max airflow85 m³/h
  • Max static pressure15 Pa
  • Voltage12 V
  • Speed2,400 rpm
  • Input power1.44 W
  • Noise33 dB(A)

LWCD-30290LN-06 DC Cross Flow Fan Ø30 mm

Ø30 mm | DC | Max airflow 85 m³/h | Max static pressure 15 Pa | 33 dB(A)

SKU: LWCD-30290LN-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

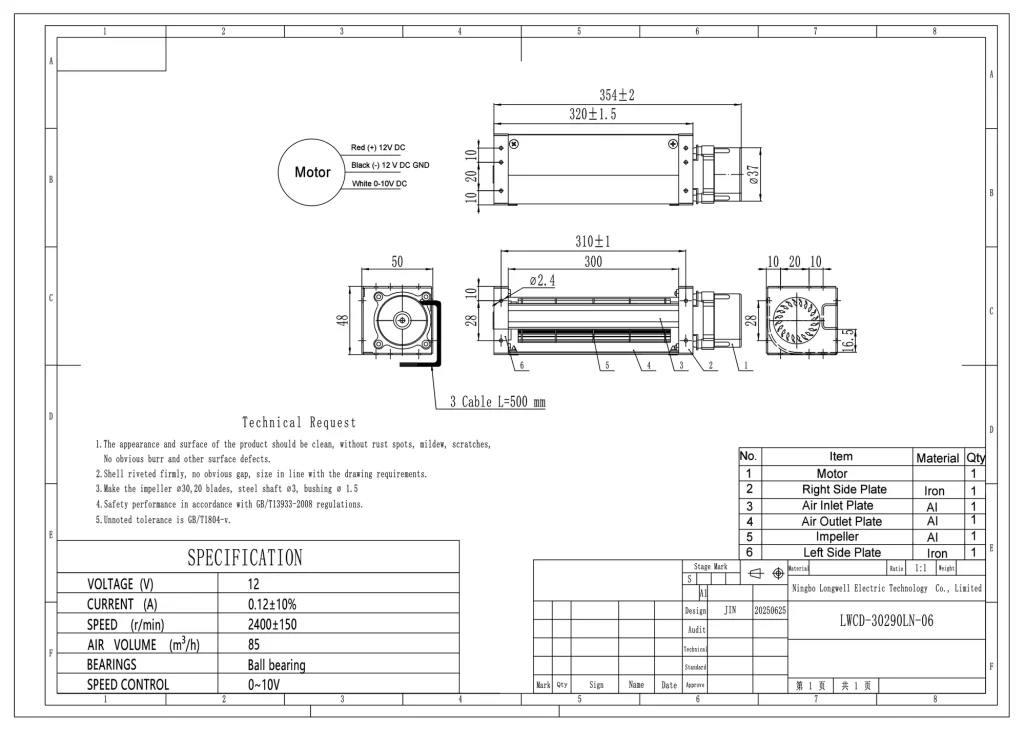

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWCD-30290LN-06 Dimensional drawing
Wiring diagramLead colours and terminal assignment; TK = motor thermal contact.
LWCD-30290LN-06 Wiring diagram

Downloads for LWCD-30290LN-06

PDFDatasheetPDFDrawing · 303 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-30290LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø30 mm, rated 12 V DC, maximum airflow 85 m³/h, maximum static pressure 15 Pa, noise 33 dB(A), input power 1.44 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWCD-30290LN-06
Series LWCD30290
Motor type DC
Inlet Single inlet
Rated voltage 12 V
Current 0.12 A
Input power 1.44 W
Speed 2,400 rpm
Max. airflow 85 m³/h
Max. static pressure 15 Pa
Noise 33 dB(A)
Ambient temperature -25 ~ 60 °C
Storage temperature -25~60℃
Humidity 0 ~ 90 % RH
Impeller diameter Ø30 mm
Outlet length 300mm
Impeller material Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy 40,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment Operating temperature: -20~50 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -25~60 °C
Insulation class B
Bearing Maintenance-free ball bearings
Duty S1
Vibration standard JB/T8689

Typical applications

  • Indoor air-conditioning units
  • Air curtains and door air barriers
  • Elevator and cabinet ventilation
  • Linear air supply in appliances

Series LWCD30290: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø30 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWCD-30290LN-06 this model 85 m³/h15 Pa 2,400 rpm1.44 W33 dB(A)12 V
LWCD-30290MN-07 85 m³/h15 Pa 2,400 rpm1.68 W33 dB(A)24 V View
LWCD-30350MN-07 105 m³/h16 Pa 2,400 rpm1.92 W34 dB(A)24 V View
LWCD-30350LN-06 105 m³/h16 Pa 2,400 rpm1.56 W34 dB(A)12 V View
LWCD-30420MN-07 125 m³/h17 Pa 2,400 rpm2.16 W34 dB(A)24 V View
LWCD-30420LN-06 125 m³/h17 Pa 2,400 rpm1.68 W34 dB(A)12 V View
LWCD-30530MN-06 137 m³/h17 Pa 2,400 rpm2.88 W32 dB(A)24 V View
LWCD-30610MN-06 158 m³/h18 Pa 2,400 rpm3.12 W33 dB(A)24 V View
LWCD-30650MN-06 168 m³/h18 Pa 2,400 rpm3.12 W34 dB(A)24 V View
LWCD-30718MN-06 185 m³/h19 Pa 2,400 rpm3.36 W35 dB(A)24 V View
LWCD-30800MN-06 207 m³/h19 Pa 2,400 rpm1.32 W36 dB(A)24 V View
LWCD-30854MN-06 221 m³/h20 Pa 2,400 rpm4.56 W36 dB(A)24 V View
LWCD-30920MN-06 238 m³/h20 Pa 2,400 rpm5.04 W37 dB(A)24 V View
LWCD-30986MN-06 255 m³/h21 Pa 2,400 rpm5.28 W37 dB(A)24 V View
LWCD-301082MN-06 279 m³/h21 Pa 2,400 rpm5.76 W38 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
